Highlights

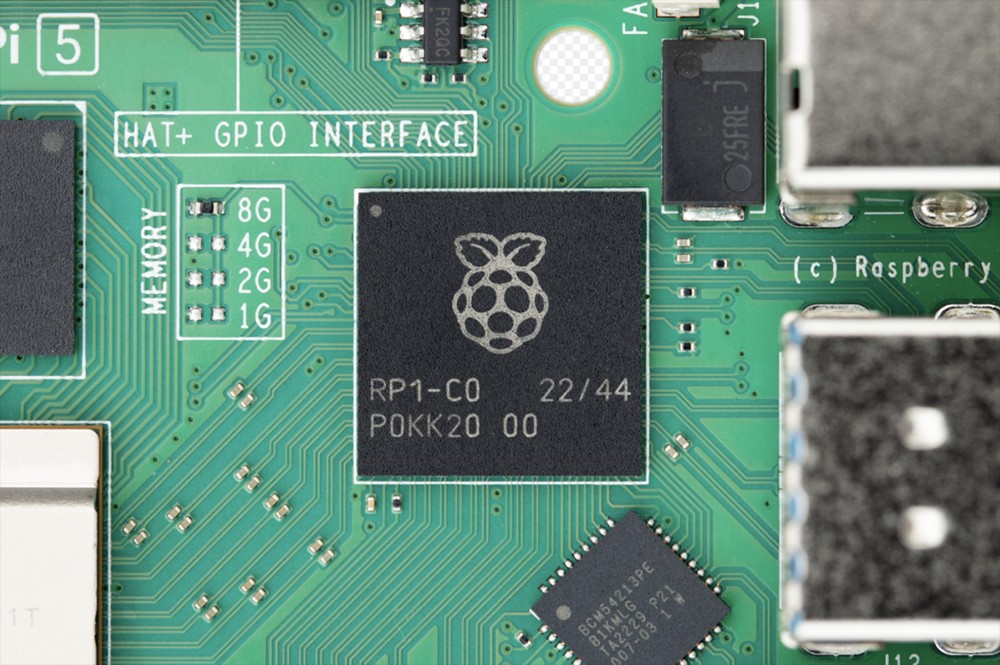

New generation of Raspberry Pi 5 beyond the pinnacle of the Raspberry Pi 4, is the latest addition to the Raspberry Pi family of computers. The new CPU is 2-3 times more powerful, the GPU has been significantly upgraded, and the camera, display, and USB interfaces have all been improved. The interface innovation is made possible by Raspberry Pi's own RP1 I/O control chip, the first time a Raspberry Pi chip has been used in a flagship product!
- The latest release of Raspberry Pi OS is made to get the most from Raspberry Pi 5, delivers a superb desktop performance, making it an ideal computer for work, leisure, enterprise, and more.
- Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation.
- Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same.
- Raspberry Pi 5 allows you to connect an M.2 SSD to your Raspberry Pi, giving you speedy data transfer and super-fast boot.
- Raspberry Pi 5 has also added more connection options, including USB 3.0 port, Gigabit Ethernet port, and HDMI output. These interfaces provide you with more options for expansion and external device connectivity.
Major differences between Raspberry Pi 4 and Pi 5
The Raspberry Pi 5 is a credit-card-sized, versatile single-board computer. Just like its predecessors, it is suited for a wide range of applications. When compared to the Pi 4, the big difference is that it is much faster. Also, it has more interfaces and can now support devices such as M.2 NVMe SSDs.
- Raspberry Pi 5 offers significant hardware upgrades compared to Pi 4, including a faster processor, faster RAM, and more graphics power.
- Pi 5 has a dedicated I/O chip that increases bandwidth and allows for faster storage devices and USB peripherals.
- Pi 5 has additional features like a faster microSD port, faster USB 3.0 ports, PCIe connector, onboard real-time clock, standalone UART connector, and power button, but requires a new PSU for optimal performance.
Specification
| General | Brand: Raspberry Pi Type: Development Board Model: 5 |
| Specification | Processor: Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU GPU: VideoCore VII, supporting OpenGL ES 3.1, Vulkan 1.2 Memory: 8GB LPDDR4X-4267 SDRAM Display: Dual 4Kp60 HDMI display output with HDR support, 4Kp60 HEVC decoder WiFi: Dual-band 802.11ac Bluetooth: 5.0 Interface: microSD card slot, with support for high-speed SDR104 mode 2 x USB 3.0 ports, supporting simultaneous 5Gbps operation 2 x USB 2.0 ports Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT) 2 x 4-lane MIPI camera/display transceivers 1 x PCIe 2.0 interface for fast peripherals (requires separate M.2 HAT or other adapter) Power: 5V/5A DC, USB-C, with power delivery support Raspberry Pi standard 40-pin header Real-time clock (RTC), powered from external battery |
| Weight & Size | Product Weight: 80g Package Size(L x W x H): 9.5 x 7 x 2.7cm |
| Package Contents | 1 x Development Board 1 x User Manual |
Customer Photos
Customer Videos
Customer Reviews
| 5 star | 5 | |
| 4 star | 0 | |
| 3 star | 0 | |
| 2 star | 0 | |
| 1 star | 0 |
- All (5)
- Images (0)
- Videos (0)
Questions & Answers
FAQ
Q: Will older versions of Raspberry Pi OS work with Raspberry Pi 5?
You will need the latest version of Raspberry Pi OS, Bookworm, for your Raspberry Pi 5.
Q: Will my Raspberry Pi 4 power supply work with Raspberry Pi 5?
Raspberry Pi 5 is a higher-performance computer than Raspberry Pi 4, and you may have problems using an under-powered supply. We recommend a high-quality 5V 5A USB-C power supply, such as the new Raspberry Pi 27W USB-C Power Supply.
Q: Will my Raspberry Pi 5 fit my Raspberry Pi 4 case?
Raspberry Pi 5 won't fit the Raspberry Pi 4 Case. We recommend the Raspberry Pi Case for Raspberry Pi 5, designed to help you get the most out of our newest computer.
Q: Does Raspberry Pi 5 need active cooling?
Raspberry Pi 5 is faster and more powerful than prior-generation Raspberry Pis, and like most general-purpose computers, it will perform best with active cooling. The Raspberry Pi Case for Raspberry Pi 5, with its integrated fan, is one way to provide this.
