Runcam Hybrid 4K/30FPS Dual Lens FOV 145 Degree HD Recording 6ms Latency QR Code Parameter Settings FPV Camera For Racing Drone - Black

General

Brand: Runcam
Item Name: Hybrid
Color: Black
Quantity: 1pc

Specification

HD sensor: SONY 8MP
Analog sensor: SONY 1.3MP
Field of View (FOV): HD Recording FOV 145°(FPV FOV 150° @ 4: 3)
Video Resolution: 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps
Video File Format: MP4
TV Mode: NTSC (720*480)/PAL (720*576) Switchable

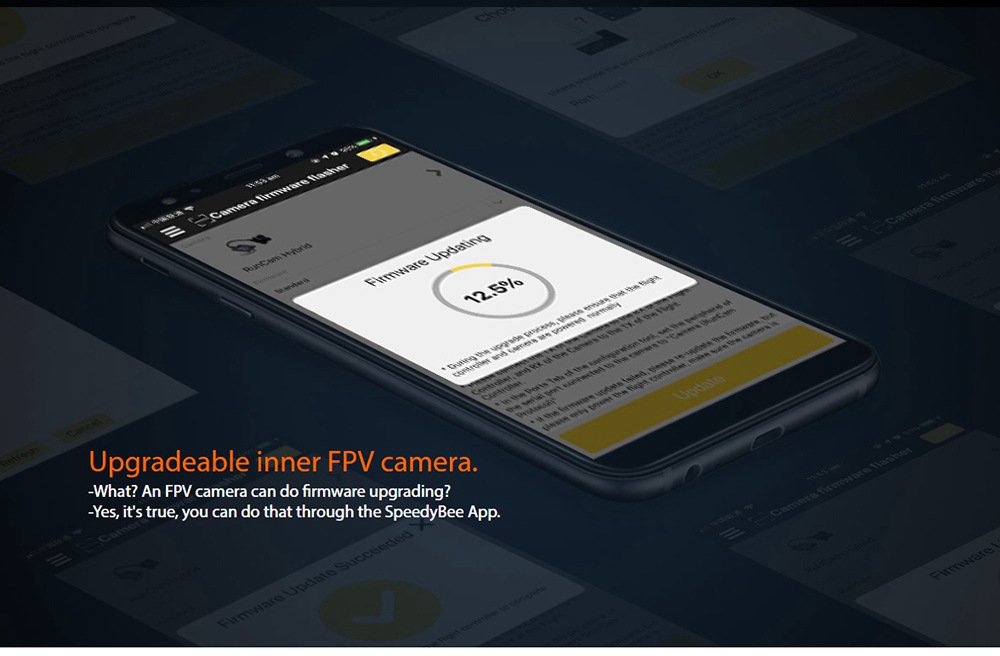

Interface: HD supports UART remote control; FPV(Analog) supports UART fimrware update.
Max Micro SD Card Supported: Up to 128G. U3 recommended (2.7K60/1080P120 requires U3 or above; other solutions require U1 or above) Please make sure that the file format of the SD card is FAT32, otherwise, it will easily cause errors.

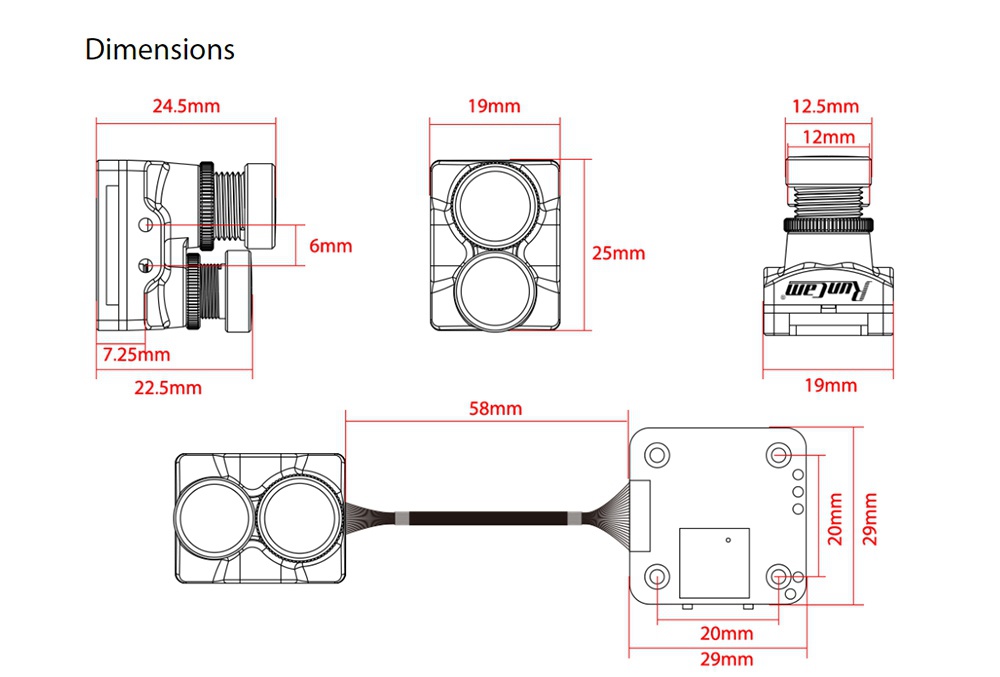

Mounting Holes Distance: 20*20mm
PCB Size: 29*29mm
Lens Module Size: 19*25mm
Lens Specs: HD Lens: M10/FPV Lens: M8
Power Input: DC 5-20V (Non-direct power supply from 4s battery or above. Powered directly with the battery will generate surges and burn the camera.)
Working Current: 480mA @5V / 140mA @12V
Weight: 18g

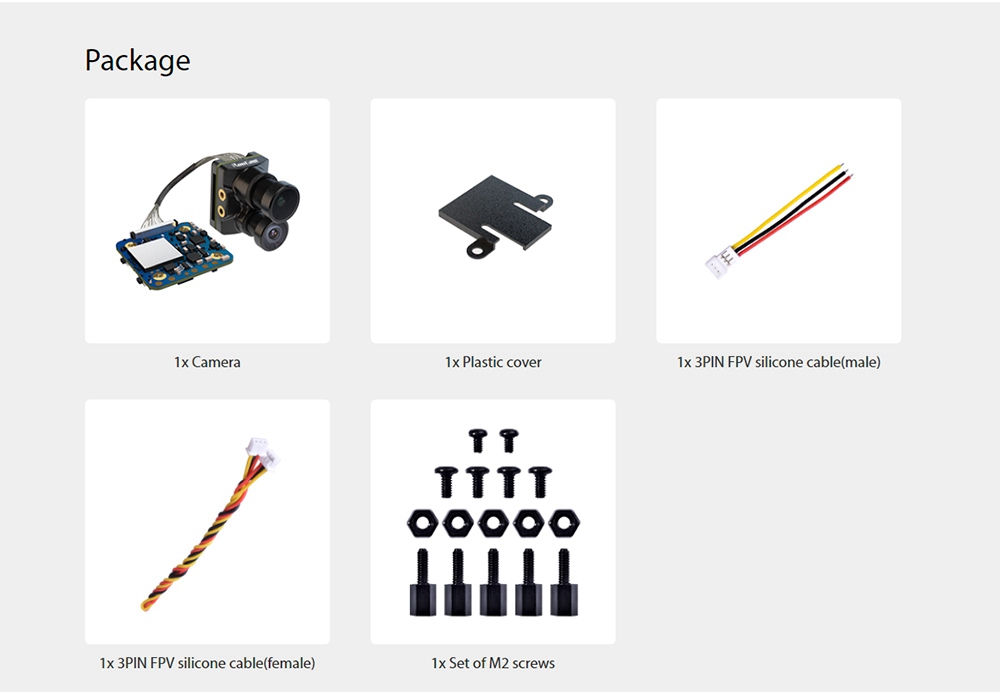

Package Contents

1 x Camera
1 x Plastic Cover
1 x 3PIN FPV Silicone Cable(Male)
1 x 3PIN FPV Silicone Cable(Female)
1 x Set of M2 Screws
1 x Manual
