Highlights

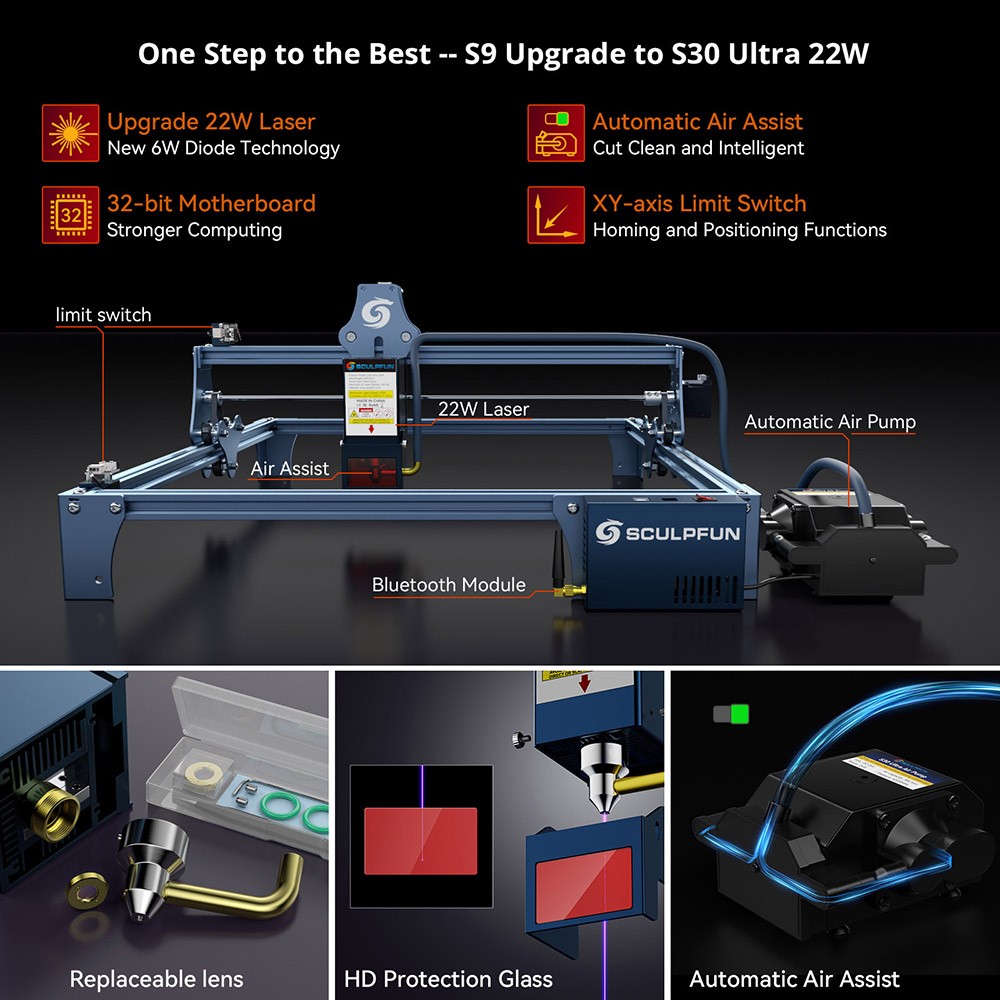

Upgrade S9 to S30 Ultra 22W

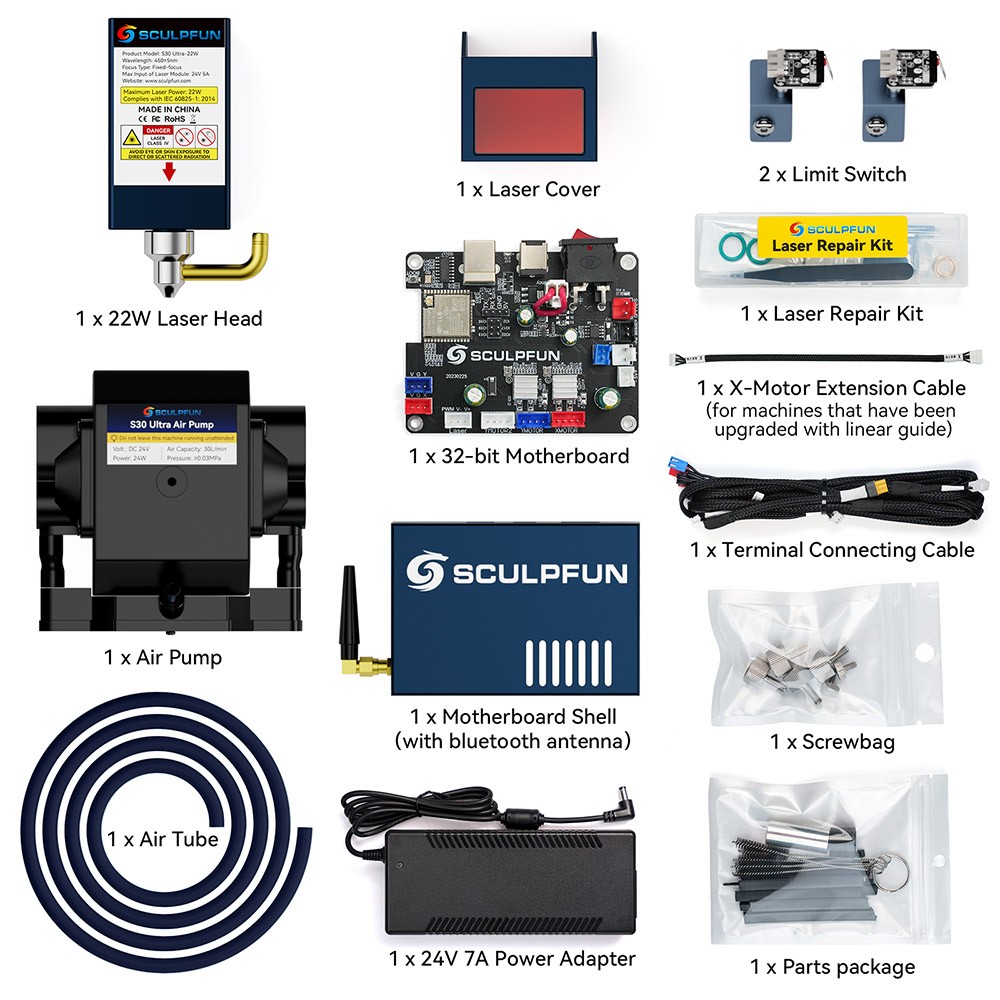

SCULPFUN S9 upgrade kit empowers the S9 to deliver the main functions that the Sculpfun S30 Ultra 22W has. The package includes the S30 Ultra 22W laser module, S30 Ultra motherboard, S30 Ultra air pump, air tube, limit switch, S30 Ultra power adapter, cable, screw bag, laser repair kit, and other essential items.

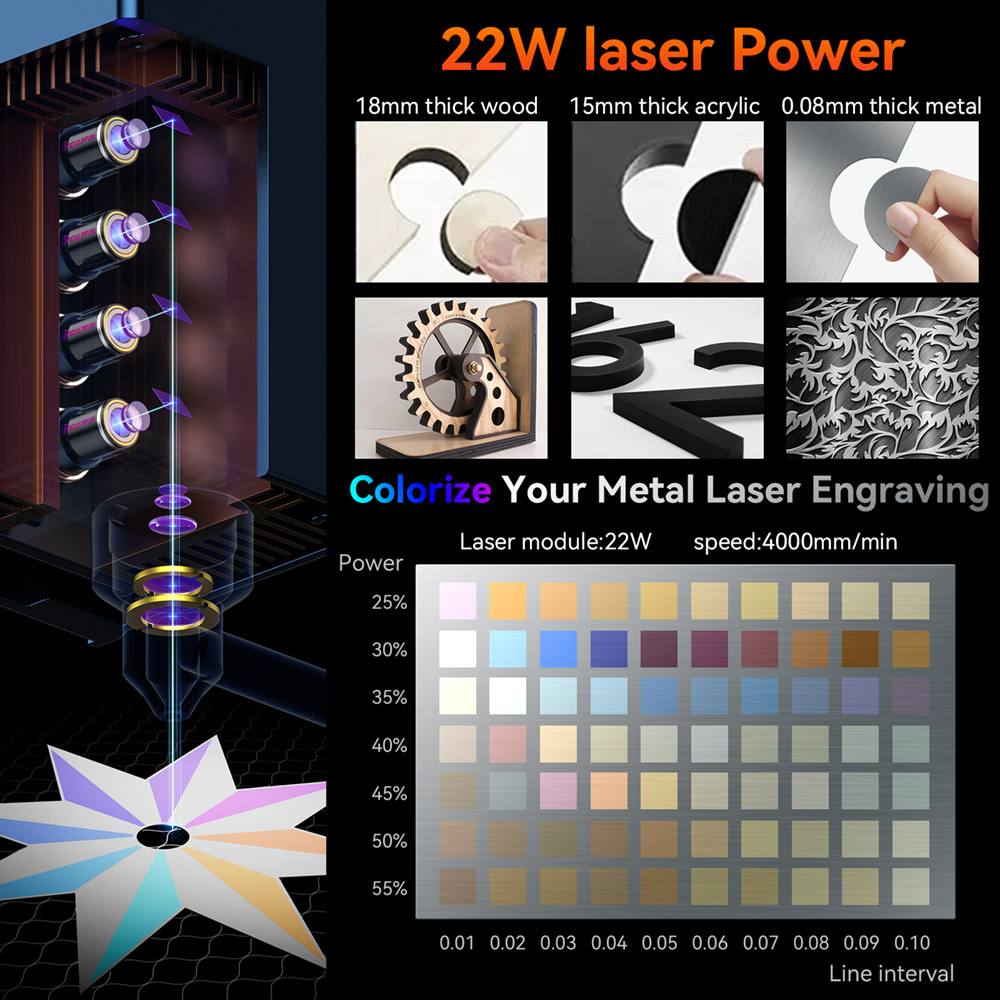

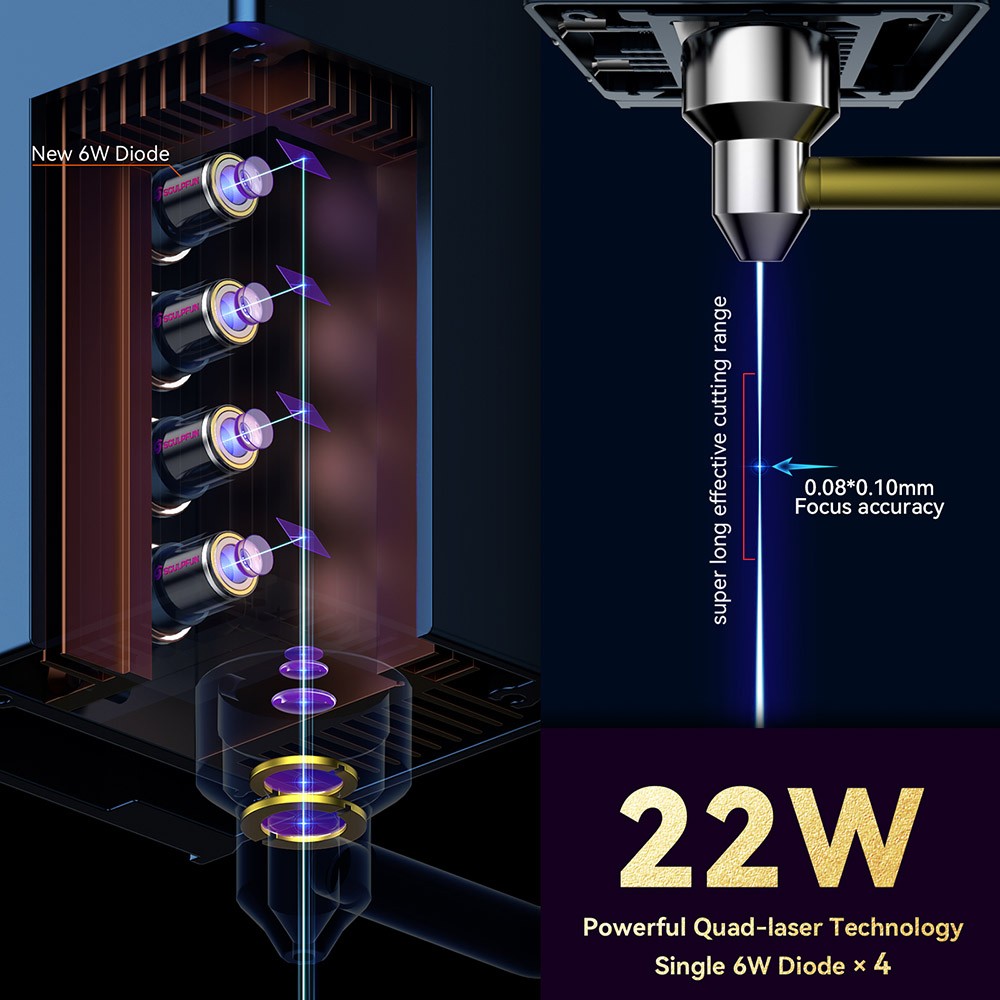

Enhanced Ultra 22W Laser

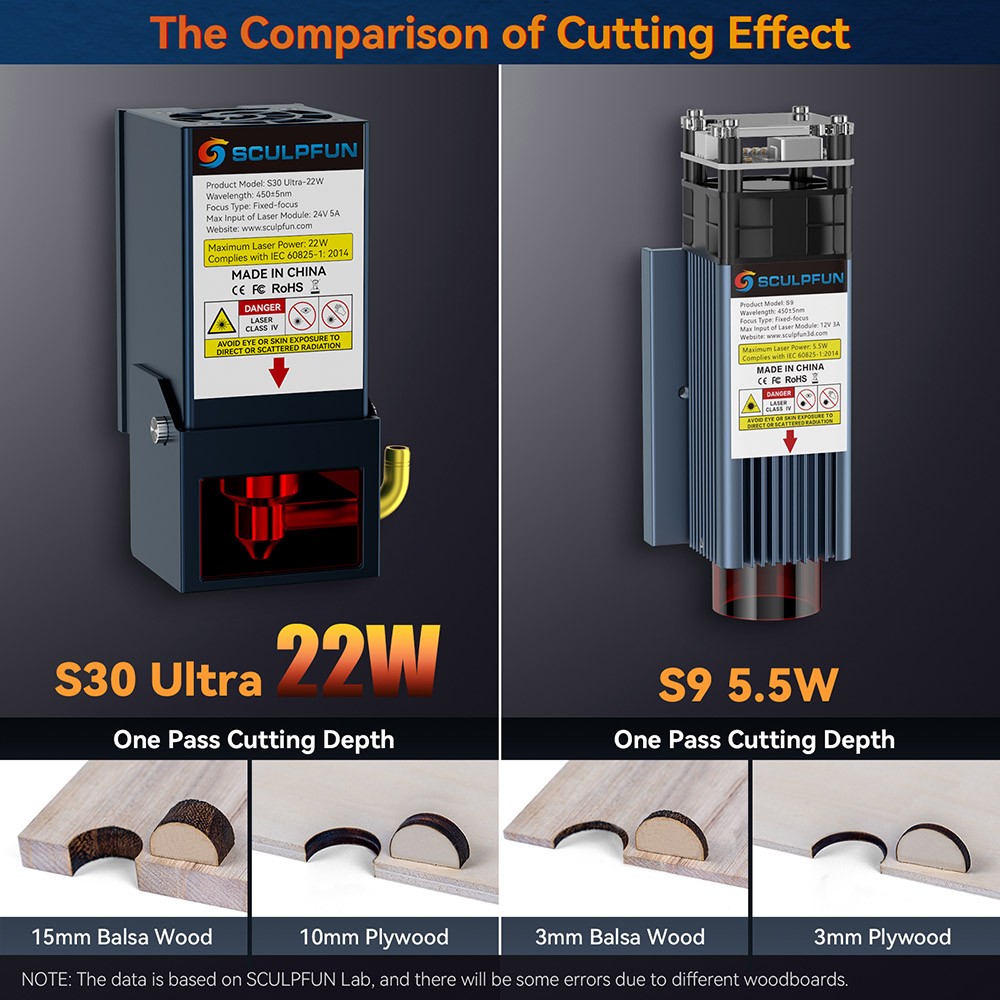

The S9 laser machine upgrade kit adopts a single enhanced 6W diode, which makes its actual laser power and cutting ability higher. Compared with the S9 laser engraver (5.5W cuts 3mm balsa wood and 3mm plywood in one pass time), S9 upgrade kit 22W can cut 15mm balsa wood and 10mm plywood in one pass time.

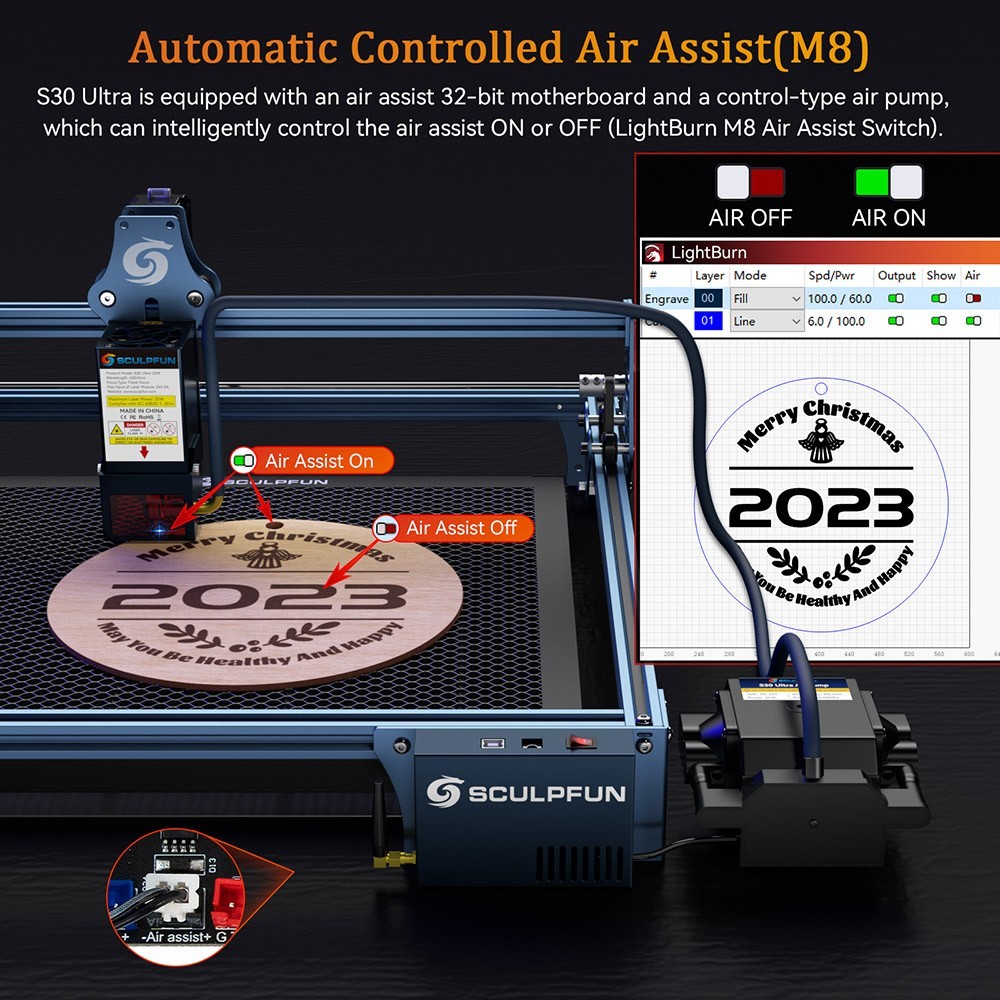

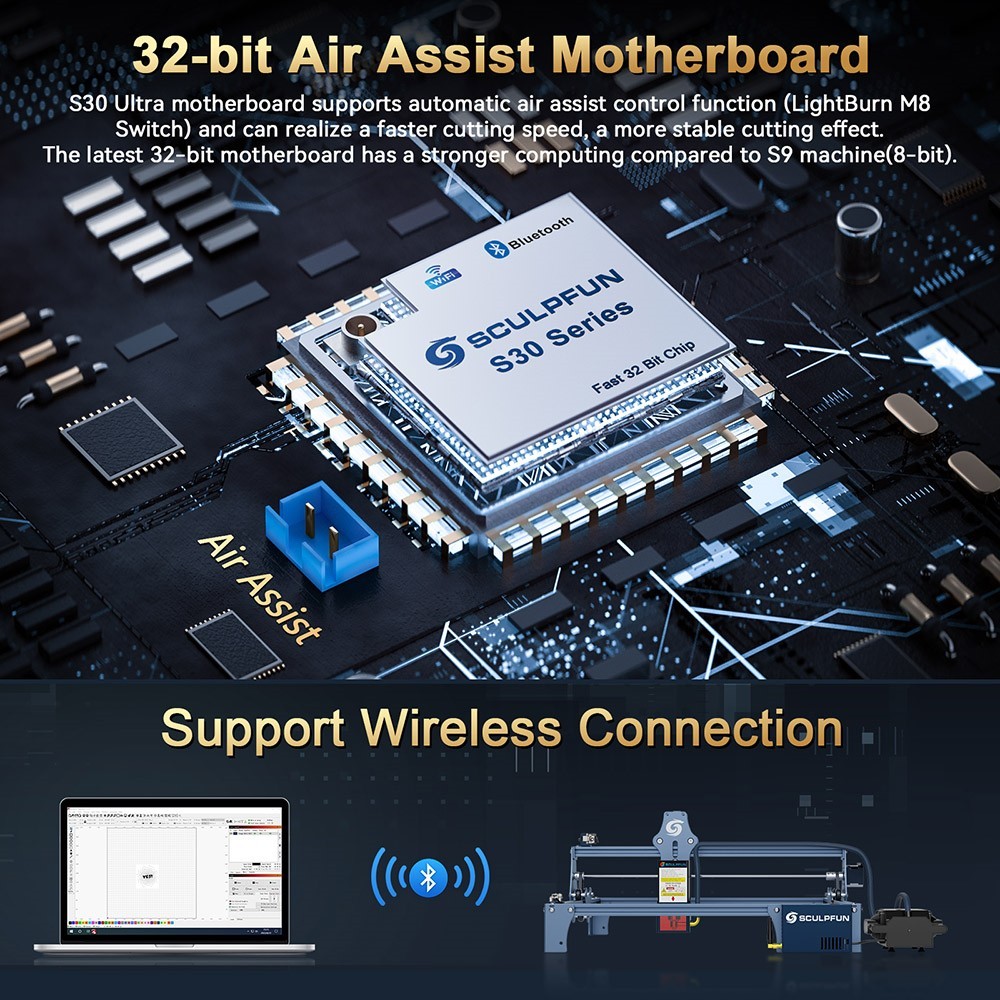

Upgraded 32-bit Air Assist Motherboard
The latest 32-bit motherboard has stronger computing and greatly improves the overall performance compared with S9(8-bit) main control board, which can realize faster cutting speed and a more stable cutting effect. It supports an automatic air assist control function, supports Bluetooth wireless connection to control the machine, and is not limited by the distance of the USB cable.

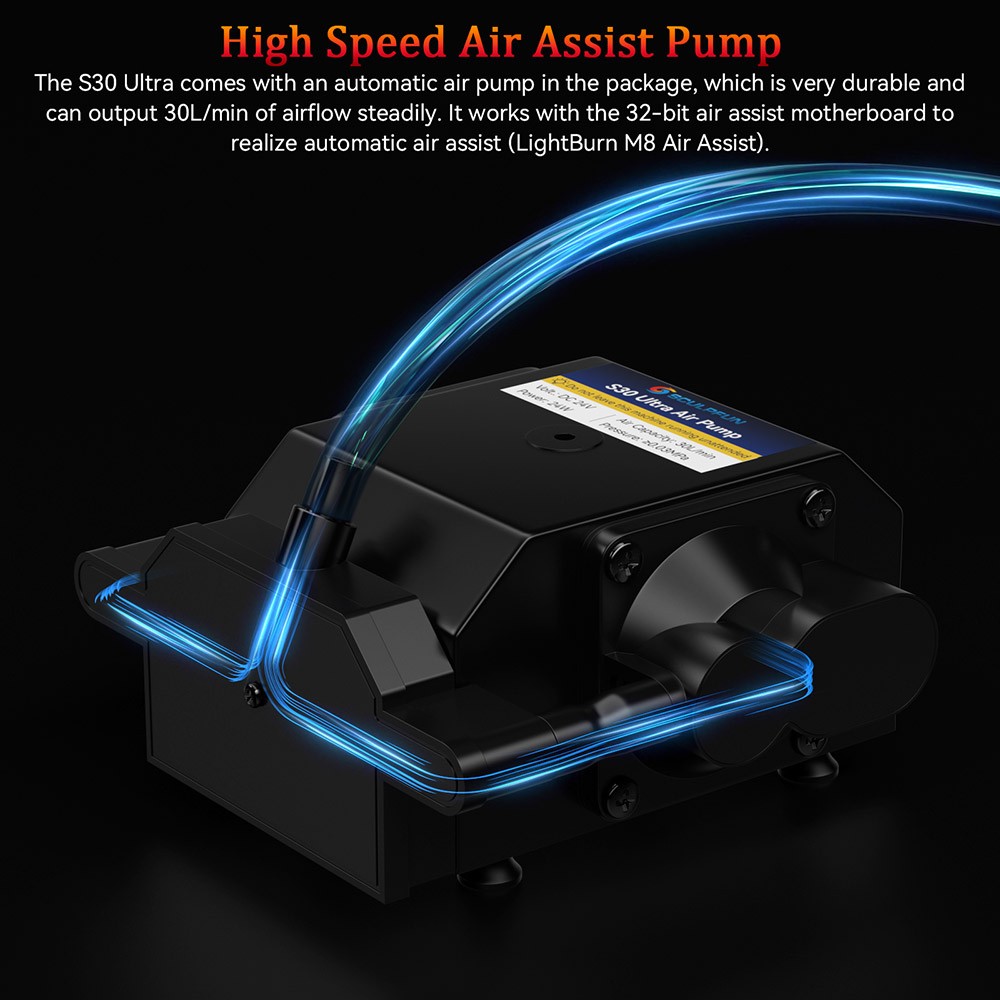

High-speed Air Assist Pump
Significantly improve the cutting penetration and cutting efficiency with faster cutting speed and cleaner cutting surfaces. The high-speed airflow of 13.5m/s with a high-pressure air-assist nozzle makes it can cut plywood and MDF panels more than 5 times faster, and cutting surfaces are cleaner and not smoky.

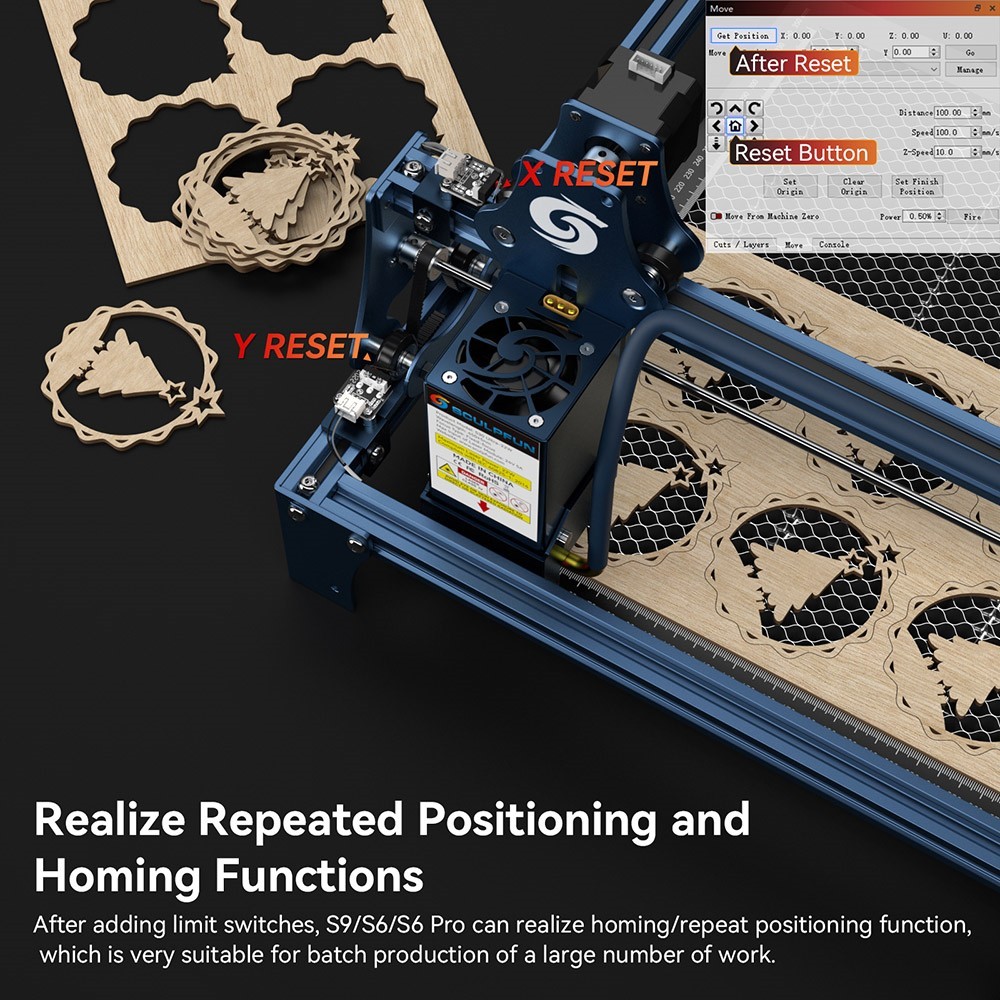

Standard S9 XY-axis Limit Switch
It is perfectly suitable for an S9 laser machine and can be installed and used directly. After installing the limit switch, the machine will open the homing and positioning function, which is very suitable for repeated positioning or batch manufacturing work.

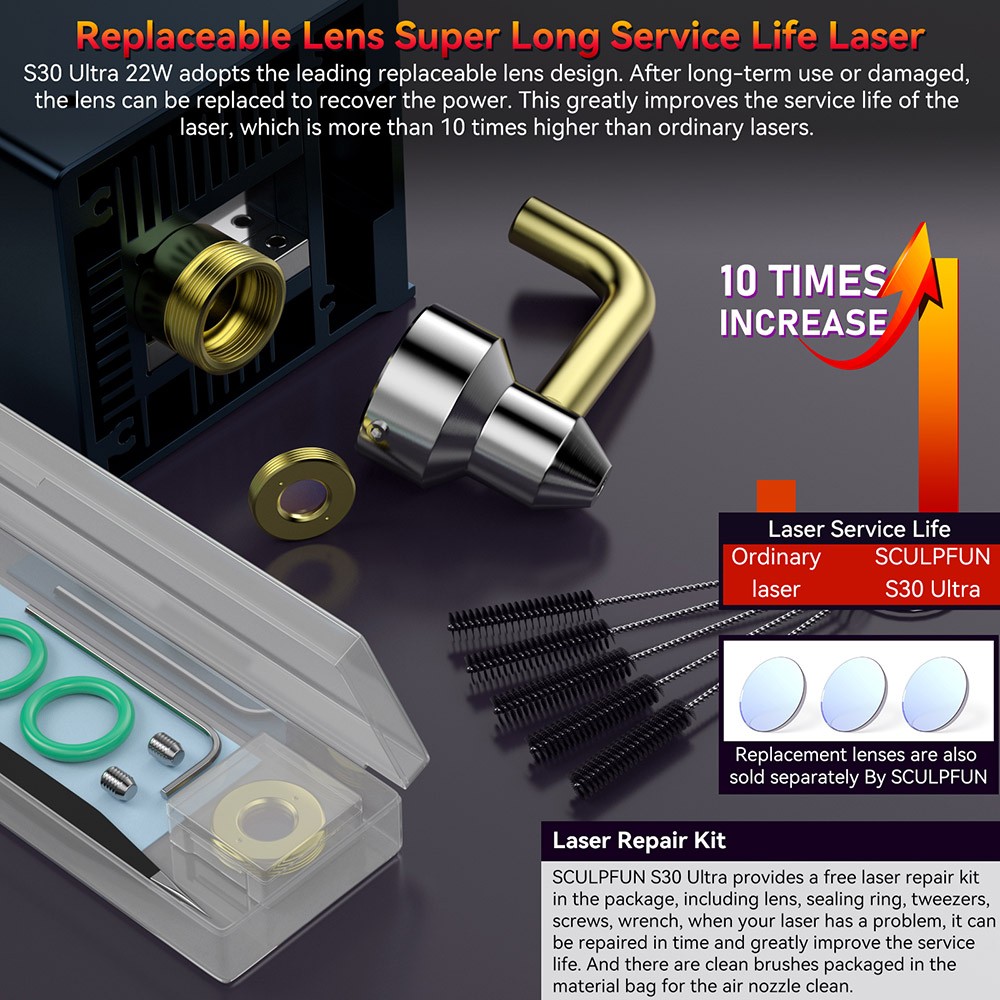

Replaceable Protective Lens
The S9 machine upgrade kit adopts an innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore its cutting power.

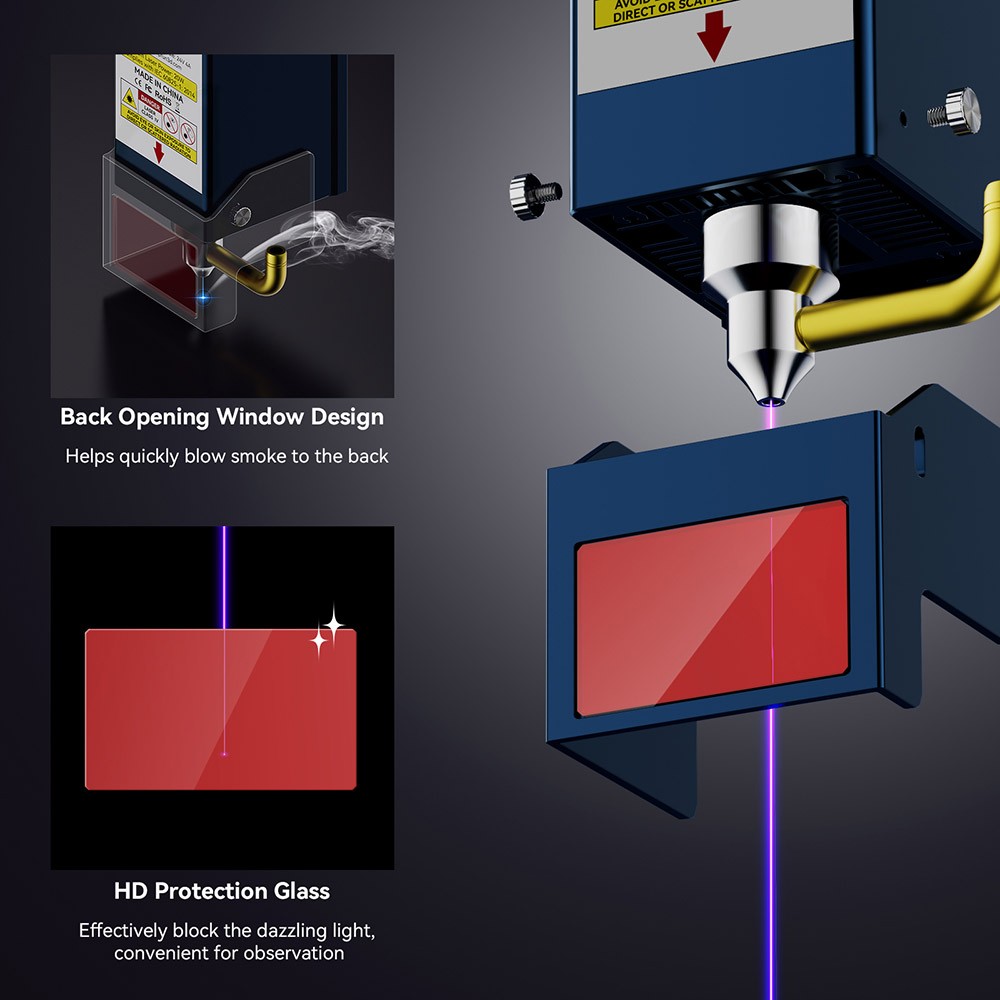

New Upgrade Laser Eye Shield
SCULPFUN S9 upgrade kit is equipped with a detachable glass eye shield, which will not be dazzling even if you don't wear glasses. In addition, you can easily disassemble it if you don't need it.

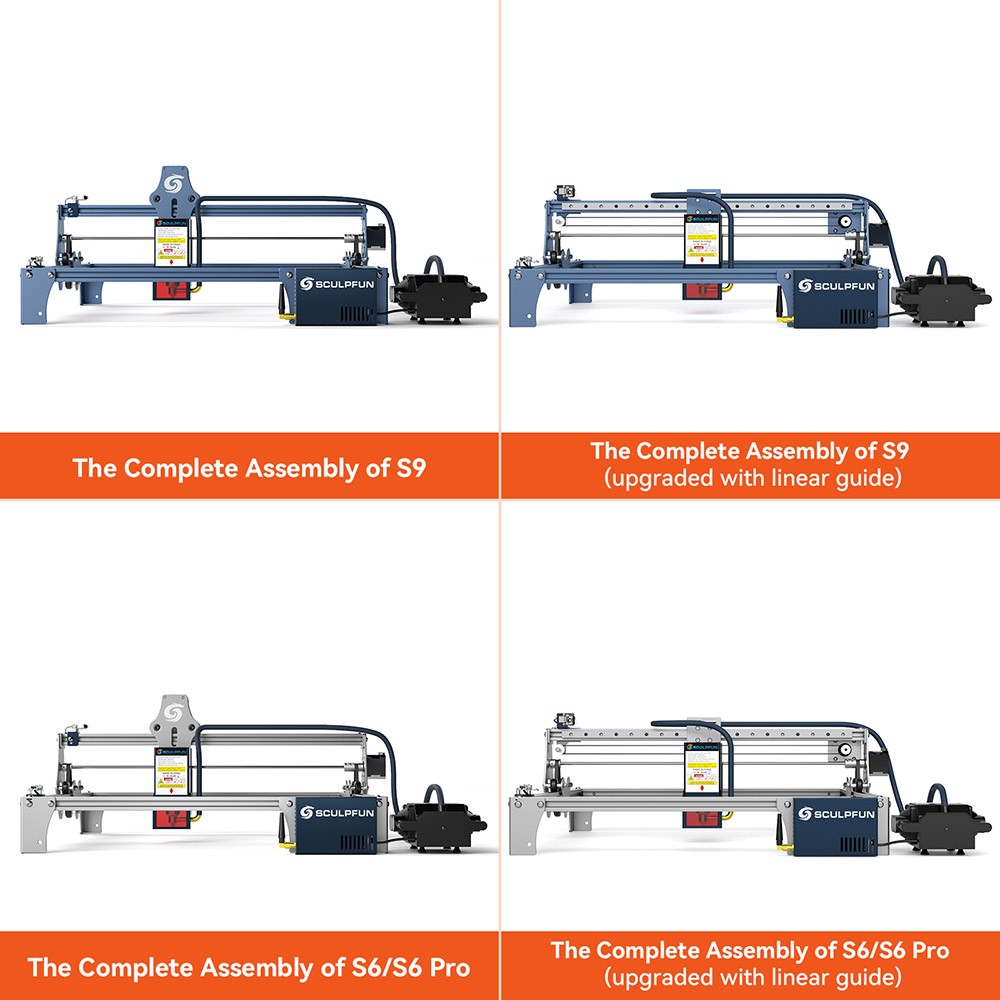

Compatibility Design
The S9 upgrade kit has been designed to maintain certain compatibility, and except for the S9 machine, it can also be upgraded to the SCULPFUN S6/S6Pro/S30/S30Pro/S30Pro Max or similar 2-axis laser machines. (Note: S6/S6PRO/S9 does not need to use an adapter cable, and S30/S30Pro/S30Pro Max needs to use an adapter cable, otherwise the X-axis direction will be reversed.)
Note:
- 1. Because of the powerful laser, it is forbidden to run the engraving machine unattended. Please pause it if you're not around.
- 2. Please refer to the user manual for detailed machine instructions and parameter settings.
- 3. Please install the laser protective cover before operating the machine; if not, a pair of goggles is needed.
- 4. Do not touch the laser with your hands, or it may burn your hands.
- 5. Please avoid a strong impact on the machine.
- 6. Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- 7. Do not apply the laser directly to any specular reflective objects as this may cause injury to the operator or burn the laser.
- 8. Due to the installation of limit switches and the larger size of the laser head, the actual working area of the machine will be reduced, which is about X: 375mm Y: 380mm.
Specification
| General | Brand: SCULPFUN Type: S9 Upgrade Kit Model: S9-S30 Ultra 22W Color: Blue |
| Specification |
Applicable Machines: SCULPFUN S9/S6/S6Pro/S30/S30Pro/S30Pro Max
Laser Information:
Diode laser output power: 22W
Laser focus: 0.08x0.10mm
Laser wavelength: 455±5nm
Focusing method: 40mm fixed focus column + sliding device
Laser protective cover: Equipped with a detachable laser protective cover to protect the eyes. You can adjust it up and down, or remove the eye shield.
Laser shell material: 6063 aluminum
Air Pump:
Type: main board controlled air pump, voltage 24V, flow rate 30L/min
Air hose inner diameter: 7.5mm
Motherboard:
32-bit air assist motherboard, support wireless Bluetooth connection to control machine, not limited by the distance of USB cable
Power Supply:
Power input: 100-240V AC, 50/60HZ
Output: 24V 7A
Cutting/Engravable Materials:
Cutting materials: all kinds of wood (including walnut, cherry wood, and other high-density wood), MDF, black acrylic board, cardboard, bamboo chips, leather, some plastic boards, fiberglass board
Carving materials: all kinds of wood (including walnut, cherry wood, and other high-density wood), MDF, bamboo, cardboard, plastic, leather, fiberglass board, aluminum oxide, stainless steel(non-specular surface), ceramics, dark stone
Operating Software: LightBurn (with air assist function M8), LaserGRBL, Benbox, GrblController, LiteFire, support Windows system, support MAC system. The supporting file formats are NC, BMP, JPG, PNG, DXF, and other picture formats.
Data Transmission Method: USB connection or Bluetooth wireless connection
|
| Weight & Size | Package Weight: 3.32kg Package Size(L x W x H): 390*300*117mm |
| Package Contents |
SCULPFUN S9 Upgrade Kit: 1 x Laser Repair Kit 1 x Laser Srew Bag 1 x Material Bag 1 x User Manual |
