Highlights
- Standard Arduino expansion board interface, compatible with Arduino UNO, Arduino MEGA2560 and or arduino compatible boards;
- On-board level conversion circuit, that is the interface logic level can be 5V or 3.3V;
- Communication interface is standard SPI, only support SPI mode
- SD card, Micro SD card and SDHC card supportable
- 4.5~5.5 DC power supply
Specification
Relevant information to download: //bit.ly/1BNItdt
Description:

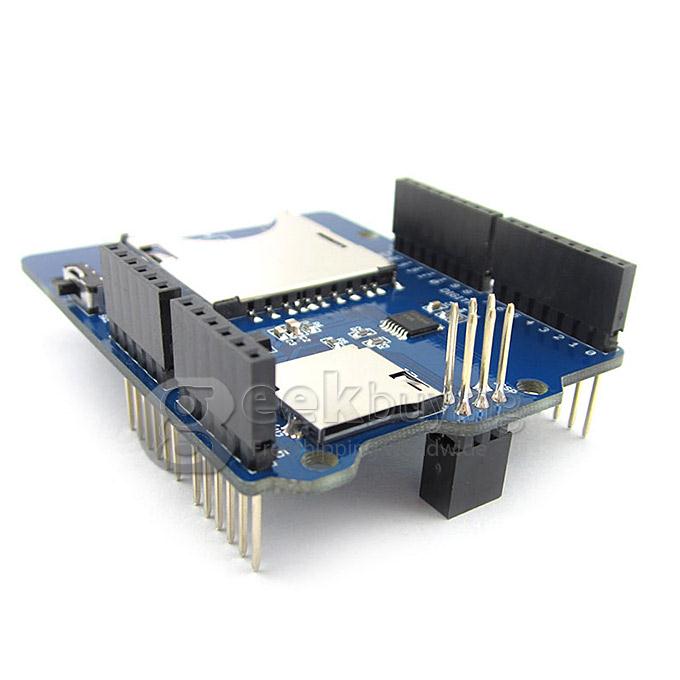

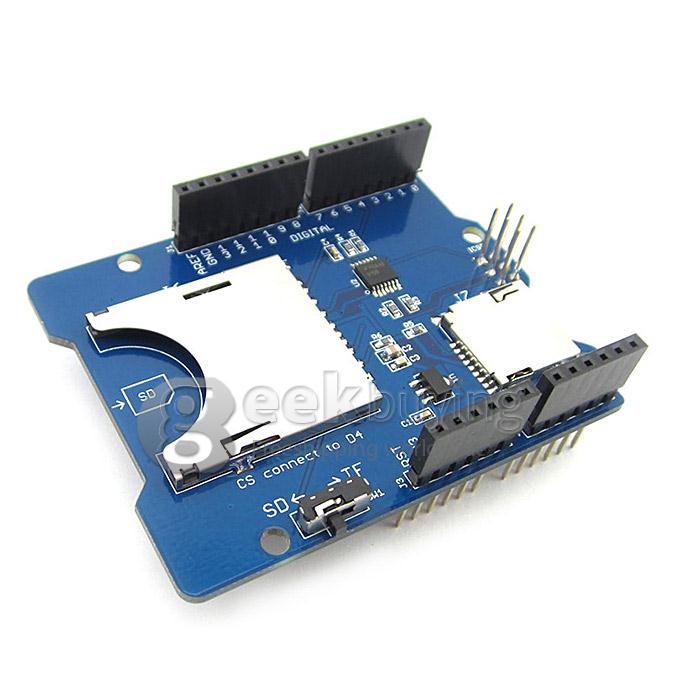

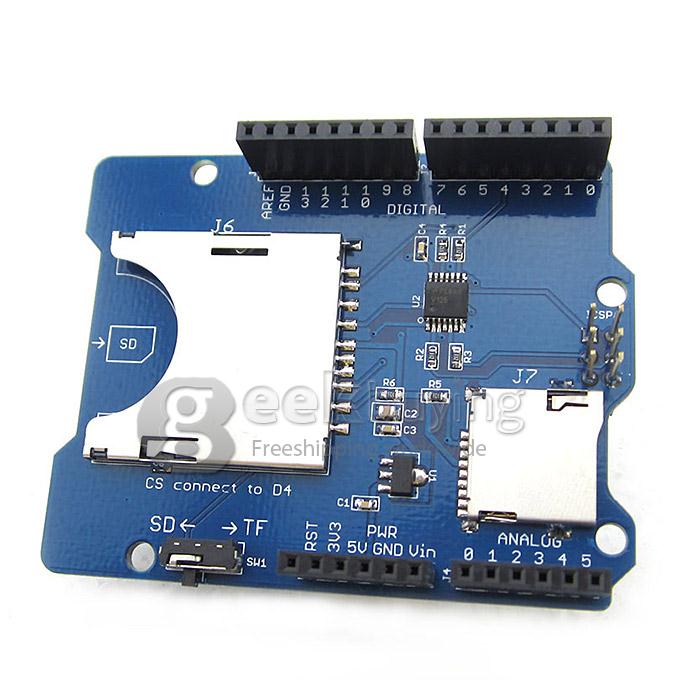

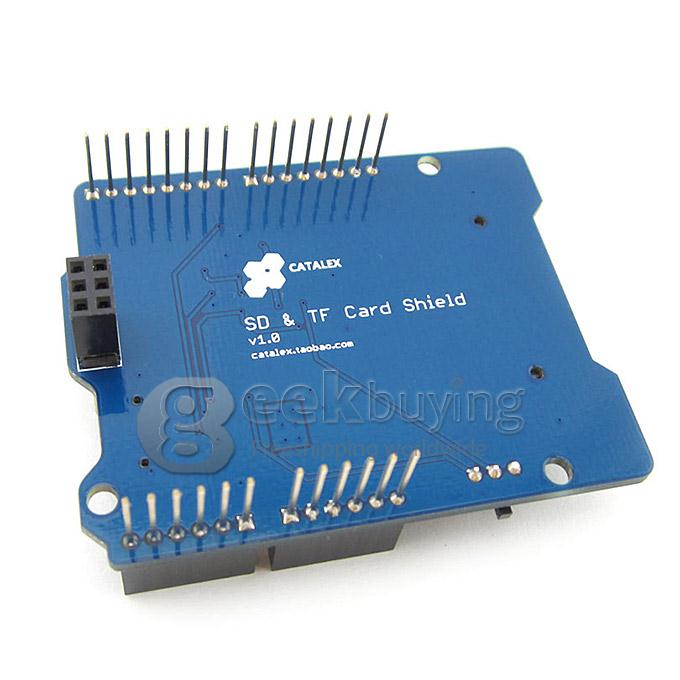

This module is compatible Arduino Shield interface; Use the on-board toggle switch to select the SD card type.Directly plug in to the Arduino UNO motherboard, Arduino MEGA 2560 or other motherboard to extend space of data storage; Easily finish reading / writing operation via the file system(SD library of Arduino IDE); Widely used in digital phone albums, sensor long time / high frequency adopting system, text reader etc needs large amount of data storage;
|
Item |
Min |
Typical |
Max |
Unit |
|
Power Supply(VCC) |
4.5 |
5 |
5.5 |
VDC |
|
Current(VCC=5V) |
0.2 |
80 |
200 |
mA |
|
Supported Card Type |
SD(≤2G); SDHC(≤32G); Micro SD(≤2G); Mirco SDHC(≤32G) |
/ |
||
|
Dimensions |
69X54X24 |
mm |
||
|
Net Weight |
20 |
g |
||
What's in the box?
- 1 x SD & TF Card Shield
