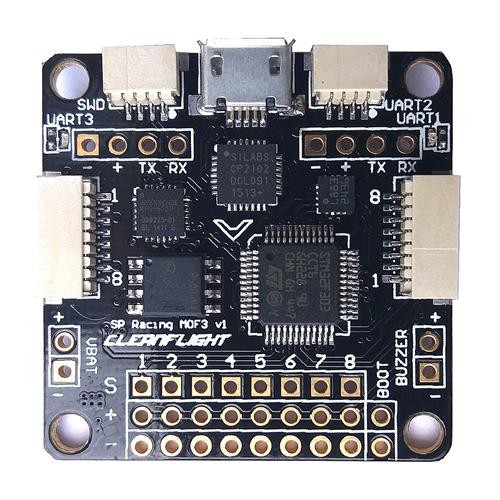

SP Pro Racing F3 Acro Flight Controller Board for Aircraft FPV Quadcopter RC TR

Highlights

• Large-capacity flash memory.
• MPU6050 accelerometers and gyroscopes.
• MicroUSB socket.
• 4x 4PIN jst-sh socket (I2C, SWD, 2xuart).
• 2x 8pin jst-sh socket (PPM, PWM, serial port to receive, GPIO, ADC, 3V, 5V, GND).
• 8x 3PIN Although the rows of holes for ESC / Servo connections.
• 2x 4PIN Although the 2x serial port pin header holes.
• 22 for battery voltage and buzzer pin head hole.
• Flight Performance: The SP Racing F3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it's on rails.
• Configurable: The SP Racing F3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (FOR Windows/for OSX/for Linux).
• Flight Logging: On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswork.
• Developer Friendly: Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.
• Broad RC receiver Support. Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers.
• STM32 F3 support next-generation processor Attitude efficient hardware floating-point operations, and faster ARM Cortex M4 core computing.
• Integration with OSD and power distribution boards stacked perfect design
• 16 PWM I / O lines ESC, Servo and traditional reception service. 8 using standard pins. 8 distributed over the side-mounted connector.
• Fully supports OneShot ESC ESC, and to provide full support for the PID parameter tuning.
• Support SBUS, SumH, SUMD, spektrum1024 / 2048, XBus, PPM, PWM receiver. No external inverter (already built).
• Specialized programmable LED strip lights provide a variety of support to the aircraft heading, competitions and night flying.
• Dedicated OLED I2C port display connection without the need to use other batteries.
• Battery voltage and current monitor port.
• You can use high-precision sonar when close to the ground.
• Buzzer alerts and notifications.
• Developer-friendly debug port (SWD) and startup mode selection, not deadlock bootloader.
• A symmetrical design of ultra-neat wiring.
• Electric wire pin, JST-SH socket or connect the pads. Optional straight needle or looper.
• Barometemounted on the bottom plate, easy to wind septum.
• It supports a variety of aircraft, three, four, six-axis, eight-axis, fixed-wing aircraft and more.

Specification
