Highlights

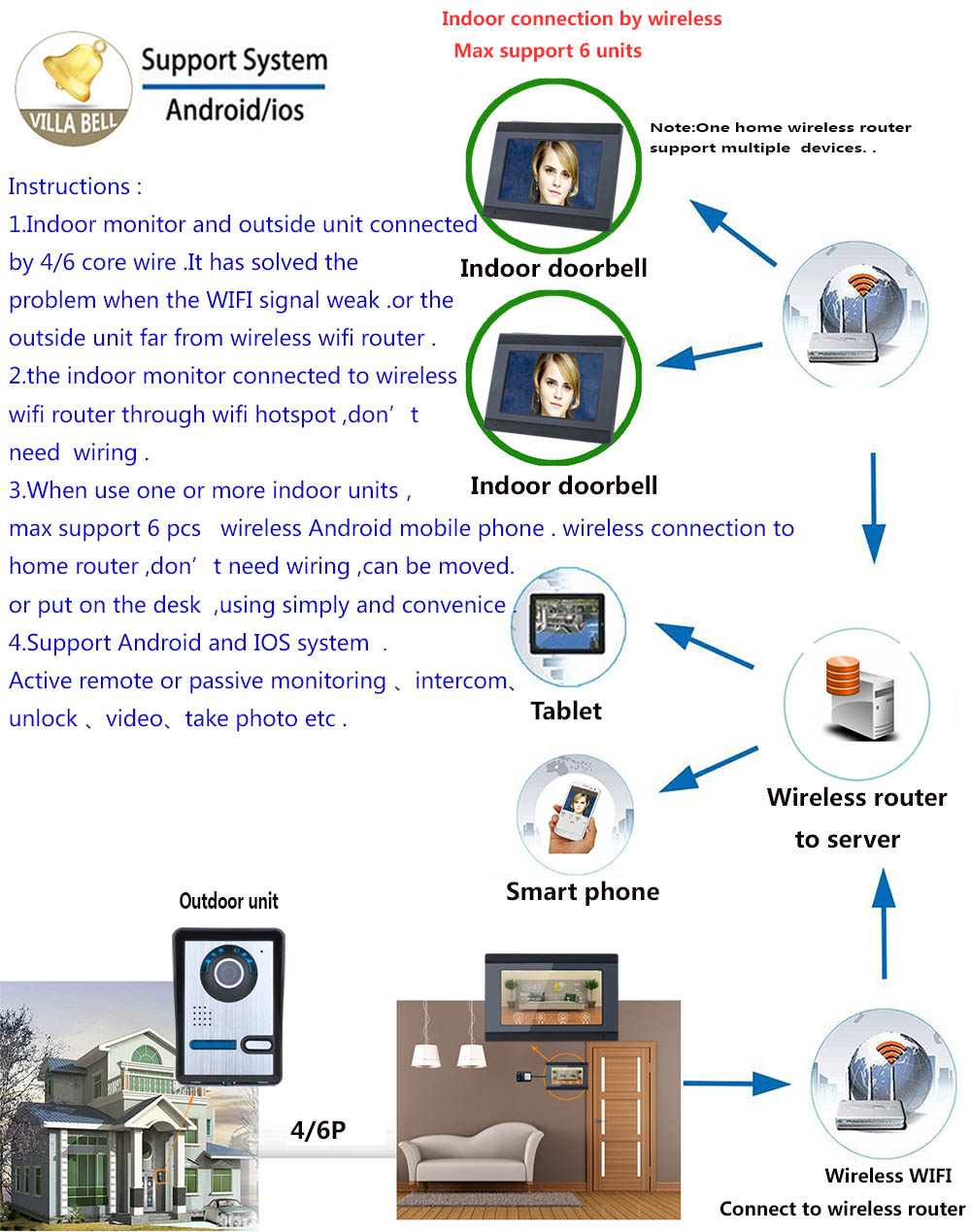

Easy installation by yourself with the adapter and cable we provided in this kit,outdoor unit can connect to indoor monitor by wired 4P cable.When indoor monitor connected to your wireless wifi router,you can connect mobile phone to indoor monitor,then mobile phone also can record video or open the door etc.Widely used in villas, apartments, houses, hotels, offices, public buildings and so on.
1.Indoor monitor use the multi-point capacitance touch screen,adopt to Android System,steady and easy to operate.
2.7inch High definition digital LCD monitor,with take picture,visitor records and calendar function.
3.Indoor monitor can take picture by manually or automatically,max to support 64G TF card.
4.Indoor monitor with monitor,intercom,unlock,hands-free and Dont disturb function.
5. Volume, brightness & colorful adjustable.
6. The indoor monitor can support to connect 8 mobile phone APP user,Support IOS/Android system mobile phone , then the mobile phone can view and unlock.
7.Indoor monitor can connect to wireless wifi router.
8.Mobile APP with monitor, intercom,take picture,video record by manually and unlock functions.

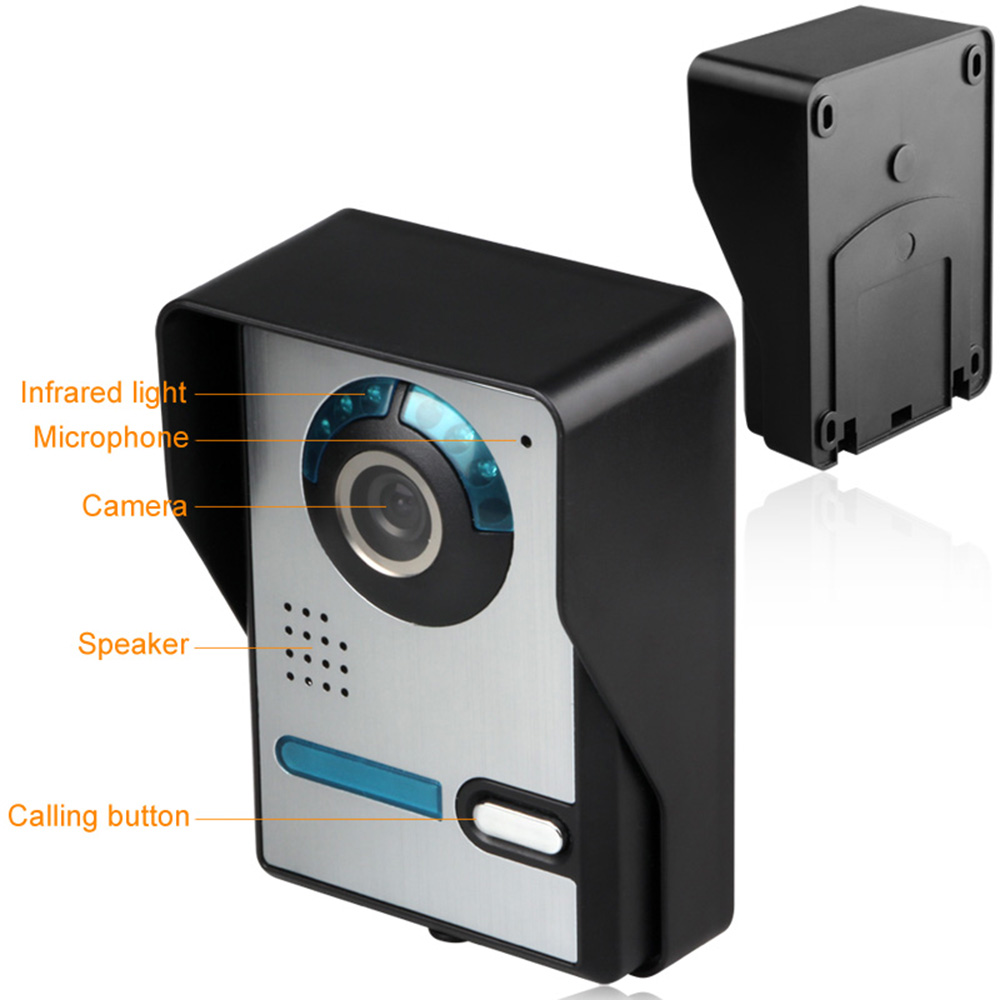

9.Anti-oxidation and wear-resistant outdoor unit, with a rain-cover, wall installation more convenient.
10.Outdoor unit use 1000TVL analog high-definition camera,with IR-CUT.

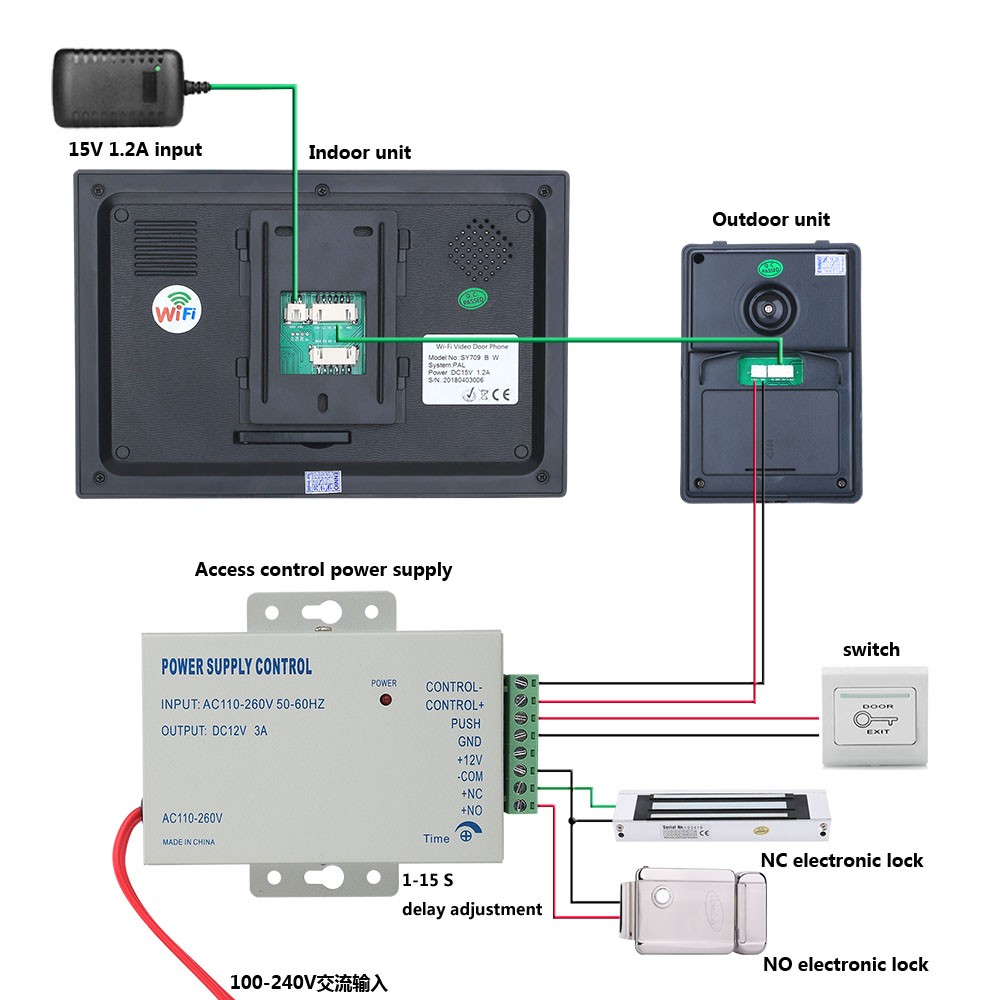

11.Can connect to NO electric lock directly,with unlock delay setting.
12.Come with power supply & terminal wire,user can install by themselves.

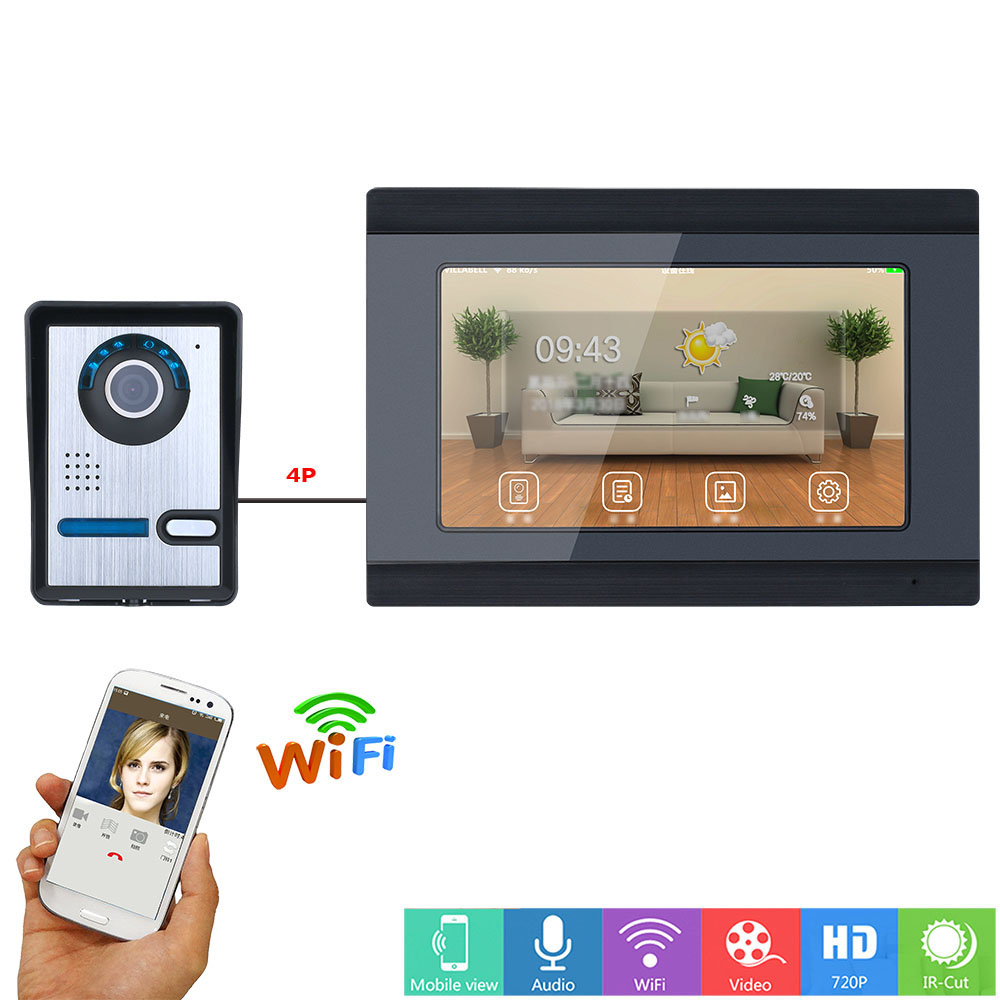

13.The indoor monitor can connector to outdoor unit directly by 4-core wire.
Specification
| General |
Type:Video Doorbell |
| Specification |
Monitor:
Display:7" TFT LCD(16:9)
Resolution: 1024(H)X600(V)
Unlock: Support mobile phone and tablet to unlock
Additional memory: Support additional TF card (64GB max.)
Touch : Yes
Wifi: Yes
Power supply: DC15V1.2A
Installation: Surface mount
Size:205*138*18mm
Camera:
Camera sensor: 1/3 inch CCD
View angle: 92°
Definition: 1000TVL
LEDs for night: IR LEDs
Anti-oxidation aluminium alloy panel
Rainproof,Dustproof,and Anti-vandal
Installation: Surface
Size:135*100*45mm
|
| Weight & Dimensions | Product Weight:1.2KG Product Dimensions: 205 x 138 x 18mm Package Weight:1.5KG Package Dimensions:280 x 150 x 110mm |
| Package Contents |
1 x Indoor Monitor (Wired Wifi)
1 x Outdoor Unit
1 x Power Supply
1 x 4-core terminal wire
1 x unlock terminal wire
1 x Mounting plate
1 x Screws
1 x User Manual |
