Highlights
- H.264 compression format, MJPEG/JPEG Baseline
- Dual Stream, resolution, bit rate adjustable
- 4 mm Mega Pixel Lens included, Auto Focus
- Freely control zoom by software(PC or Smart phone)
- Built-in IR-CUT, auto-switch day and night, IR Range 40 m
- Motion detection recording , alert with snapshots via email (without SSL)
- Build-in Privacy Mask , image snapshot , Title OSD , DDNS

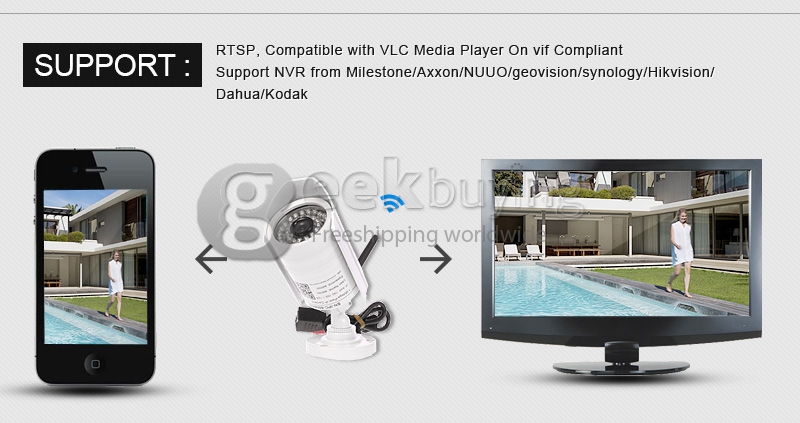

- Support RTSP, Compatible with VLC Media Player On vif Compliant, Support NVR from Milestone/Axxon/NUUO/geovision/synology/Hikvision/Dahua/Kodak
- IP66 Rated Waterproof & Vandalproof, Outdoor Use
- User manual of this product, pls click here
Specification
| Sensor | 1/4" Progressive Scan CMOS 3518 |
| Effective Pixels | 720P:1280(H)720(V) |
| Minimum Illumination | 1250mv/lux-sec |
| Day/Night | Auto, dual IR-Cut filter |
| IR LED | 24pcs AIR Led 42mil, 20m IR Range 65.6 feet) |
| Electronic Shutter | Rolling Shutter |
| Lens | Optical lens, Fixed Iris, Manual Focus |
| Lens Interface | CS mounts (Interchangeable Lens) |
| Focal Length | Fixed focal f4 mm / F1.4; |
| View Angle | 90 degree |
| Network | 10/100M BASE-TX, RJ-45 connector, WIFI Support |
| Video Compression | H.264 Main Profile; MJPEG/JPEG Baseline |
| Main Stream Resolution | HD 720P (280720) 1-25fps |
| Video Bitrates | 32Kbps4Mbps,Supports CBR/VBR |
| Title OSD | Supports channel name, date, and video stream information overlay; OSD location is adjustable |
| Privacy Mask | 4 configurable regions |
| Image Orientation | Supports image flip and mirror |
| Auto Image Control Functions | Auto Exposure Control (AEC); Auto White Balance (AWB); Auto Band Filter (ABF); Auto Black Level Calibration (ABLC) |
| Image Controls | Color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling, and noise canceling |
| Audio Compression | G.711 |
| Recording | Recording set up to record by motion trigger, alarm trigger, manual, or schedule |
| Alarm Output | FTP, E-mail, Explorer, Software |
| Network protocol | TCP/IPUDPRTPRTSPRTCPHTTPDNSDDNSDHCPNTPSMTPUPNP |
| ONVIF protocols | Support 1.02 version |
| PC Remote View | IE 6.0 or later, max 10 users |
| Mobile Phone Remote View | iPhone, Android, Blackberry Mobile |
| Main Processor | High performance embedded microprocessor-20A |
| Operating System | Embedded LINUX OS |
| Video Compression Format | H.264 |
| Display Image Resolution | 720P@30fps;960P@30fps;1080P@30fps |
| Playback Image Resolution | 720P@30fps;960P@30fps;1080P@30fps |
| Motion Detection | setup 192(1612)pcs motion detection area; each channel and multi-level sensitivity(1-6 levels adjustable) |
| Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording |
| Recording Storage | HDD, Network |
| Frame rate | 30 fps |
| Recording Playback | Max support 4ch 960P |

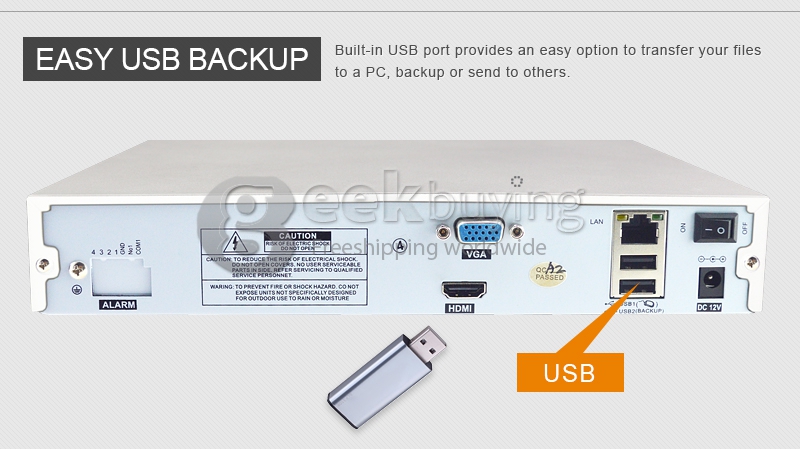

| Backup Mode | Support HDD, USB Flash Disk store & backup |
| Network Video Input | 4ch |
| Network Video Access Bandwidth | 64Mbps |

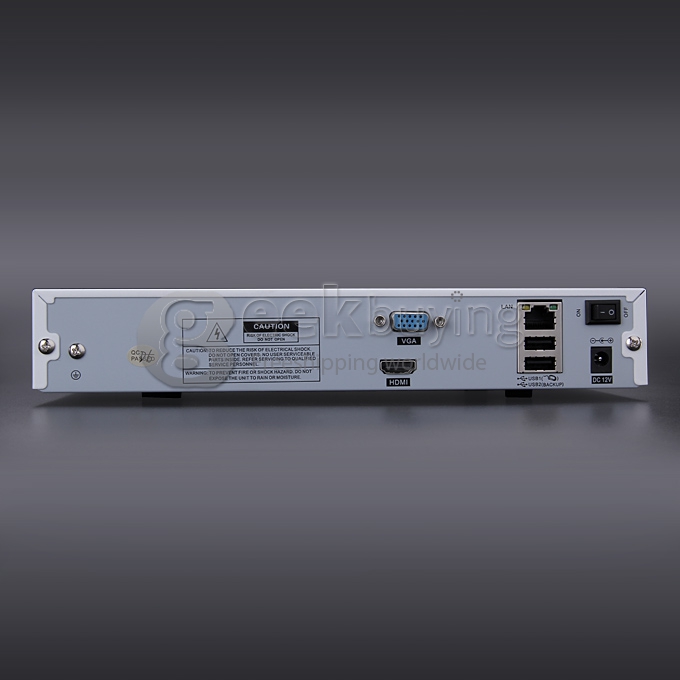

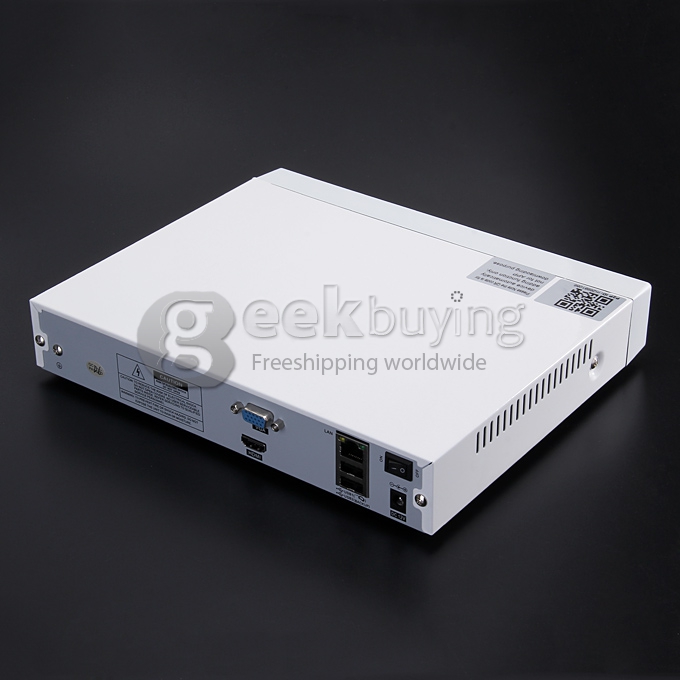

| Video Output | 1CH VGA and 1CH HDMI |
| Audio Input | 4ch IPC Composite Audio |
| Audio Output | 1ch (audio intercom) |
| Approvals | CE FCC RoHS |
What's in the box?

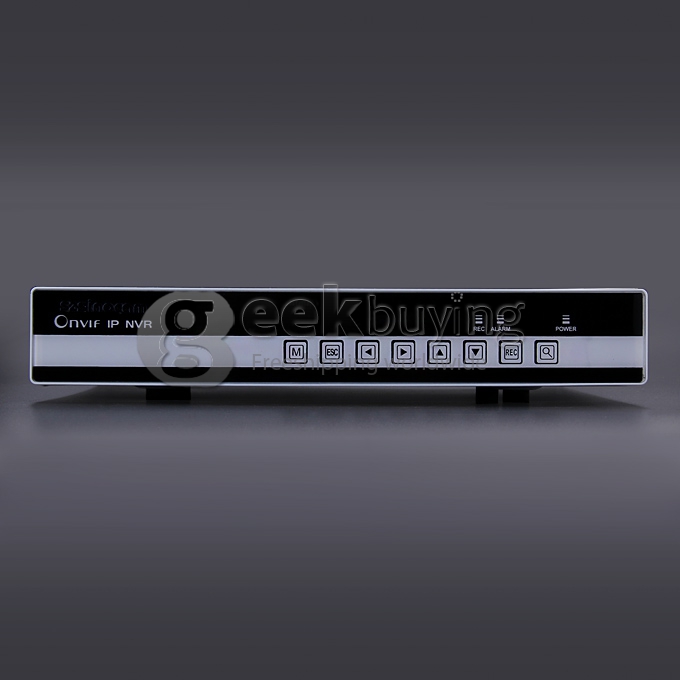

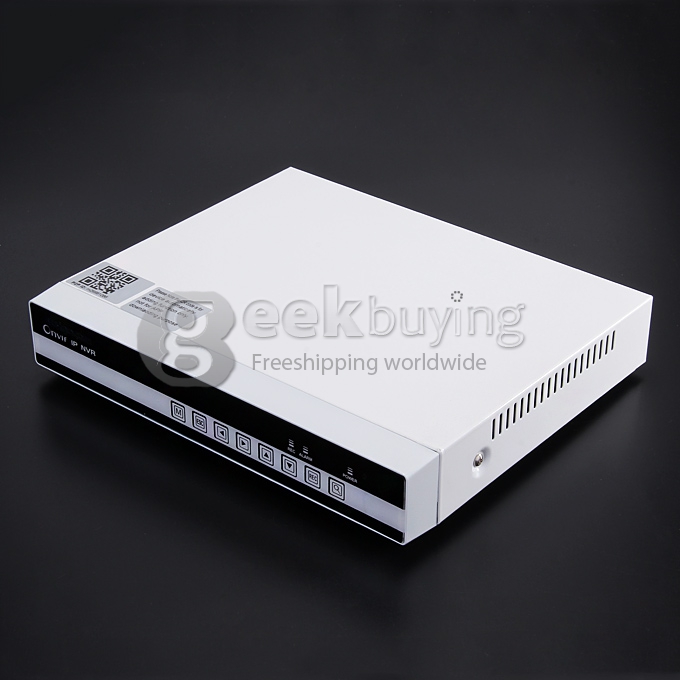

- 1 x 4 CH NVR Kit
- 4 x Waterproof Wireless IP Camera
- 4 x Bracket

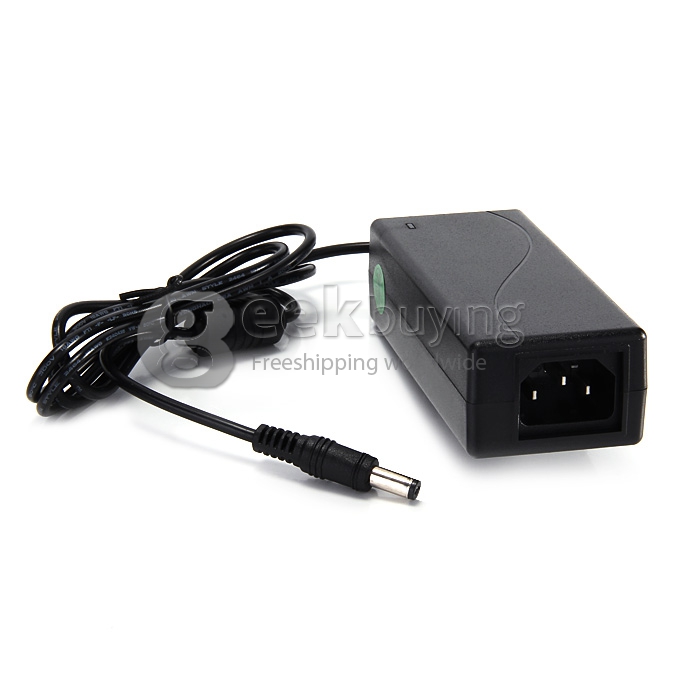

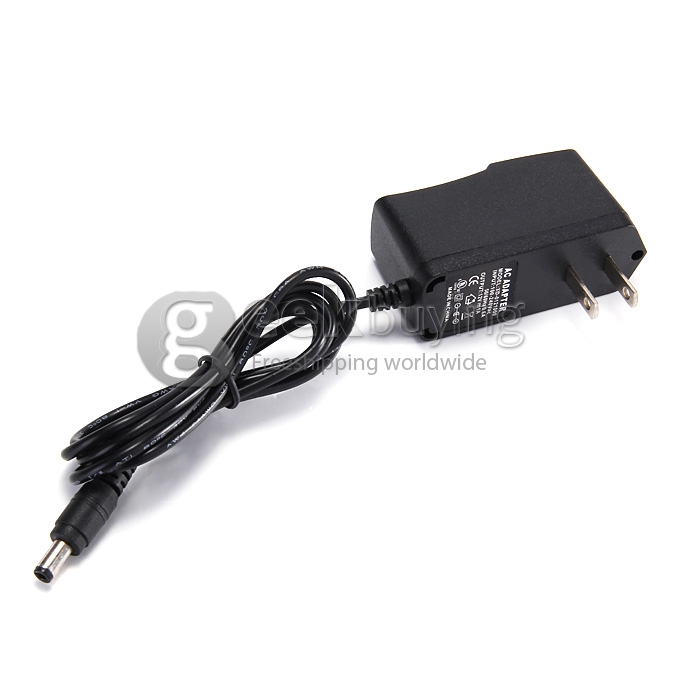

- 4 x Power adapt
- 1 x Screw Kit
