Highlights
- 1/4” line scanning digital and advanced DSP technology
- Optimized H.264 Main Profile compression algorithm, high compression ratio and high quality image;
- Support facilities remote security upgrade function;
- Support DDNS ,PPPoE and(UPnP),Support Lan ,Wan transport;
- Support mobile detection / image shielding / image snapshot;
- Functions of auto recovery in abnormality and auto reconnection in network breakdown
Specification
|
Model |
SN-3005A |
|
|
Camera |
Pixel |
1.0 Mega Pixel, 1280*720 |
|
Sensor |
1/4" 1.0MP CMOS |
|
|
Lens |
4mm |
|
|
Electronic shutter |
1/25s-1/30,000s |
|
|
Low Lux |
Color:0.2Lux@F1.6 B/W:0.01Lux@F1.6 |
|
|
Auto iris |
N/A |
|
|
ICR |
Support |
|
|
Video parameter |
Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer |
|
|
IR |
IR Properties |
Dual filter day / night: automatic switch, linkage switch |
|
IR Light |
15pcs 5 IR LEDS, IR Distance: 20M |
|
|
Audio-video coding parameters |
Compression |
H.264 Main Profile@Level 3.0 / MJPEG optional |
|
Video bit rate |
16K-16Mbps, customized |
|
|
Bit stream type |
Compound streams / video stream |
|
|
Audio compress |
G.711 |
|
|
Audio bit rate |
8~16kbps |
|
|
Triple bit streams |
Support |
|
|
Image |
Video resolution |
1280*720P, |
|
Video flame rate |
PAL: 1-25 frames/second, NTSC: 1-30 frames/second |
|
|
Function |
PTZ |
N/A |
|
Heartbeat mechanism |
Support |
|
|
IP auto pop-out |
IP auto pop-out at customer end |
|
|
Password protection |
Multi-level protection on password |
|
|
Intellectual alarm |
Mobile detection, video shielding, video loss, network breakdown, abnormality in storage |
|
|
Basic functions |
One-key reset, password protection, watermark technology |
|
|
Interface |
Audio input |
1CH |
|
Video output |
1CH |
|
|
Network port |
1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port |
|
|
Alarm input |
1CH |
|
|
Alarm output |
1CH |
|
|
RS485 |
Support |
|
|
SD Card |
TF Card(64G) |
|
|
Preset |
Support |
|
|
Wireless network |
WIFI |
N/A |
|
Wireless encryption |
N/A |
|
|
Cell phone monitor |
Support |
|
|
3G network |
N/A |
|
|
others |
Working humidity |
10 ~ 85% |
|
Dimension |
151.9mm*101.8mm |
|
|
Weight |
1.25Kg |
|

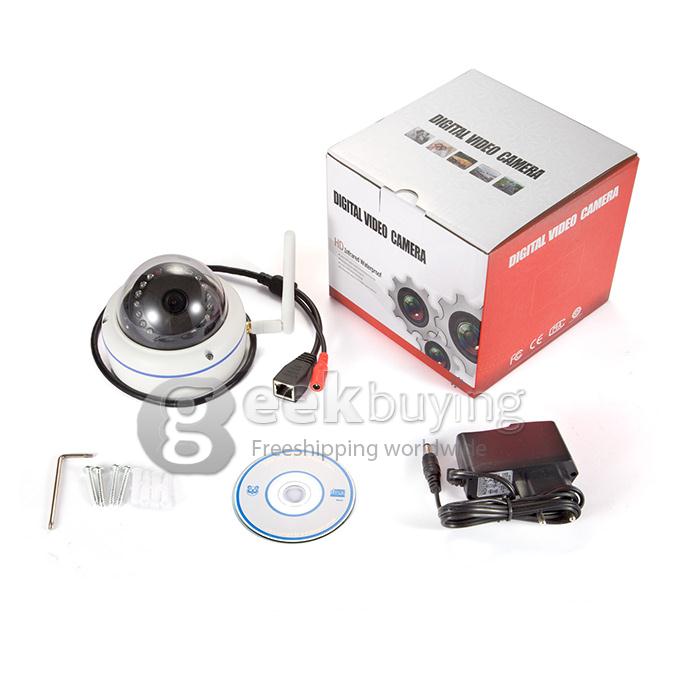

What's in the box?
- 1 x IP camera
- 1 x English User manual
- 1 x CD
- 1 x Wi-Fi anntena
- 1 x Power adaptor
