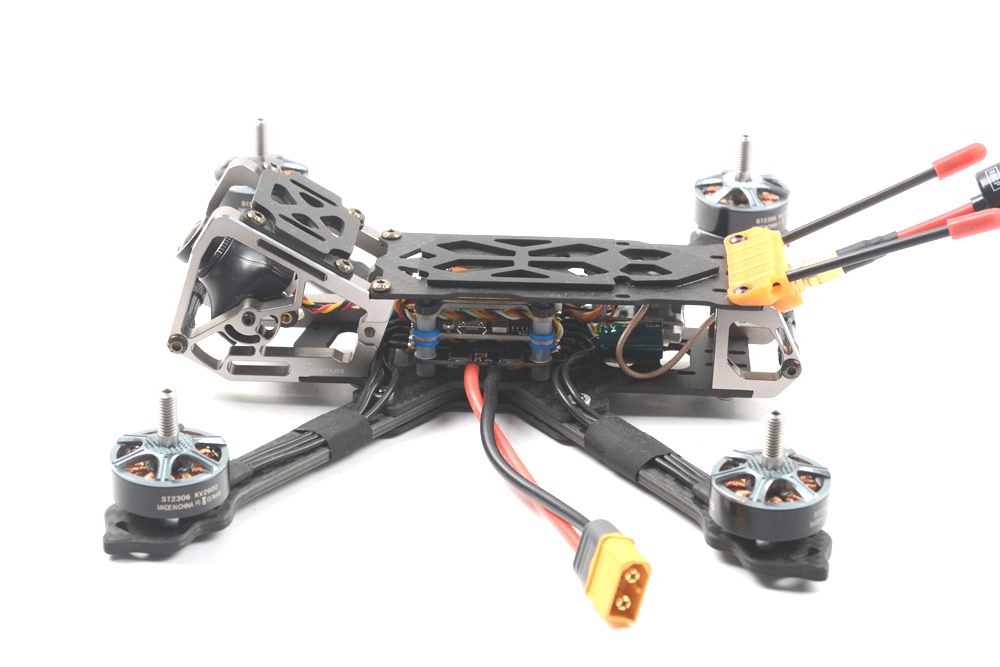

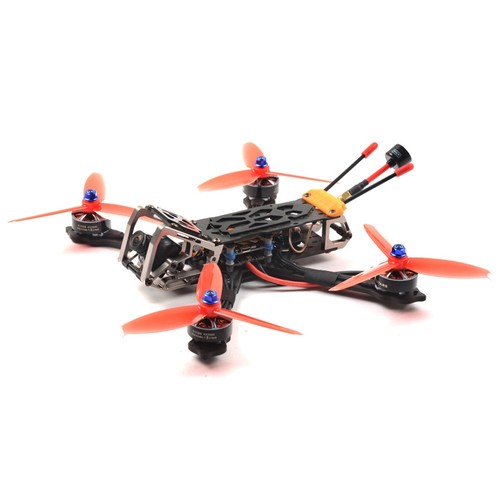

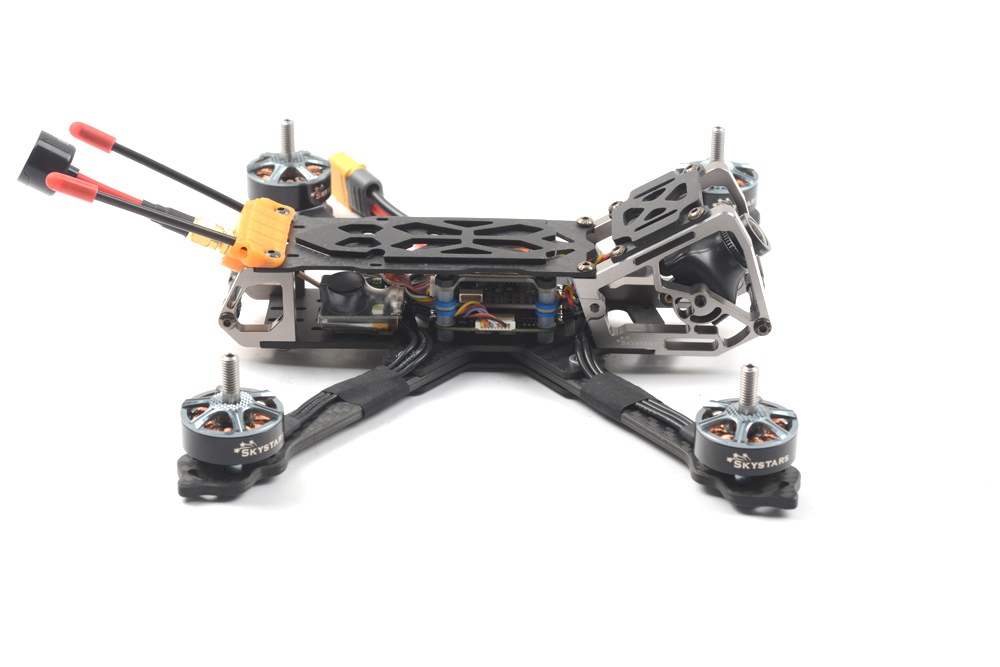

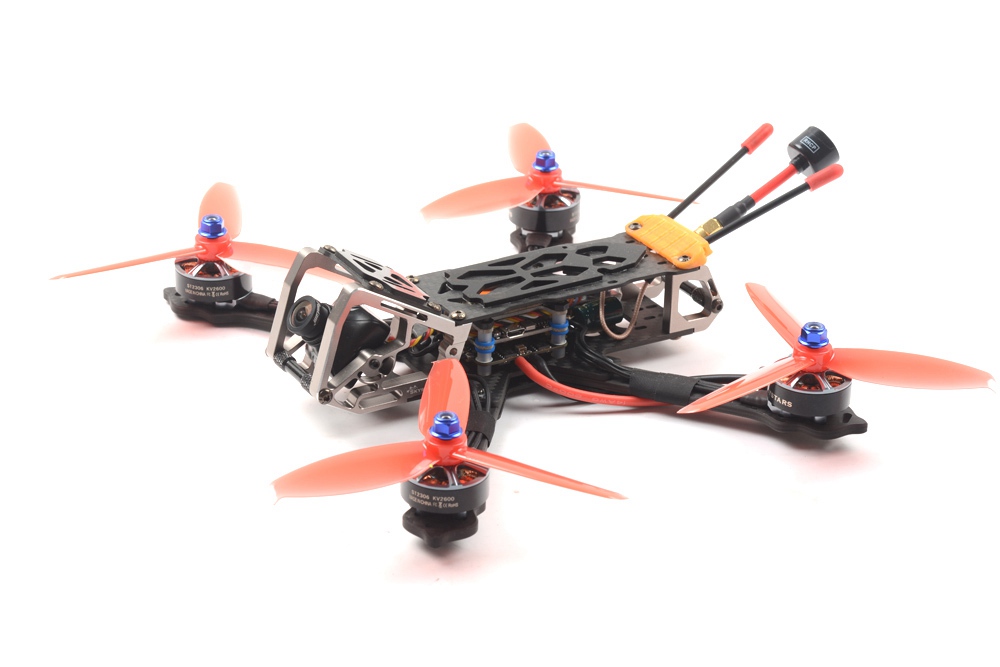

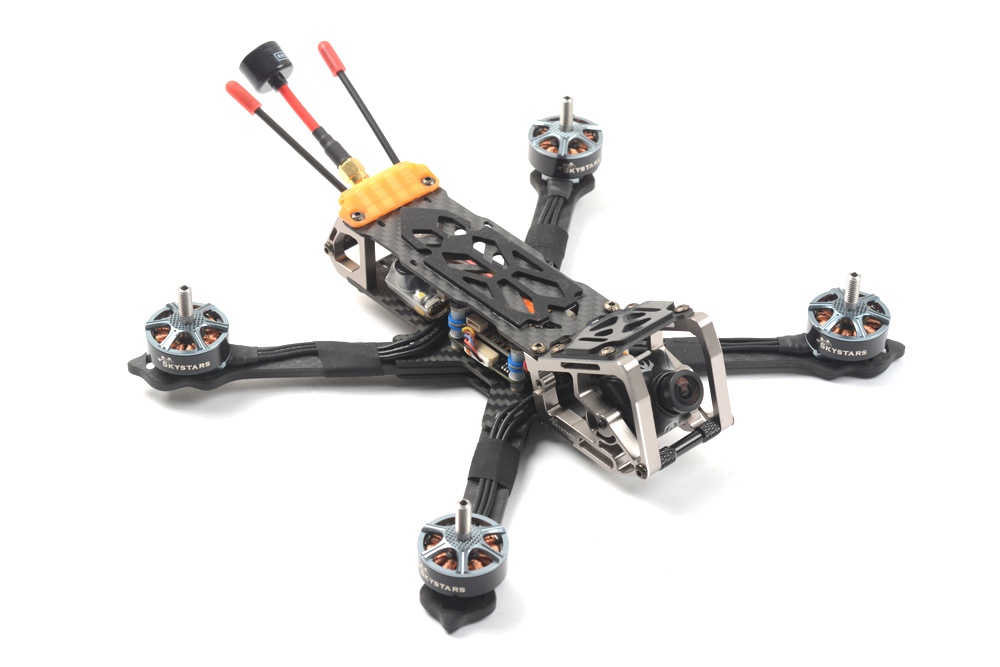

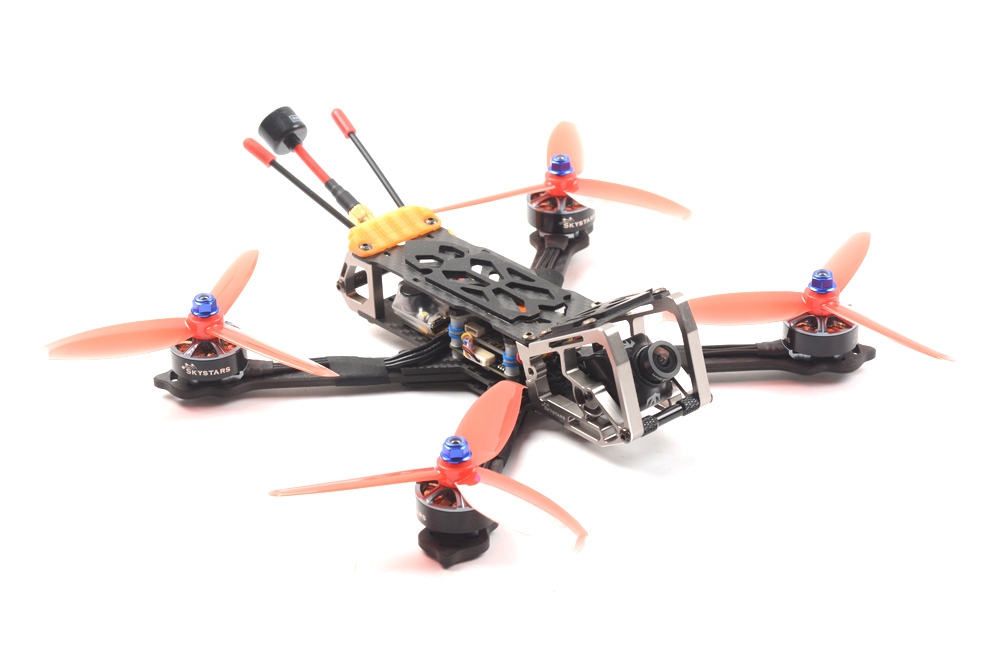

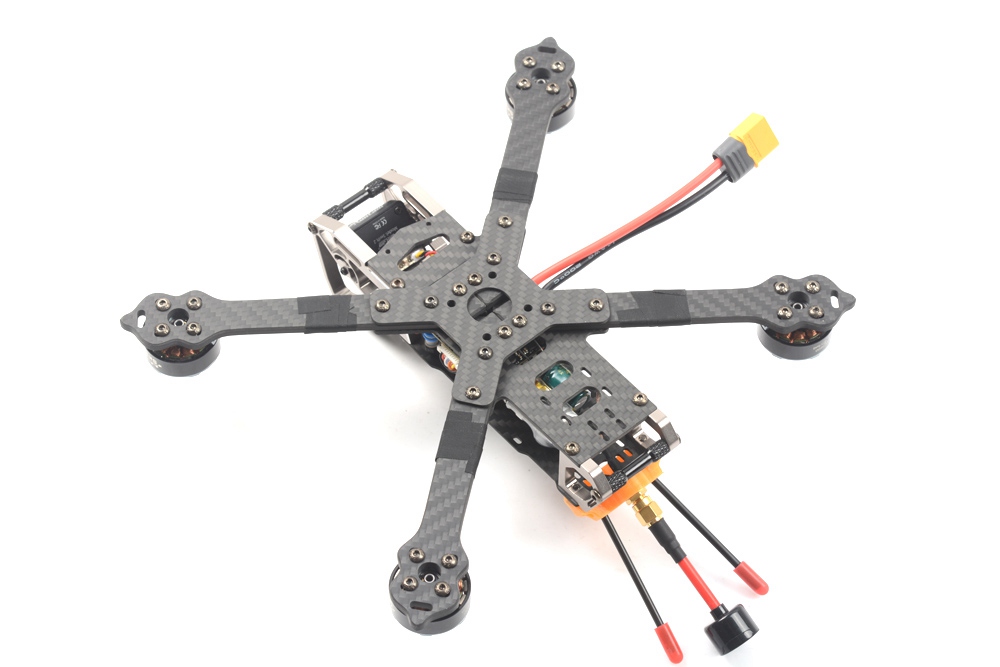

Frame Kit
Wheelbase: 228mm
Props Size: 5inch
Arm Plate Thickness: 4mm
TOP& Bottom Plate Thickness: 1.5mm &2mm
Material: 3k Carbon Fiber and Aluminium alloy
Screw: TAIWAN YFS BRAND SCREW 12.9 level screw
Weight: 128g
TurboS F405 FC
Item Name: F405 Betaflight Flight Controller
Input power: 7.4-25V (2-6S)
BEC: 9V/2A
MCU: STM32F405
Gyro: MPU6000
Flash: 16MB
OSD: AT7456
Mounting hole: 30.5*30.5mm
Weight: 6.8g
FC Features
Supports Betaflight and Cleanflight.
Additional UART (UART 4)
Additional UART (UART 5)
Incould socked head and flat pads for more secure soldering especially for beginners.
I2C pad available for certain external sensors.
TurboS F405 Blheli_32 4IN1 ESC
Item Name: Turbo S40HV ESC
Input voltage: 2-6S (7.4V~25V)
Continue current: 40A×4
Burst current: 40/50A (6S)
BEC: NO
Mounting: 30.5x30.5mm/φM3
Size:38 X 41 X 6.9MM
Weight: 15g
ESC Features:
4in1 ESC with 30.5x30.5mm mounting holes, supports DSHOT 1200, BLHELI32 firmware.
2 oz. copper PCB allows up to 120A maximum continuous current.
Supports BLHeli32 pass-through for easy ESC upgrade and configuration.
On this version added more CAPS to reduce power noise.
Motor: 2306 V2 1750KV
Prop: GEMFAN 5042 3-blade
FPV Transmitter
Output Power: 25mW/200mW/600mW switchable
Control Mode: button OR Channel changes and Pitmode setting through PWM TBS SmartAudio inside BAT: 7-26V, BEC 5V-1A
270mA----600mW
Video System: NTSC/PAL
Antenna: MMCX
Frequency: 5.8GHz 5 bands 40channels
Weight: 4.2 g
Dimension: 36*36*4.85mm
Mounting Hole: 30.5mmx30.5mm
Camera:
Model RunCam Swift 2
Image Sensor 1/3" SONY Super HAD II CCD
Horizontal Resolution 600TVL,4:3
Lens: 2.1mm 165°
Signal System: PAL
Integrated OSD: YES
Integrated MIC: YES
S/N Ration: >60dB(AGC OFF)
Electronic Shutter Speed PAL:1/50~100,000; NTSC:1/60~100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night Color / Auto / B&W
Power: DC 5 to 36V
Net weight: 14g
Dimensions 28.5mm * 26mm * 26mm
RHCP 5.8G 2.5dBi Super Mini Antenna For FPV Racing Drone
Weight: 7.4g
Size: 60mm x 17mm
Gain: 2.5dbi
Axial ratio: <1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
VSWR: <=1.2
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
|
and more
