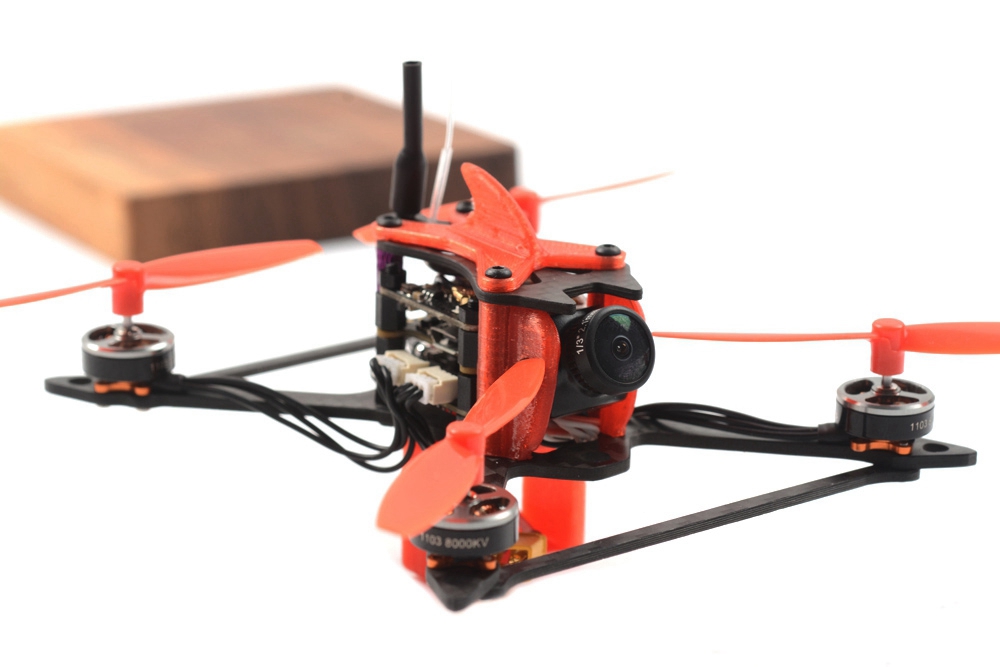

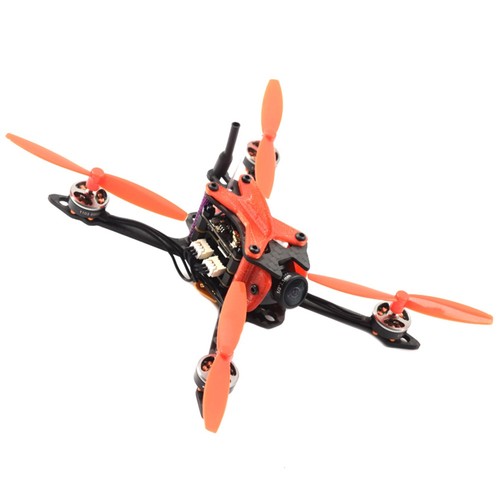

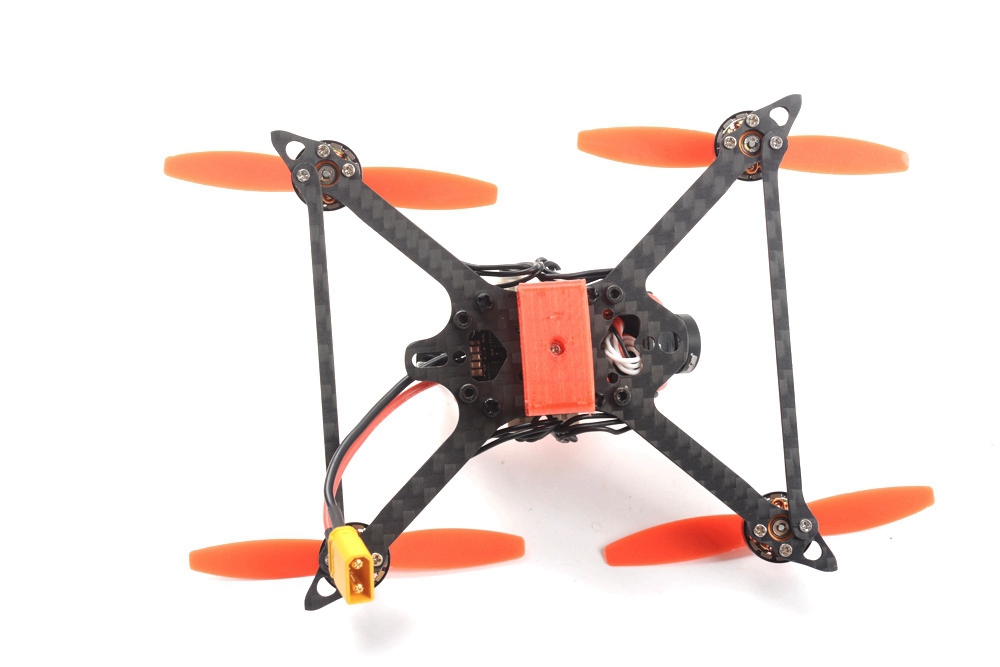

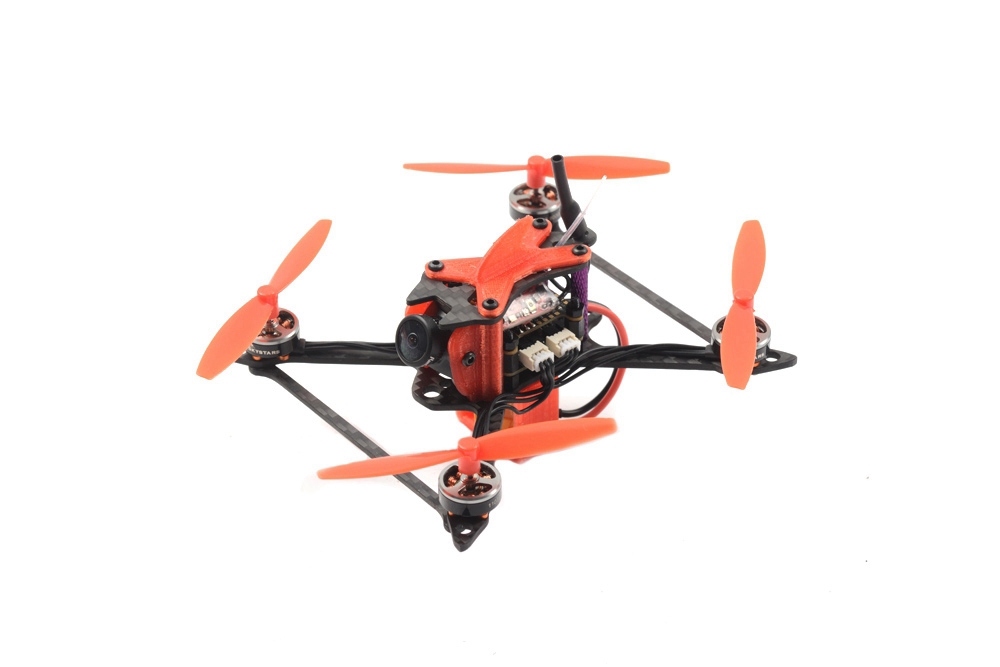

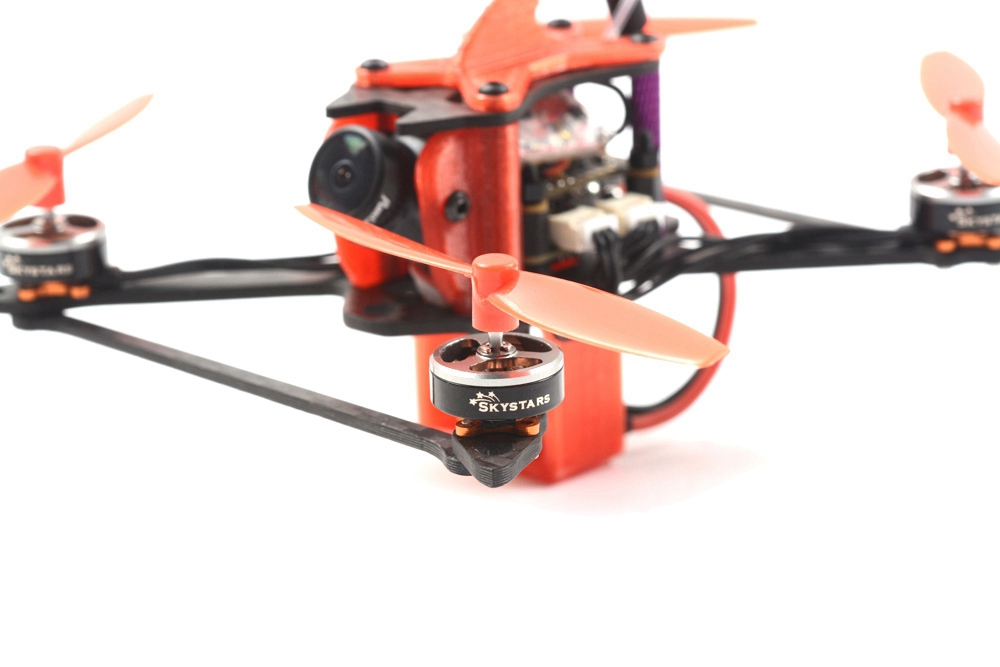

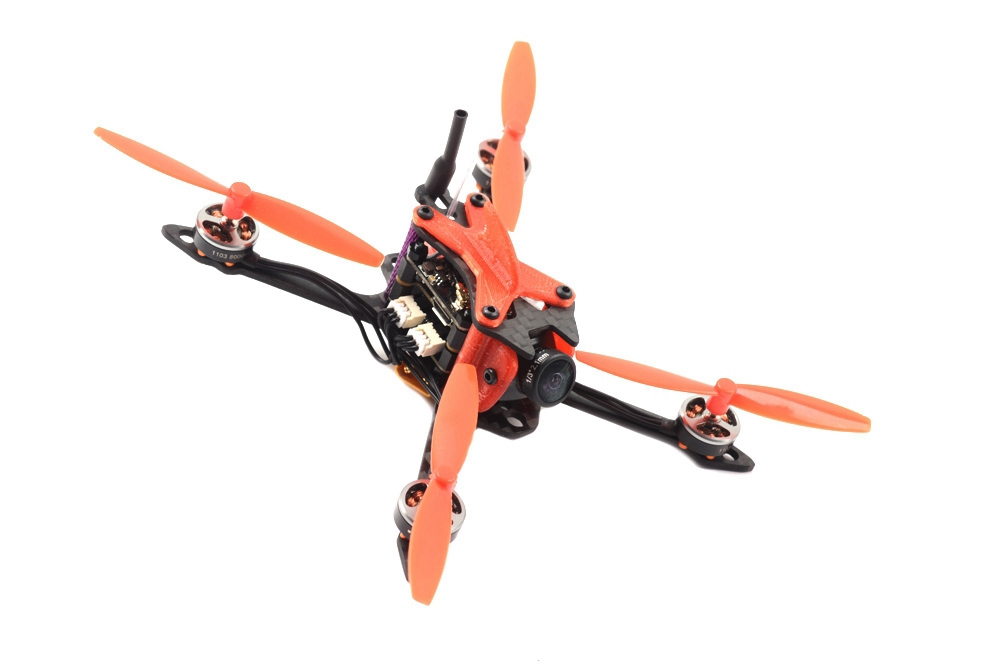

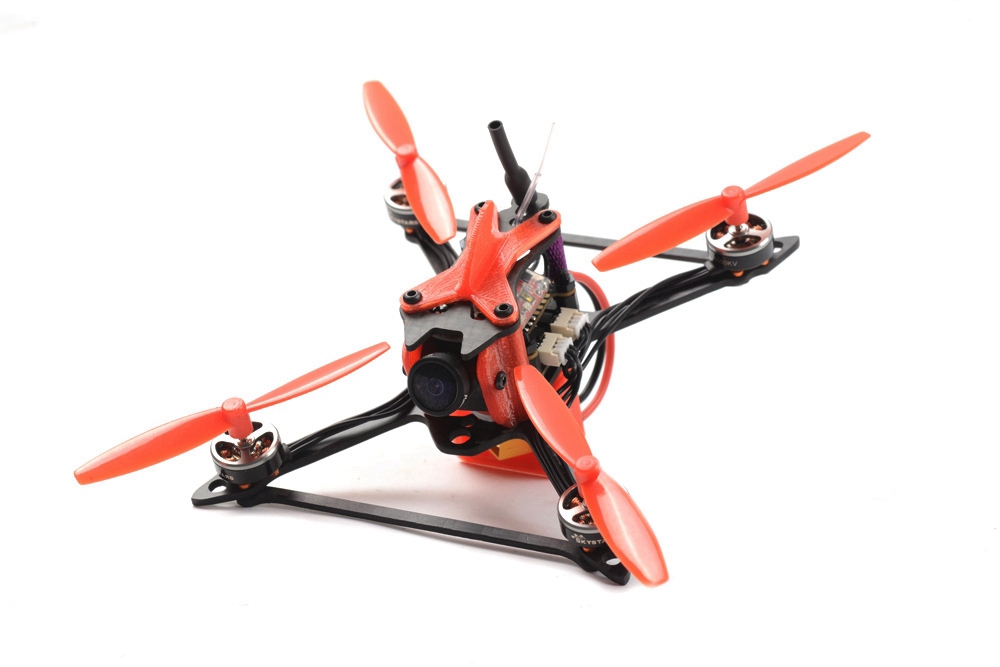

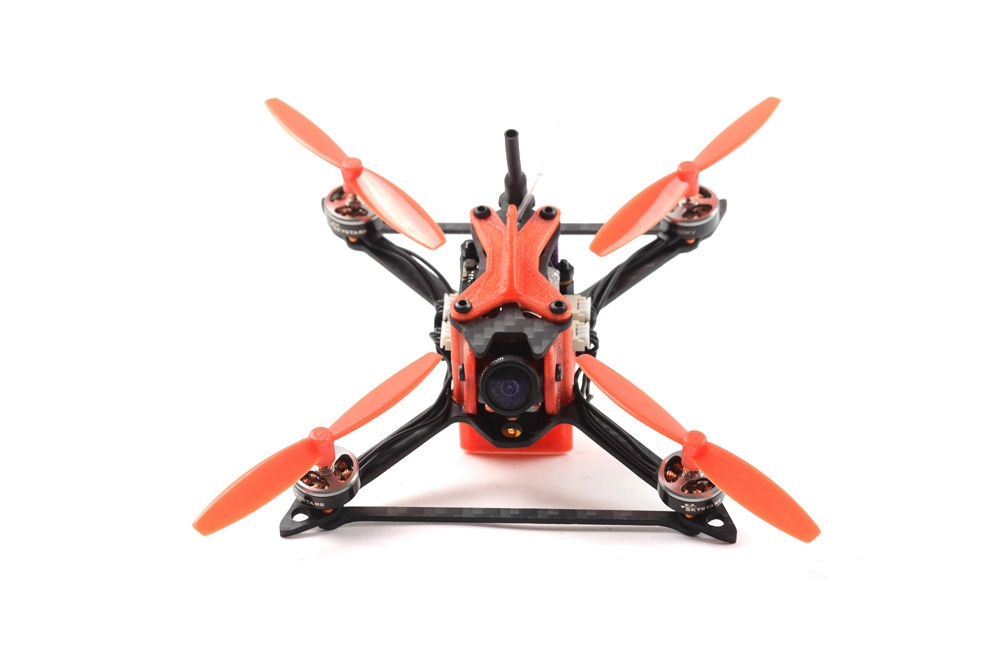

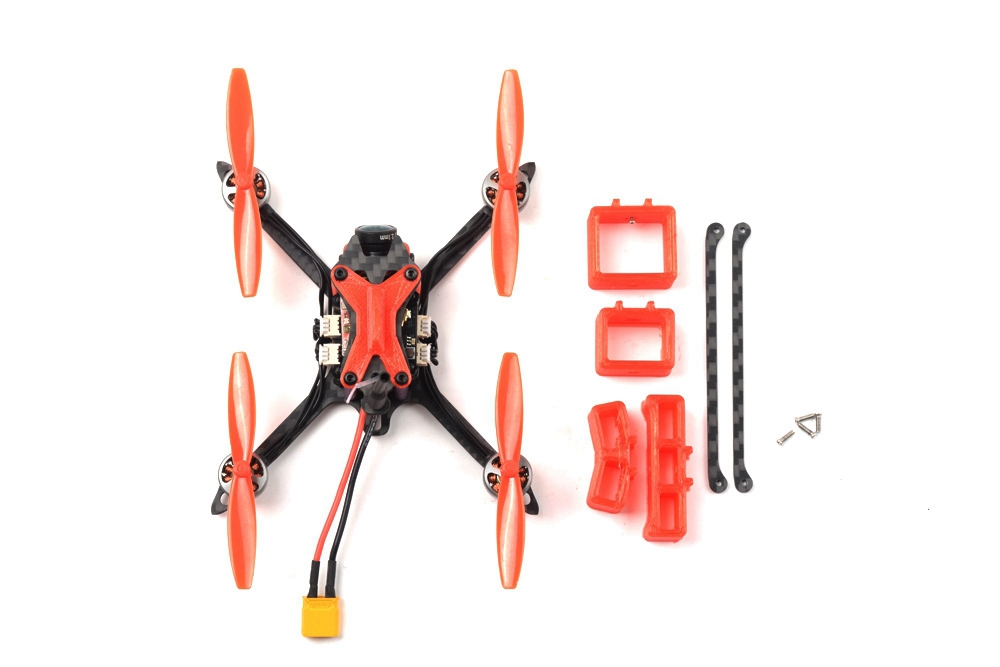

Skystars TALON X110 2-4S FPV Racing Drone F4 8K OSD 15A Blheli_32 w/100mW VTX Runcam Nano 2 Cam BNF - Frsky D16 Receiver

General

Brand: Skystars
Item Name: TALON
Item No.: X110
Version: BNF(Compatible Frsky D16 Receiver)

Specification

Frame Kit:
Name: Skystars TALON X110
Wheelbase: 110mm
Props Size: 2.5inch
Arm Plate Thickness: 2mm
TOP Plate Thickness: 1.5mm
Material: 3k Carbon Fiber and TPU 3D print
Screw: 10.9 level screw
Weight: 13g

Flight Control:
MCU: 168MHz STM32F405
IMU: MPU6000 accelerometer/gyro (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Built in inverter for SBUS input (UART6-RX)
Ibus/dsmx Shared: UART1-RX
Smartaudio & Tramp VTX protocol supported
WS2812 Led Strip : supproted but not include
Beeper : supproted but not include
RSSI: Yes

ESC:
15A 2-4S Blheli_32 RGB light ESC:
Input Voltage: 2-4S Lipo battery
Constant Current: 15A
Peak Current: 18A
BEC Output: no
CPU: BB21 BLHELIS firmware
MOS Tube: TOP QUALITY MOSFET

Motor: 1103 8000KV Brushless
Prop: 65mm 2-blade

FPV Transmitter
Output power: 0mW/25mW/100mW switchable
Control mode:button OR Channel changes and Pitmode setting through PWM TBS SmartAudio inside  BAT: 5V,40mA----100mW
Video system: NTSC/PAL
Antenna: IPEX
Frequency: 5.8GHz 5 bands 40channels
Weight: 0.9 g
Dimension: 16*13*3mm
Mounting Hole: 20mmx20mm
Antenna: 5.8G 3dBi Brass Antenna Omni Directional IPEX Port

Camera:
Brand: Runcam
Item Name: Nano 2
Image Sensor: 1/3" CMOS
Horizontal Resolution: 700TVL
Lens: 2.1mm(M8) FOV 155°
Signal System: NTSC / PAL
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current: 110mA@5V
Housing Material: ABS
Net Weight: 3.2g
Dimensions: L14mm*W14mm*H16mm

Package Contents

1 X SKYSTATS TALON X110 Racing Drone(BNF Version)
