Highlights
- With DVR Function(optional)
- Receiver diversity mode
- One button auto searching, easy to operate
- One button to record, cycle covering old video
- Videos playback by device itself
- Retractable sun shade
- Stereo double speaker
Specification
| General | |
|---|---|
| Type | FPV Monitor |
| Model | Skyzone HD02 |

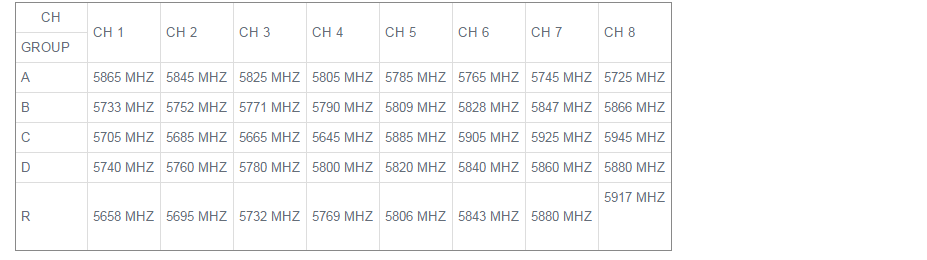

| Frequency | ISM 5.6GHz-5.95GHz |
| Sensitivity | -92dB |
| Format | NTSC/PAL |
| Output Voltage | 1V±0.2Vp-P/75Ω |
| Resolution | 1024 x 600 pixel |
| Luminance for LCM | 600 cd square meters |
| Contrast Ratio | 700:1 |
| Viewing Angle | 140/120 degree (horizontal/vertical) |
| Video Format | MP4 |
| Video Resolution | 720x576 Support Max.32G SD card(not included) |
| Audio Range | 20Hz-20KHz stereo |
| Audio Output | Left 20mW+ Right 20mW |
| Stereo Double Speaker | Left 1 W; Right 1 W |
| Antenna Connector | RP-SMA |
| HDMI Interface | C type |
| Working Voltage | DC7V- 24V |
| Current | Current(monitor mode): 12V/650mA Current(video mode): 12V/780mA |
| Quantity | 1 Piece |
| Battery | 2000mAh |
| Temp | 10 - +65 degrees |
| Dimensions & Weight | Dimension: 176 x 128 x 23mm Screen Dimension: 160 x 101mm Weight: 250g |
| Package Contents | |
| 1 x Monitor | |
| 2 x Antenna | |
| 1 x Video Cable | |
| 1 x Charging Cable | |
| 1 x User Manual | |
