Highlights

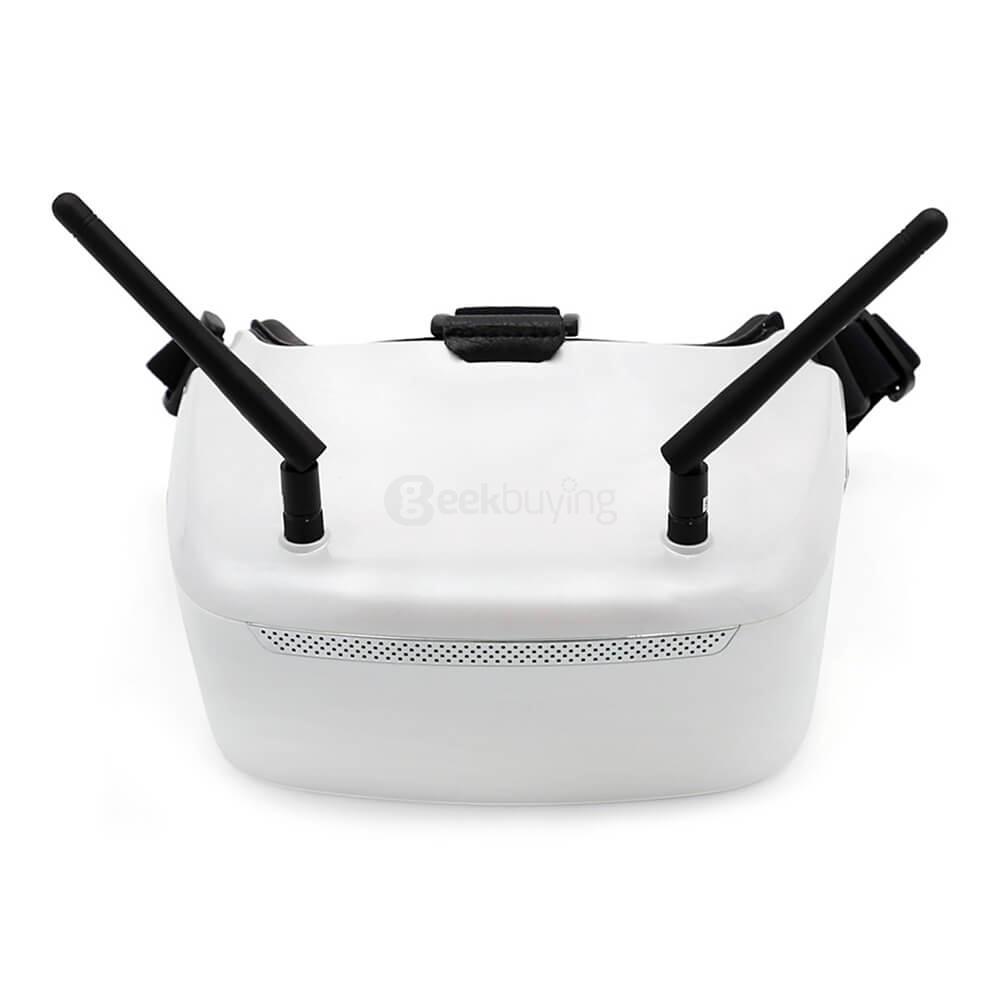

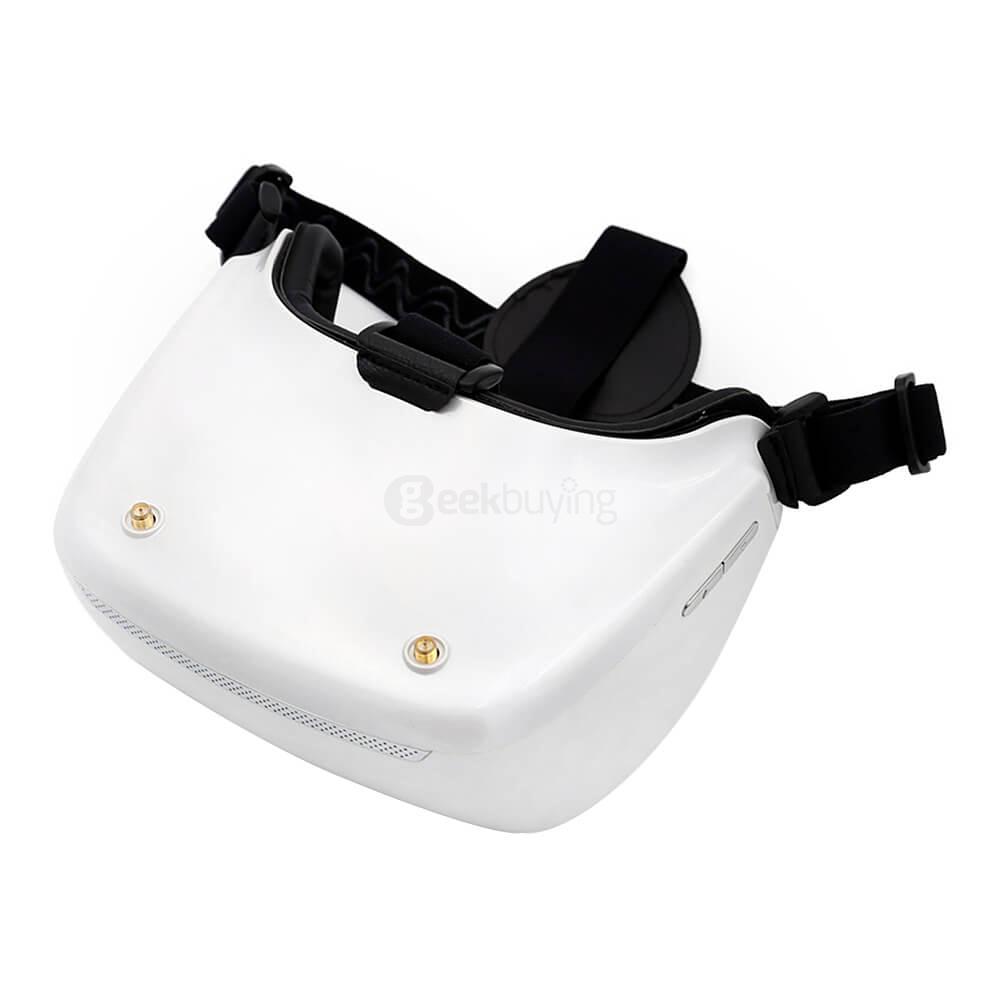

Skyzone SJ-H01, the latest goggles which has build in head tracking and great Full HD IPS screen to enable 3d. Of course it has diversity and HDMI in/out. As we know, Skyzone is specialized in high quality FPV eqipment, so the SJ-H01 will work great for sure.
Specification
| General | Type: FPV Goggles Model: Skyzone SJ-H01 Quantity:1 Piece |
| Display | FOV: 100 Degree Resolution: 960*1080 Brightness: 450cd/ Interpupillary Distance IPD: 64mm Ratio: 16:9, 4:3, Full Screen(default) |

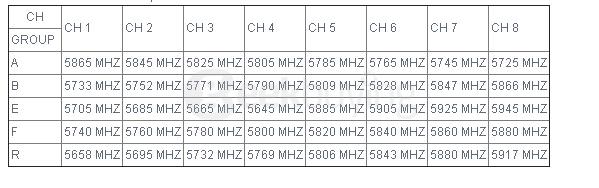

| 5.8G 40CH Receiver | Sensitivity: -90dBm±1dBm Antenna Port: 2 x RP-SMA, 50ohm |
| Head Tracker | Sensor: Magnetic,Inertial and gyro Output: PPM 8 channel Video Standard: (Optional) CH5/CH6,CH5/CH7,CH5/CH8,CH6/CH7,CH6/CH8,CH7/CH8 |
| AV Signal | Video Output Level: NTSC/PAL Audio Output Level: 1.0Vp-p Typ./75ohm MINI USB AV: 1.0Vp-p Typ./10Kohm |
| AV Port | EAR OUT(3.5mm3P): Diversity Video/Audio output, Video/Audio input HDMI IN: Stereo 16 /150mW Micro HDMI/D-Type: HDMI 1.4 specification |
| Power | DC IN: DC 10V~26V/1A Power Consumption: 12V Input, 6.7W/RF Mode |
| Dimensions&Weight | Dimension: 164(L)*194(W)*108(H)mm(not include prominent part) Weight: 490g(not include package box) Operating Temp.: -10~+60 degrees |

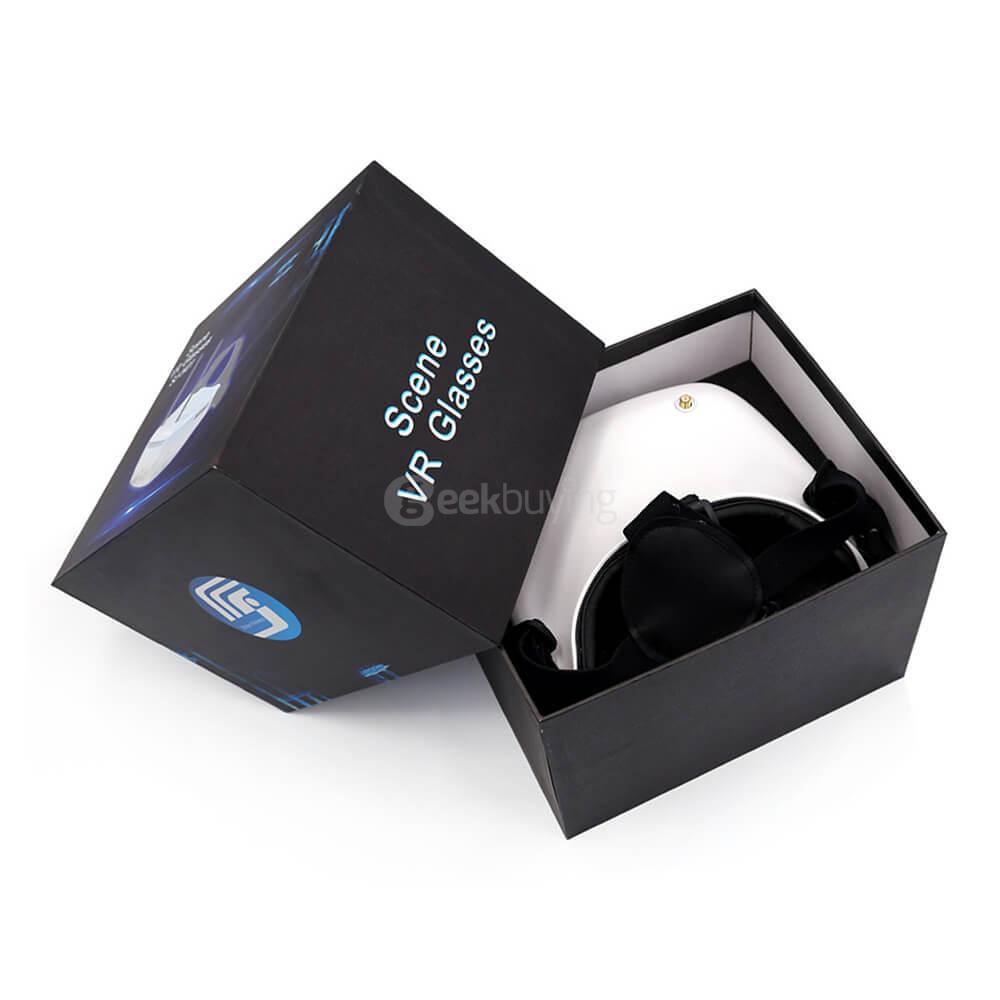

| Package Contents | 1 x Skyzone SJ-H01 3D FPV Goggles 2 x 5.8G 2dBi Antenna 1 x HDMI A-D Cable 1 x DC Cable 1 x AV Cable 1 x Mini USB Cable 1 x FUTABA Data Cable |
