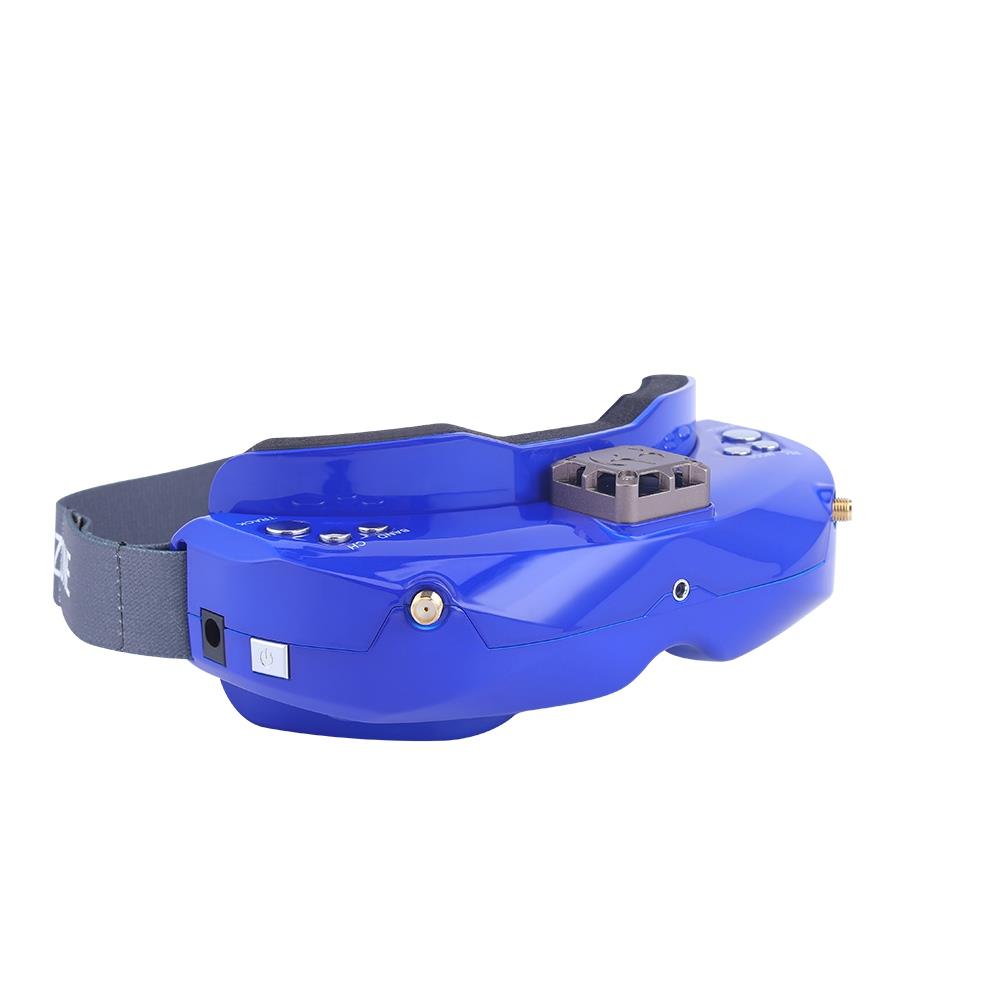

Skyzone SKY02C 5.8G 48CH True Diversity FPV Goggles Built-in Fan DVR Support HDMI IN For Racing Drone - Blue

General

Brand: Skyzone
Item Name: FPV Goggles
Item No.: SKY02C
Color: Blue
Quantity: 1Set

Specification

SKY02C
Binocular Display:
FOV: 30 degree(Diagonal)
Resolution: 854x480(WVGA) 1,229,760 color sub-pixels
Brightness: 350
Interpupillary Distance(IPD): 59-69MM Adjustable
Sensitivity: -90dBm±1dBm
Antenna: SMA 50ohm

Head Tracker: Sensor: Magnetic,Inertial and gyro
Output: PPM 8CH, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH
Micro SD: Support to 32GB
Compression: MJPEG, 30fps, AVI
Picture: JPEG
Record Rate: 6Mbps
Video Standard: NTSC/PAL
Video output level: 1.0Vp-p Typ. / 75ohm
Audio output level: 1.0Vp-p Typ. / 10Kohm
Div. AV OUT(3.5mm4P): Diversity Video, Audio output
EAR OUT(3.5mm3P): Stereo 16Ω/150mW
AV IN(3.5mm4P): Video ,Audio input
HD Port IN(Micro HD Port/C-Type): HD Port 1.4 specification
1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50,1280x720p60, 1280x720p50, 576p, 576i, 480p, 480i, PC Format(Not all)
DC IN: DC 7~26V/ 1A(2S~6S)
Power Consumption:  12V input, 5.4W
Dimensions: 168(L)X92.5(W)X41(H)MM
Operating Temperature: 0 - +60

ISM 5.8GHz 48 Channel, Diversity receiver.
Band    CH 1        CH2        CH3        CH4        CH5         CH6         CH7       CH8
  A      5865M     5845M    5825M    5805M     5785M     5765M     5745M     5725M
  B      5733M     5752M    5771M    5790M     5809M     5828M     5847M     5866M
  E      5705M     5685M    5665M    5645M     5885M     5905M     5925M     5945M
  F      5740M     5760M    5780M    5800M     5820M     5840M     5860M     5880M
  R      5658M     5695M    5732M    5769M     5806M     5843M     5880M     5917M
  L      5362M     5399M    5436M    5473M     5510M     5547M     5584M     5621M

Package Contents

1 x Goggles
1 x Futaba Data Cable
1 x JR Data Cable
1 x WFLY Data Cable
2 x 5.8G 2dBi Antenna
1 x AV Cable
1 x Power Cable
