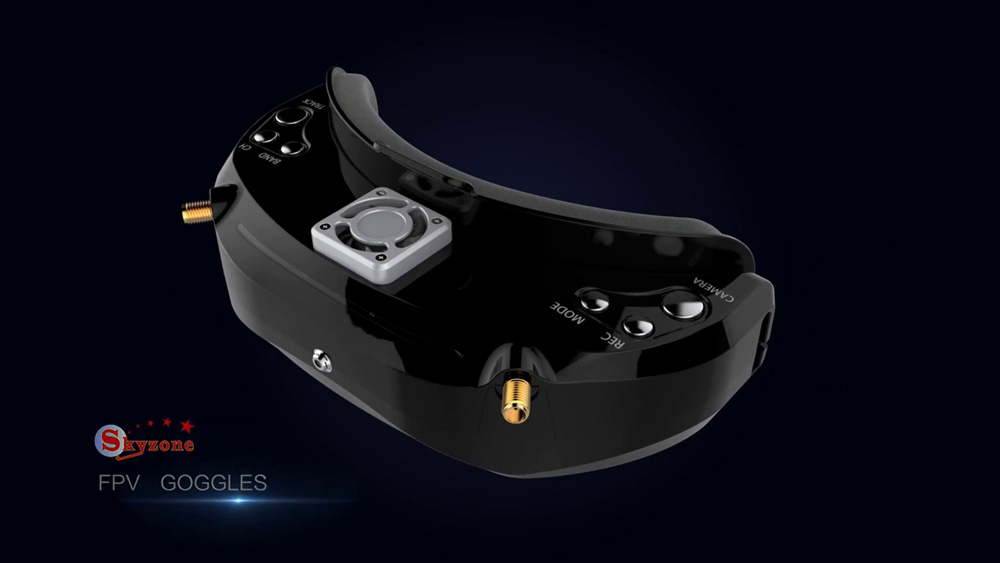

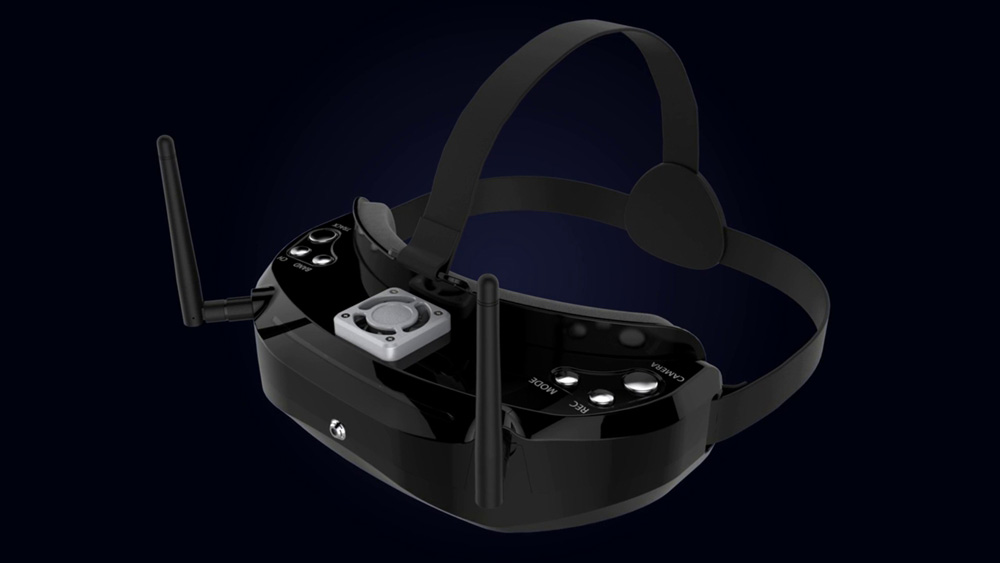

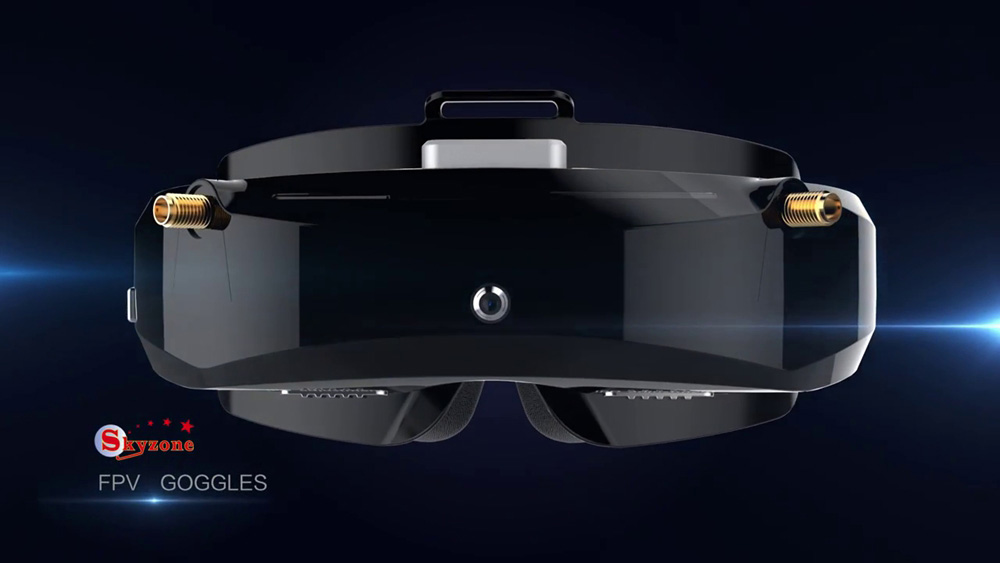

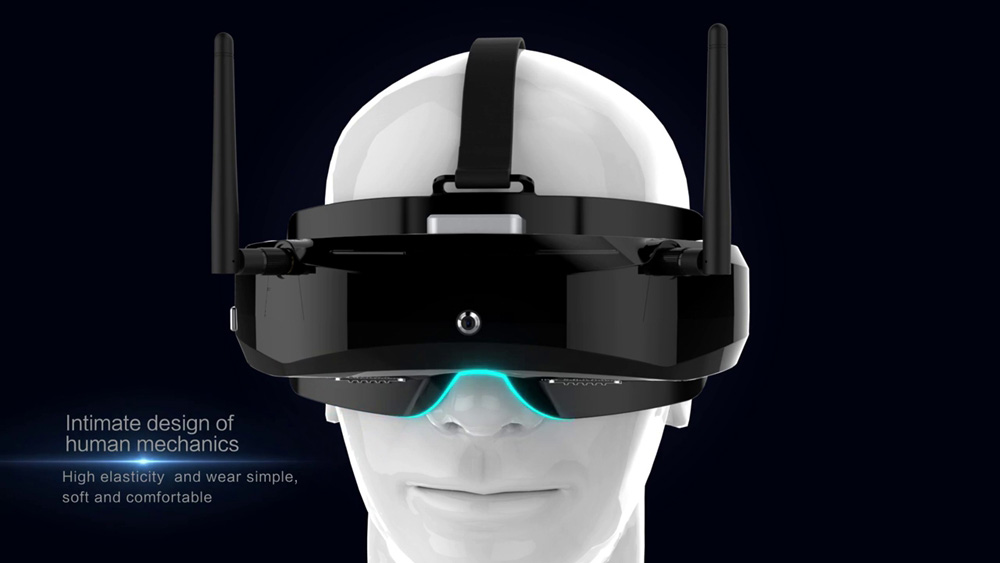

Skyzone SKY03 3D 800X600 5.8G 48CH FPV Goggles with Head Tracking Standard Dual Antennas Fan Support HDMI DVR - White

Brand: Skyzone
Item Name: FPV Goggles
Item No.: Sky03

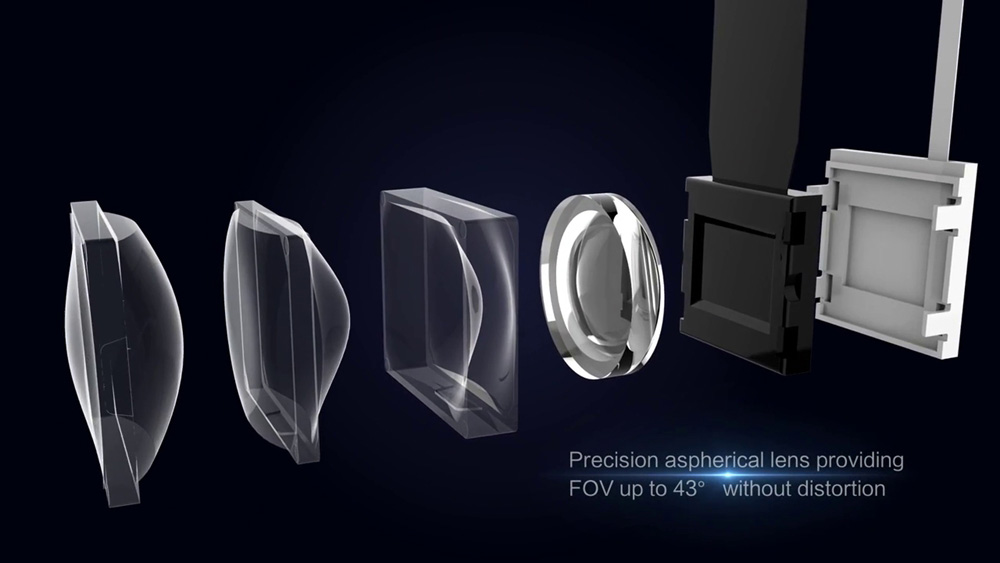

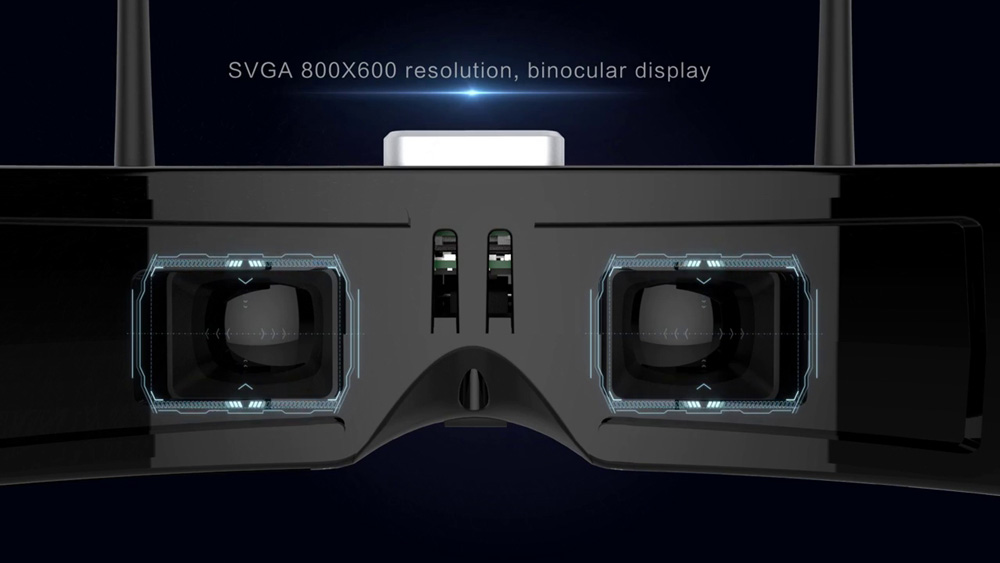

Binocular Display:
FOV: 39 degrees (Diagonal)
Resolution: 800X600(SVGA), 1,440,000 color sub-pixels
Brightness: 200cd/m²

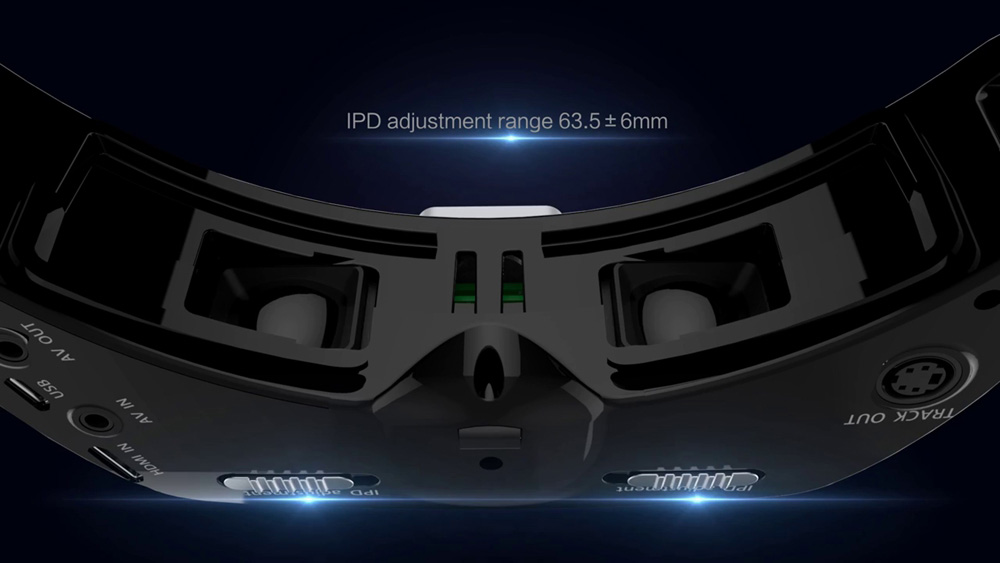

Interpupillary: 57.5 to 69.5mm Adjustable
distance (IPD)
3D Display: Side-by-Side(half)

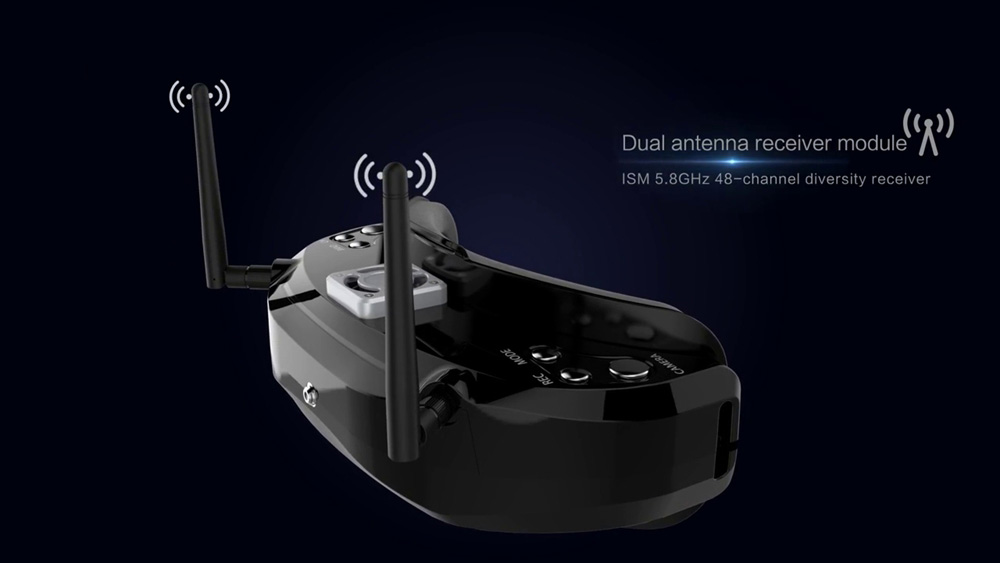

Wireless Receiver:
ISM 5.8GHz 48 Channel, Diversity receiver.
Band CH 1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
B 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M
E 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M
F 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
R 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M
L 5362M 5399M 5436M 5473M 5510M 5547M 5584M 5621M
Sensitivity: -90dBm±1dBm
Antenna port: 2 X SMA,50ohm

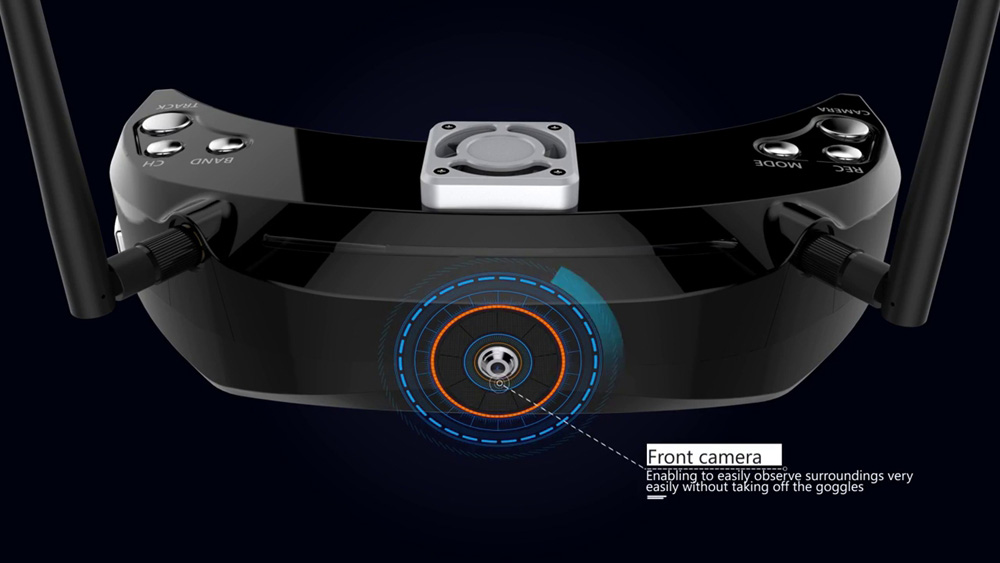

Front Camera:
FOV: 60 degrees (Diagonal)
Resolution: 640X480(VGA)
Focal length: f=4.0mm
F/NO: F/NO=2.8

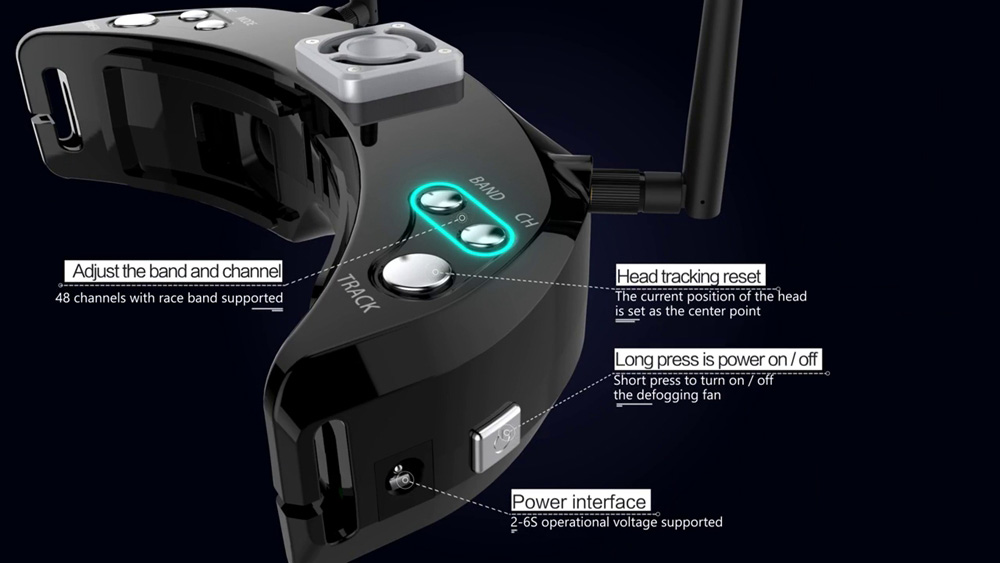

Head Tracker:
Sensor: 3-axis Accelerometer, 3-axis gyroscope
Output: PPM 8 channel, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH

Record:
Micro SD: Support to 128GB (UHS-I Interface)
Compression: H264, 30fps,MOV
Data rate: 6Mbps

AV Signal
Video Standard: NTSC/PAL
Video output level: 1.0Vp-p Typ. / 75ohm
Audio output level: 1.0Vp-p Typ. / 10Kohm

AV Port:
AV OUT(3.5mm4P): Diversity receiver, Video, Audio output
EAR OUT(3.5mm3P): Stereo 16Ω/150mW
AV IN(3.5mm4P): Video, Audio input
HDMI IN(C-Type): HDMI 1.4 specification: 1920x1080p60, 1920x1080p50,1920x1080i60, 1920x1080i50,1280x720p60, 1280x720p50, 576p,576i, 480p, 480i, PC Format(Not all)

Power Supply:
DC IN: DC 7~26V/ 1A
Power Consumption: 12V input: 5.8W (RF mode)

Operating Temperature: 0°C~+60°C
