Overview:

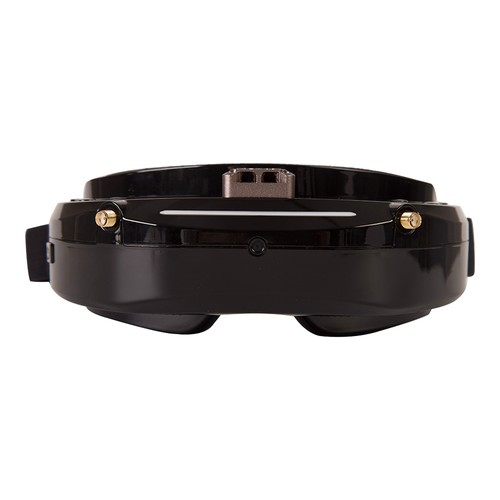

The SKY03O is the OLED version of SKY03, with resolution of 1024*768 and OLED
display, the vivid color and high contrast ratio, pilots can see more details, the new
optical make the image crystal clear and no image distortion and blur edge
Dimensions: 170(L)X83(W)X44(H)mm (Not include prominent part)
Weight: 231g (Not include package box)
FOV: 35 degrees (Diagonal)
Resolution: 1024X768(XGA), OLED
Luminance: Adjustable, 300(Max)
Contrast Ratio: 10000:1
Interpupillary Distance (IPD): 57.5 to 69.5mm Adjustable
ISM 5.8GHz 48 Channel, Diversity receiver.
Band CH 1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
B 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M
E 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M
Wireless Receiver: F 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
R 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M
L 5362M 5399M 5436M 5473M 5510M 5547M 5584M 5621M
Sensitivity: -90dBm±1dBm
Antenna Port: 2 X SMA-K,50ohm
Front Camera:
FOV: 60 degrees (Diagonal)
Resolution: 640X480(VGA)
Focal length: f=4.0mm
F/NO: F/NO=2.8
Head Tracker
Sensor: 3-axis Accelerometer, 3-axis gyroscope
Output: PPM 8 channel, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH
Record:
Micro SD: Support to 128GB (UHS-I Interface, U1)
Compression: H.264, 30fps,MOV
Data Rate: 6Mbps
AV Signal:
Video Standard NTSC/PAL
Video output level 1.0Vp-p Typ. / 75ohm
Audio output level 1.0Vp-p Typ. / 10Kohm
AV Port:
AV OUT(3.5mm4P): Diversity receiver, Video, Audio output
EAR OUT(3.5mm3P): Stereo 16Ω/150mW
AV IN(3.5mm4P): Video, Audio input
HDMI IN(C-Type): HDMI 1.4 specification: 1920x1080p60, 1920x1080p50,
1920x1080i60, 1920x1080i50,1280x720p60, 1280x720p50, 576p,
576i, 480p, 480i, PC Format(Not all)
Power Supply:
DC IN: DC 7 - 26V/ 1A
Power Consumption: 12V input: 6W (RF mode)
Operating Temperature: 0 - +60 Celsius
|
