Highlights
Network connection don't need PC, realize all the function via the APP easily
Network setup with WiFi, unplug the ethernet cable, all setup are via Phone APP ( APCam )
Support micro SD card up to 128G for video and picture storage (SD Card is not included)
Standard H.264 video compression algorithm to satisfy the transmission of high definition video
Support P2P (point to point) technology, the IP Camera can be linked through the internet without any complicated port mapping
1.0 megapixel CMOS Sensor, maximum image resolution is up to 1280 x 720, 25fps
Integrated ONVIF standard, compatible with third-party ONVIF platform software
Supports monitoring via computer, iphone, and Android smartphones
Automatic IR LED illumination for night vision
With IR-cut filter, less image distortion
Build-in WiFi module, support 820.11b/g/n
Support motion detection, send alarm information by email
Mobile view allows you to realize remote view and recording anywhere and anytime
Specification
| General | Model No.: SP009A |
| System | Main Processor:High- performance processor Operating system:Embedded Linux OS |
| Lmage Sensor | Sensor:High definition color CMOS sensor. Display Resolution:1280*720 (1.0 Megapixel) Min.Illumination:0.1 Lux / F1.2 (With IR Illuminator) |
| Lens | Lens Type:Metal glass lens. Lens Parameter:Focal length: 3.6 mm. Aperture: 2.4. Angle of View:90° |
| Video | Resolution:720P(1280 x 720), VGA(640 x 360), QVGA(320 x 180) Image Compression:H.264. Zoom:Sricam App supports 4x digital zoom. Image Frame Rate:25 fps maxmium. Image Adjustment:Automatic Flip Mirror Image:Automatic Infrared Mode:Automatic Night Visibility:8 IR illuminationLEDs. Night vision range up to 8 metres |
| Audio | Coding Standards:G.711A Input / Output:Built-in Mic & Speaker. Supports two-way audio, Easily communication |
| Record | MicroSD Card:Supports up to 128GB microSD card for recording and playback. Recording Mode:Motion Detection alarm recording, Timing recording and Manual recording. Record Standard:VGA @ 25 fps Storage Path:Supports recording on microSD card, Smart phone and Windows PC Playback:Supports remote and local record playback |
| Network | Wireless:IEEE 820.11 b/g/n, Security supports WEP, WPA & WPA2 Encryption Online Visitor:Online visitor LAN support 10 people, WAN support 5 people |
| Alarm | Alarm:Supports Email, Phone push and Motion detection alarm functions. The alarm video will automatically record on the microSD card |
| Others | Product Type:Plastic, Indoor Use DC Power:DC5V, 1A.. Working Temperature:-10 to +50°C Working Humidity:10% to 90% RH Size:Item size: 68mm x168 x 110mm (LxWxH) Packaging size:160mm x140mm x 55mm(LxWxH) Weight:N.W.:150g. G.W.: 350g (Note:Actual Weight Final) Accessories:USB Adaptor, user Manual, USB cable(1.5 meter) & screws |
| System | Sricam App:Supports iOS and Android system smart phones or tablet PCs |
| Other information | Certification:CE, FCC & RoHS Warranty:Limited 2-Year Warranty |

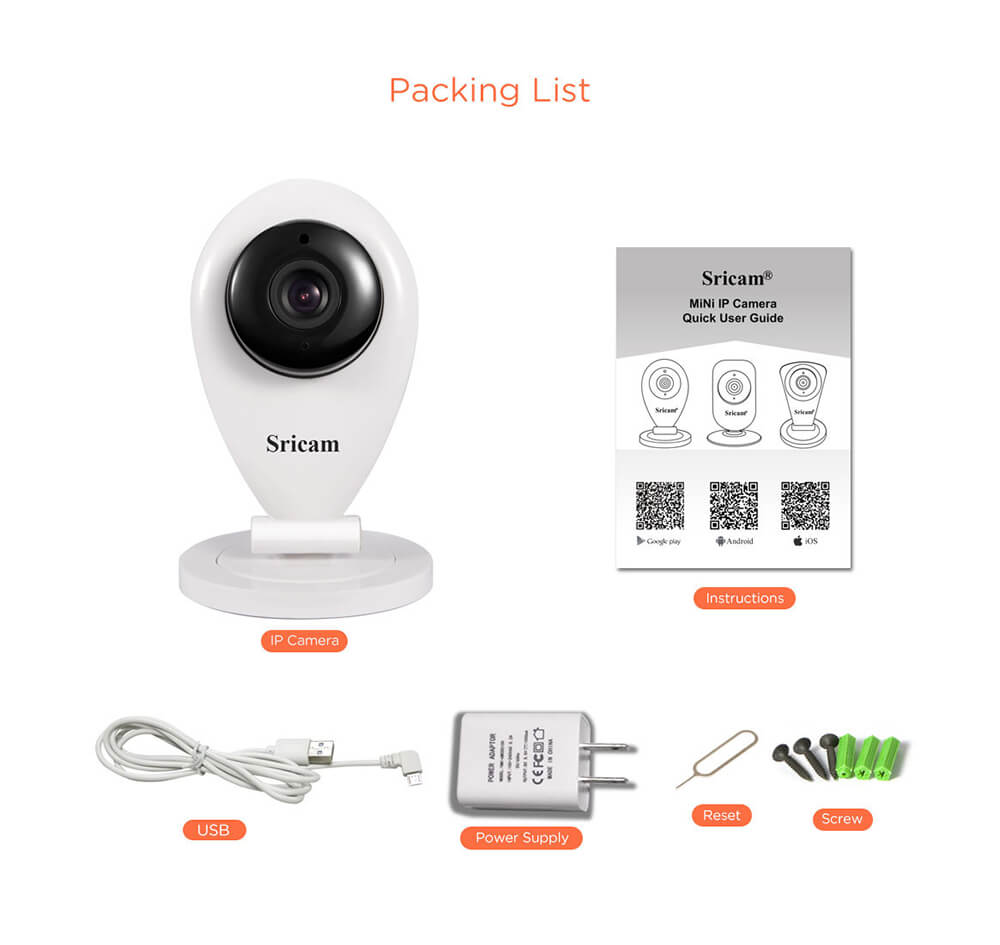

| Package | 1 x Sricam SP009A IP Camera (SD Card is not included) 1 x Power Adapter US / EU Plug (Also come with a free power adapter according to your country~) 1 x USB Cable 3 x Screws 1 x English User Manual |
