General |
Model |
EA-92491 |
Quantity |
1 Piece |

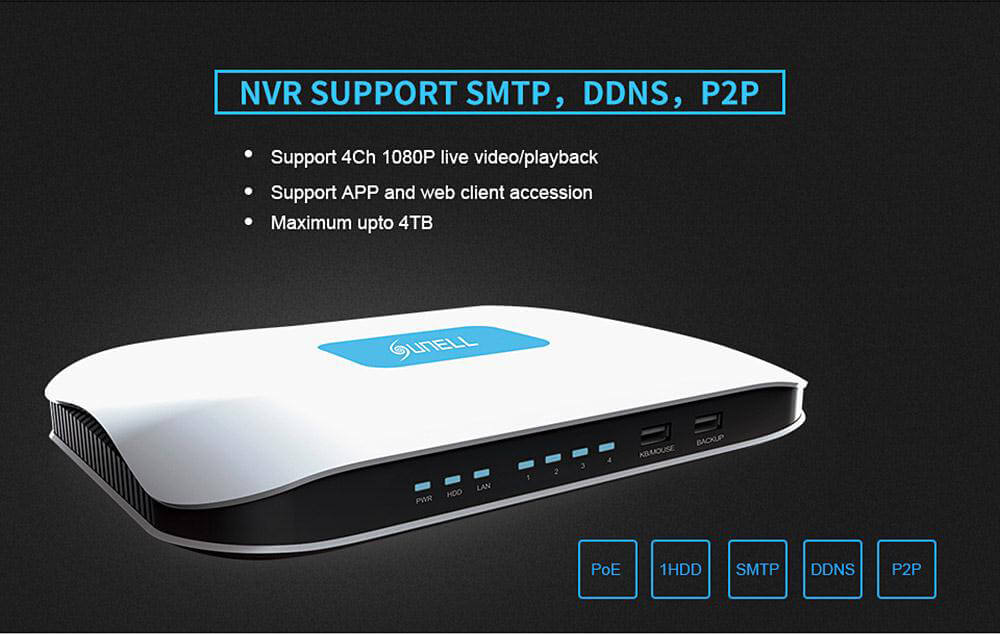

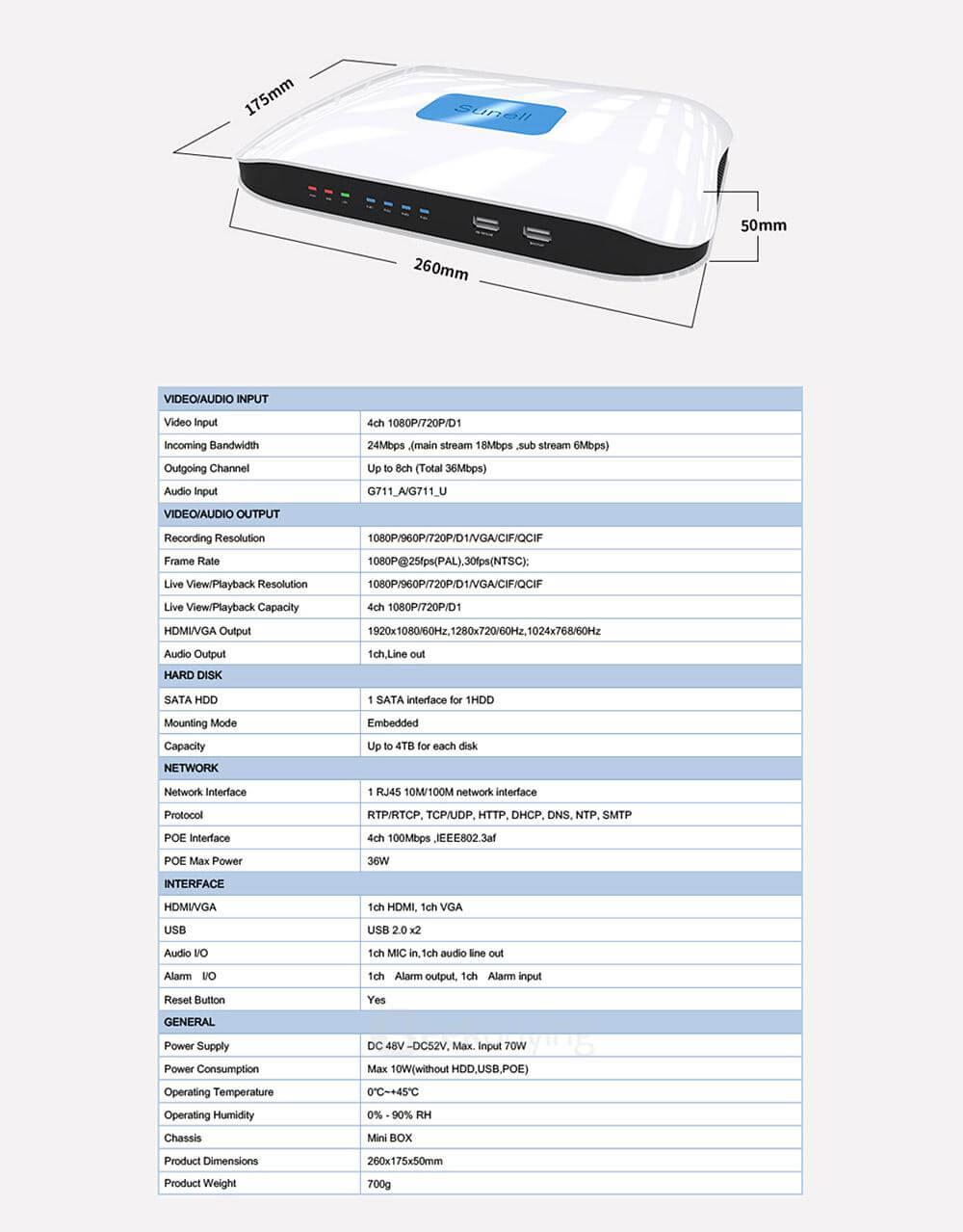

NVR |
VIDEO/AUDIO INPUT |
Video Input |
4ch 1080P/720P/D1 |
Incoming Bandwidth |
24Mbps ,(main stream 18Mbps ,sub stream 6Mbps) |
Outgoing Channel |
Up to 8ch (Total 36Mbps) |
Audio Input |
G711_A/G711_U |
VIDEO/AUDIO OUTPUT |
Recording Resolution |
1080P/960P/720P/D1/VGA/CIF/QCIF |
Frame Rate |
1080P@25fps(PAL),30fps(NTSC); |
Live View/Playback Resolution |
1080P/960P/720P/D1/VGA/CIF/QCIF |
Live View/Playback Capacity |
4ch 1080P/720P/D1 |
HDMI/VGA Output |
1920x1080/60Hz,1280x720/60Hz,1024x768/60Hz |
Audio Output |
1ch,Line out |

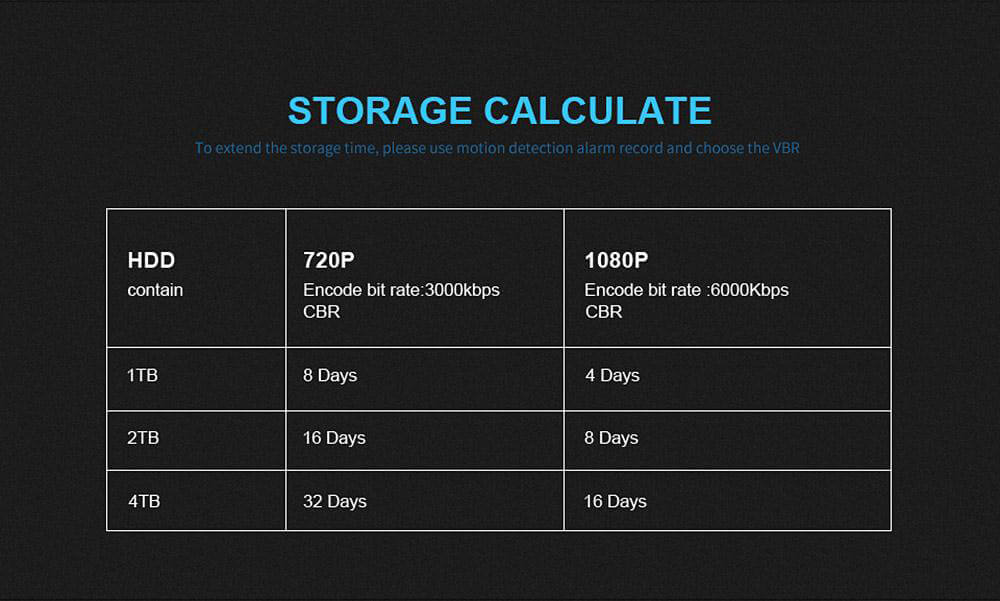

HARD DISK |
SATA HDD |
1 SATA interface for 1HDD |
Mounting Mode |
Embedded |
Capacity |
Up to 4TB for each disk |
NETWORK |
Network Interface |
1 RJ45 10M/100M network interface |
Protocol |
RTP/RTCP, TCP/UDP, HTTP, DHCP, DNS, NTP, SMTP |

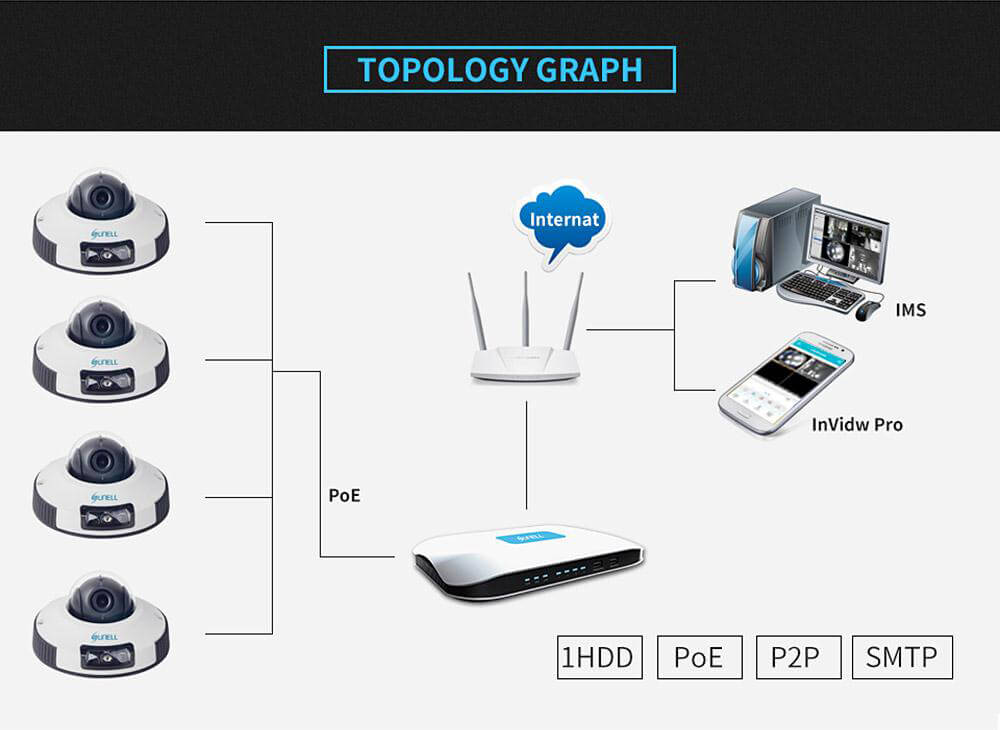

POE Interface |
4ch 100Mbps ,IEEE802.3af |
POE Max Power |
36W |
INTERFACE |
HDMI/VGA |
1ch HDMI, 1ch VGA |
USB |
USB 2.0 x2 |
Audio I/O |
1ch MIC in,1ch audio line out |
Alarm I/O |
1ch Alarm output, 1ch Alarm input |
Reset Button |
Yes |
GENERAL |
Power Supply |
DC 48V –DC52V, Max. Input 70W |
Power Consumption |
Max 10W(without HDD,USB,POE) |
Operating Temperature |
0ºC~+45ºC |
Operating Humidity |
0% - 90% RH |
Chassis |
Mini BOX |
Product Dimensions |
260x175x50mm |

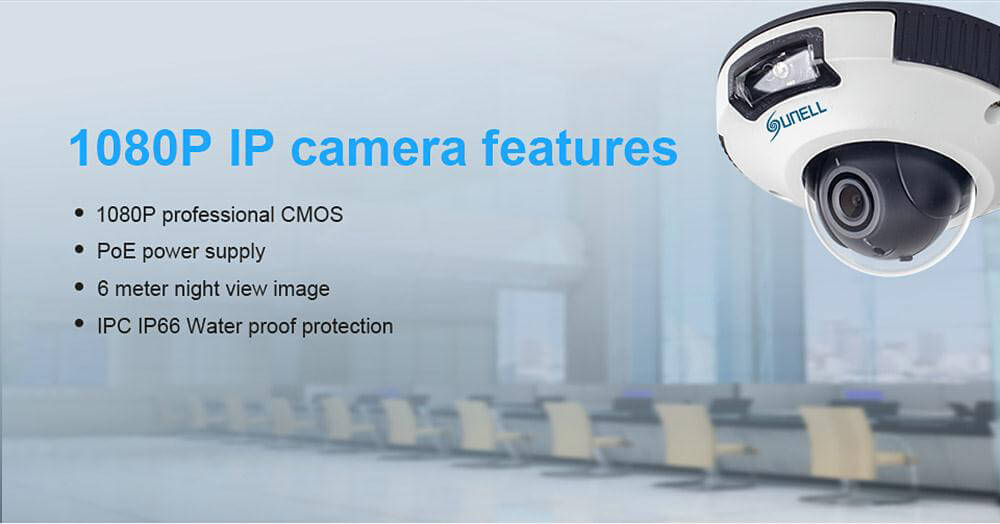

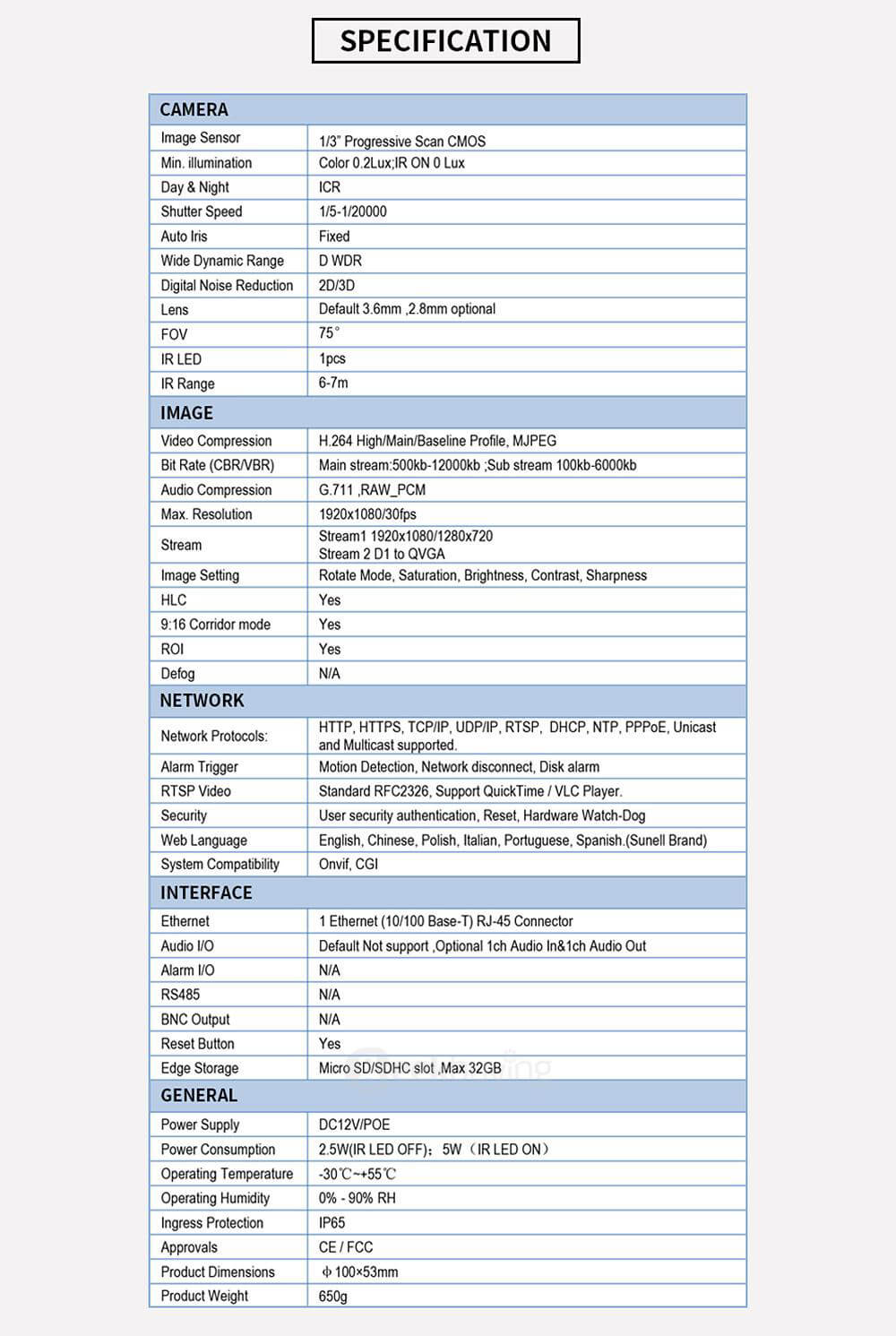

IPC |
CAMERA |
Image Sensor |
1/3” Progressive Scan CMOS |
Min. illumination |
Color 0.2Lux;IR ON 0 Lux |
Day & Night |
ICR |
Shutter Speed |
1/5-1/20000 |
Auto Iris |
Fixed |
Wide Dynamic Range |
D WDR |
Digital Noise Reduction |
2D/3D |
Lens |
Default 3.6mm ,2.8mm optional |
FOV |
75° |
IR LED |
1pcs |
IR Range |
6-7m |
IMAGE |
Video Compression |
H.264 High/Main/Baseline Profile, MJPEG |
Bit Rate (CBR/VBR) |
Main stream:500kb-12000kb ;Sub stream 100kb-6000kb |
Audio Compression |
G.711 ,RAW_PCM |
Max. Resolution |
1920x1080/30fps |
Stream |
Stream1 1920x1080/1280x720 |
|
Stream 2 D1 to QVGA |
Image Setting |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
HLC |
Yes |
9:16 Corridor mode |
Yes |
ROI |
Yes |
Defog |
N/A |
NETWORK |
Network Protocols: |
HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, PPPoE, Unicast and Multicast supported. |
Alarm Trigger |
Motion Detection, Network disconnect, Disk alarm |
RTSP Video |
Standard RFC2326, Support QuickTime / VLC Player. |
Security |
User security authentication, Reset, Hardware Watch-Dog |
Web Language |
English, Chinese, Polish, Italian, Portuguese, Spanish.(Sunell Brand) |
System Compatibility |
Onvif, CGI |
Interface |
Ethernet |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
Audio I/O |
Default Not support ,Optional 1ch Audio In&1ch Audio Out |
Alarm I/O |
N/A |
RS485 |
N/A |
BNC Output |
N/A |
Reset Button |
Yes |
Edge Storage |
Micro SD/SDHC slot ,Max 32GB |
GENERAL |
Power Supply |
DC12V/POE |
Power Consumption |
2.5W(IR LED OFF);5W(IR LED ON) |
Operating Temperature |
-30ºC~+55ºC |
Operating Humidity |
0% - 90% RH |

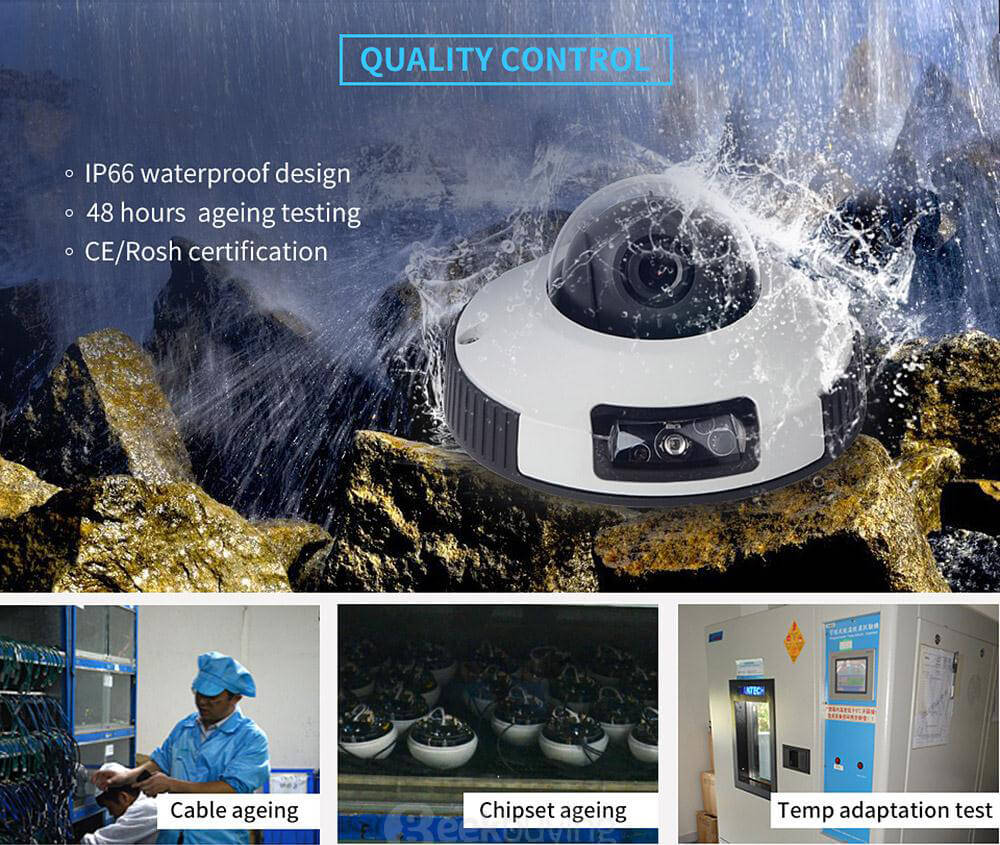

Ingress Protection |
IP65 |
Approvals |
CE / FCC |

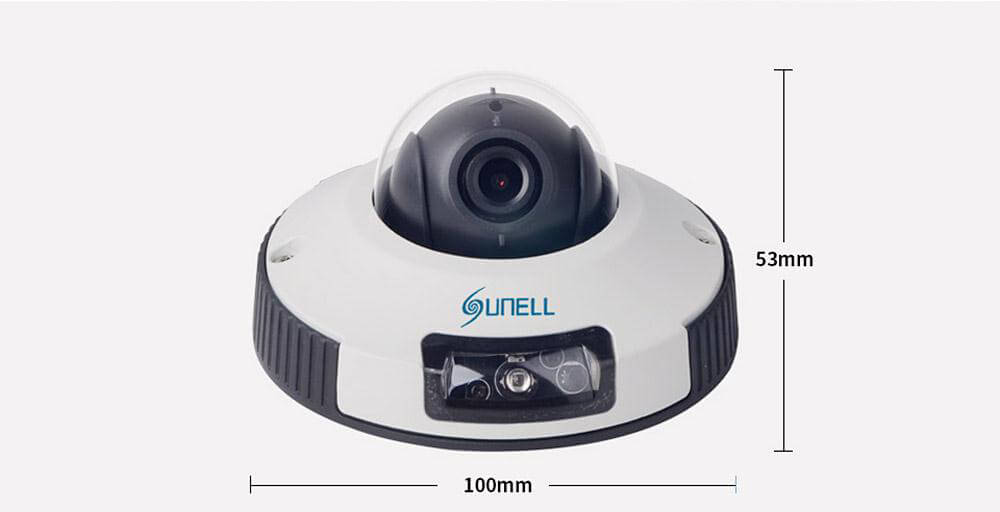

Product Dimensions |
φ100×53mm |
