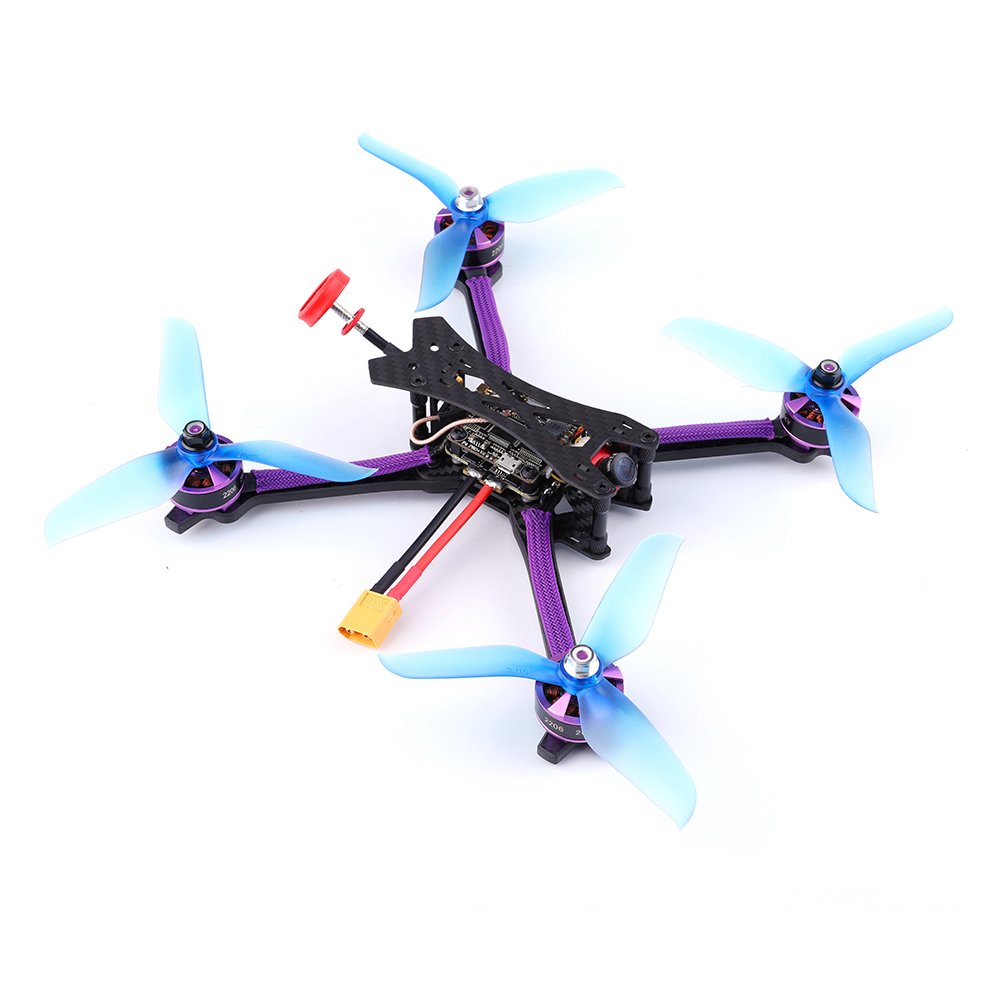

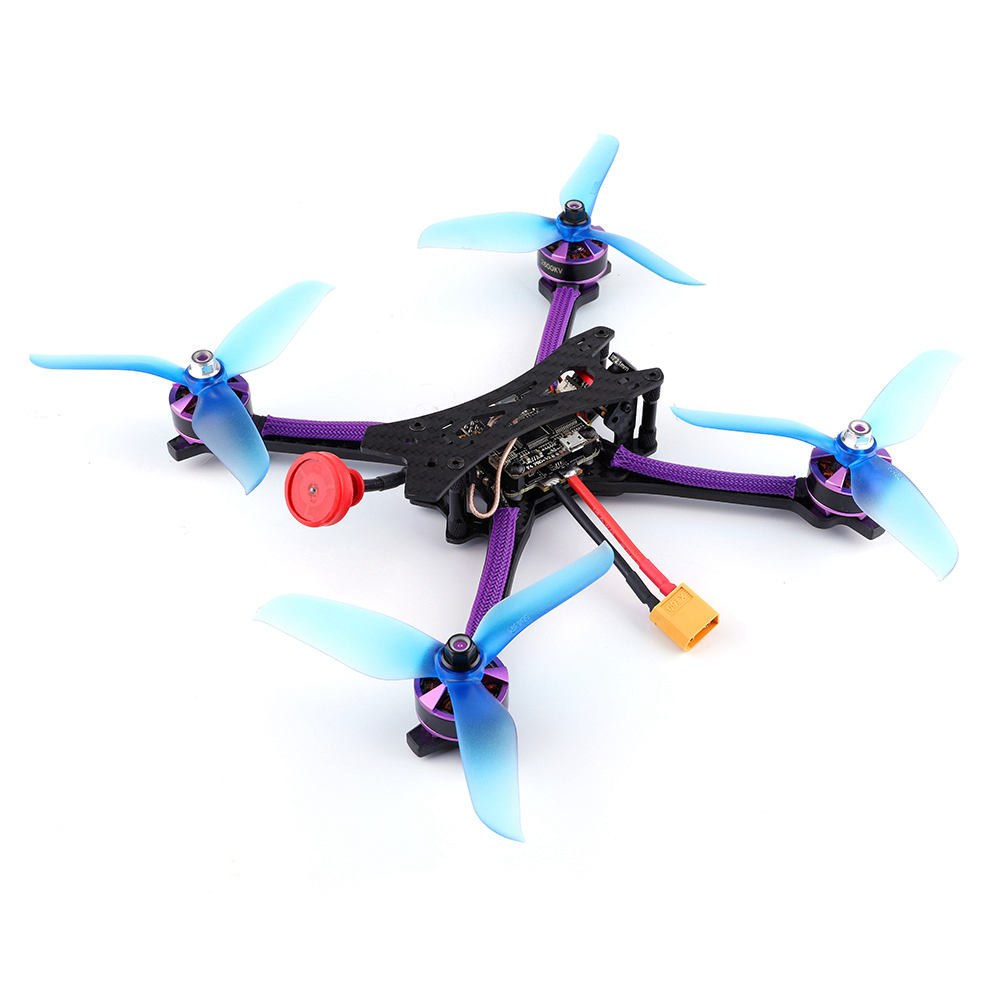

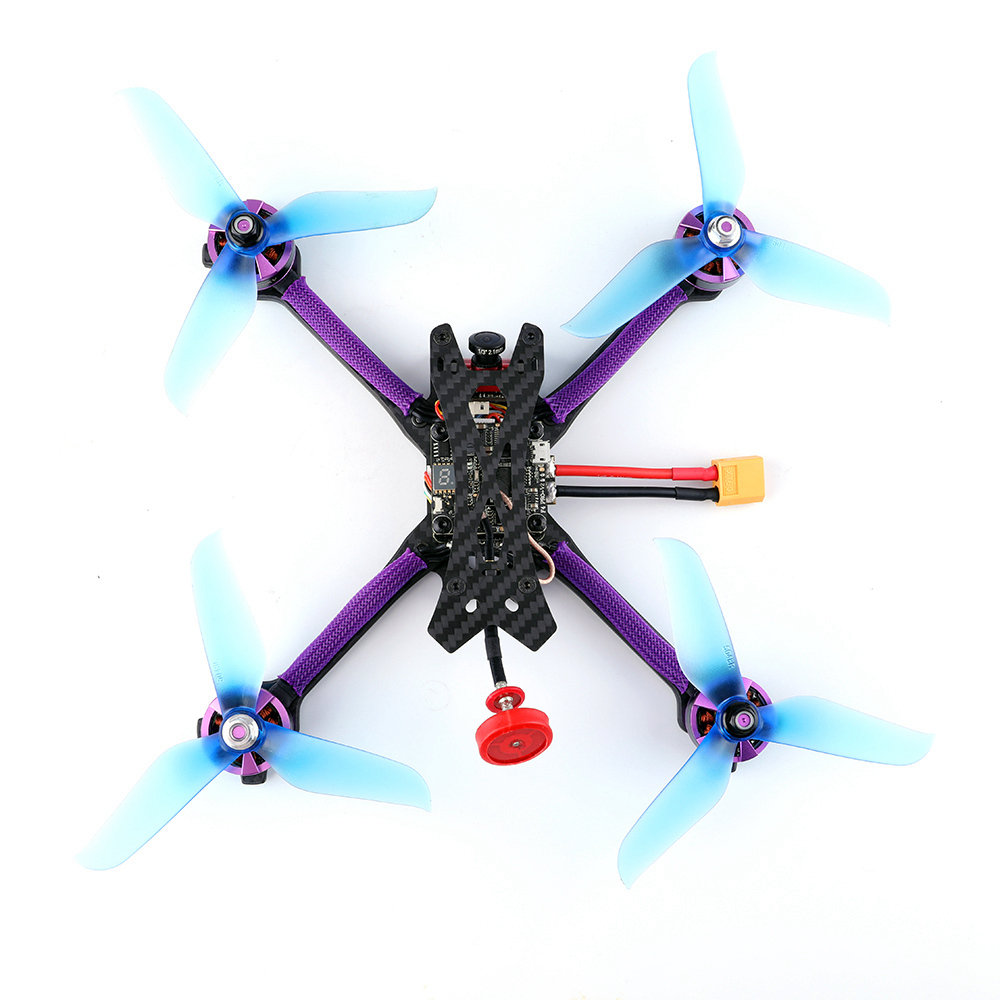

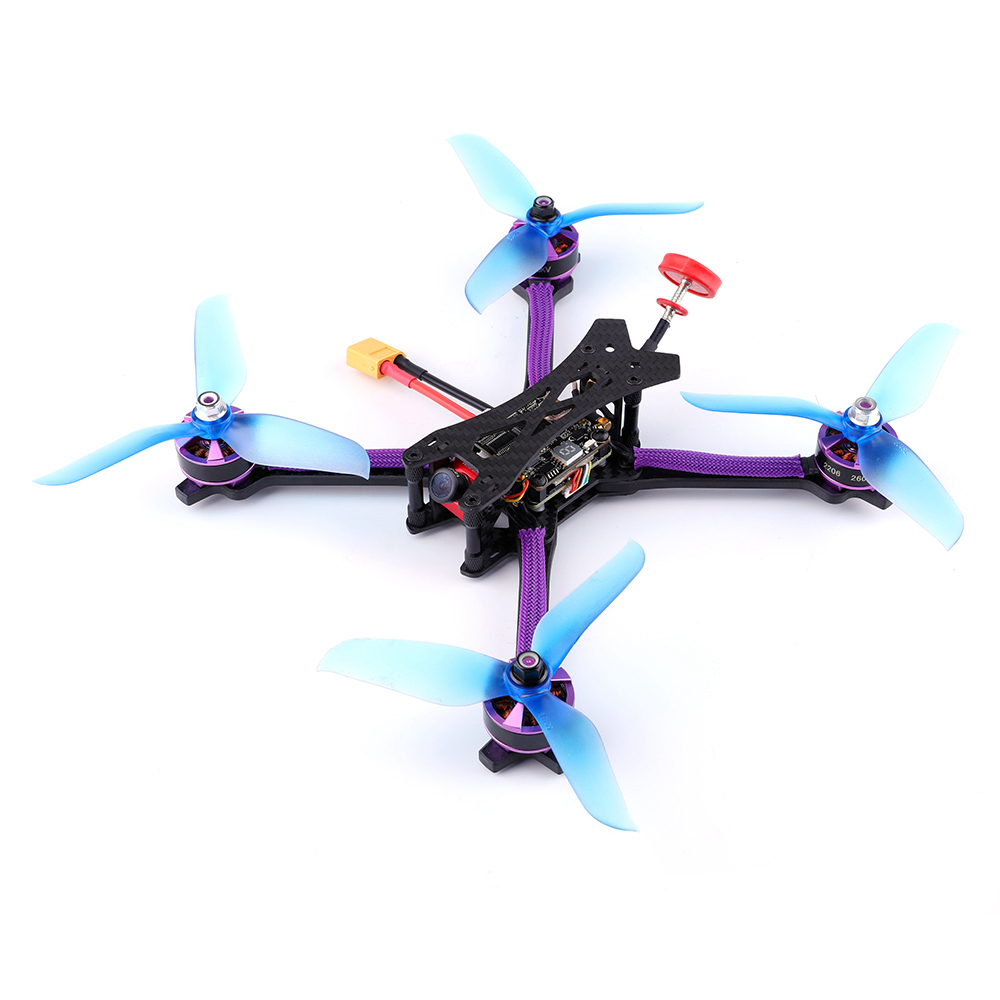

Tero Q215mm FPV Racing Drone F4 PRO+ V2 FC 35A 2-6S Blheli-S 4In1 ESC 5.8G VTX 800TVL Camera Frsky XM+ Receiver - BNF

Item Name: Tero
Item No.: Q215

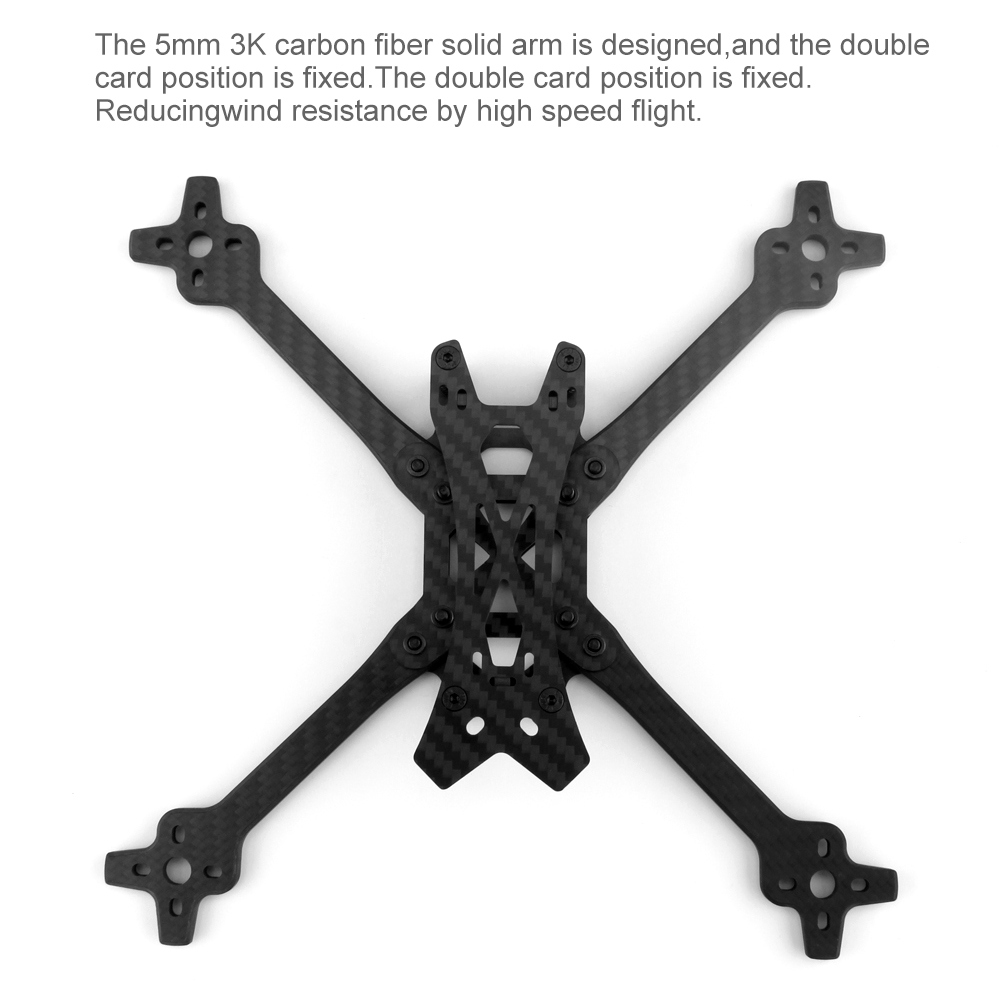

Material: Carbon Fiberz
Wheelbase: 215mm
Arm Plate Thickness: 5mm
Bottom Plate Thickness: 5mm
Side Plate Thickness: 3mm

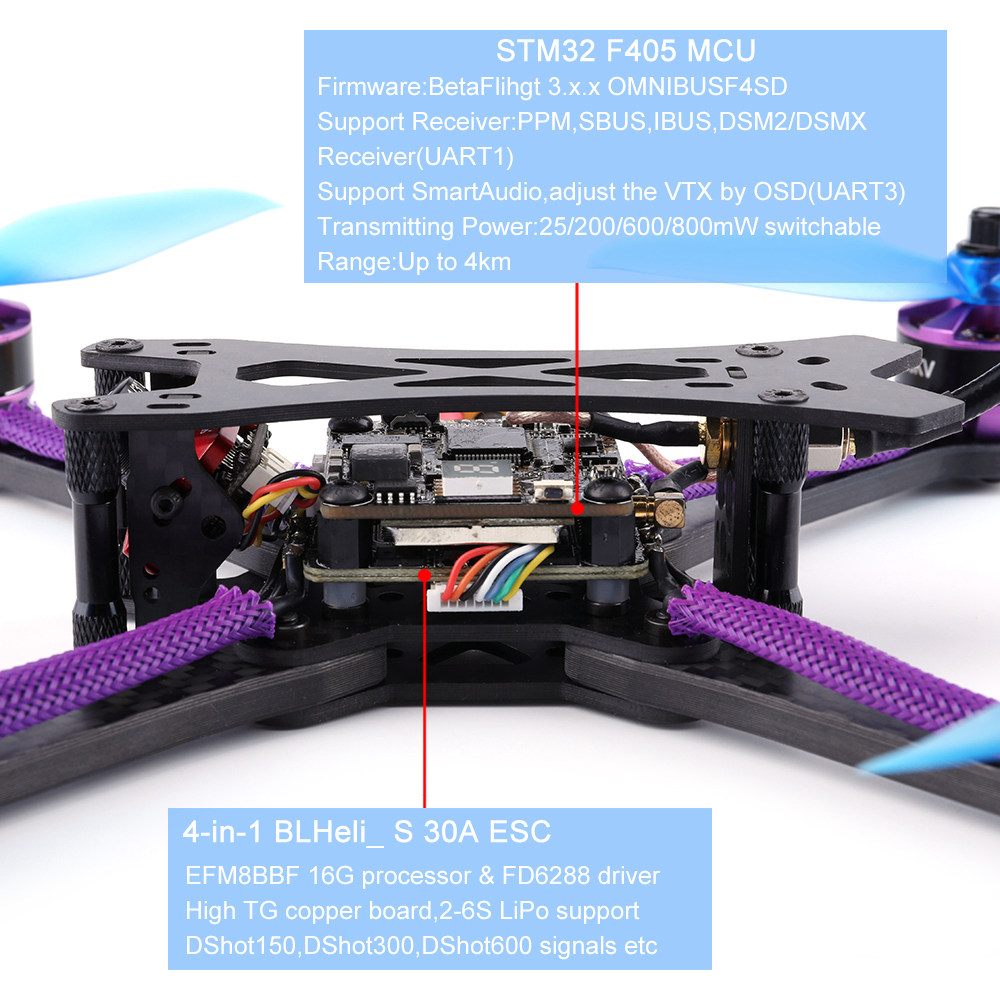

F4 PRO+V2 Flight Controller
F4 (STM32F405) Processor
Gyroscope: MPU6000(Reserved external gyroscope interface)
Firmware: Betaflight OMNIBUS F4SD
Input Voltage: 2-6s lipo support
BEC Output: 5V 3A
Fimware: betaflihgt_3.2.0_OMNIBUSF4SD
Net Weight: 12g (not including cable)
Size: 36x36mm
Mounting Hole: 30.5x30.5mm
Receiver: Support PPM, SBUS, IBUS, DSM2/ DSMX Receiver (UART1)
Integrated with OSD, support BF Ground Station adjust OSD
Adjust the PID by OSD via remote control
Dshot support
Support SAMRT AUDIO, adjust the VTX by OSD (UART3)
MicroSD card blackbox
Baro(BMP280)
Supports smart audio (remote parameter adjustment)

5.8G FPV Transmitter
Frequency: 5362-5945MHZ
Video Format: NTSC/PAL
Transmitting Power: 25/200/600/800mW switchable
Operating Voltage: DC 7V-24V
Output voltage: 5V /450mA
Working Current: 25mW: 240mA/ 200mW: 340mA/ 600mW: 520mA/ 800mW: 600mA
RemoteSoftwareprotocol: SmartAudio V2.0
Audio Bandwidth: 6.5MHZ
Video Bandwidth: 18MHZ
Channel: 40 CH
Range: Up to 4km omnidirectional RHCP antennas
Connector: MMCX

35A 2-6S Blheli-S 4 in 1 ESC
Input Voltage: 2-6S Lipo battery
Constant Current: 35A
Peak Current: 40A
BEC Ouput: NO
Mounting hole spacing: 30.5mm
30A continuous current, 35A burst
8bit compatible ESC (Blheli_S)
Incredibly small size
Very low weight
Auto timing feature
Build in current sensor
Smooth response
Compatible to Betaflight F3/F4 flight controller Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse.

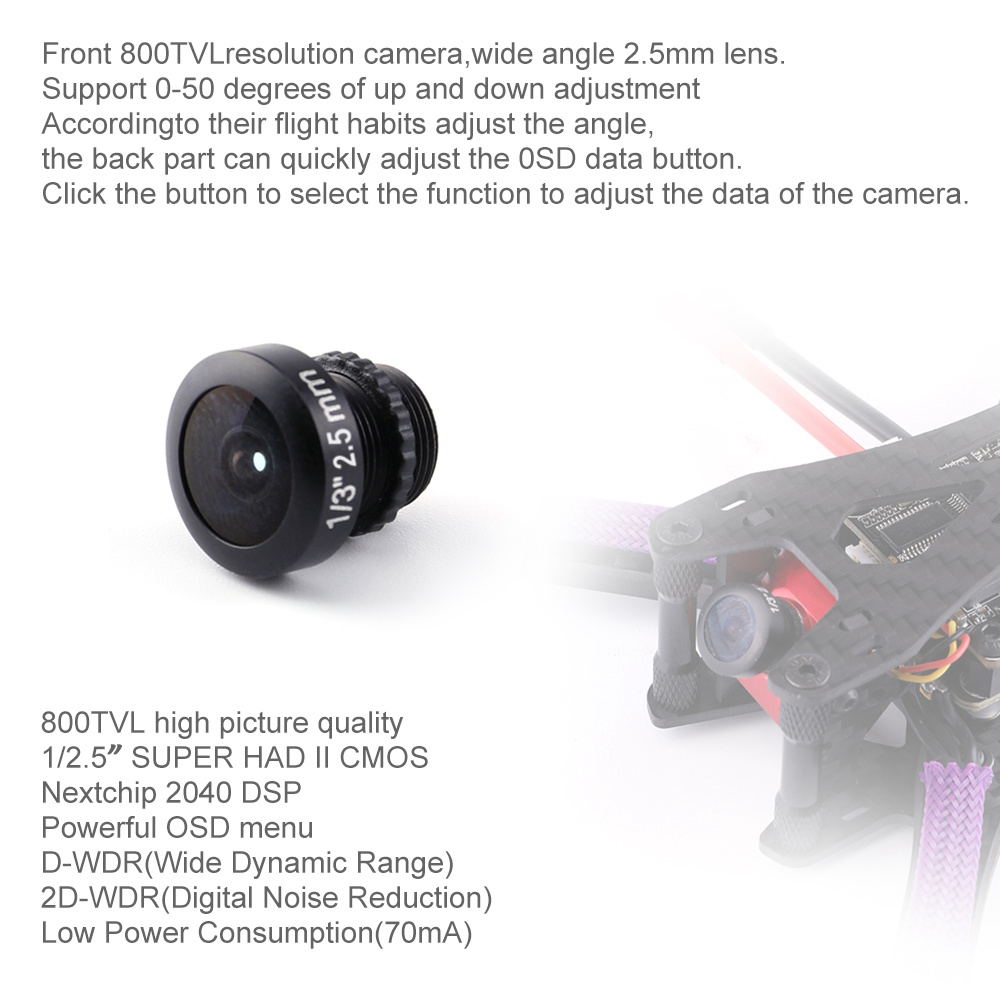

FPV CAMERA
CMOS: 1/2.5” SUPER HAD II CMOS
Horizontal resolution: 800TVL
TV system: PAL / NTSC
5D-OSD button: yes
Input voltage: 12V DCDimensions(mm): 25X25(W*L)
Menu (OSD): English menu
White Dot Repair: Support
Image Adjustment: Support
Weight: 14.6g(with bracket)
Power Consumption: 70Ma

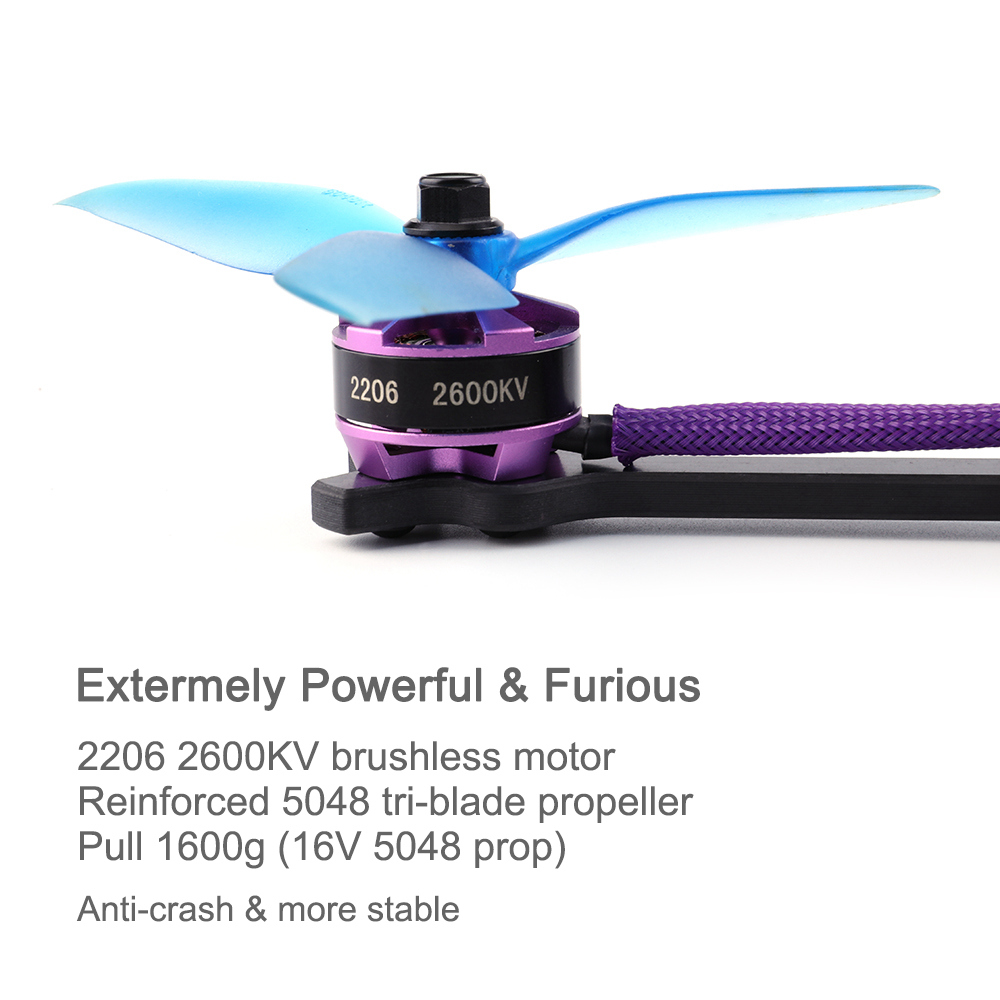

2206-2600KV Motor
KV: 2600KV
Battery (Lipo): 2-4S
Spindle diameter: 22mm
Spindle length: 6mm
Out shaft diameter: 5mm
Motor size: Φ33.5 x 39.1mm
Thrust: 1600g (16V 5048 3-blade prop)

Frsky XM+ Receiver
Dimension: 21.5 x 12 x 3.5mm(L x W x H)
Weight: 1.6g
Number of channels: up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC)
Operating voltage range: 3.7-10V
Operating current: 30mA @5V
Operating range: full range
With RSSI output on board: analog 0-3.3V
Firmware upgradeable
Compatibility: FrSky D16 mode

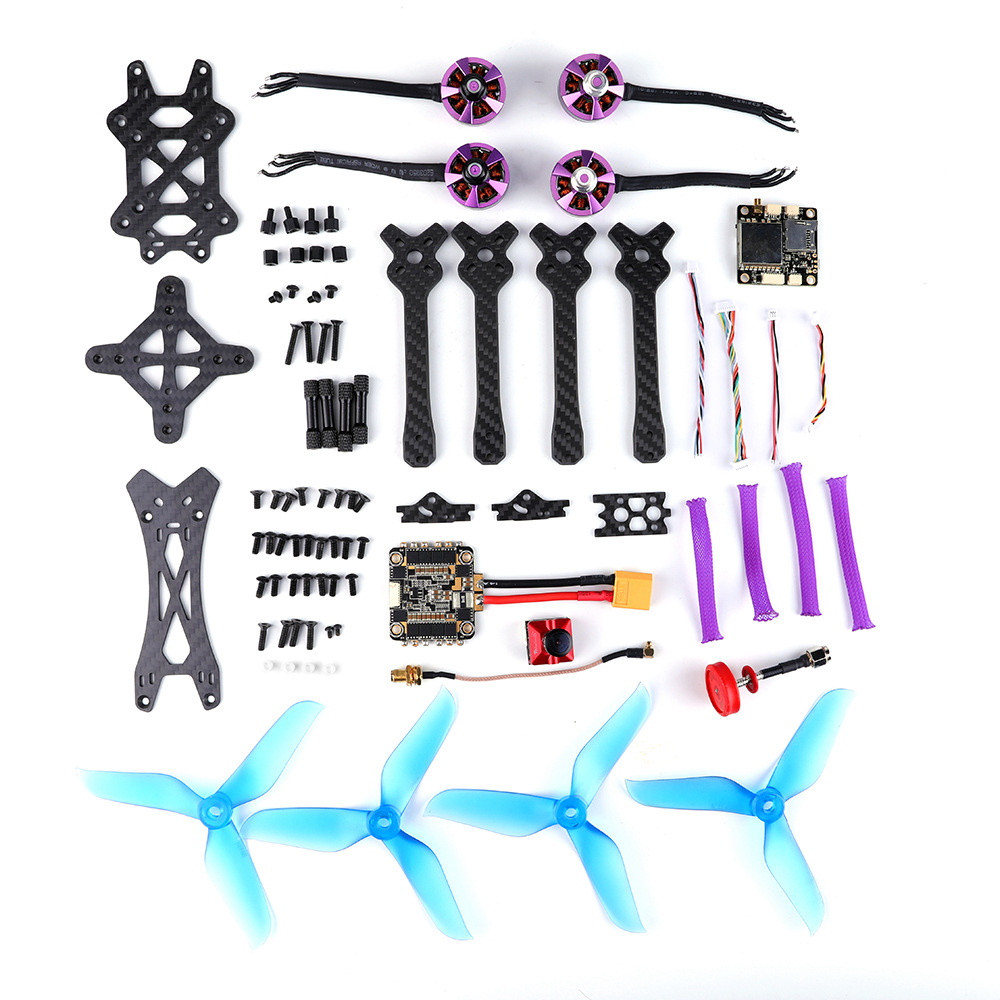

1 x 215mm Carbon Fiber Frame Kit
1 x F4PRO+ Flight Controller
1 x 35A Blheli-S 4 In 1 ESC
1 x 800TVL CMOS CAMERA
4 x 2206-2600KV Motor
4 x Propeller CW (Random Color)
4 x Propeller CCW (Random Color)
1 x Antenna
1 x Battery plate
1 x Battery strap
1 x Frsky XM+ Receiver
