Highlights

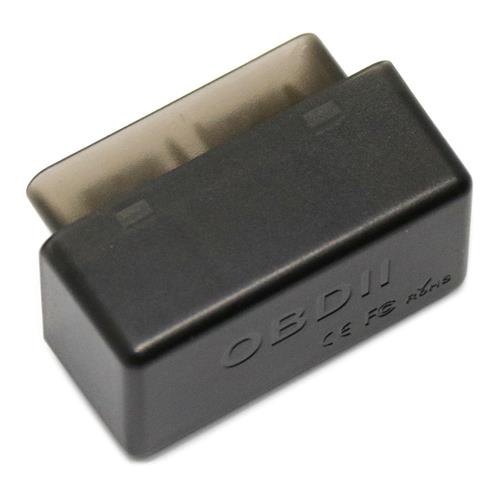

V01HW WIFI OBDII is small size, highest chip integration. With the independent appearance of patents, utility model patents, and software copyright, it's reliable. Pass CE, FCC, ROSH certification.
It's able to read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("check engine" light).
Display current sensor data, including: Engine RPM, Calculated load value, Coolant temperature, Fuel system status; Vehicle speed; Short term fuel trim; Long-term fuel trim, Intake manifold pressure; Timing Advance; Intake air temperature; Air flow rate; Absolute throttle position; Oxygen sensor voltages/associated short term fuel trims; Fuel system status; Fuel pressure.
Specification
| General |
Model: V01HW |
|
Product Parameters |
SSID: WIFI_OBDII |
| Multi-protocol Support |
1.SAE J1850 PWM (41.6Kbaud) |
| Compatible Software |
Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc .; |
| Software support platform | Windows XP, Windows 7/8, Andrews, Saipan, and other systems. |
| Dimension & Weight | Package Weight: 0.045kg Pacakge Size: 6.3 x 4.5 x 5CM |
| Package Contents | 1 X V01HW |
