Note
Please don`t flash the BIOS, or it will be on your own risk.
Highlights
Intel Apollo Lake J3455
DDR3 4GB RAM, 64GB SSD

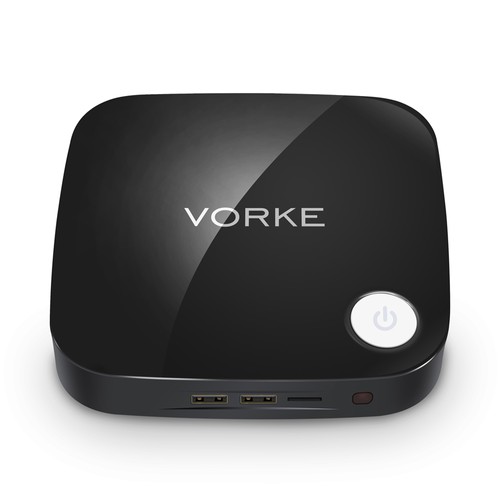

VORKE V1 Plus brags a 4GB DDR3 RAM and 64GB of SSD storage, advantageous in performance, security and reliability. Ascribing to the eMMC memory, it delivers a richer end-user experience.
SSD Extendable, HDD 1TB.
Gigabit LAN
Gigabit LAN provides a data rate of 1 billion bits per second.
Applications
Office Work: Office, skype, yahoo, outlook and all other office requirement support and runs perfectly.
Design Work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others.
Game Playing: Support most of the online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games.
Entertainment: Support 4k@60Hz video play, XBMC and others.
Specification
General |
Brand: Vorke |
Hardware & OS | Operating System: Windows10 home 64-bit, Supports WIN8.1/ubuntu15.10&16.04 Chrome OS CPU: Intel® Apollo Lake J3455(1.5-2.3Ghz) GPU: Intel® HD Graphics 500 RAM: LPDDR3 4GB (1600MHz) ROM: 64GB mSATA SSD(Endless extension for SSD, 1TB extension for HDD, Support 2.5" SATA3 SSD) Sound Codec Chip: Realtek ALC269 |
Communication | Wifi Connectivity: Intel® Dual Band Wireless-AC 3165,802.11ac,2.4G/5G Ethernet: Gigabit LAN Bluetooth: 4.2 Card Reader: Micro SD card slot(Realtek RTS5170) |
Media | Video Supported: 3GP,AVI,H.264,MP4 Audio Supported: AAC,ACC,MP3,OGG,WAV Picture Supported: BMP,GIF,JPEG,JPG,PNG Office Format: Excel,PPT,Word E-book Format: PDF,TXT |
Interface | HDMI Port: Standard HDMI Male 2.0a,Support 4k@60Hz Wake On LAN: Yes Other Interfaces USB2.0 x 2 USB3.0 x 2 Headphone out&Mic-in x 1 VGA x 1 LAN 10M/100M/1000M x 1 TYPEA HDMI x 1 Power Button x 1 DC-IN x 1 |
Power | Power: 12V//3A Skype: Supported Youtube: Supported Speaker: Supported MIC: Supported |
Dimensions&Weight | Dimensions: 153.4*153.4*38mm/ 6.039*6.039*1.496inches Weight: 390g/ 13.75oz |
Package Contents | 1 x MINI PC 1 x Power adapter (A right AC Adapter will be sent as your shipping country) 1 x Charging cable 1 x User manual |
5 star: | (12) | |
4 star: | (0) | |
3 star: | (0) | |
2 star: | (0) | |
1 star: | (0) |
How to make VORKE R1 remote work with VORKE V1 & VORKE V1 Plus ?
1. Please keep pressing the F7 key when turning on the VORKE V1 or VORKE V1 PLUS and you will enter the following picture, select Enter Setup and press the Enter Key.
2. BIOS check
A:
Please check
B:
Please check
3. Download BIOS
A:
Download the BIOS file from address:http://vorke.mediafire.com/file/2d3cfy6dxtjgtkl/Vorke_V1_Plus_B0.9_E1.0.zip, extract the file to get Vorke_V1_Plus_B0.9_E1.0 folder, copy the file to the U disk, and then insert the U disk into the Mini PC, press the power button and keep pressing F7 key, then you will enter the following picture, select UEFI: Built-in EFI Shell and press Enter key.
B:
Download the BIOS file from address: http://vorke.mediafire.com/file/ee1l17lqebe4b8n/Vorke_V1_BIOS_T134U116.zip, copy the file to the U disk, and then insert the U disk into the Mini PC, press the power button and keep pressing
4. Find the exact U disk drive you just inserted, enter the VORKE_V1_PLUS_B0.9_E1.0
fs2:
cd VORKE_V1_PLUS_B0.9_E1.0
f
