Highlights
- H.264 Video Compression, Plug & Play
- Support Onvif / RTSP Protocol
- P2P/WPS and Sonic Transfer Technology, Easier to set up WiFi and viewing in Moblile

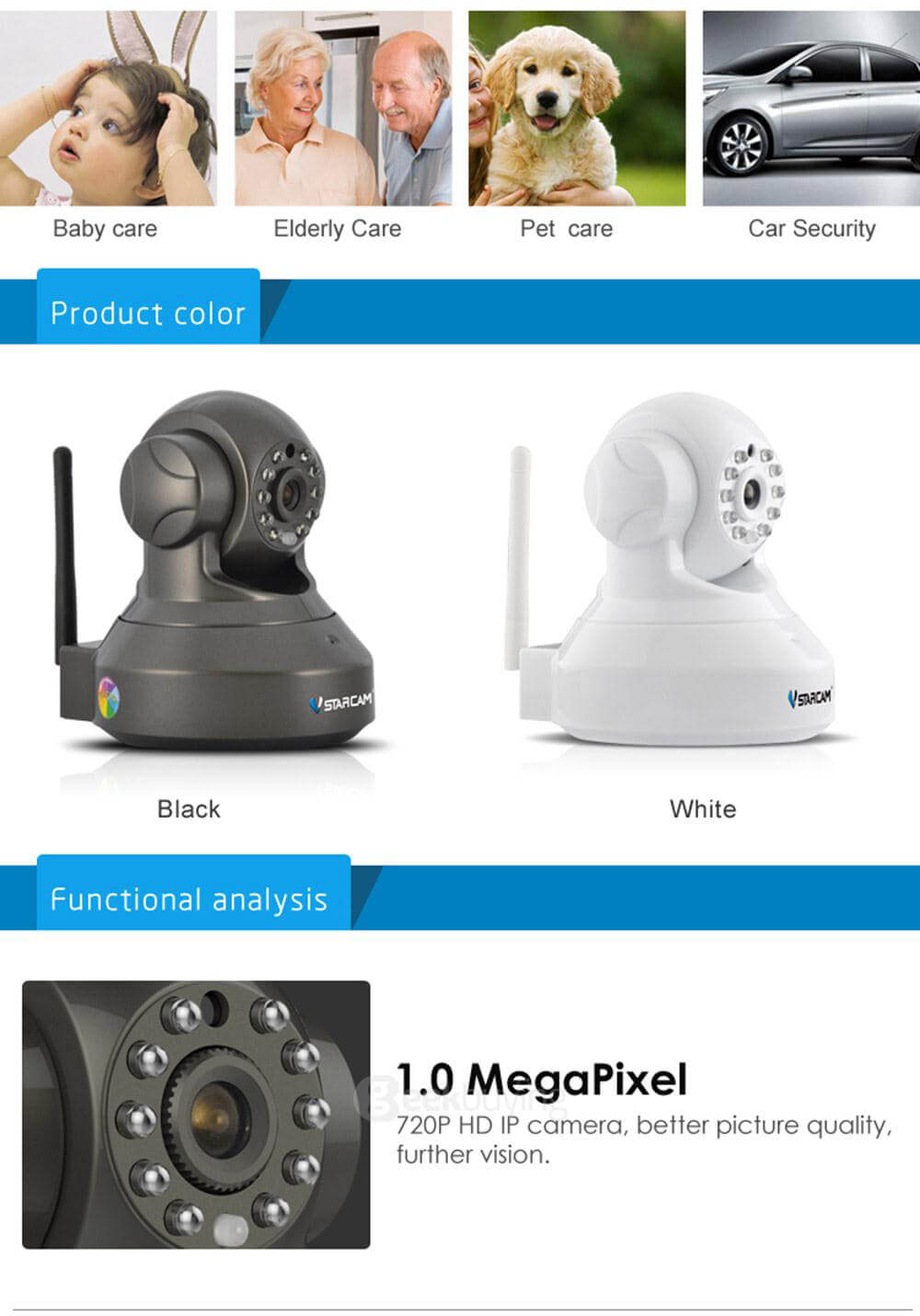

- 1/4 inch CMOS sensor, 1.0 MegaPixel
- 720P/VGA/QVGA Multi stream Snapshot
- Built-In Memory Storage, up to support 64G TF Card
- Support Micro TF Card Memory & Local Storage (PC or Phone)
- Built in IR-CUT filter, no color cast, better picture quality
- 12pcs 850nmΦ5mm LED, IR distance 10m
- Support 4 online visitors viewing simutaneously
- Support 4-Channel view on mobile Phone APP
- Support motion detection alarm, E-mail snapshot & Alarm Pre-recording 12s
Specification
| General | |||||||
|---|---|---|---|---|---|---|---|
| Features | System security | Account, password authority management. | |||||
| Free DDNS | Free DDNS, supports dynamic IP. | ||||||
| View by phone | Support HD pic IOS, Android mobile view (iOS 4.3 / Android OS 2.3 above) | ||||||
| Local Storage | support up to 64GB MicroSD card, 24-hour loop recording. | ||||||
| Monitor Advantage | Support PC computer monitoring, smartphone multi-pic view. | ||||||
| PnP | Plug & Play, 99% penetration rate. | ||||||

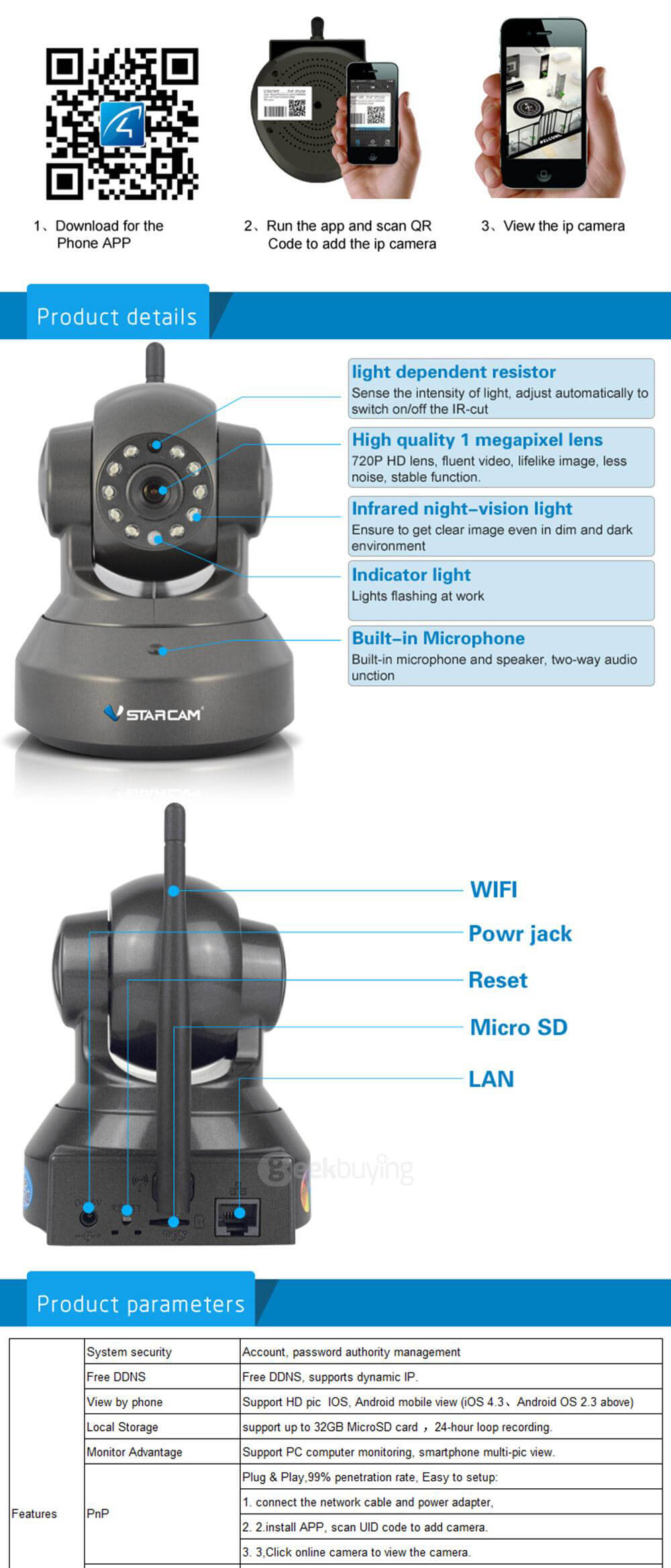

| Easy to setup: 1. connect the network cable and power adapter. | |||||||
| 2.install APP, scan UID code to add camera. | |||||||
| 3.Click online camera to view the camera. | |||||||

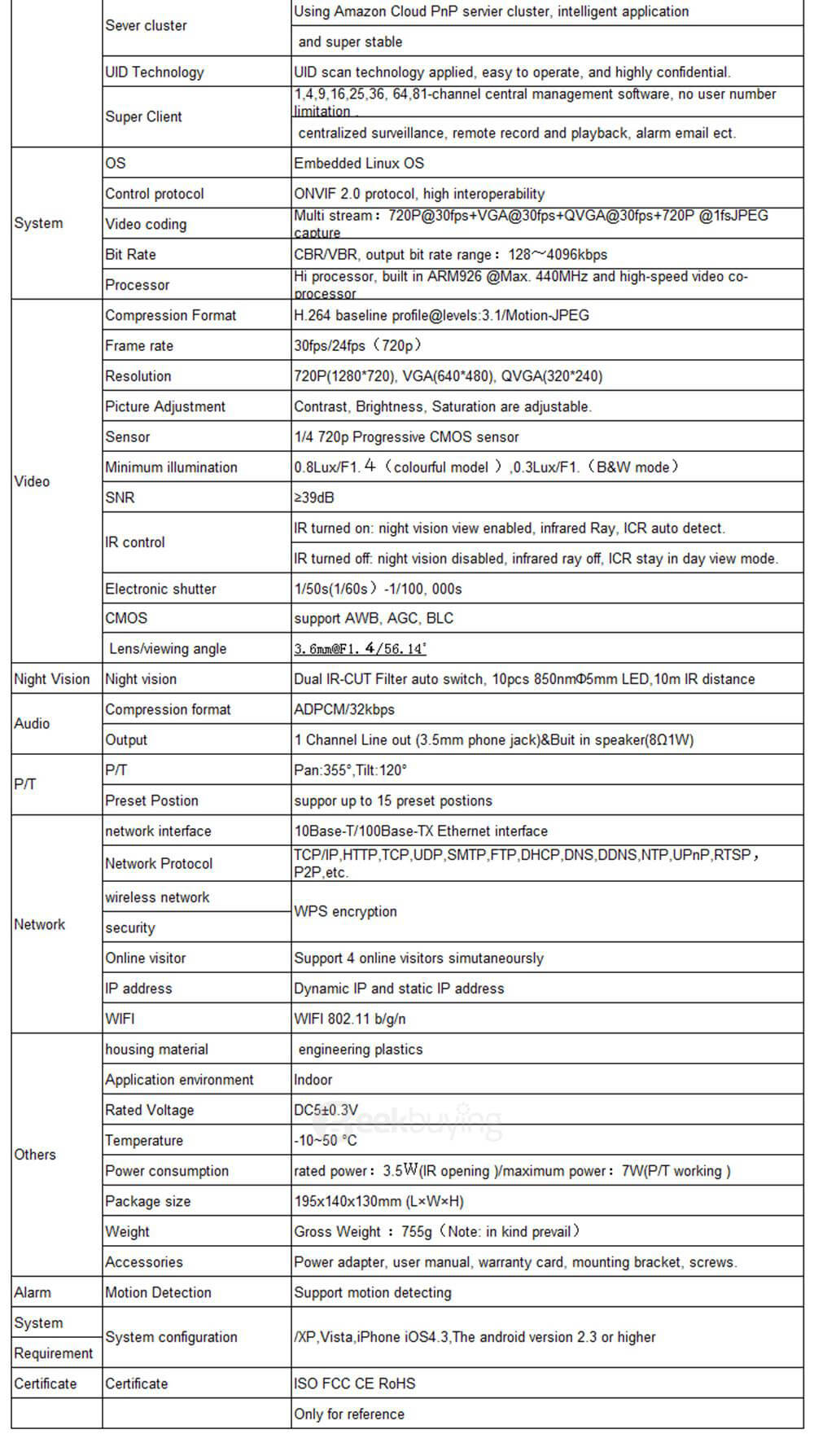

| Sever cluster | Using Amazon Cloud PnP servier cluster, intelligent application and super stable. | ||||||
| UID Technology | UID scan technology applied, easy to operate, and highly confidential. | ||||||
| Super Client |
1,4,9,16,25,36, 64,81 channel central management software, no user number limitation, centralized surveillance, remote record and playback, alarm email ect. |
||||||
| System | OS | Embedded Linux OS | |||||
| Control protocol | ONVIF 2.4 protocol, high interoperability. | ||||||
| Video coding | Multi stream: 720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture | ||||||
| Bit Rate | CBR/VBR, output bit rate range: 128-4096kbps | ||||||
| Processor | Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor | ||||||
| Video | Compression Format | H.264 baseline profile@levels: 3.1/Motion-JPEG | |||||
| Frame rate | 30fps/24fps (720p) | ||||||
| Resolution | 720P(1280 x 720), VGA, QVGA | ||||||
| Picture Adjustment | Contrast, Brightness, Saturation are adjustable. | ||||||
| Sensor | 1/4 720p Progressive CMOS sensor | ||||||
| Minimum illumination | 0.8Lux / F1.4 (colourful model ),0.3Lux/F1. (B&W mode) | ||||||
| SNR | ≥39dB | ||||||
| IR control |
IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
||||||
| Electronic shutter | 1/50s(1/60s)-1/100, 000s | ||||||
| CMOS | support AWB, AGC, BLC | ||||||
| Lens/viewing angle | 3.6mm@F1.4/56.14˚ | ||||||
| Night Vision | Night vision | Dual IR-CUT Filter auto switch, 10pcs 850nmΦ5mm LED,10m IR distance | |||||
| Audio | Compression format | ADPCM/32kbps | |||||
| Output | 1 Channel Line out (3.5mm phone jack)&Internal speaker(8Ω1W) | ||||||
| P/T | P/T | Pan: 355°, Tilt: 120° | |||||
| Preset Postion | suppor up to 15 preset postions | ||||||

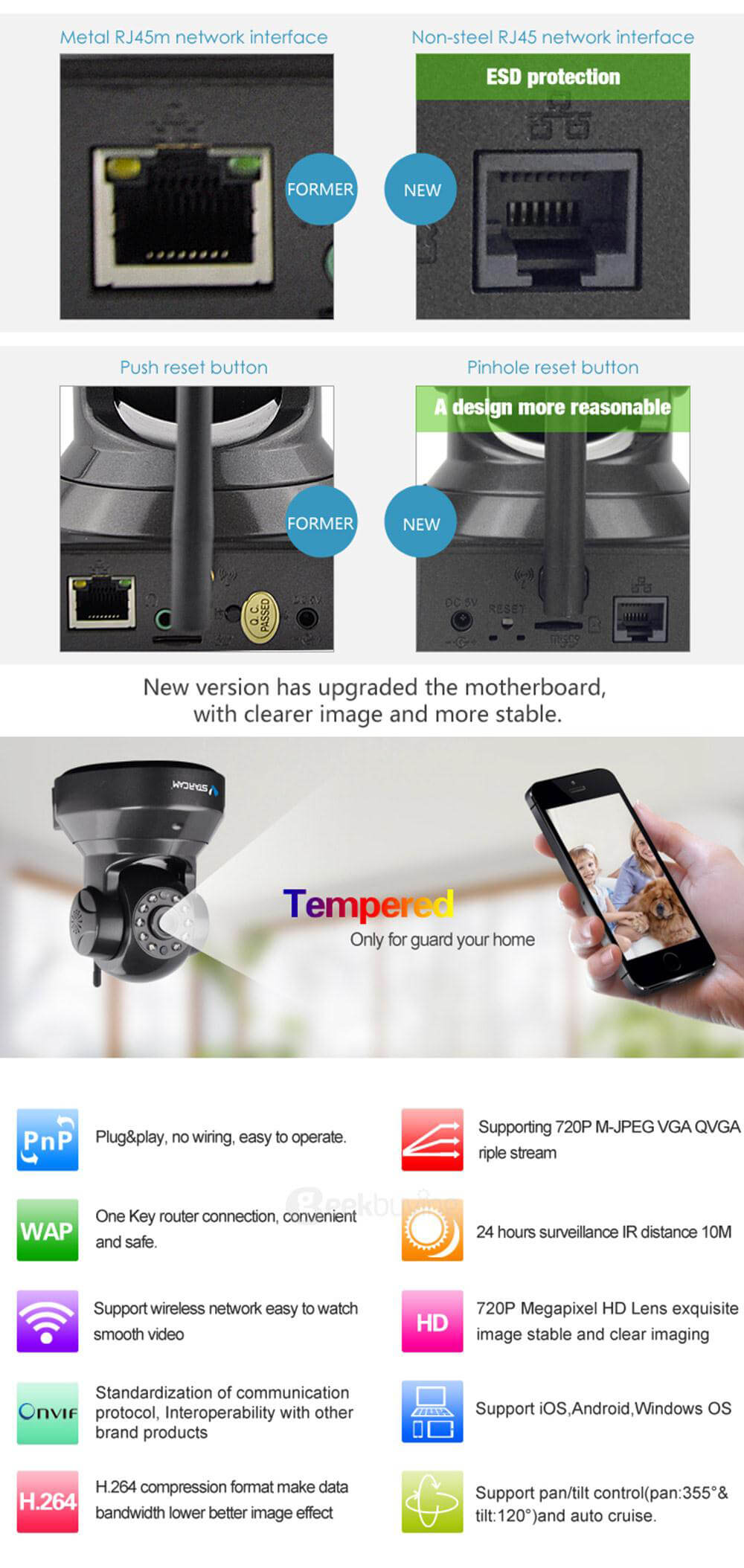

| Network | network interface | 10Base-T/100Base-TX Ethernet interface | |||||
| Network Protocol | TCP/IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, RTSP, P2P, ONVIF etc. | ||||||
| wireless network security | one key wifi setup, don't need network cable. | ||||||
| Online visitor | Support 4 online visitors simutaneoursly. | ||||||
| IP address | Dynamic IP and static IP address. | ||||||

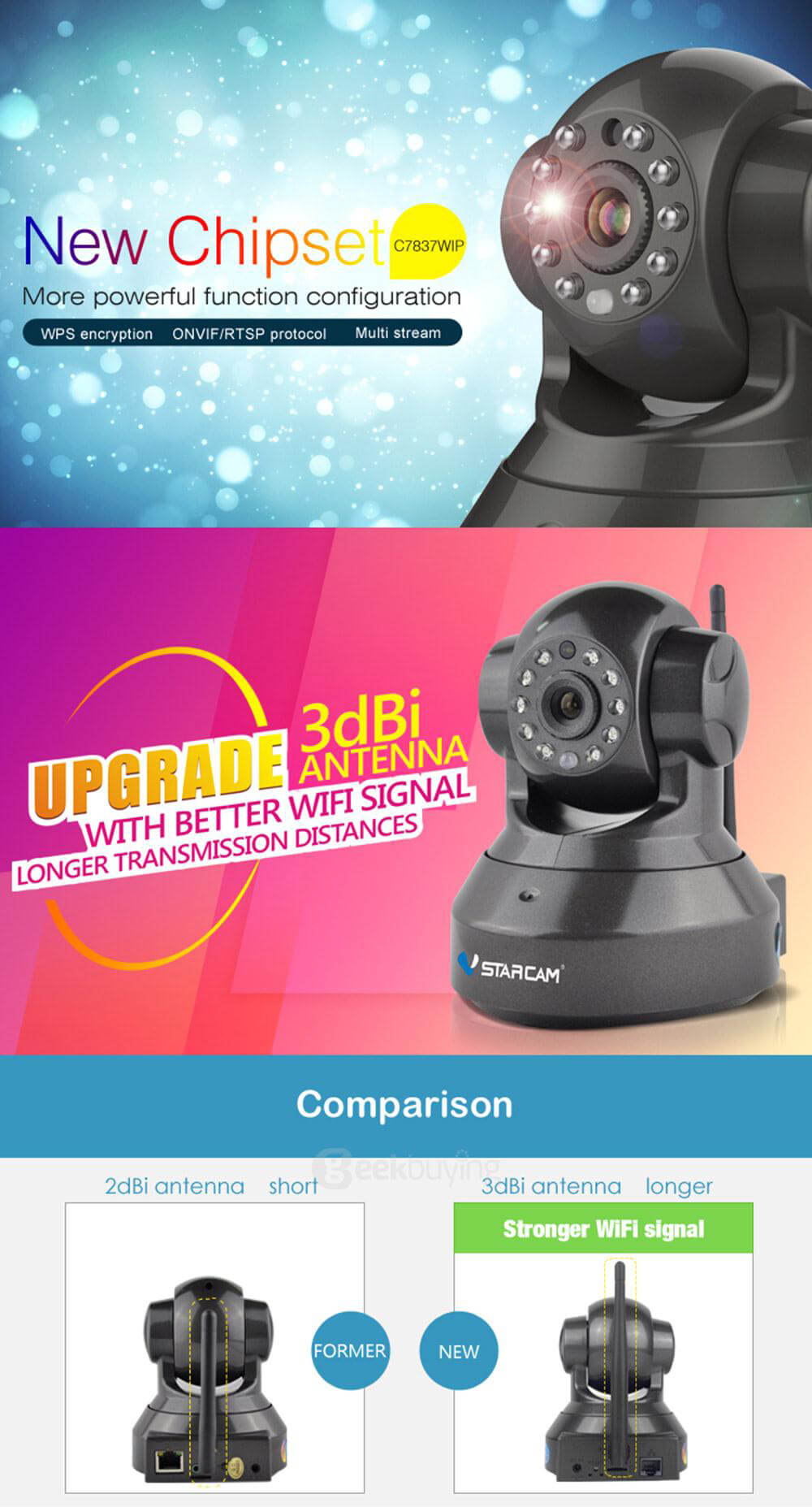

| WIFI | WIFI 802.11 b/g/n | ||||||
| Others | housing material | engineering plastics | |||||
| Application environment | Indoor | ||||||
| Rated Voltage | DC5±0.3V | ||||||
| Temperature | -10~50ºC | ||||||
| Power consumption | rated power: 3.5W (IR opening ) / maximum power: 7W (P/T working) | ||||||
| Package size | 195 x 140 x 130mm (L x W x H) | ||||||
| Weight | Gross Weight : 755g (Note: in kind prevail) | ||||||
| Accessories | Power adapter, user manual, warranty card, mounting bracket, screws. | ||||||
| Alarm | Motion Detection | Support motion detecting | |||||
| System Requirement | System configuration | XP, Vista, iPhone iOS4.3, android version 2.3 or higher. | |||||
What's in the box?
- 1 x VStarcam C7837WIP IP Camera
- 1 x Power Adapter
- 1 x Camera Holder
- 1 x English User Manual
- 4 x Screw
