Highlights
- MCU Automatic processing technology
- Manual test
- Automatic reset
- Mute button
- Automatic detection
- Infrared photoelectric sensor
- Sound-light alarm
- SMT design, high stability
- Dust-proof, Insect-proof, Anti-visible light

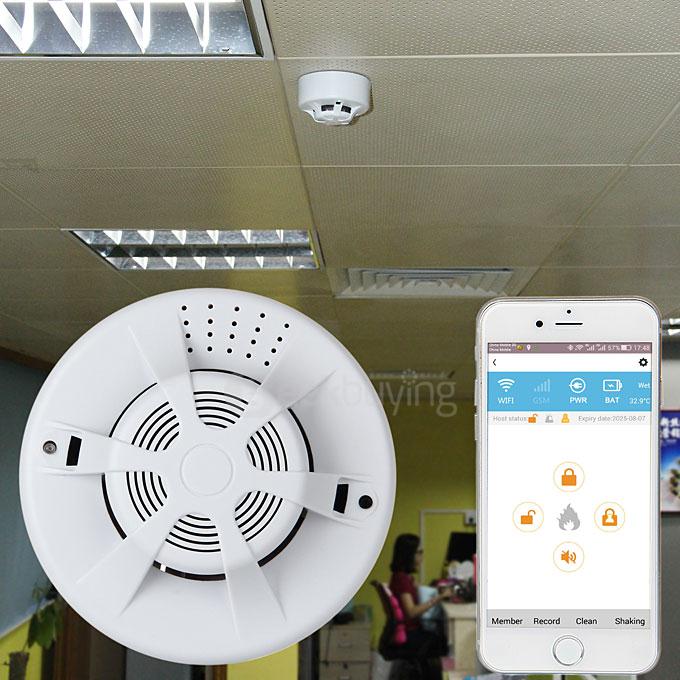

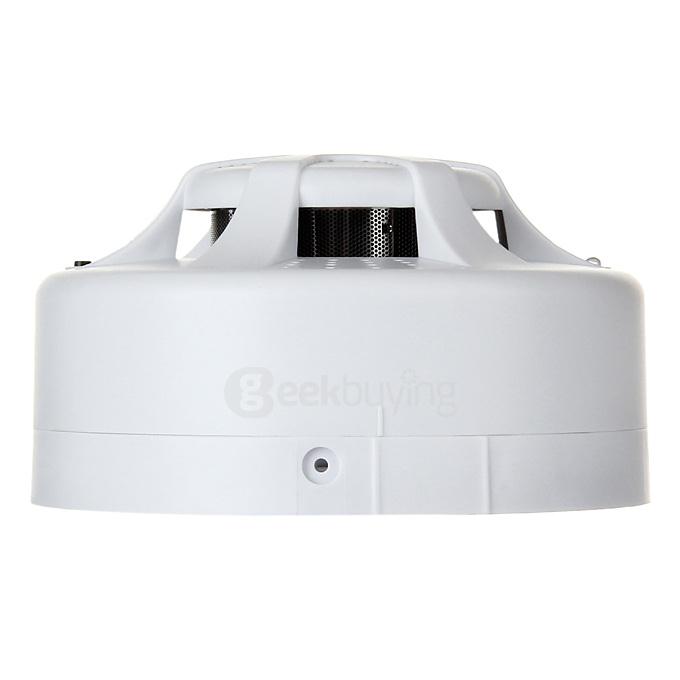

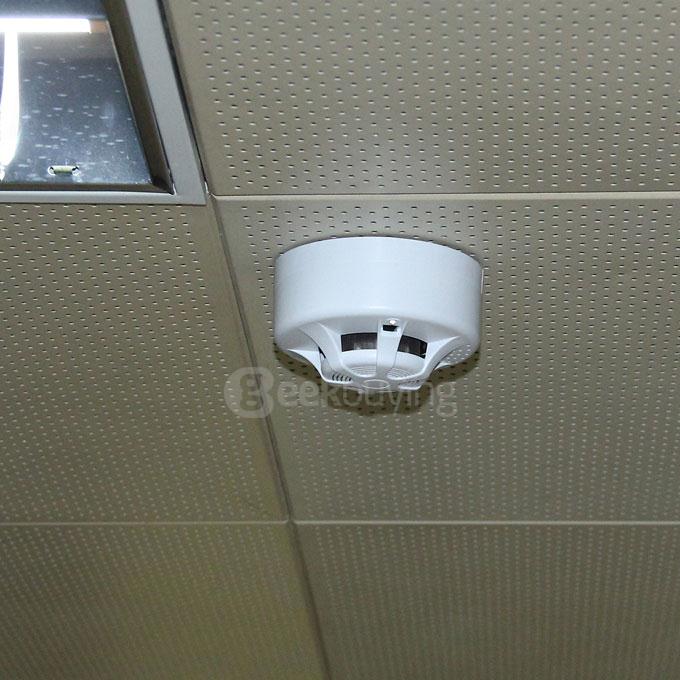

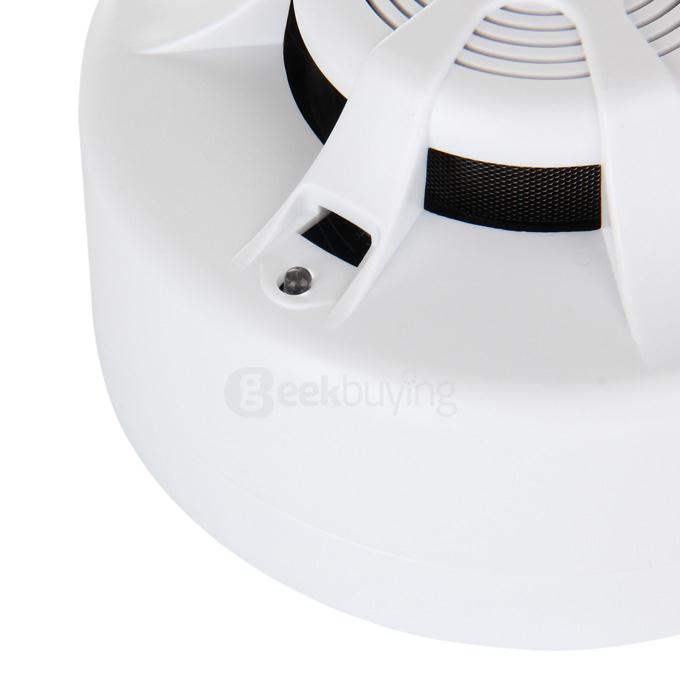

This product is called photoelectric smoke detector (hereinafter called detector), it has the features of dust-proof, moth-proof and anti-interference from outside light, all for the stability of the product, especially for detecting smoldering or burning object. The detector is suitable for detecting the smoke in house, shop, hotel, restaurant, office building, school, bank, library computer house and storehouse, etc.
Please be noted: this product can only be used with Vcare 2-APP Control GSM & Wi-Fi Dual Network Smart Home Security System
Specification
General | |
---|---|
Type | Optoelectronic Smoke Detector |
Operating Voltage |
9V 6F22 battery or DC12V |
Current | Static current: ≤15uA Alarm current: ≤56mA |
Battery Life | About 1 year |
Indicator | Power Indicator: Red LED Alarm indicator: Red LED fast blink |
Level of Sound | ≥85db/m |
Operating Temperature | -10~+50 Degrees |
Environment Humidity | ≤95%RH(no congelation) |
Alarm Output | Sound&flash alarm Relay output (wired output) Wireless output 315MHz or 433 MHz |
Emission Distance | 100m (open area) |
Size | Ø106mmx59mm |
Execute Criterion | EN14604 |
Detecting Area | 40 Square meters when installation height between 6 to 12 meters 20square meters when installation height within 6 meters |
Package Contents | |
1 x Optoelectronic Smoke Detector | |
1 x 9V 6F22 Battery | |
1 x Installation Accessories | |
1 x English User Manual |
