Highlights

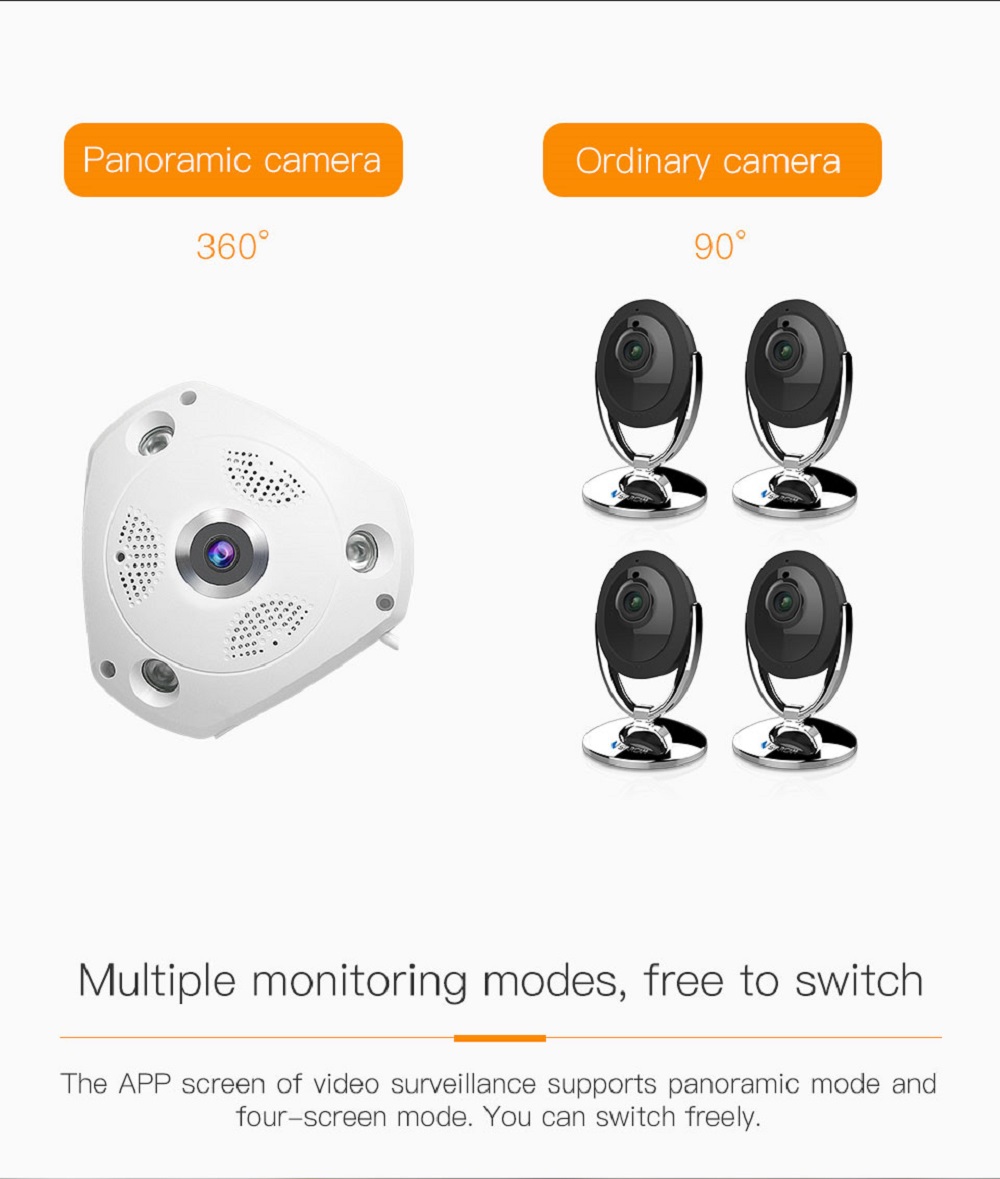

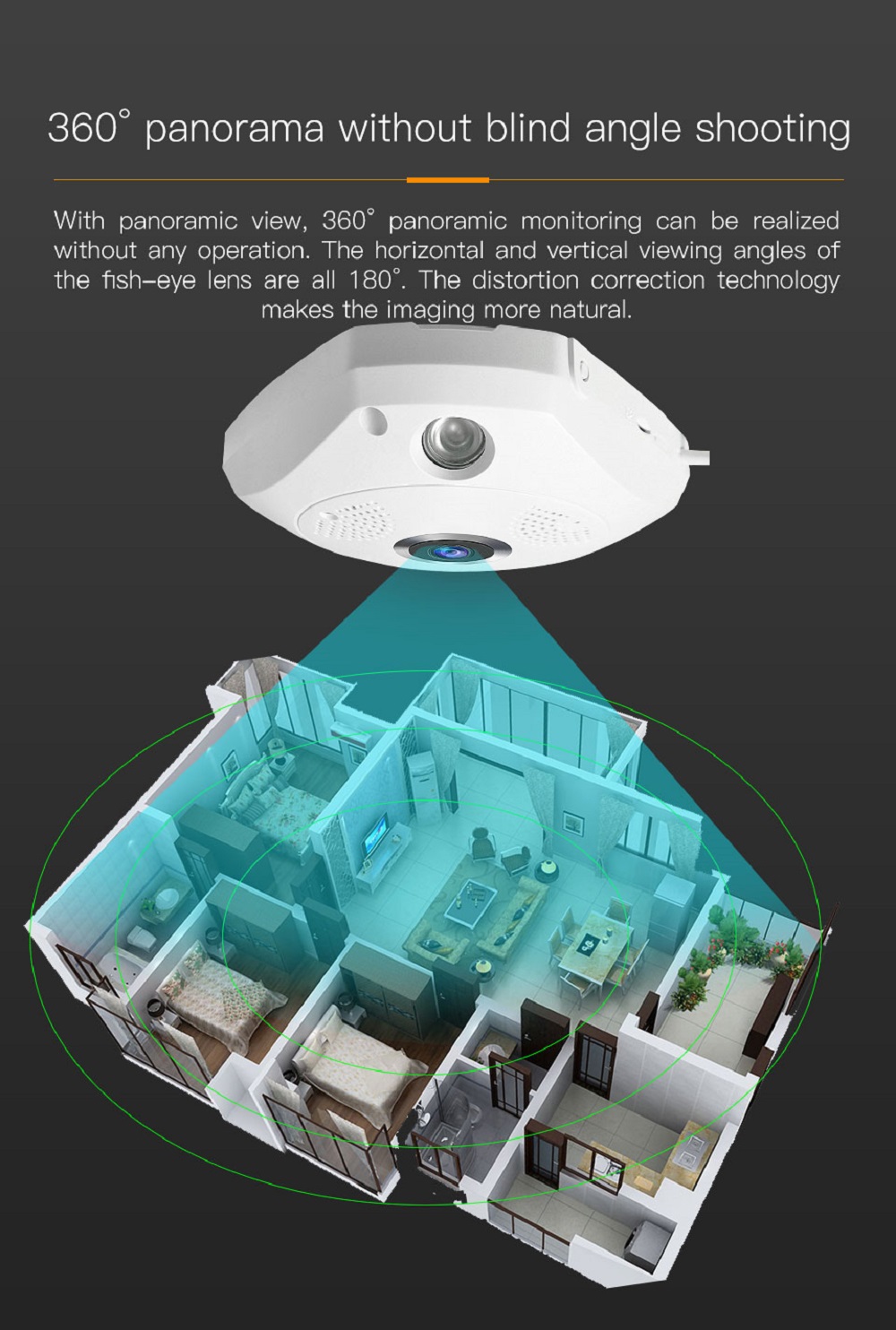

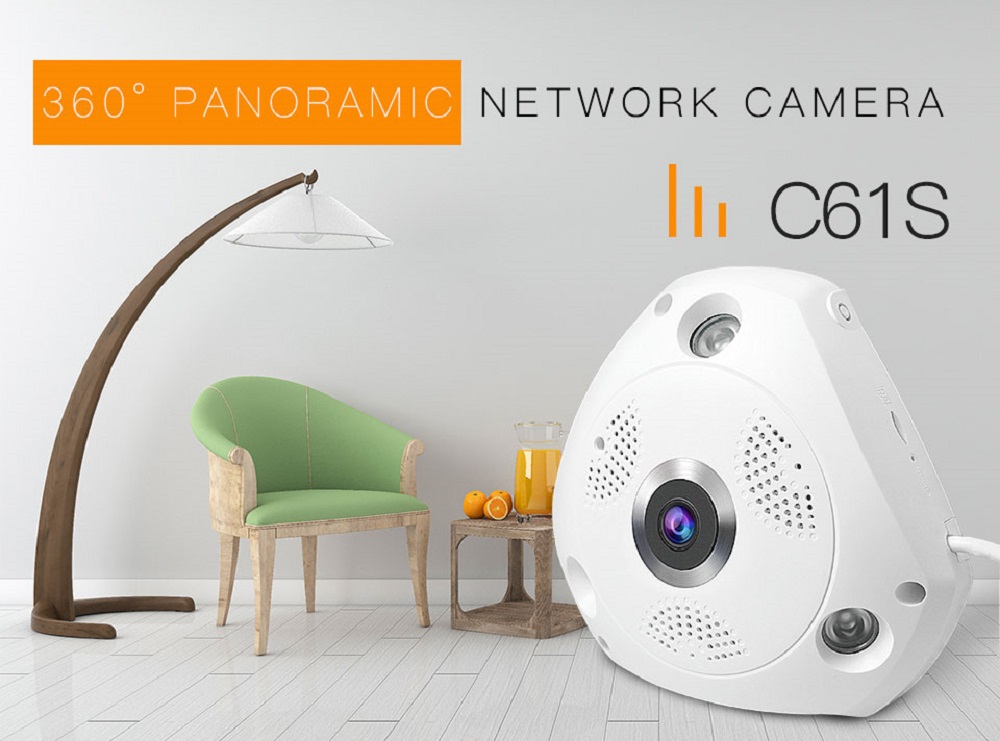

360 Degree

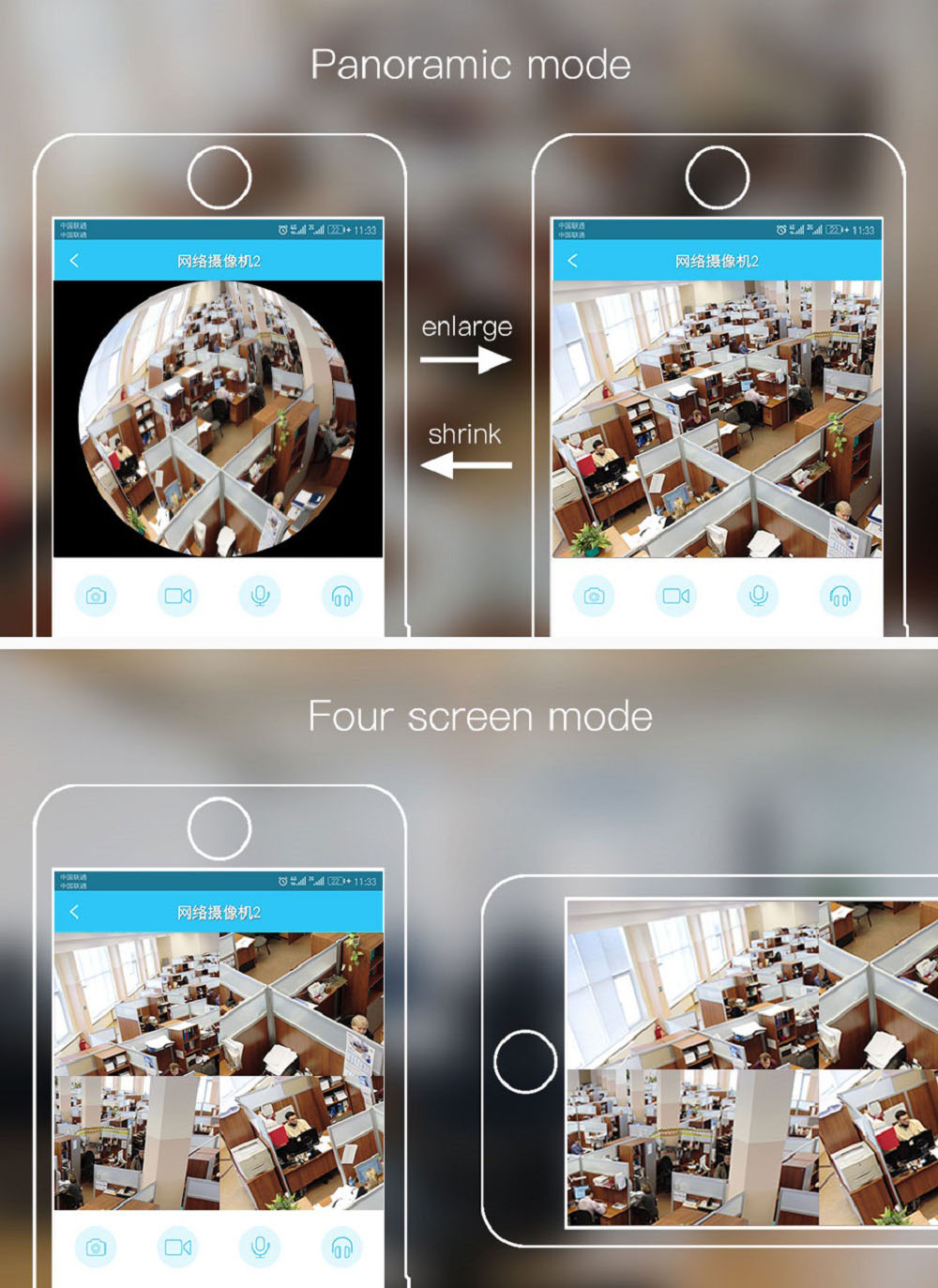

360 degree wide angle, for larger and wider recording range, makes new vision and more wide world.You can adjust the monitoring pictures freely and choose the angle you want through the phone APP.
H.264 HD 1080P
1080P camera ensures that you can see enough activity with limited lens distortion, and the ball mount gives you more freedom of where you want to view.

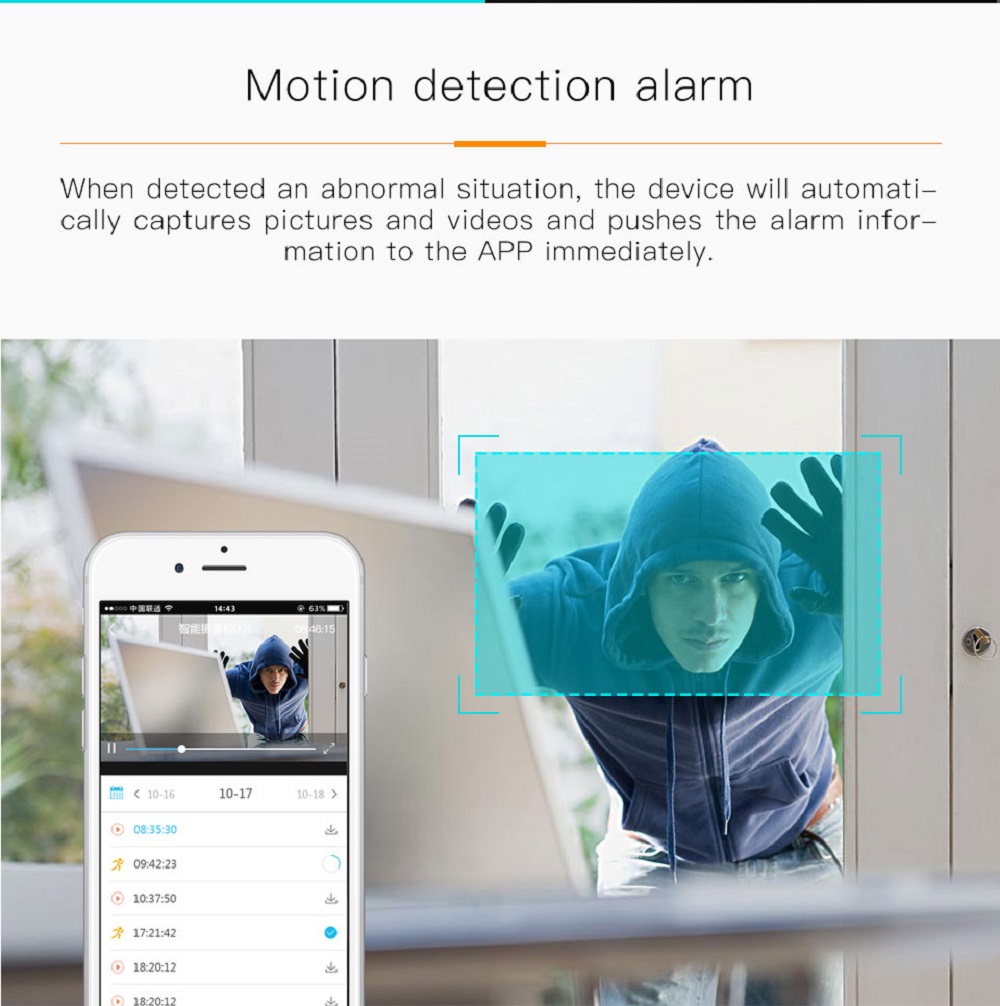

Motion Detection Function
The camera will be triggered to snapshot when detect something moving,then push photo messages to the phone APP.
IR-CUT Double Filter
Auto switch between day and night, restoring clear true color.

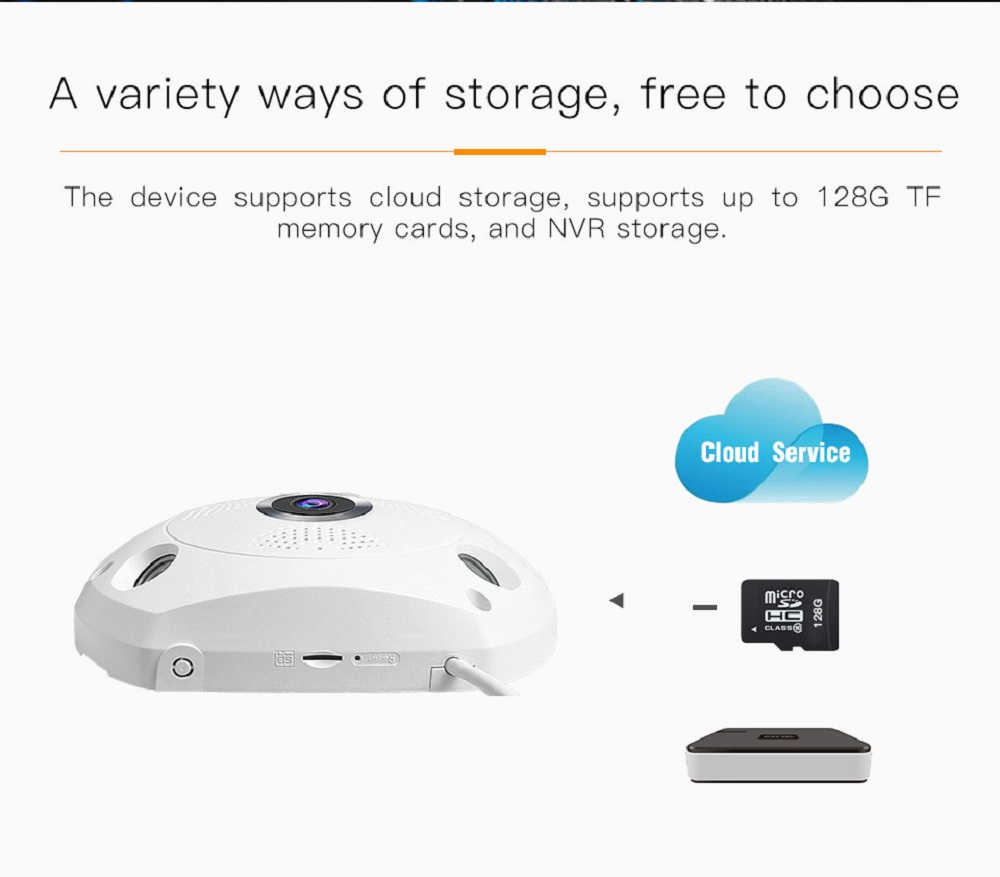

Cloud Storage
Support cloud storage,it can be added to PVR204 or PVR208 remotely or locally.
Support Max 128GB
Support up to 128GB TF(Micro SD) card memory, easy to carry, fast data transmission and large data storage.
Specification
General |
Brand:Vstarcam |
Specification |
System
Operation system: Embedded Linux OS

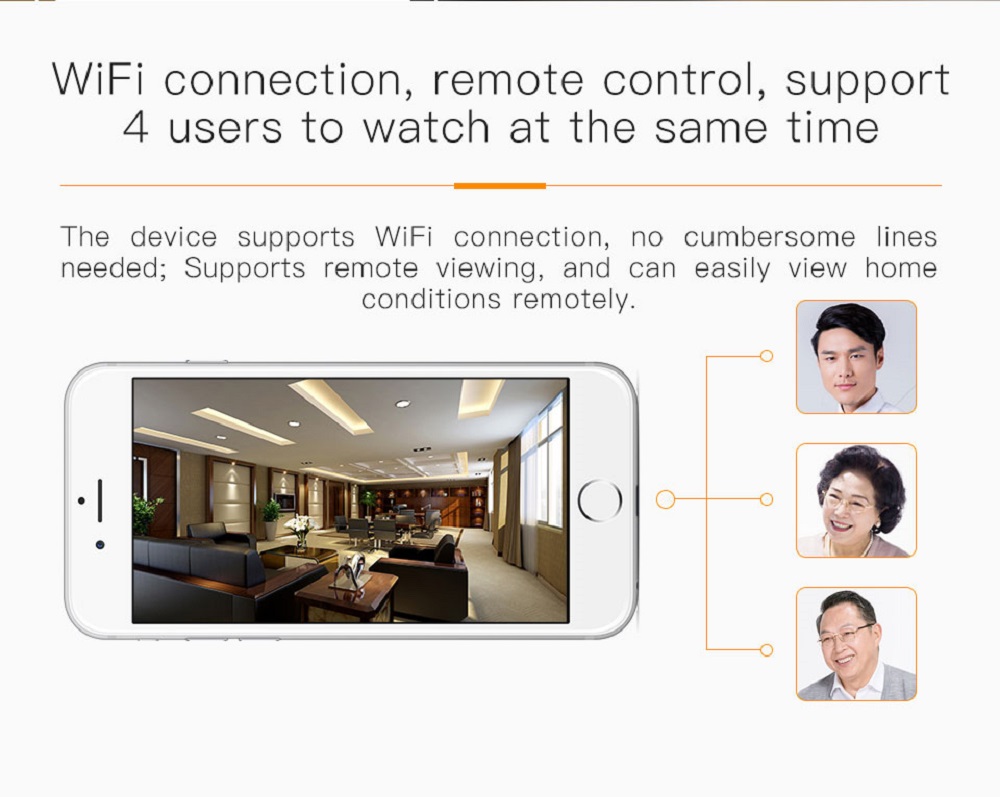

Online visitor: Suppor 4 visitors at the same time
Image: Capture

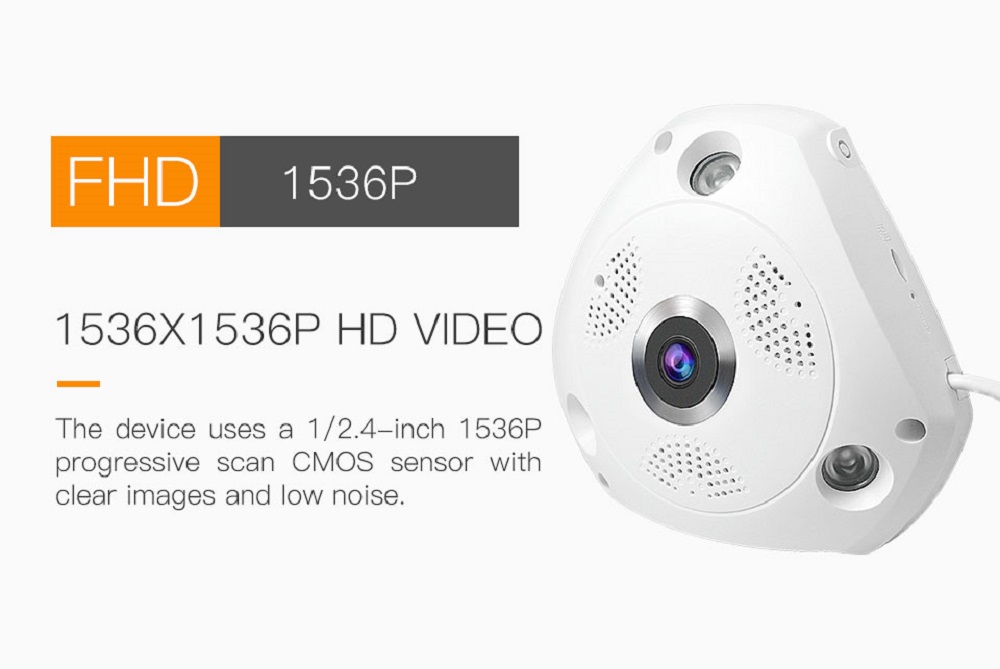

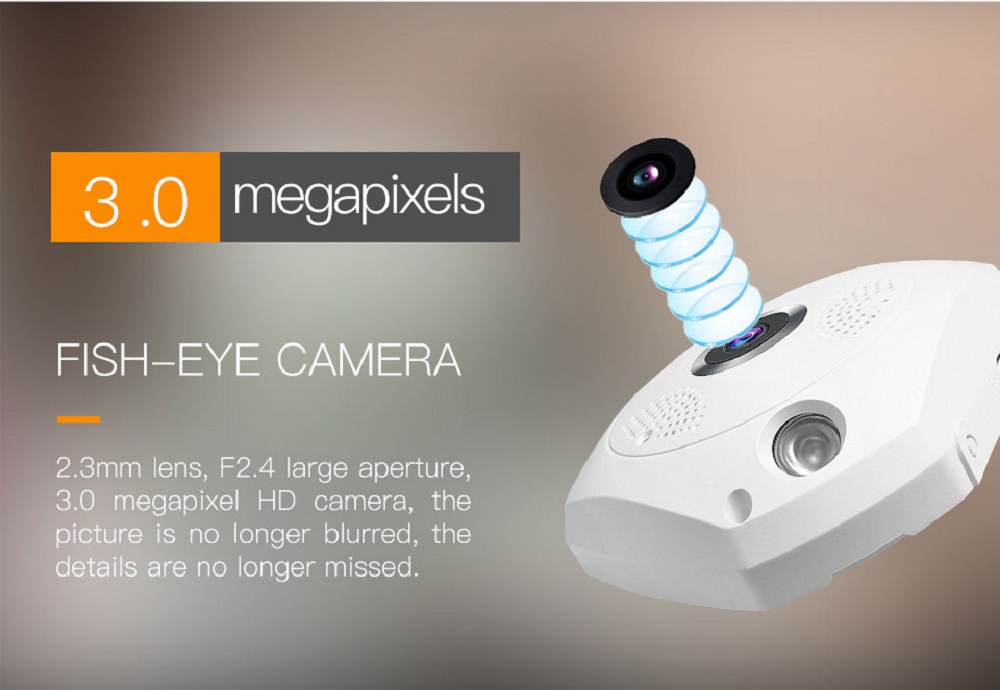

Image sensor: 1/2.4 inch 1536p Progressive Scan CMOS
Minimum Illumination: 0.3~0.5Lux(Color mode),0Lux(B&W Mode)
Lens: 2.3mm@F2.4
View Angle: 180°

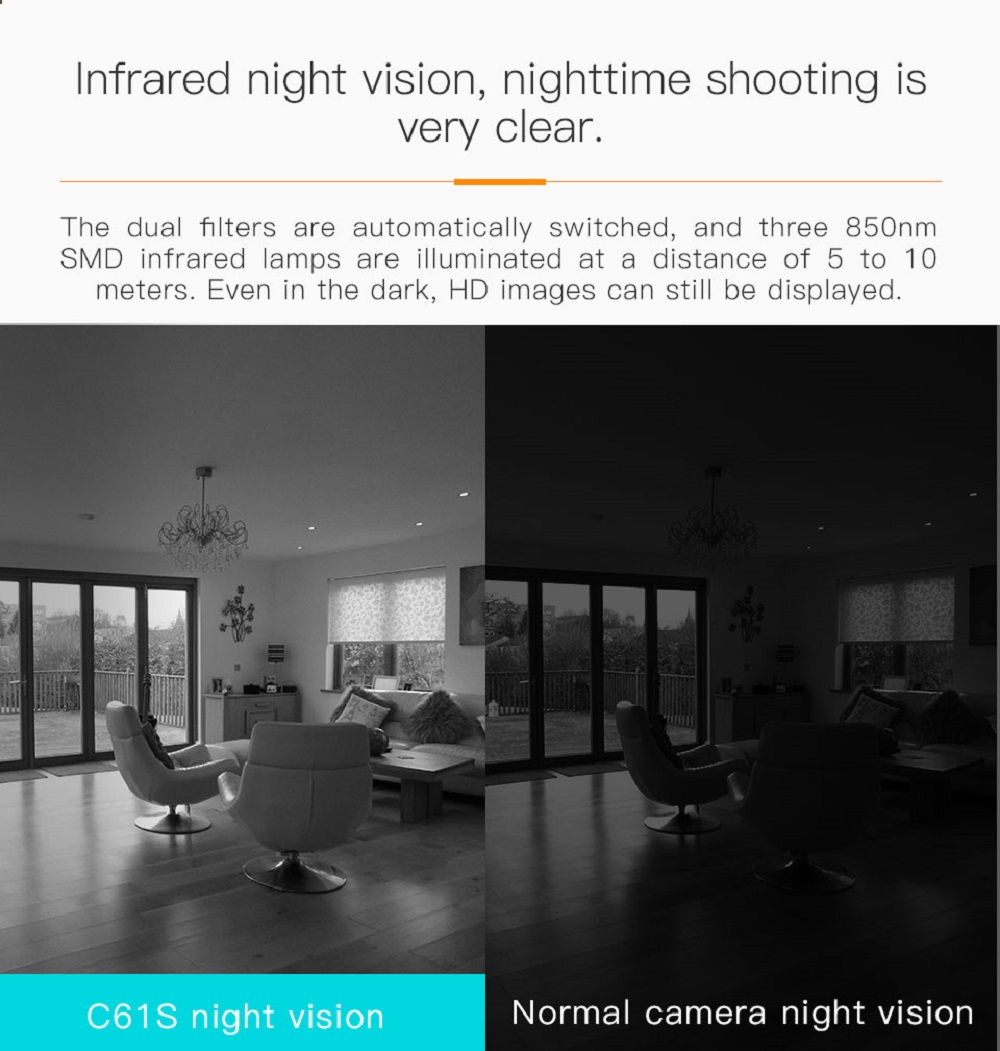

Nightvision: Dual Filter,IR-Cut,3pcs 850nm Infrared array LED
IR irradiation distance:5~10m
Video
Encode format: H.264 main profile@levels:4.0/Motion-JPEG
Three Stream: Main Stream:1536P(1536×1536)@15fps
Bit Rate: 128~4096kbps
Maximum frame rate: 15fps
Image adjustment: Contrast,Brightness,Saturation,Hue
Audio
Input: Built-in -38db microphone
Output: Built-in (8Ω1W) speaker
Sampling frequency/width:8KHz/16bit
Compression standard: ADPCM/32kbps
Network
Ethernet: 10Base-T/100Base-TX, RJ45 connector
Protocols: TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc
Wireless LAN: IEEE802.11b/g/n
Wireless LAN Frequency: 2.4~2.4835GHz
Wireless LAN security: 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
Memory Socket: TF Push-push socket,Maximum support 128GB
Alarm
Alarm Trigger: Motion detection
Physical Environmental
Rated voltage: DC12V±5%
Power consumption: Related power:6.24W(IR on)
Operating condition: Temperature:-10~50°C,humidity:<90%
|
Weight & Dimensions | Product Weight:0.28KG Product Dimensions: 113 x 110 x 37mm Package Weight:0.6KG Package Dimensions:196 x 183 x 110mm |
Package Contents |
1 x C61S Camera |
