Highlights

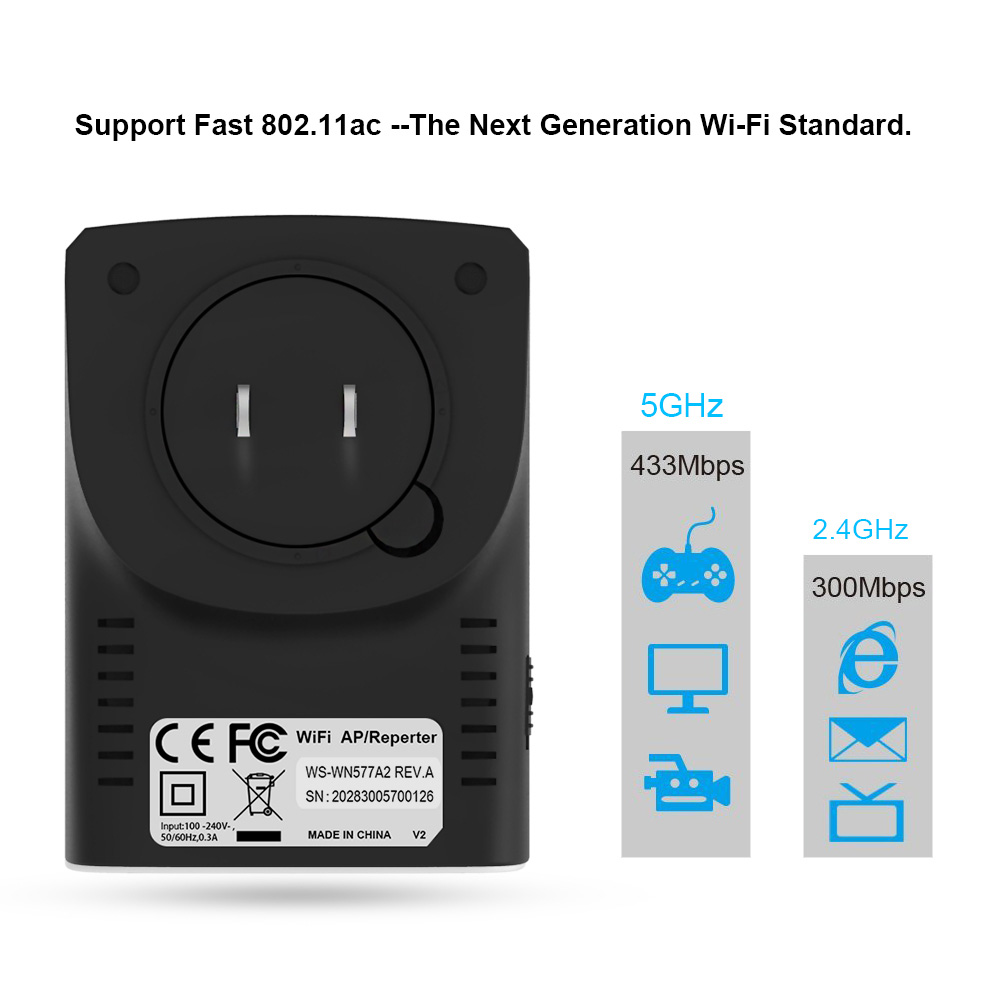

WAVLINK WL-WN577A2 WiFi Amplifier

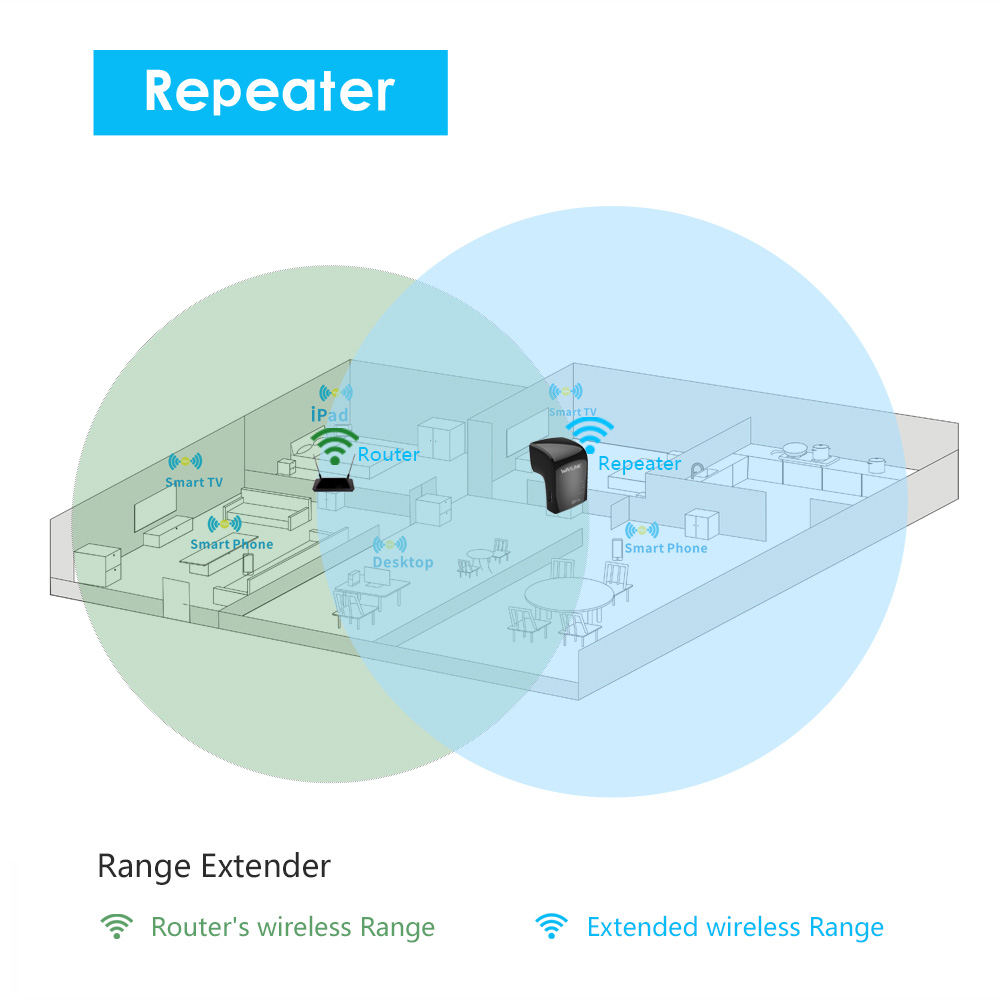

The AC750 AP/Router is Mainly used for providing free WiFi service in big area such as factory, community, street or etc. The AP/Router can take an existing 2.4GHz or 5GHz wireless signal, repeat and extend it to a longer range where it is too far away from the router or access point to reach. The AP/Router simultaneously supports 2.4G and 5G wireless network connection, and it can support 2.4G and 5G transmission speeds of up to 733Mbps. It has 3 x Internal Antennas providing even better wireless performance, transmission rates, stability technology automatically avoids channel conflicts using its channel selection feature.
Features:
The next generation of Wi-Fi, leading 802.11ac standard.
Improves wireless coverage in all WLAN networks.
Maximum WLAN security with WPA2, WPA and WEP(128/64).
Provides 1 10/100Mbps Auto-Negotiation Ethernet LAN ports.
Provides 1 10/100Mbps Auto-Negotiation Ethernet WAN ports.
Features a convenient mode switch, enabling you to switch to Router, AP/Repeater mode.
Software wizard for simple setup.
Compact, wall plug design for convenient placement.
Extends Wireless signal to previously unreachable or hard-to-wire areas perfectly.
Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices.
Dual band speeds up to 750Mbps 3 x 3dBi integrated Antennas, Dual Band connections for lag-free HD video streaming and gaming.
Miniature size and wall-mounted design make it easy to deploy and move flexibly.
Easy wireless security encryption at a push of the WPS button.
Dual Ethernet port allows the Extender to function as a Mini router/AP.
Specification
| General |
Brand: WAVLINK |
| Features | Ports: 1 x LAN, 1 x WAN/LAN Button: 1 x Reset, 1 x WPS, mode switch x 1, LED: 1 x LAN, 1 x WAN/LAN,1 xPower 1 x WiFi/WPS Solution: MT7628AN+MT7610E Flash: 64Mb DDR2 RAM: 512Mb Power Supply: Internal DC5V / 1A Power Plug: UK/EU/US/China/Australia (option) Power Consumption: 2.5W Rated Voltage/ Frequency / Current: 100-240V AC 50/60Hz, 0.1A Max, CLASS II |
| Wireless | Wireless Standards: IEEE802.11ac,IEEE 802.11a, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n Frequency Band: 2.4GHz & 5GHz Power: 802.11b: 18dBm ± 2 dBm; 802.11g: 16dBm ± 2 dBm; 802.11n: 16dBm ± 2 dBm Speed: 802.11ac: up to 433Mbps; 802 11n t 300Mbps; 802.11a: up to 54Mbps; 802.11g: 54 M; 802.11b: 11 M Distance: Outdoors 300m, Indoor 100m(According to the actual environment change) Modulation: 11ac: 16QAM, 64QAM 128QAM 256QAM with OFDM; 11g\n: BPSK, QPSK, 16QAM, 64QAM, OFDM; 11b: DQPSK, DBPSK, DSSS, CCK Safely: 64/128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x, WPA-PSK, WPA2-PSK, MAC, WDS |
| Requirements | 110 ~ 230-volt socket The WLAN client must support at least the WPA encryption standard. WLAN access point and the WLAN client with automatic IP address assignment (DHCP) Forwarding of IPv4-based protocols/Address Resolution Protocol The network name (SSID) of the WLAN access point must be set to "visible" |
| Dimension & Weight | Package Weight: 0.257kg Package Size ( L x W x H): 12 x 12.5 x 10cm |
| Package Contents |
1 x AC750 WiFi AP/Router |
