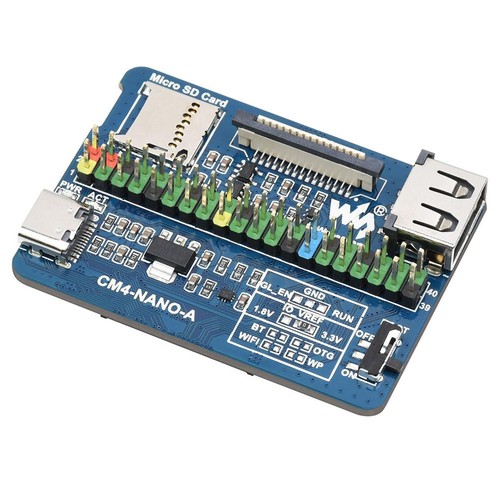

Waveshare Nano Base Board (A) for Raspberry Pi Compute Module 4, 55 x 40 mm

Ship to:
United States
Select the desired shipping method
Shipping Company Estimated Delivery Time Shipping Cost
*Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
0 item(s) added
View CartContinue Shopping

Highlights

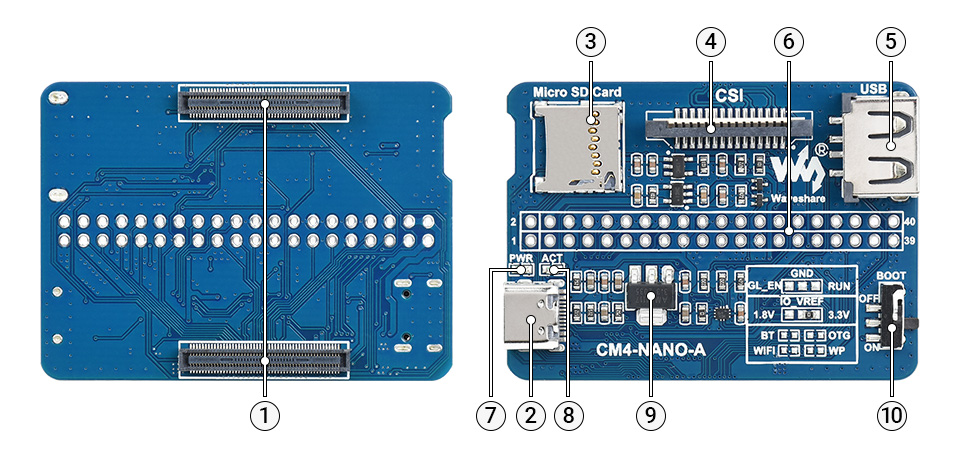

What's On Board

1. CM4 socket
suitable for all variants of Compute Module 4

2. Power supply / Programming
5V power supply, or used for eMMC burning

3. Micro SD card slot
for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)

4. CSI interface
1 × MIPI CSI camera interface

5. USB2.0 interface
for connecting sorts of USB devices

6. 40PIN GPIO interface
suitable for connecting to various HAT modules

7. PWR indicator
CM4 power status

8. ACT indicator
CM4 working status

9. AMS1117-3.3

10. BOOT switch
ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or Micro SD card)

Specification

General

Brand: Waveshare
Type: Raspberry Pi
Model: CM4-NANO-A
Color: Blue

Specification CM4 SOCKET: suitable for all variants of Compute Module 4
CONNECTOR: Raspberry Pi 40PIN GPIO interface
USB: USB 2.0 Type A interface
CAMERA: MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector)
STORAGE: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
POWER INPUT: 5V
Weight & Size Product Weight: 0.014kg
Product Size(L x W x H): 5.4x4x1.1 cm
Package Size(L x W x H): 7x5x2.2 cm
Package Contents

1 x CM4-NANO-A
1 x 2*20PIN color-coded straight pinheader
