Highlights
- Camera with night vision function, you can see the images in the dark

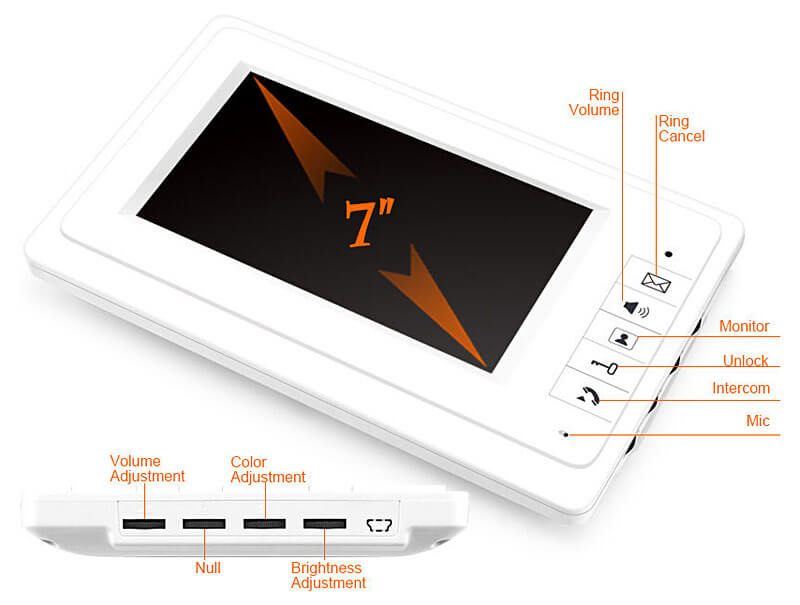

- Indoor unit, good design, 10-inch,7-inch,4.3-inch TFT-LCD high-definition displays
- Indoor unit monitors,outdoor unit camera
- Hands-free intercom
- 25ringtones interchangeable,ringer volume can be adjusted
- Image brightness and contrast can be adjusted
- The indoor voice volume can be adjusted
- RVV4 links, easy to install,can DIY
- Support all kinds of electric locks
- Two cameras can connected with six monitors (different choice) such as 1V6, 2V6,4V6 etc
- Distances up to 100 meters
Specification
| General | |
|---|---|
| Mode | XSL-V70F-L |
| Screen Size | 7 Inch TFT-LCD 800 × 480 |
| Wiring requirements | 30 meters: RVV4 (4 core line) × 0.5 mm;50 m: RVV4 (4 core wire) × 0.75 mm;100 meters: RVV4 (4 cores Line) × 1.0 mm |
| Camera | 700Line CMOS |
| Working temperature | -20ºC-60ºC |
| Relative humidity | 10 % - 90%(RH) |
| Resolution | 800X480 |
| Angle | 90 degrees |
| Night vision | Yes |
| Night vision illumination distance | 1 meter |
| Waterproof | Yes |
| Outdoor dimension | 79(W) × 182 (H) × 50 (T) mm |
| Outdoor Weight | 0.48 kg |
| Indoor dimension | 240 (W) × 150 (H) × 26(T) mm |
| Outdoor Net Weight | 0.20 KG |
| Indoor Net Weight | 0.38 KG |
| Talk time delay | 60 seconds |
| Monitor time delay | 30 seconds |
| Power Supply | Input voltage:AC100-240V 50Hz - 60Hz; Output Voltage: DC15V 1200mA |
| Outdoor camera Power | stand-by ≤0W ,working ≤2W |
| Indoor camera Power | stand-by <0.5W working <10W |
| Package size&weight | Color box; 270x250x56mm;0.18Kg |
| Including in one box | Indoor monitor +Outdoor camera+cable+plate+power supply +4-wired+screw+manual |
| Power Supply | Indoor camera Power |

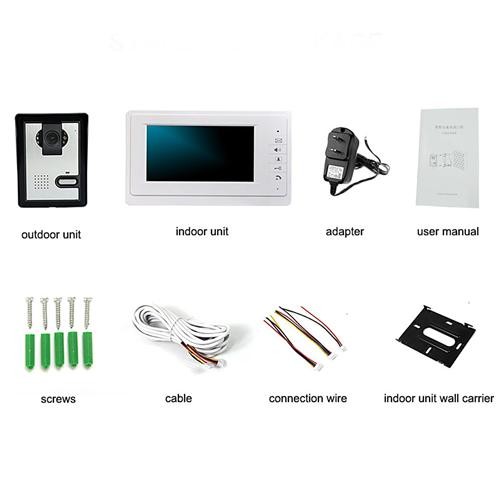

| Package Contents | |
| 1* 7"inch screen | |
| 1* HD Outdoor camera | |
| 1* power adapter | |
| 1* Mounting bracket | |
| 1* test cables | |
| 1* 4-core connection cable | |
| 1* 2-core connection cable | |
| 1* User Manual | |
| 1* screw package | |
