Highlights
35kW Peak Power & 948N·m Torque for Extreme Off-Road Performance
Powered by a high-performance 35kW peak LPMSM resolver motor, delivering an impressive 948N·m of torque and a top speed of up to 110km/h. Combined with 300mm ground clearance, 19-inch front and 18-inch rear off-road tires, and optional air suspension, it conquers steep climbs, rocky trails, deep mud, and loose sand with ease. The ultra-responsive electric drivetrain provides instant throttle response and explosive acceleration whenever the terrain demands it.
Precision Electric Drive System Built for Harsh Environments
Featuring an advanced resolver-based motor control system, it delivers precise torque output and exceptional traction across challenging terrain. Both the motor and battery are IP67-rated for dust and water resistance, ensuring reliable operation in rain, mud, and sand. The 97V 45Ah Samsung 50S NMC battery pack is engineered with high-level vibration resistance, maintaining consistent performance during aggressive off-road riding.
Up to 120km Range with Fast 3-Hour Recharge
Ride farther with a maximum range of up to 120km under optimal conditions. Intelligent power management maximizes efficiency without compromising performance, while 15A fast charging reduces charging time to just 3 hours. The high-density lithium battery delivers the perfect balance of power, endurance, and reliability for long-distance trail adventures.
Smart Technology & Advanced Riding Safety
Equipped with rollover power cut-off protection, kickstand safety sensor, automatic LED lighting system, and powerful 4-piston hydraulic disc brakes for confident control in any riding situation. The 5-inch HD display provides real-time riding data, while NFC unlocking, OTA updates, and CAN expansion capability bring a smarter ownership experience. Riders can also fine-tune power modes, torque output, and regenerative braking settings to suit different terrains and riding styles.
Lightweight 95kg Aluminum Chassis for Agile Handling

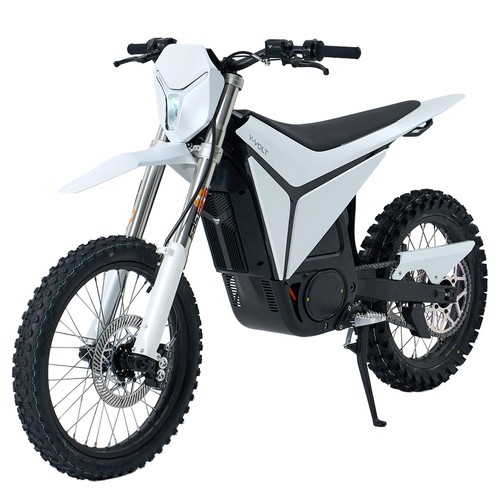

Built around a high-strength forged aluminum alloy frame, the SURGE V weighs only 95kg, delivering an exceptional power-to-weight ratio. Optimized weight distribution, rugged spoke wheels, and purpose-built off-road geometry provide precise handling, superior stability, and effortless maneuverability over technical trails, rocks, ruts, and uneven terrain.
Specification
| Brand | Y-VOLT |
| Type | Motorcycle |
| Model | SURGE V |
| Color | Pearl White |
| Max Load Capacity | 120kg |
| Suitable Rider Age | 18–55 Years |
| Wheelbase | 1360mm |
| Seat Height | 900mm |
| Ground Clearance | 300mm |
| Top Speed | 110km/h |
| Max Range | Up to 120km (at Constant Speed of 25km/h) |
| Charging Time | 3 Hours |
| Charging Current | 15A |
| Motor Type | LPMSM (Liquid-Cooled Permanent Magnet Synchronous Motor) |
| Peak Power | 35kW (47.6PS) |
| Rated Power | 15kW |
| Max Torque | 948N·m |
| Rated Voltage | 97V |
| Position Encoder | High-Precision Resolver Sensor |
| Controller | 97V Sine Wave Vector Controller |
| Drive Structure | Primary Gearbox + Secondary Chain Drive |
| Motor Response | 50% Faster Response, Zero Power Lag |
| Motor Protection Rating | IP67 |
| Battery Type | High-Density NMC Lithium-Ion Battery |
| Battery Capacity | 97V 45Ah |
| Battery Cells | Samsung 50S |
| Battery Protection Rating | IP67 |
| Anti-Vibration Rating | Level 8 Certified |
| Efficiency System | Resolver-Driven Energy Optimization Algorithm |
| Frame Type | Triple-Beam Forged Aluminum Alloy Frame |
| Rim Type | WM Aluminum Alloy Wire-Spoke Rims |
| Handlebar | 28.6 × 22.1 × 810mm Aluminum Alloy Handlebar |
| Suspension | Front & Rear Air Suspension Compatible |
| Front Tire | 80/100-19 Off-Road Tire |
| Rear Tire | 100/90-18 Off-Road Tire |
| Brake Type | Lewis 4-Piston Hydraulic Disc Brakes |
| Display | 5-Inch HD Smart Display |
| Display Information | Speed, Battery Level, Torque Distribution |
| Unlock Method | NFC Smart Unlock |
| Communication Interface | CAN Bus Expansion Port |
| Firmware Upgrade | OTA Remote Upgrade |
| Custom Settings | Adjustable Off-Road Modes, Torque Curves & Regenerative Braking Intensity |
| Safety Sensors | Rollover Cut-Off Sensor, Kickstand Position Sensor |
| Lighting System | Full LED High/Low Beam Headlight, Fog Lights, Automatic Night Riding Mode |
| Product Weight | 95kg |
| Product Size(L x W x H) | 2000×830×1170mm |
| Package Contents | 1 x Electric Dirt Bike 1 x User Manual |
