Highlights

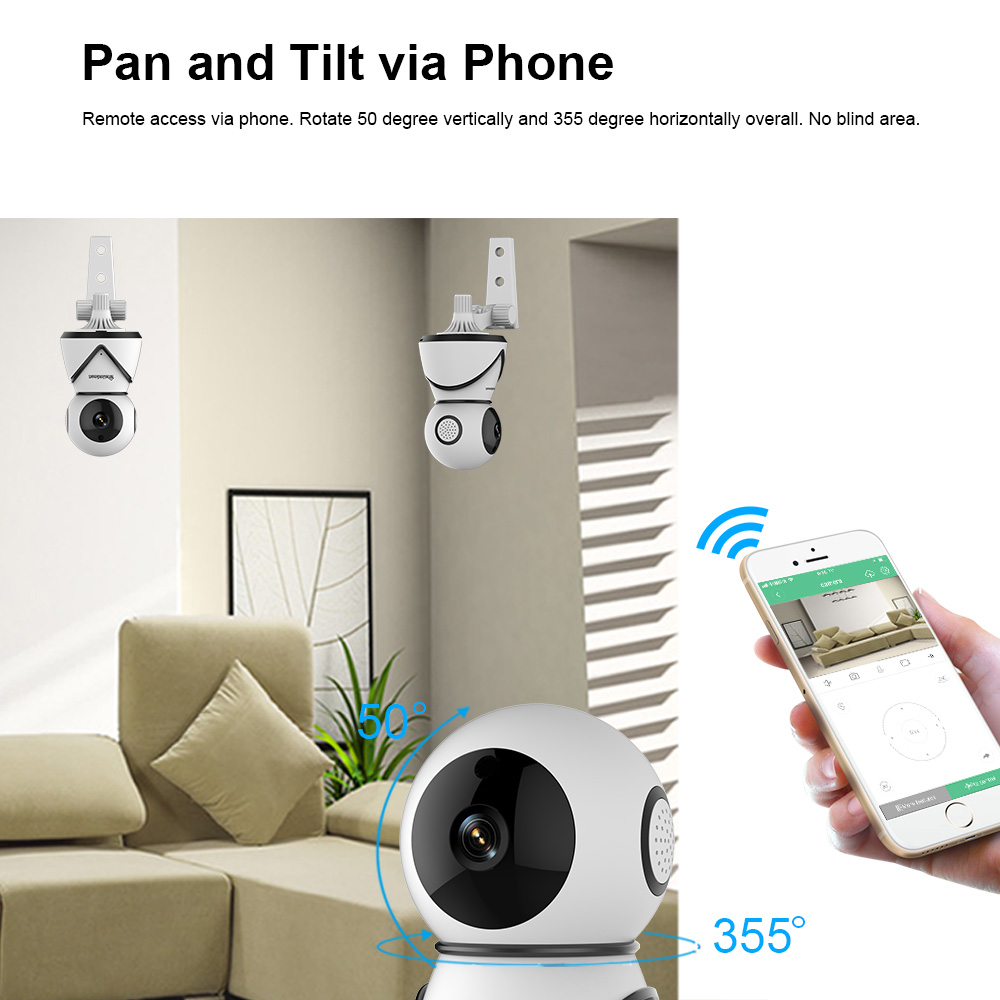

- 1920*1080 Display, Pan/Tilt 355°*120°, 55° field of view

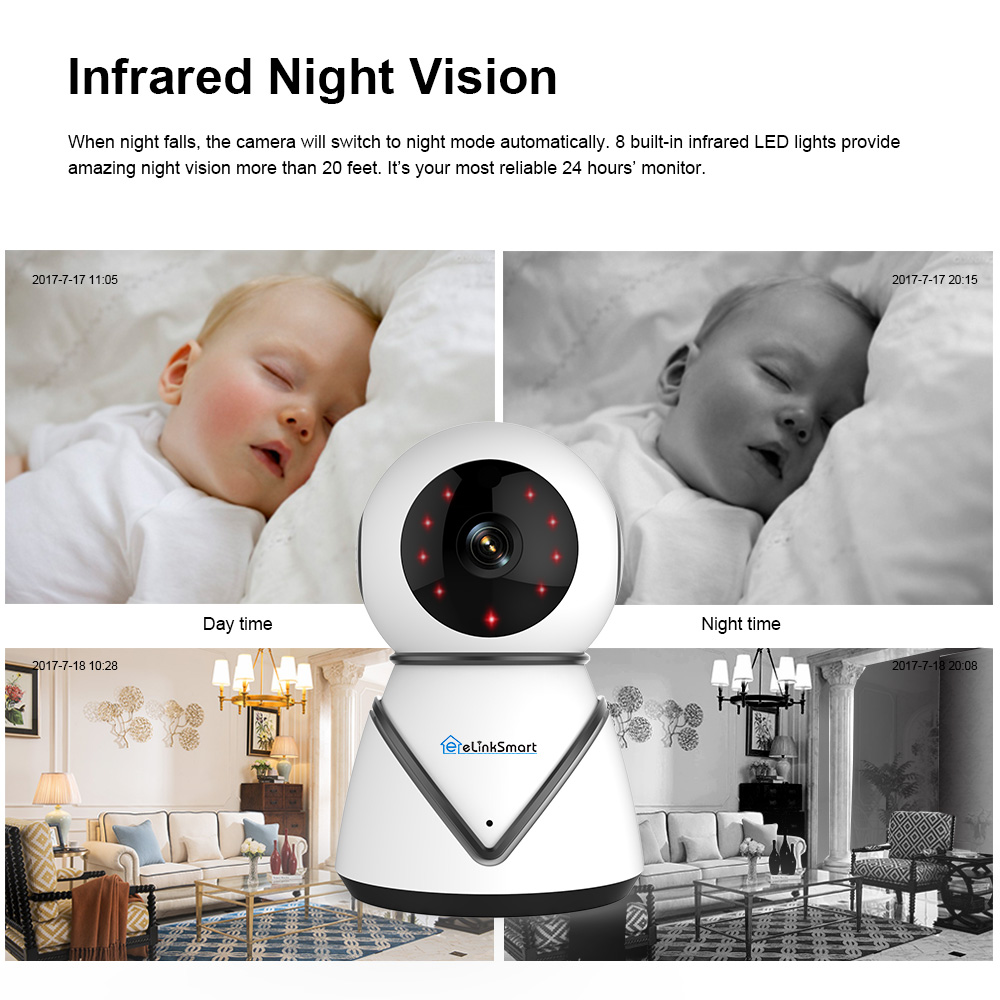

- Night vision without light pollution, no LED glare, night vision distance up to 20 feet

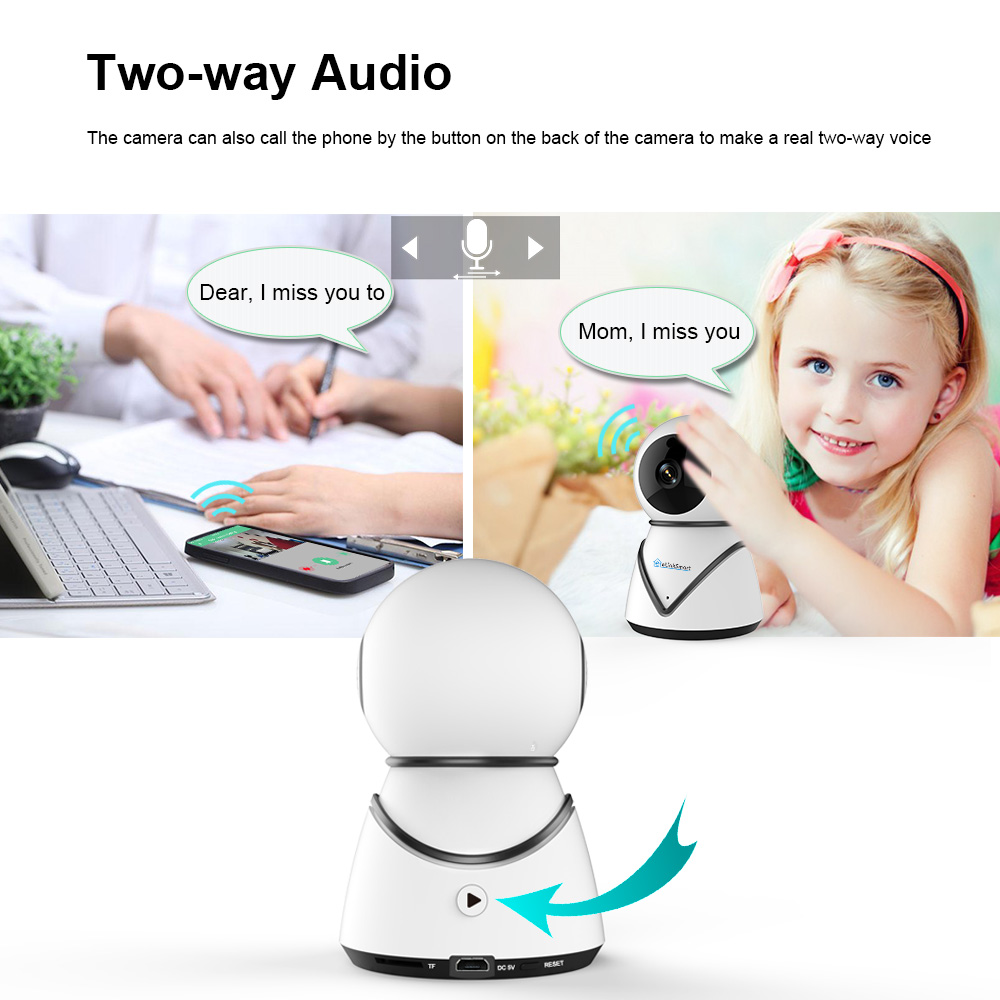

- Support two-way talk with noise cancellation

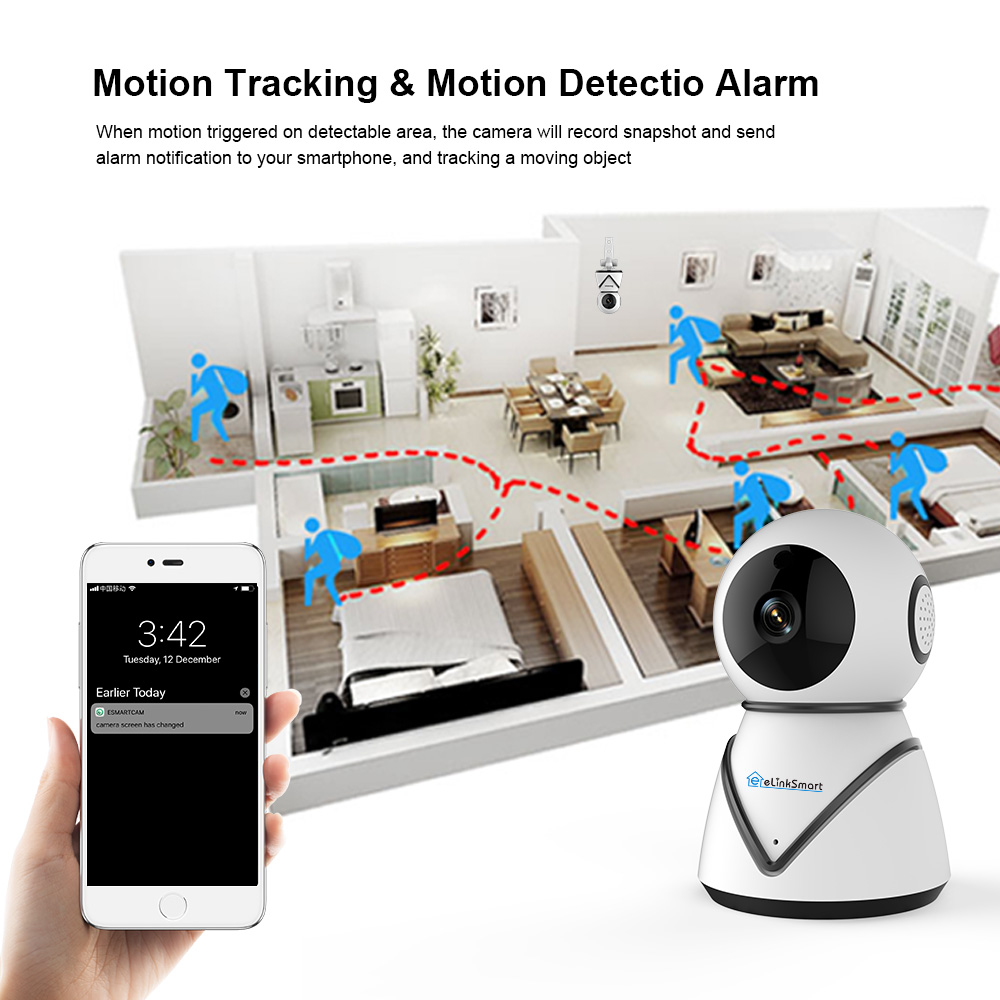

- Support motion detection and cry detection, Send 720p alarm pictures

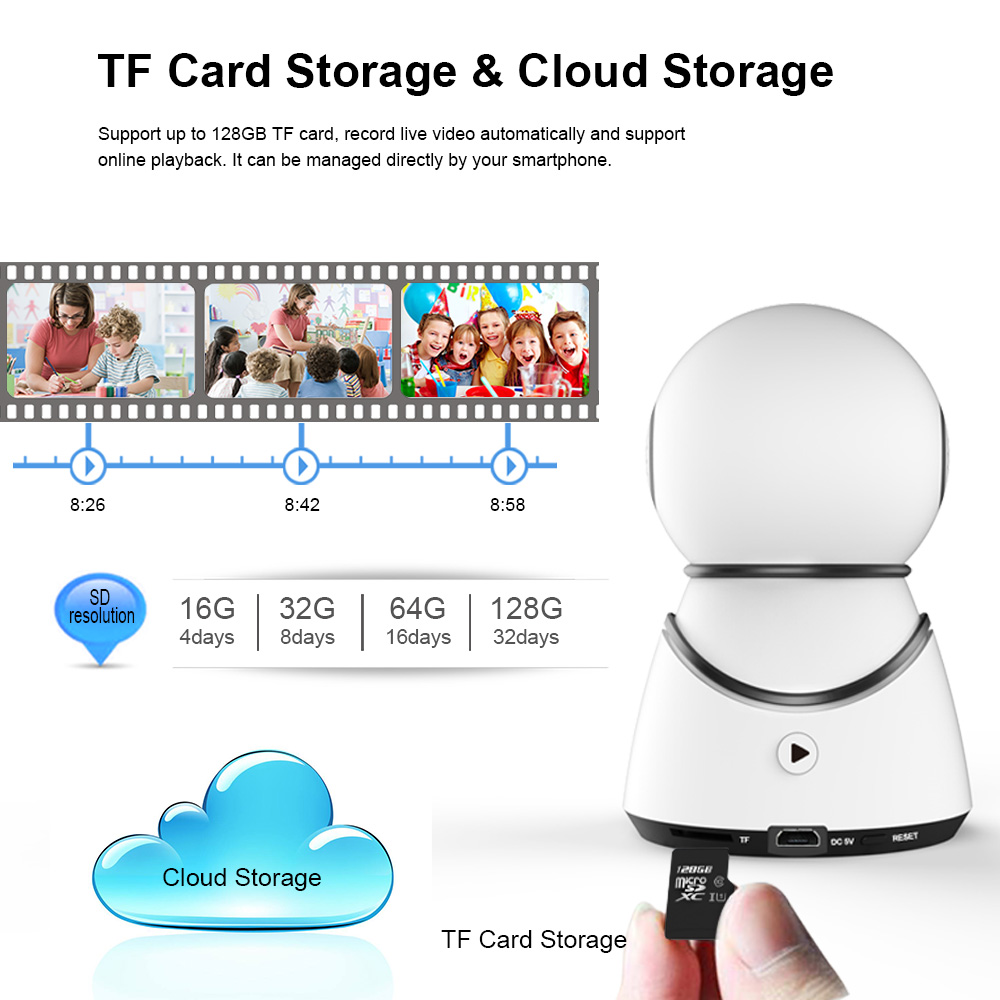

- Support up to 128G Micro SD card large storage (SD format 24 days). No hot-plugging
- Support recording playback
- Support multi-user sharing pictures and videos
- Support nursery rhymes and stories push
- Support firmware auto-detected, upgraded
Specification
| General |
Brand:eLinkSmart |
| Product Details |
System
Processor:Hisilicon processor HI3518E V200,
(Built-in ARM926 at Max.540MHz and a high-speed video co-processor.)
DRAM:DDR2 512Mb
Flash:16MB
OS:Embedded Linux OS
System security:Registed user authority management
Online users:3
DDNS:NO
Control protocol:P2P protocol
UPNP:NO
Image Sensor
Sensor chip:OV9750
Type:1/3" CMOS Sensor
Display Resolution:2.0MP, 1980*1080(1080P)
Lens and IR-LED
Lens:FNO: 2.5; FL:3.6mm;
Interface Type:M12
Focus:Fixed
View Angle:55°
Min. Illumination:Low illumination, 1.0Lux in day; Min to 0.2Lux with IR-LED On
IR-LED:10 IR-LED for Night Vision use
Night Vision:IR-CUT double filter with day&night auto switch
Audio
Input/Output:Built in Microphone and 8Ω/1W speaker;
Audio Compression:G.711, ADPCM/32kbps
Digital noise reduction:3D digital noise
Video
Image Compression:H.264
Light Frequency:50Hz, 60Hz
Image Resolution:2.0MP, 1980*1080(1080P)
Image frame rate:1~25fps
View:H.264 single streaming
Image adjust:NO
White balance:Automatic
Effective Night Vision:Supported, IR-Cut, Night visibility up to 8 meters
Infrared radiation distance:6 meters
Infrared mode:Automatic
Network
Ethernet Interface:Built-in 10/100Mbps, Auto MDI/MDIX, RJ-45
Supported Protocol:HTTP/DHCP/IP/TCP/UDP
Wireless Standard:WIFI(IEEE802.11b/g/n)
WIFI Data Rate:802.11b: 11Mbps(Max.);802.11g: 54Mbps(Max.);802.11n: 150Mbps(Max.)
WIFI Frequency channel:2.4G (NOT support 5G)
WIFI Channel bandwidth:Support 20/40MHz
General functions:Reverse, capture, mobile alarm,password protection,video playback, remote control, two-way intercom"
Support IP address:Dynamic IP address
Wireless Security:WPA2 Encryption
Intelligent alarm:NO
Mobile view
Mobile phone type:iPhone,Android phone
Video playback:Four level Clarity for various network speed: MAX,High,Normal,Low
Mobile alarm:YES(message and picture)
Piture capture:YES
Reverse:YES(Horizontal & Vertical )
Two-way intercom:YES
Video record in mobile:YES
Recorded video playback:mobile and IPC TF card recorded video playback
PTZ control:Horizontal:355° & Vertical: 55°
Full screen view:YES
Multi-view:NO
TF CARD video Record
Record setting:ON/OFF
Record level select:FHD\HD\SD\Smooth
Record days/hours:Depend on Clarity select and real scene;Example of Hours for 32GB CARD:FHD(1280x720) = 2 Days;HD = 4 Days;SD = 6 Days;Smooth = 8 Days
Record file format:AVI
Record video playback:By mobile APP,PC video tool or normal video device
Intelligent alarm
Motion Detection:YES
Video is lost, the network is disconnected, and the power is disconnected:NO
Alarm inform:Alarm message with picture
Hardware Interface
Memory:TF Card(Micro SD CARD)
Power Interface:DC 5V/2.0A (EU,US,UK adapter or other types optional)
Power consumption: normal 3.2W;IR-LED on 3.5W;PTZ working MAX 7W
Audio Input/Output:Built in Microphone and Speaker
Reset key:Press 5 Seconds, then reset to factory setting.
Wireless Interface:WIFI antenna
WLAN:RJ-45
Software Upgrade
IPC device software:YES(by mobile APP upgrade)
Mobile APP:Auto upgrade by user
PTZ
Pan/Tilt Angle:Horizontal:355° & Vertical: 55°
Pan/Tilt Cruise:Horizantal & Vertical
Pan/Tilt Position Store:Store 6 positions, support goto the position
|
| Weight & Dimensions | Product Weight:0.189KG Product Dimensions:154*58*58mm Package Weight:0.412KG Package Dimensions:170*140*110mm |
| Package Contents |
1 x IP Caream |
