Highlights
- System security account, password authority management
- Free DDNSFree DDNS, supports dynamic IP
- View by phoneSupport HD pic IOS, Android mobile view (iOS 4.3Android OS 2.3 above)
- Local storage support up to 64GB MicroSD card 24-hour loop recording
- Monitor Advantage: support PC computer monitoring, smartphone multi-pic view

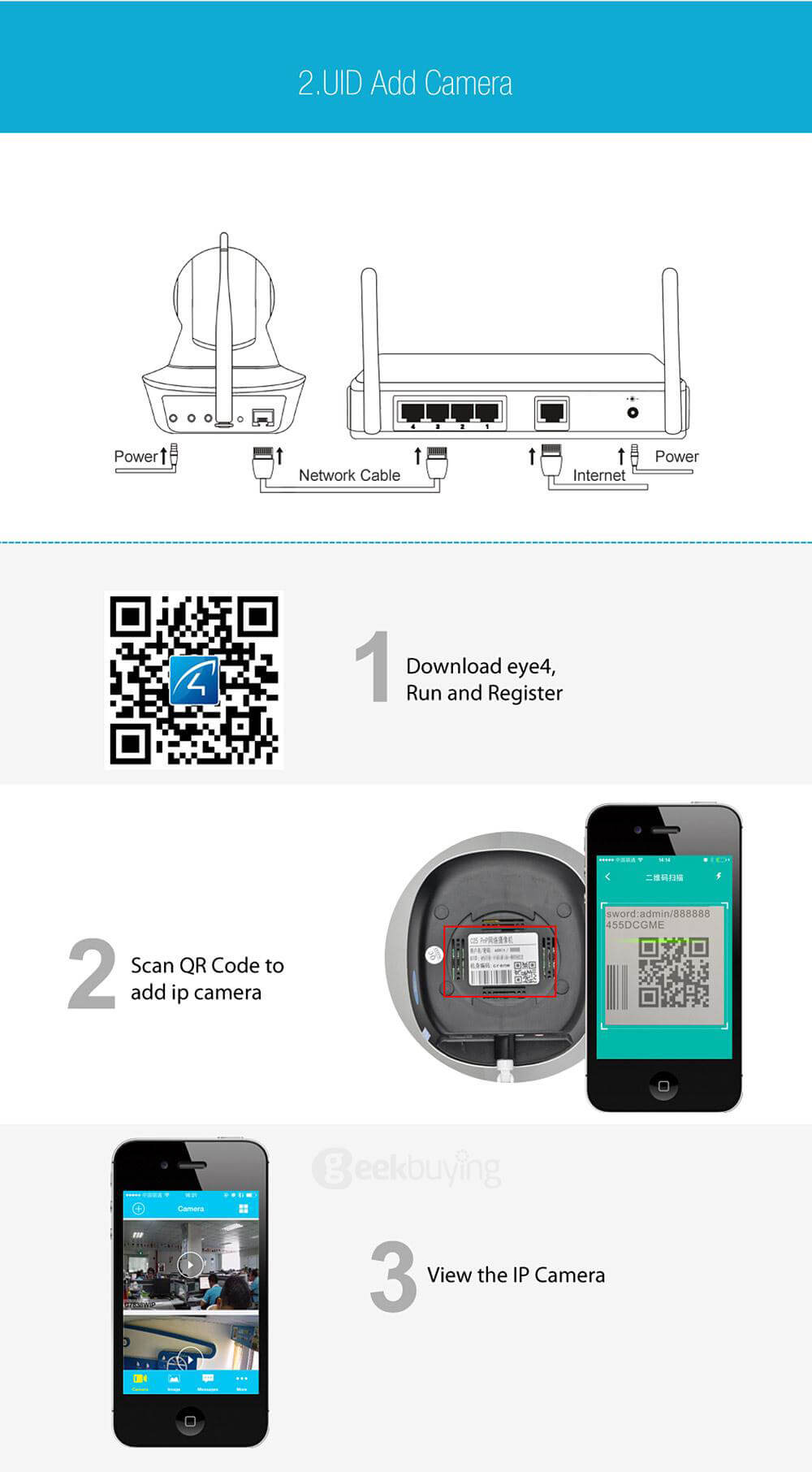

- PnPPlug & Play,99% penetration rate, Easy to setup: connect the network cable and power adapter; install APP, scan UID code to add camera; click online camera to view the camera.
- Sever cluster using amazon cloud PnP servier cluster, intelligent application and super stable
- UID TechnologyUID scan technology applied, easy to operate, and highly confidential
- Super Client1,4,9,16,25,36, 64,81-channel central management software, no user number limitation centralized surveillance, remote record and playback, alarm email ect.

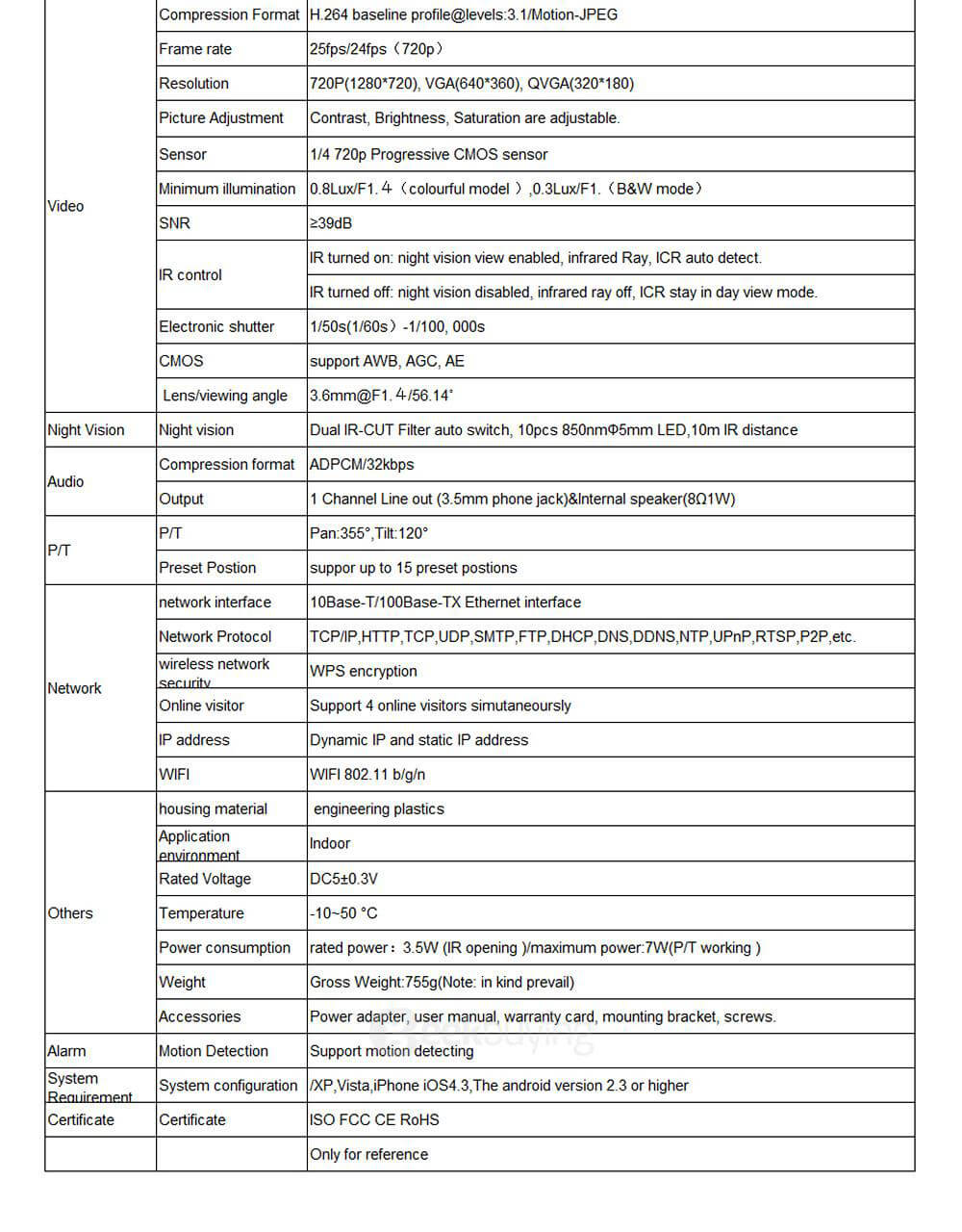

Specification
| General | |||||||
|---|---|---|---|---|---|---|---|
| System | OS | Embedded Linux OS | |||||
| Control protocol | ONVIF 2.4 protocol, high interoperability | ||||||
| Video coding | Multi stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture | ||||||
| Bit Rate | CBR/VBR, output bit rate range:128~4096kbps | ||||||
| Processor | Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor | ||||||
| Video | Compression Format | H.264 baseline profile@levels:3.1/Motion-JPEG | |||||
| Frame rate | 30fps/24fps(720p) | ||||||
| Resolution | 720P(1280*720), VGA, QVGA | ||||||
| Picture Adjustment | Contrast, Brightness, Saturation are adjustable. | ||||||
| Sensor | 1/4 720p Progressive CMOS sensor | ||||||
| Minimum illumination | 0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode) | ||||||
| SNR | ≥39dB | ||||||
| IR control |
IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
||||||
| Electronic shutter | 1/50s(1/60s)-1/100, 000s | ||||||
| CMOS | support AWB, AGC, BLC | ||||||
| Lens/viewing angle | 3.6mm@F1.4/56.14˚ | ||||||
| Night Vision | Night vision | Dual IR-CUT Filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance | |||||
| Audio | Compression format | ADPCM/32kbps | |||||
| Input | 1 Channel Line in (3.5mm phone jack) &1 Channel Internal -48dB Microphone | ||||||
| Output | 1 Channel Line out (3.5mm phone jack)&Internal speaker(8Ω1W) | ||||||
| P/T | P/T | Pan:355°,Tilt:120° | |||||
| Preset Postion | suppor up to 15 preset postions | ||||||
| Network | network interface | 10Base-T/100Base-TX Ethernet interface | |||||
| Network Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,onvif etc. | ||||||
| wireless network security | one key wifi setup,don't need network cable . | ||||||
| Online visitor | Support 4 online visitors simutaneoursly | ||||||
| IP address | Dynamic IP and static IP address | ||||||
| WIFI | WIFI 802.11 b/g/n | ||||||
| Others | housing material | engineering plastics | |||||
| Application environment | Indoor | ||||||
| Rated Voltage | DC5±0.3V | ||||||
| Temperature | -10~50 °C | ||||||
| Power consumption | rated power:3.5W(IR opening )/maximum power:7W(P/T working ) | ||||||
| Package size | 195x140x130mm (L×W×H) | ||||||
| Weight | Gross Weight :755g(Note: in kind prevail) | ||||||
| Accessories | Power adapter, user manual, warranty card, mounting bracket, screws. | ||||||
| Alarm | Motion Detection | Support motion detecting | |||||
| System Requirement | System configuration | WinXP /7/8/10,Vista,iPhone iOS4.3,The android version 2.3 or higher | |||||
| Certificate | Certificate | ISO FCC CE RoHS | |||||
| Only for reference | |||||||
What's in the box?
- 1 x Security Camera
- 1 x Power Supply
- 1 x English Manual
