Highlights
320 x 480 resolution
Resistive touch control
Supports any revision of Raspberry Pi (directly-pluggable)
Drivers provided (works with your own Raspbian/Ubuntu directly)
IPS technology, high quality and perfect displaying from very wide viewing angle
Size perfectly fits the Pi
High quality immersion gold surface plating
Supports Raspbian system, enables your system to:
Take photos by touching (up to 17 camera modes)
Support software keyboard (system interaction without keyboard/mouse)
Specification
| General | LCD Type: IPS LCD Interface: SPI Touch Screen Type: Resistive Touch Screen Controller: XPT2046 Colors: 65536 Backlight: LED Resolution: 320*480 Pixel Aspect Ratio: 8:5 Power Consumption: TBD Backlight Current: TBD Operating Temp.(ºC): TBD |
| Package Contents |

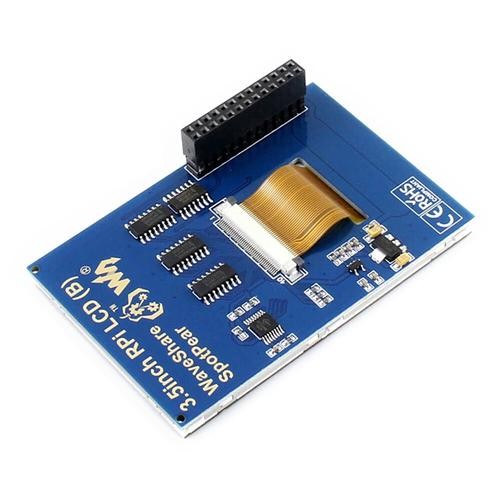

1 x 3.5inch RPi LCD (B) |
Interface
| PIN NO. | SYMBOL | DESCRIPTION |
| 1, 17 | 3.3V | Power positive (3.3V power input) |
| 2, 4 | 5V | Power positive (5V power input) |
| 3, 5, 7, 8, 10, 12, 13, 15, 16 | NC | NC |
| 6, 9, 14, 20, 25 | GND | Ground |
| 11 | TP_IRQ | Touch Panel interrupt, low level while the Touch Panel detects touching |
| 18 | LCD_RS | Instruction/Data Register selection |
| 19 | LCD_SI / TP_SI | SPI data input of LCD/Touch Panel |
| 21 | TP_SO | SPI data output of Touch Panel |
| 22 | RST | Reset |
| 23 | LCD_SCK / TP_SCK | SPI clock of LCD/Touch Panel |
| 24 | LCD_CS | LCD chip selection, low active |
| 26 | TP_CS | Touch Panel chip selection, low active |
