Highlights

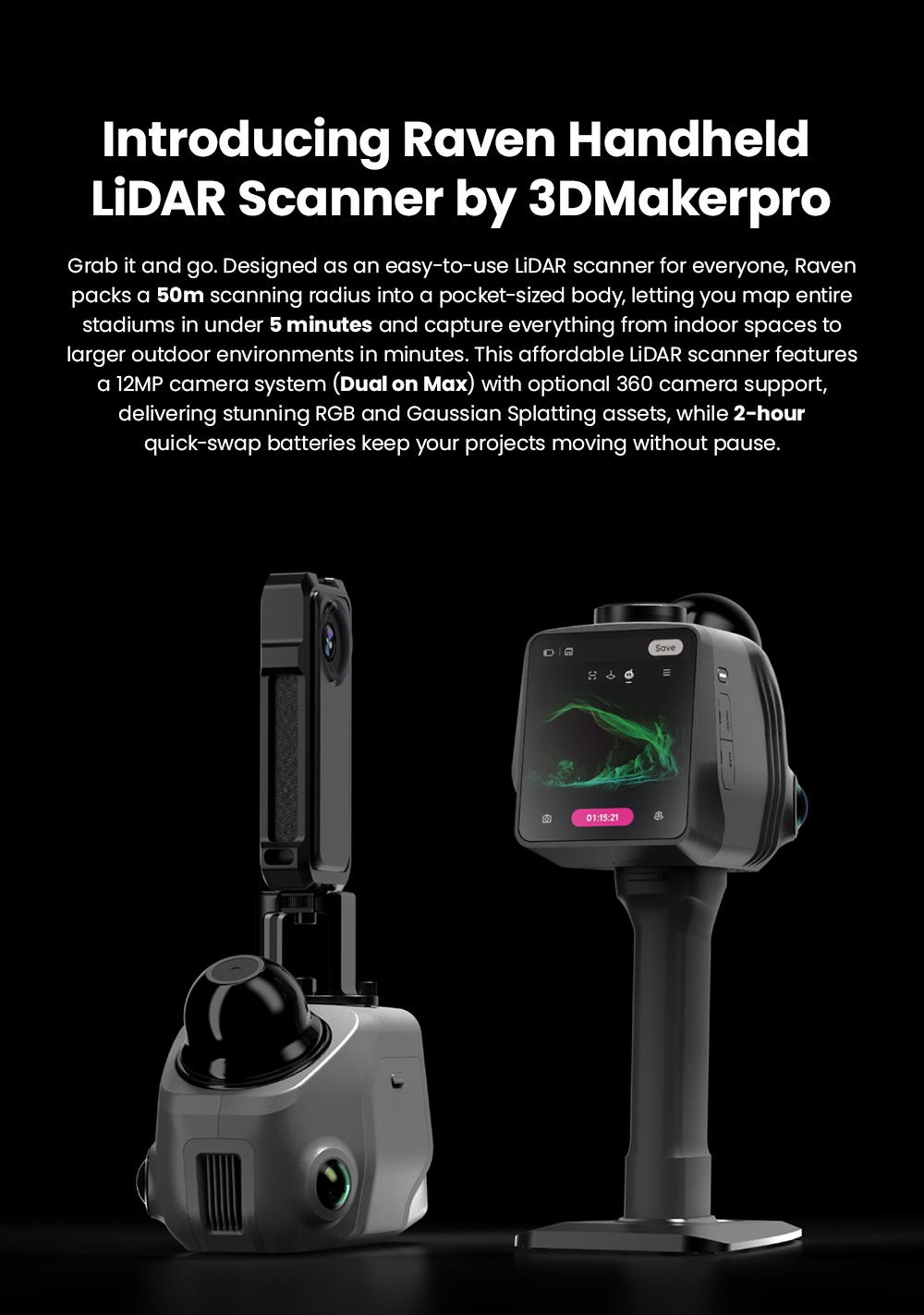

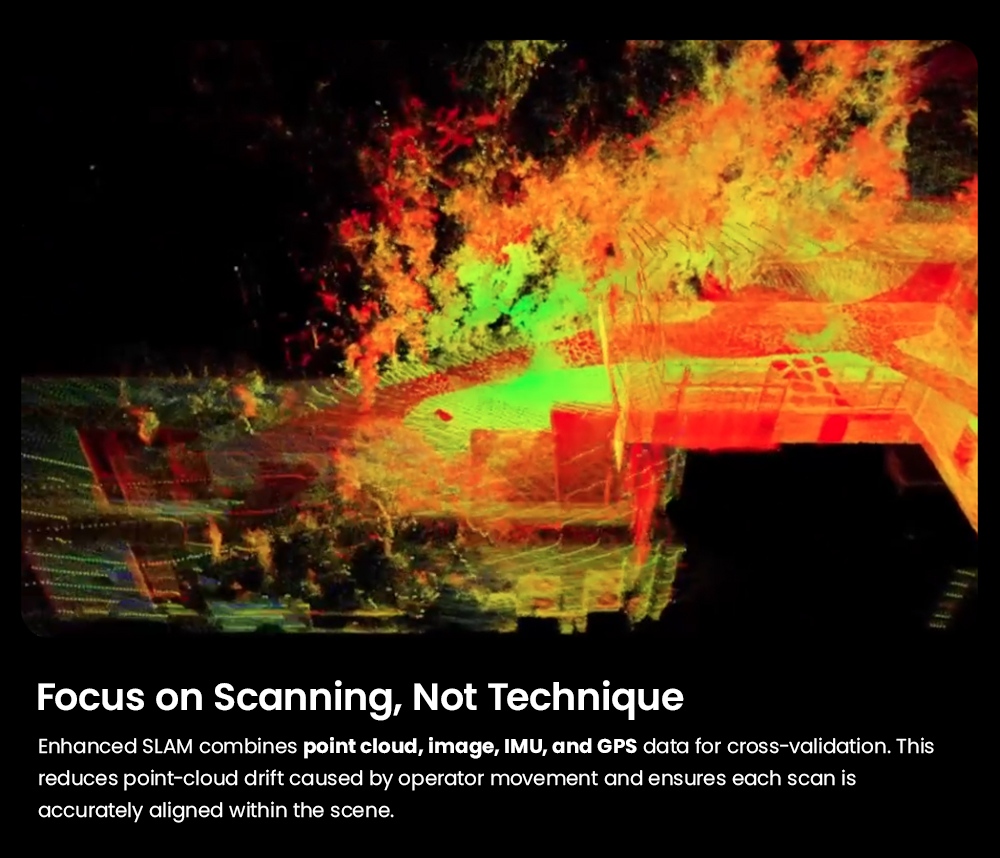

Entry-Level Professional LiDAR Scanning
Designed for efficient large-scale 3D spatial capture, the Raven Standard combines SLAM LiDAR technology with easy handheld operation, making it ideal for indoor mapping, building documentation, and general 3D reconstruction workflows.

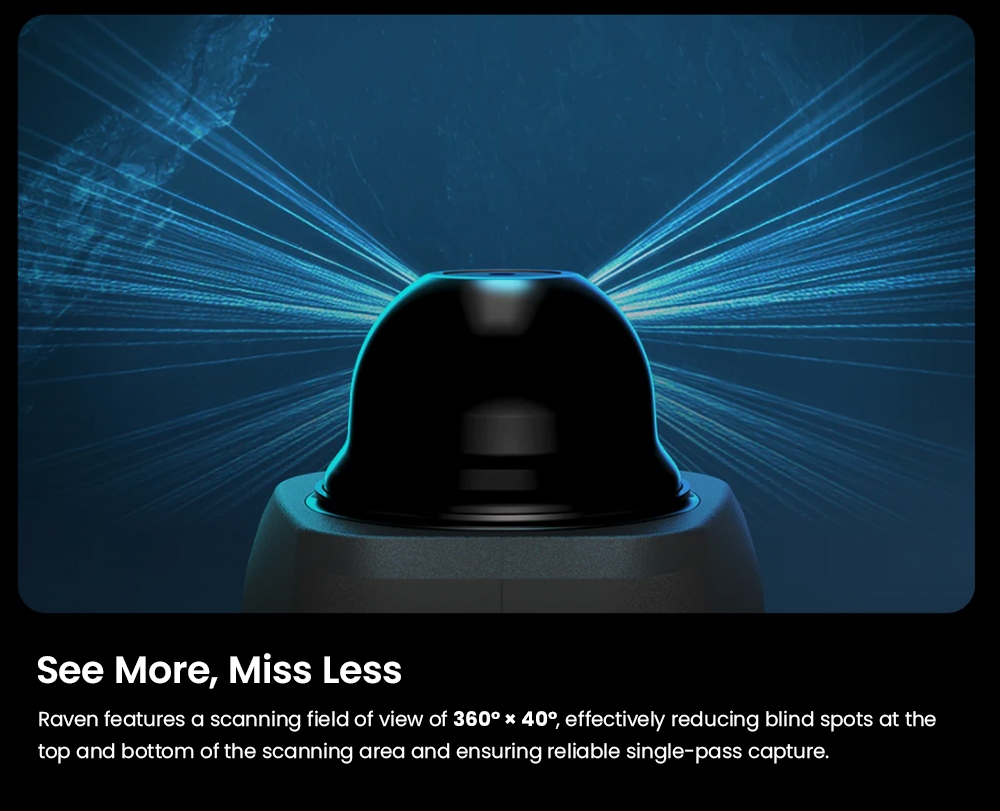

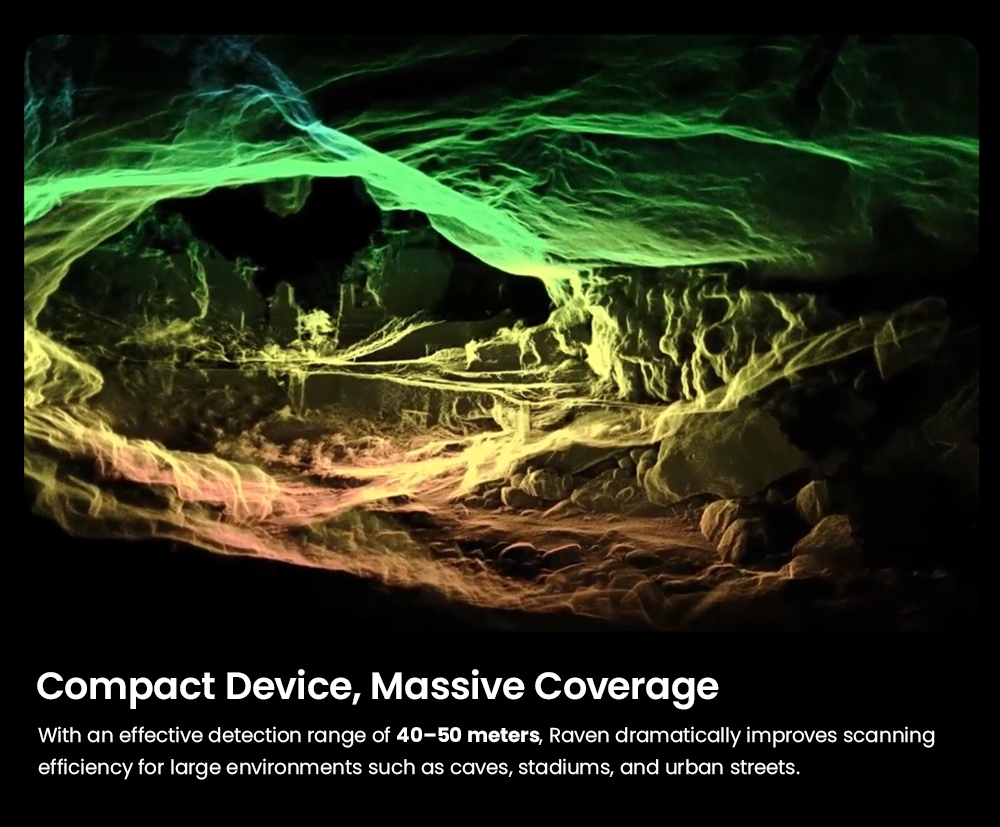

Long-Range Large-Area Scanning Capability
Featuring up to 100m scanning range and a 360°×40° ultra-wide field of view, it captures large indoor and outdoor environments with stable point cloud tracking and efficient scene reconstruction.

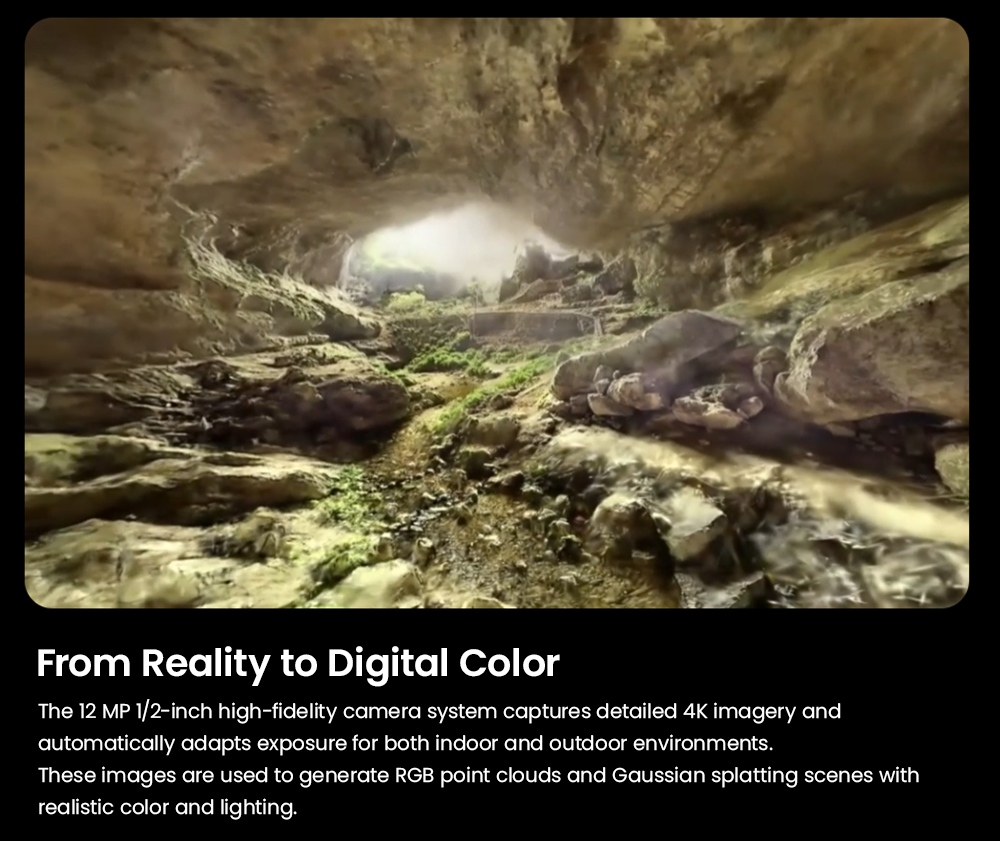

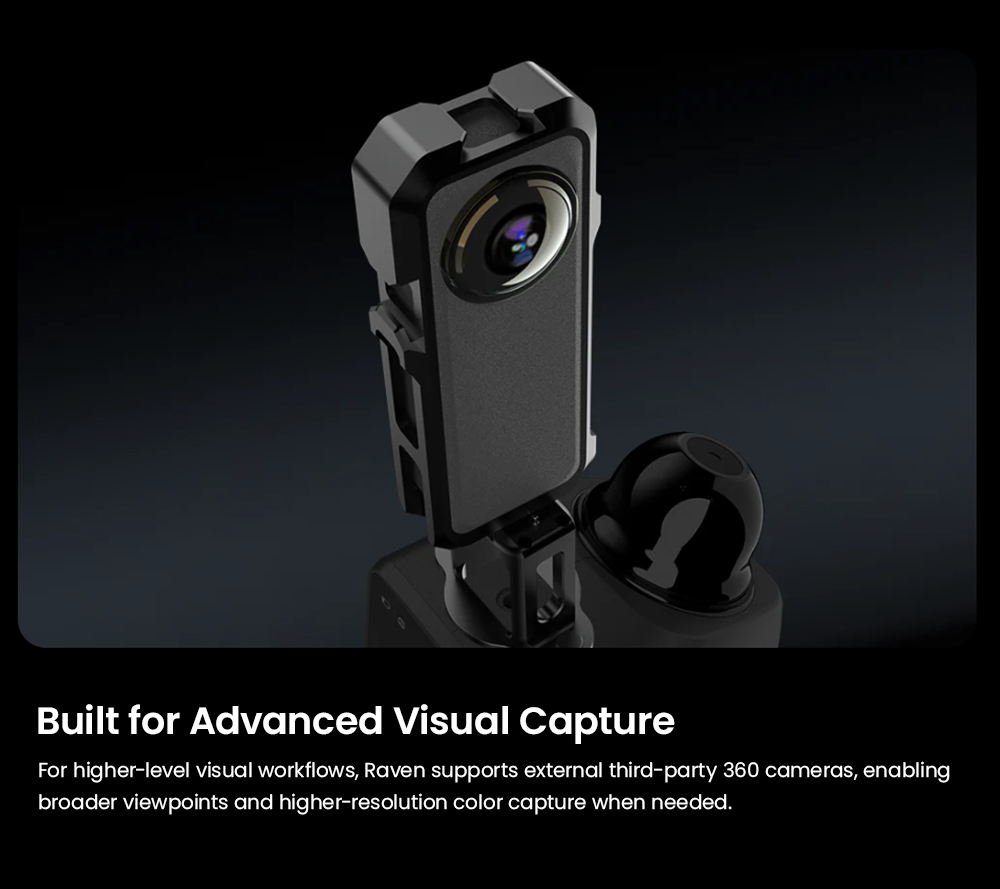

Built-In 12MP RGB Camera

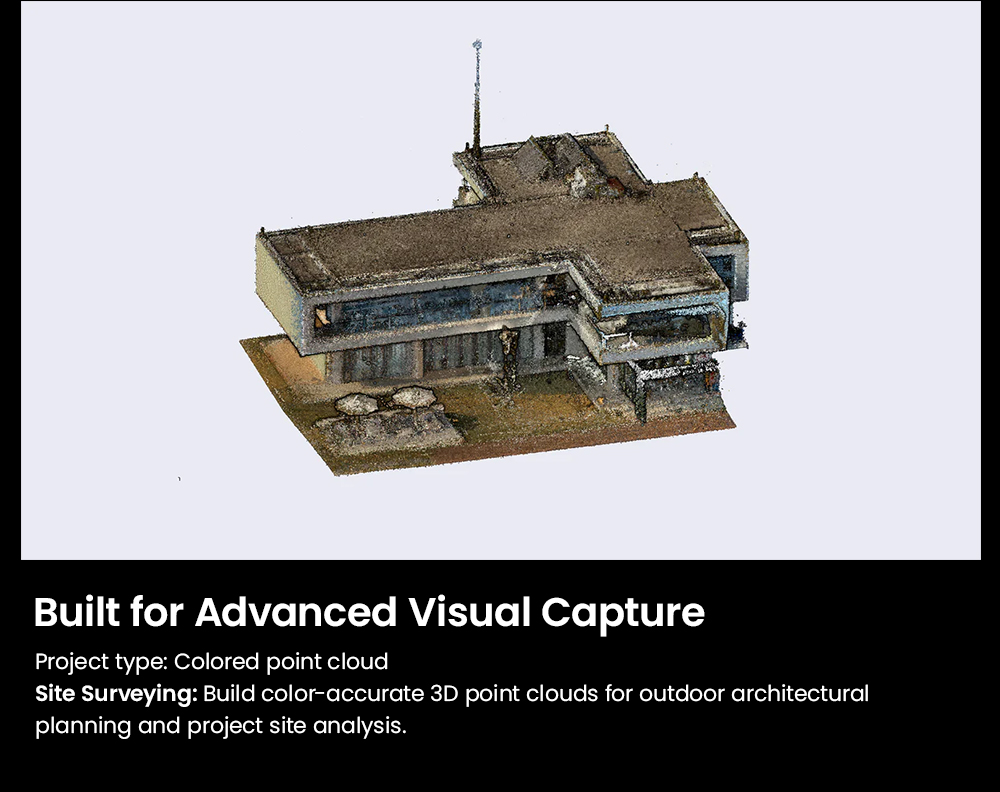

The integrated 12MP camera records color texture information during scanning, generating realistic RGB point clouds and improving visual reconstruction quality for architecture and visualization projects.

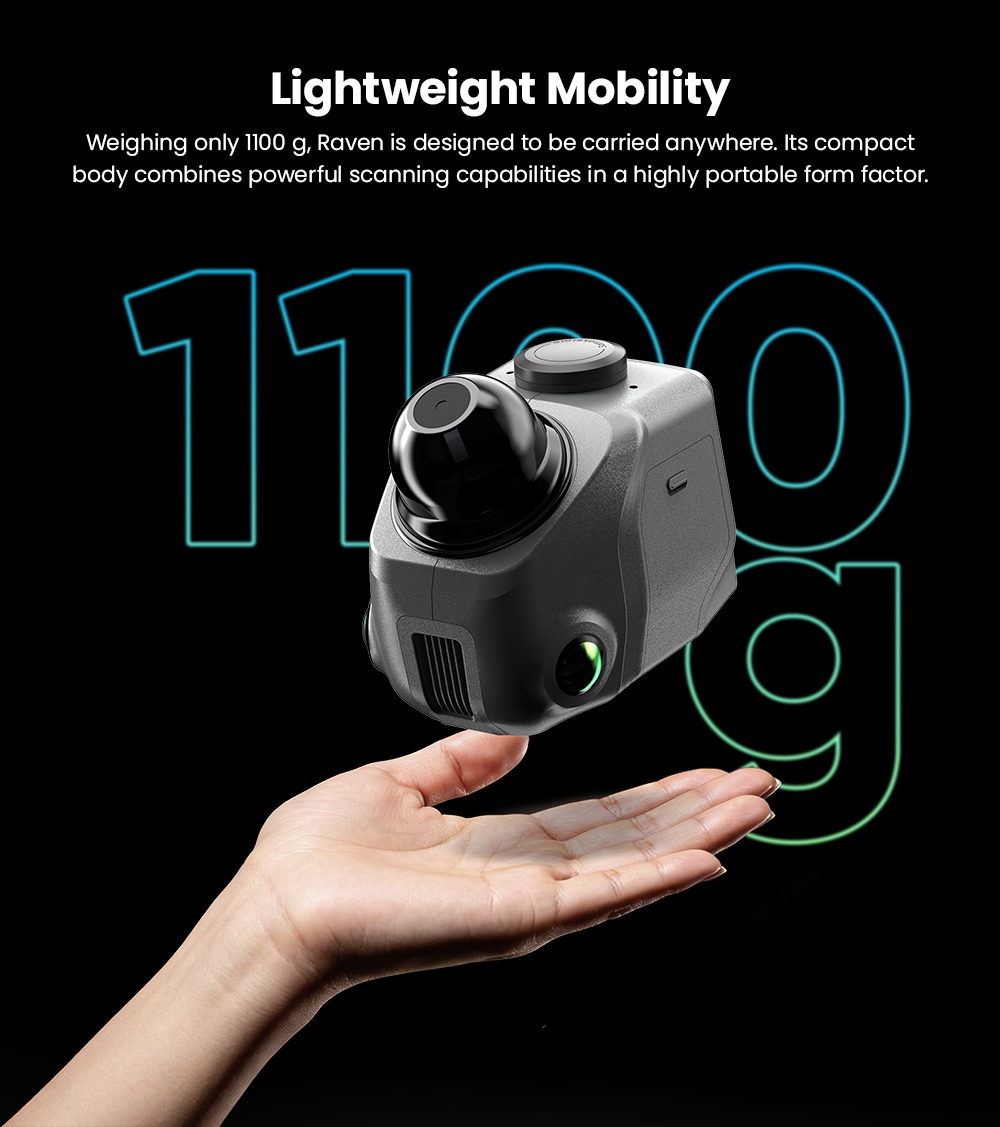

Lightweight 1.1kg Portable Design
The compact handheld body enables flexible mobile scanning in construction sites, warehouses, offices, and outdoor environments while reducing operator fatigue during long sessions.

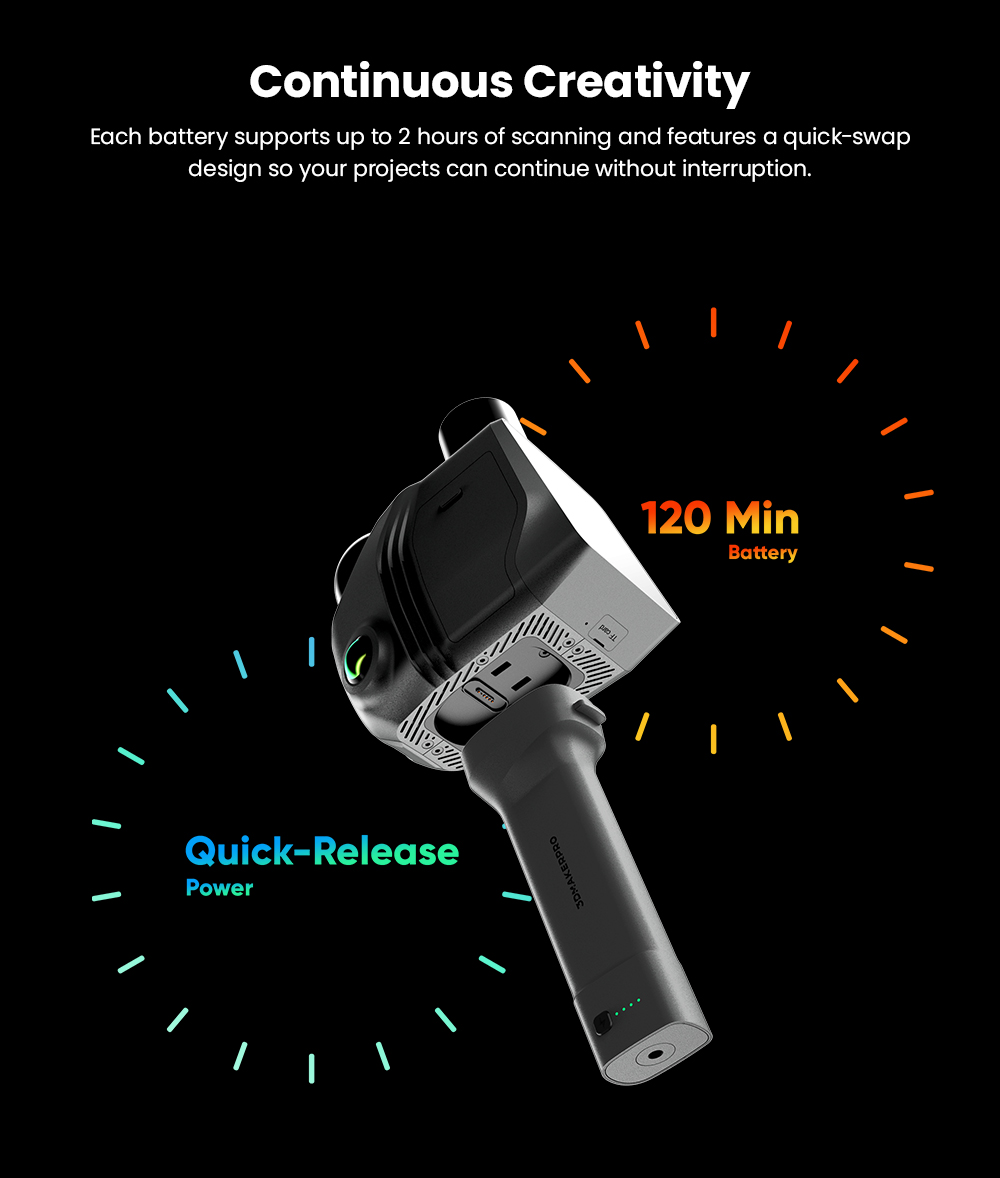

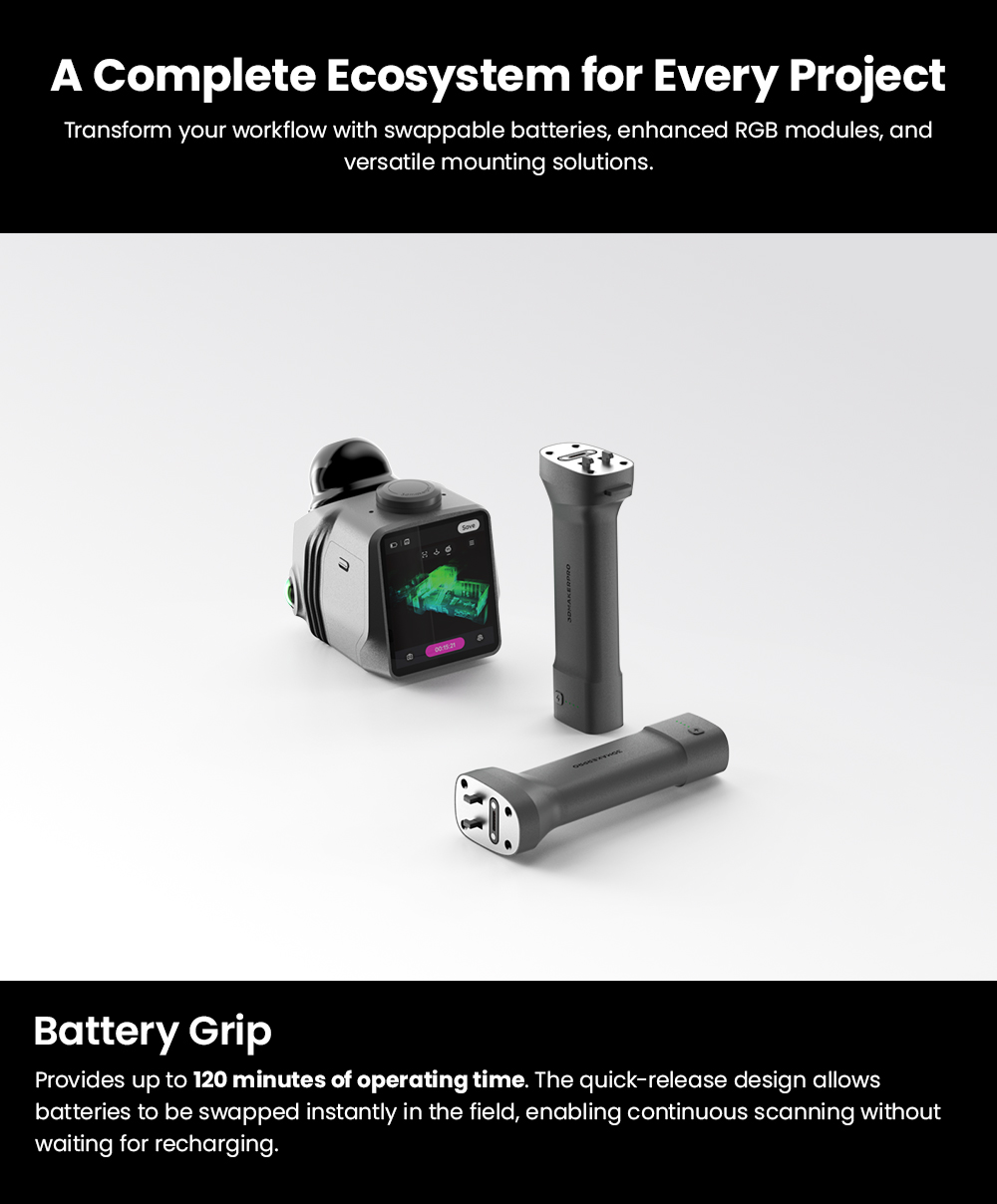

Quick-Swap Battery & Professional Workflow Support

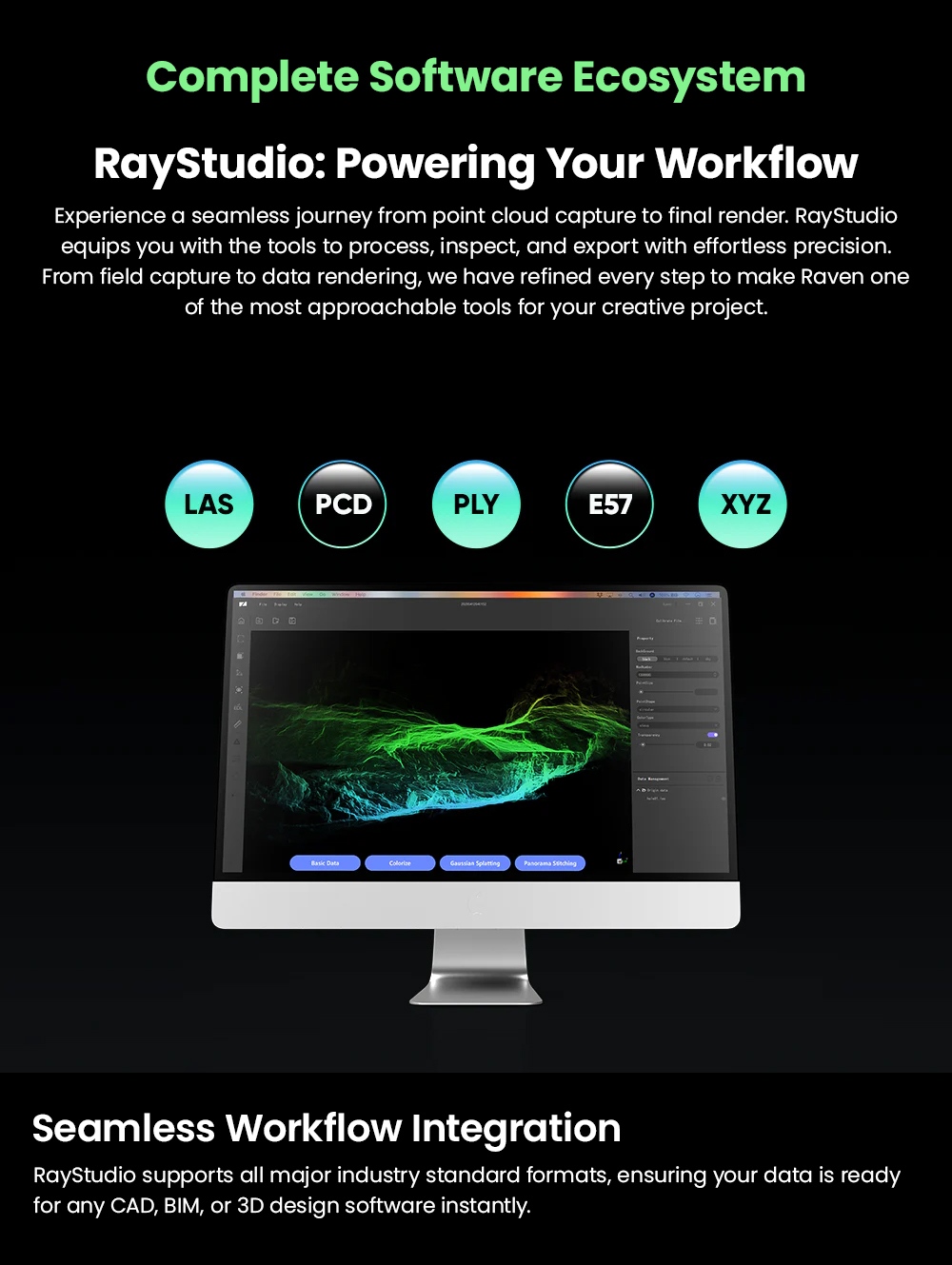

The removable battery system supports extended scanning projects, while compatibility with formats like LAS, PLY, OBJ, E57, and XYZ enables seamless integration into BIM, CAD, and 3D modeling workflows.
Specification
| Brand | 3DMakerpro |
| Type | 3D Scanner |
| Model | Raven |
| Color | Gray & Black |
| Accuracy | 2cm @ 10m / 3cm @ 20m / 5cm @ 40m |
| Scan Radius | 40m @ 10% reflectivity / 50m @ 80% reflectivity |
| Scan Range | 80–100m |
| Field of View | 360° Horizontal / 40° Vertical |
| Point Cloud Frequency | 150,000 points/s |
| Camera System | Single 12MP Camera |
| Sensor Size | 1/2" |
| Color Capture | 4K True-Color Capture |
| Laser Wavelength | 905nm |
| Laser Safety Class | Class 1 (IEC60825-1:2014) |
| Processor | 8-Core 2.4GHz |
| Memory | 32GB |
| Storage Expansion | TF Card Supported |
| Display | 3.9" AMOLED Screen |
| Battery Capacity | 12000mAh |
| Battery Life | Up to 2 Hours |
| Charging | Supports Charging While Operating |
| Data Interface | USB Type-C |
| Fast Charging | PD 65W USB Type-C |
| Wireless | Wi-Fi 5 Connectivity |
| Export Formats | LAS / PCD / PLY / OBJ / E57 / XYZ |
| System Support | Windows 11 or Above / macOS Not Supported |
| Product Weight | 2.45kg |
| Package Weight | 4.2kg |
| Product Size | 31 × 22 × 12 cm |
| Package Size | 37 × 35 × 15 cm |

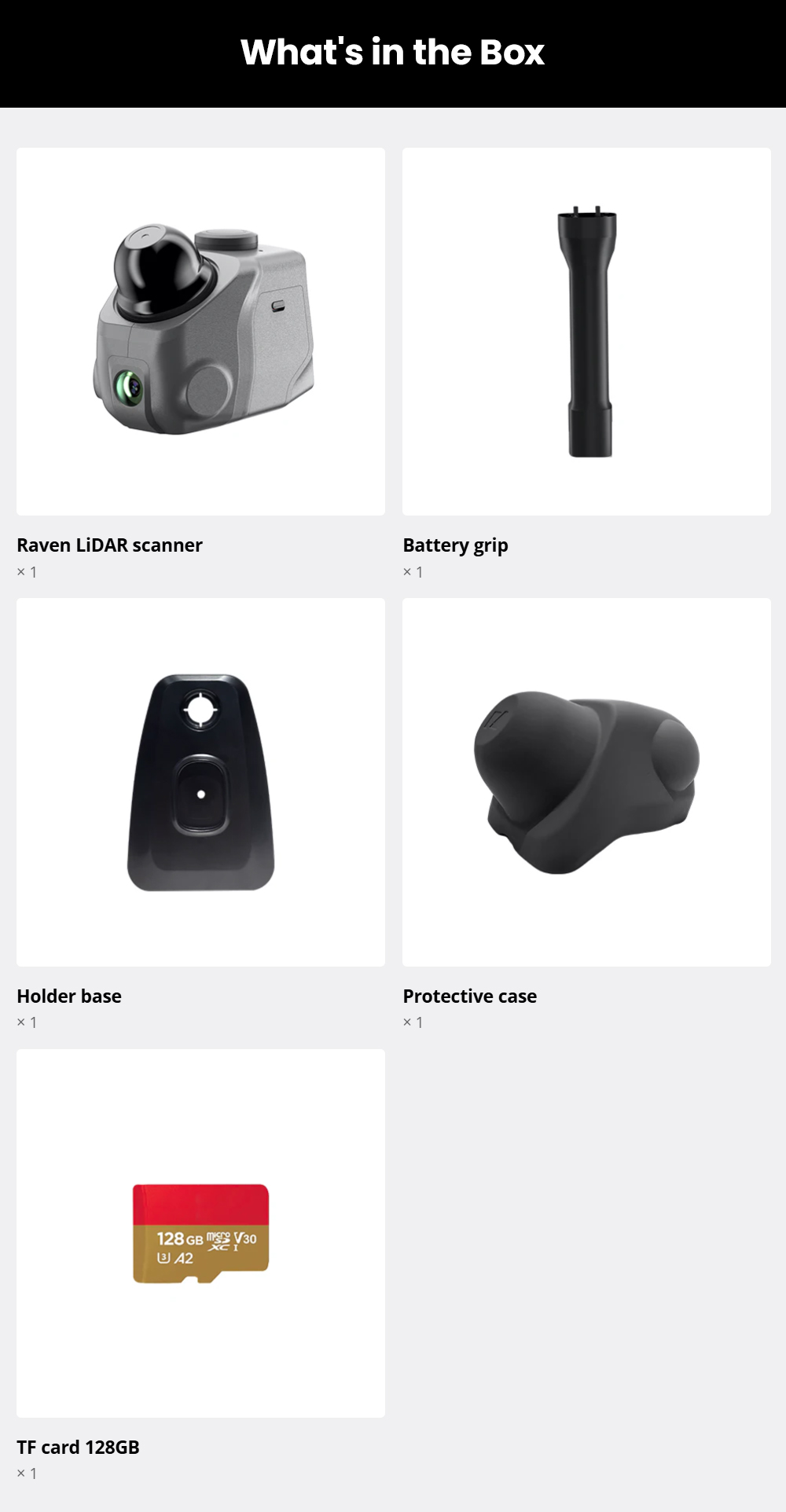

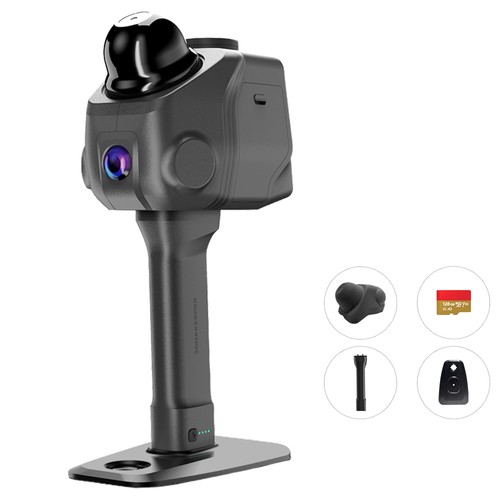

| Package Contents | 1 x Raven LiDAR Scanner 1 x Battery Grip 1 x Holder Base 1 x Protective Case 1 x TF Card 128GB |
