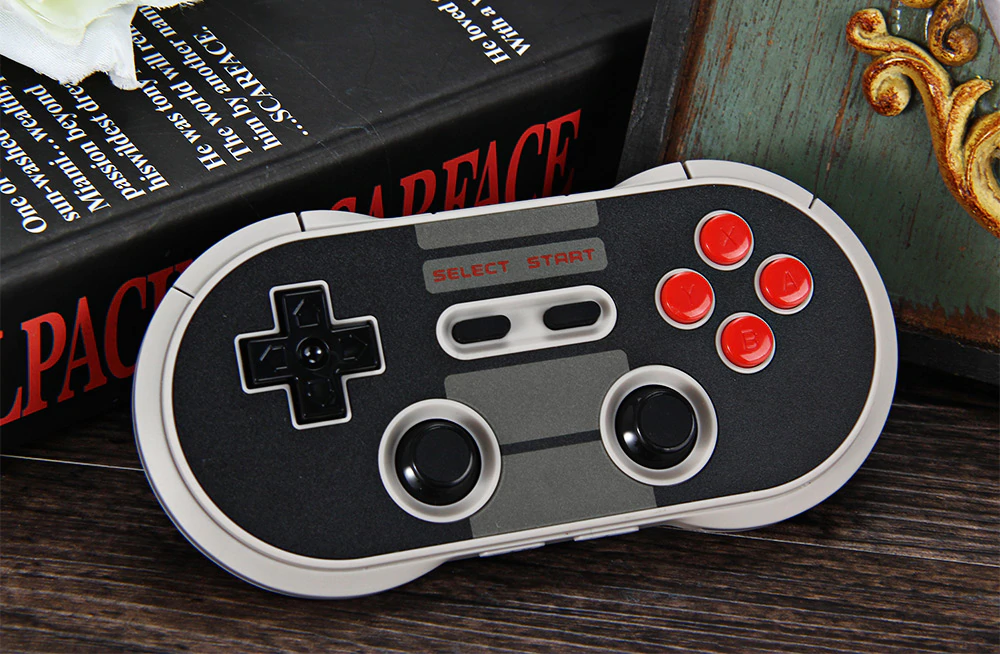

8BITDO N30 PRO Wireless Bluetooth Controller Gamepad for Switch/ Windows/ Android /Macos/ Steam - Black + Grey

Highlights

Mode

Mode 1 for Android; iCade mode for MAME4ALL arcade emulator

Mode 3 for iOS

Mode 4 is for playing touch screen games, not for physical buttons games

Turn off: Press START and hold for 3s until the light is turned off

Clear pairing information: If it is not 0000 pairing code, press and hold SELECT for 3s to clear the last pairing information and then pair again

(Note: Make sure the gamepad is full of power; Otherwise, Bluetooth would probably pair unsuccessfully; USB cable for charging.)

Modes 1/2/3: Bluetooth wireless connection

Connection

Open Bluetooth in mobile device and find "8Bitdo FC30 Pro" to connect

Enter emulator games or the games supporting keyboard and joystick operation and then set key mapping. That is OK

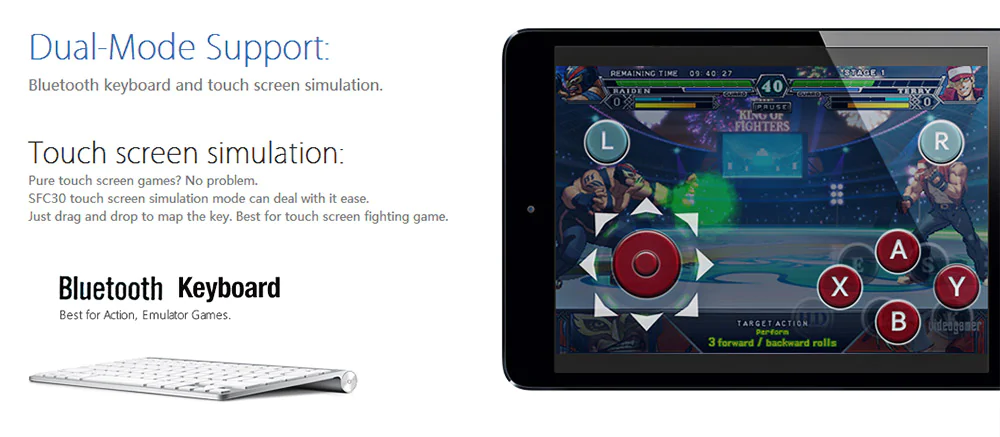

Mode 4: Bluetooth wireless connection simulating touch screen mode

Android / iOS: Android needs ROOT, iOS needs jail-breaking

Download N30 Pro client from official website

Execute N30 Pro client; Click button to open Bluetooth (iOS user needs to close system Bluetooth firstly), software will search Bluetooth device automatically; Find "8Bitdo N30 Pro" and connect

Default Bluetooth pairing password: 0000

Enter the game, press SELECT+START, interface will display button; Touch and drag button to the corresponding control point; And then press SELECT+START again to finish key mapping

Note

Android user: After using mode 4, you need to clear mode 4 pairing information firstly, so that can enter other modes

iOS user: After using mode 4, system Bluetooth can not work; You need to execute FC30 Pro client and close Bluetooth; More than 10 seconds later, system Bluetooth recovers

Mode 5: Windows USB wired connection

Connect to computer and wait it to automatically recognize USB controller; No need drive

Set key mapping in the games you play

Dual-shock mode

iOS/Android/Mac OS/PC: 1P: Power+B to enter; 2P: Power+B+R to enter; After connect two gamepads to the device, they become a Bluetooth keyboard; Then just set key mapping. That is OK

Wiimote mode

After entering Wii main interface, press HOME key

Press Y+Power on gamepad to enter Wiimote mode

Press the red pairing button on the left side of SD slot in Wii; Wait for several seconds, it will automatically recognize the NES30 gamepad; And then 1P icon light turns on, which means they have paired successfully; Supports multiple gamepads pairing

3 gyro operation (analog): shaking, left-leaning, right-leaning

Gyro instruction: L - Left-leaning, R - Right-leaning, L+R - Shaking

Gamepad wiimote and real wiimote corresponding keys instruction

Direction key - Direction key

X - B

Y - One

A - A

B - Two

select - Minus

start - Plus

Specification
