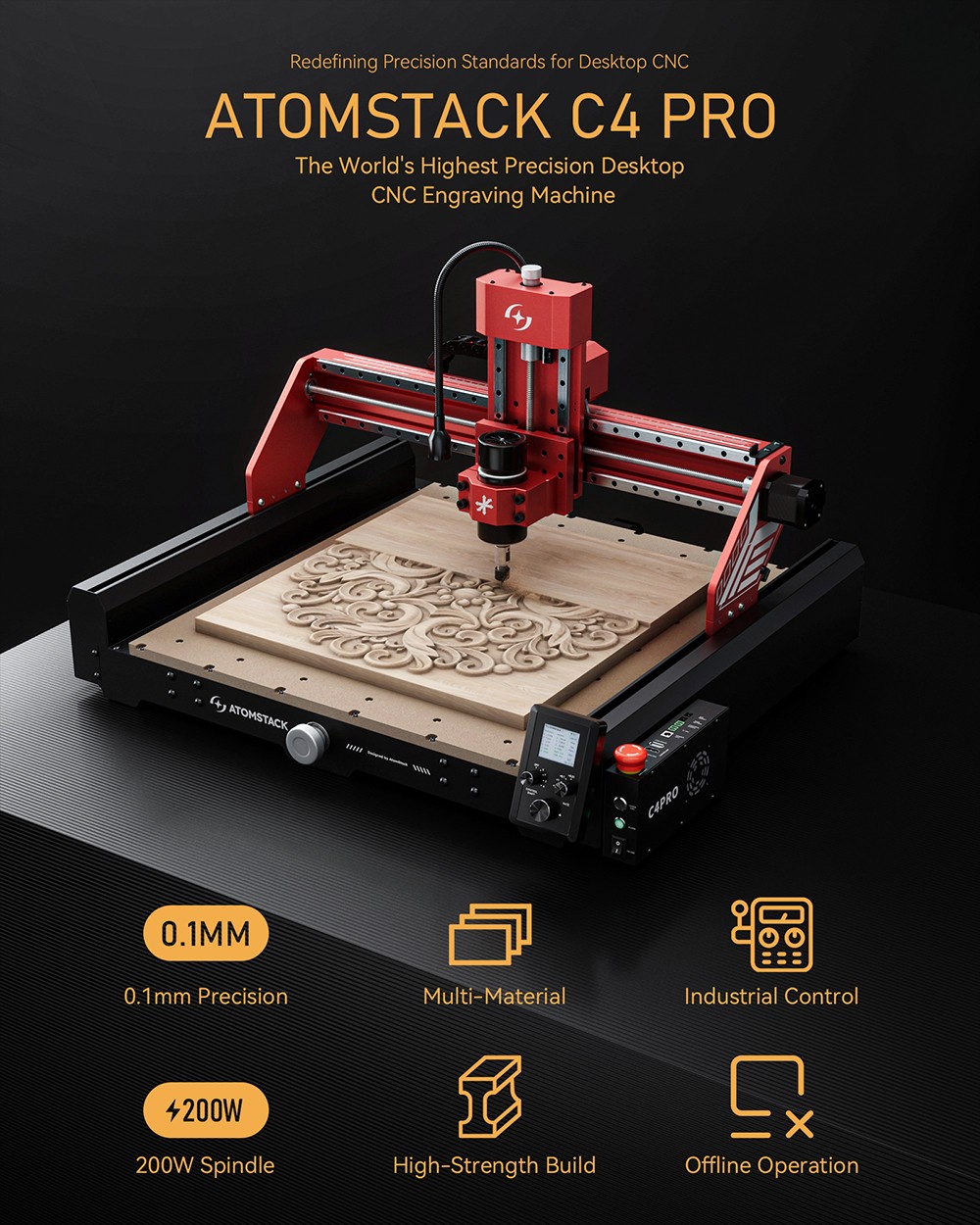

Highlights

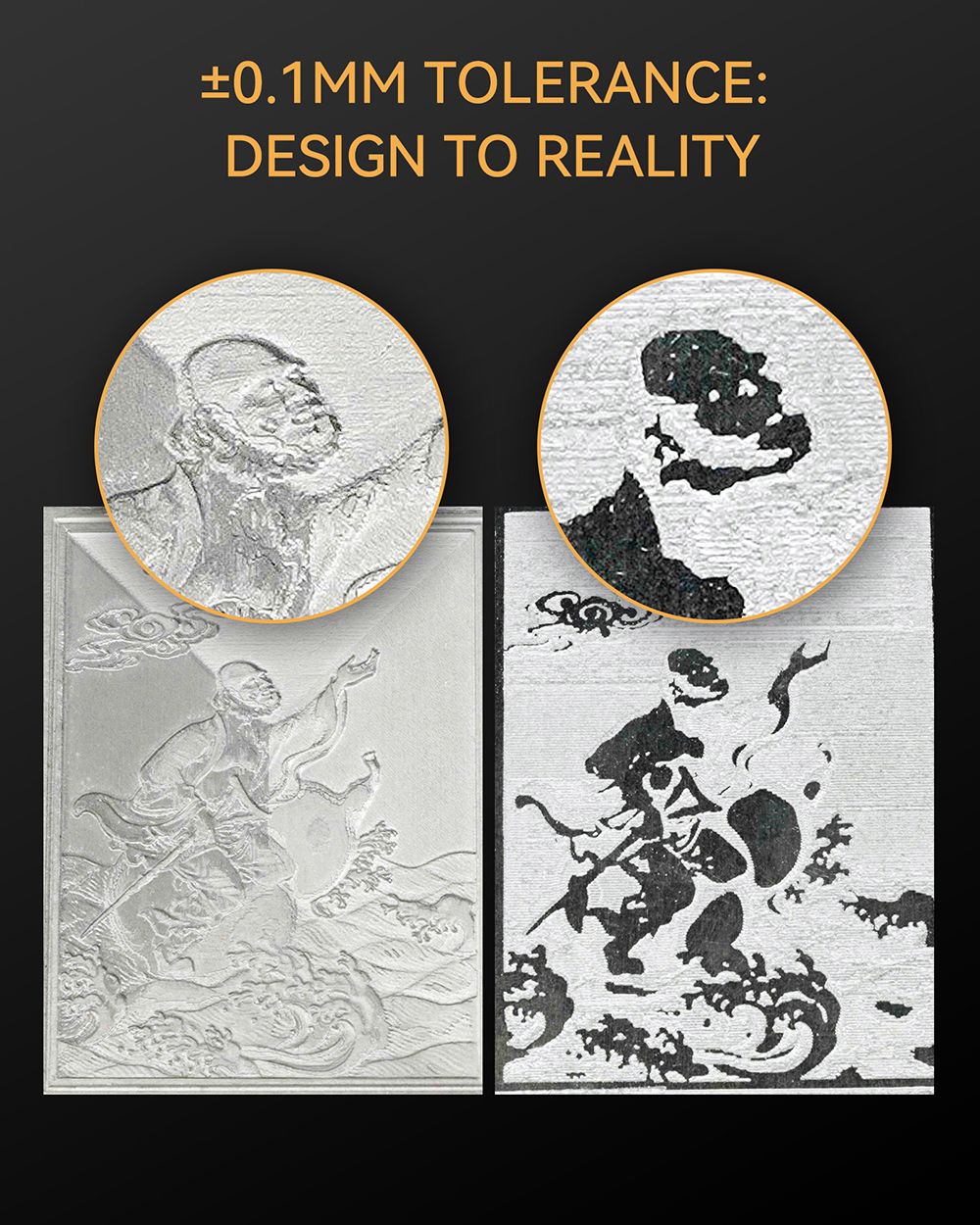

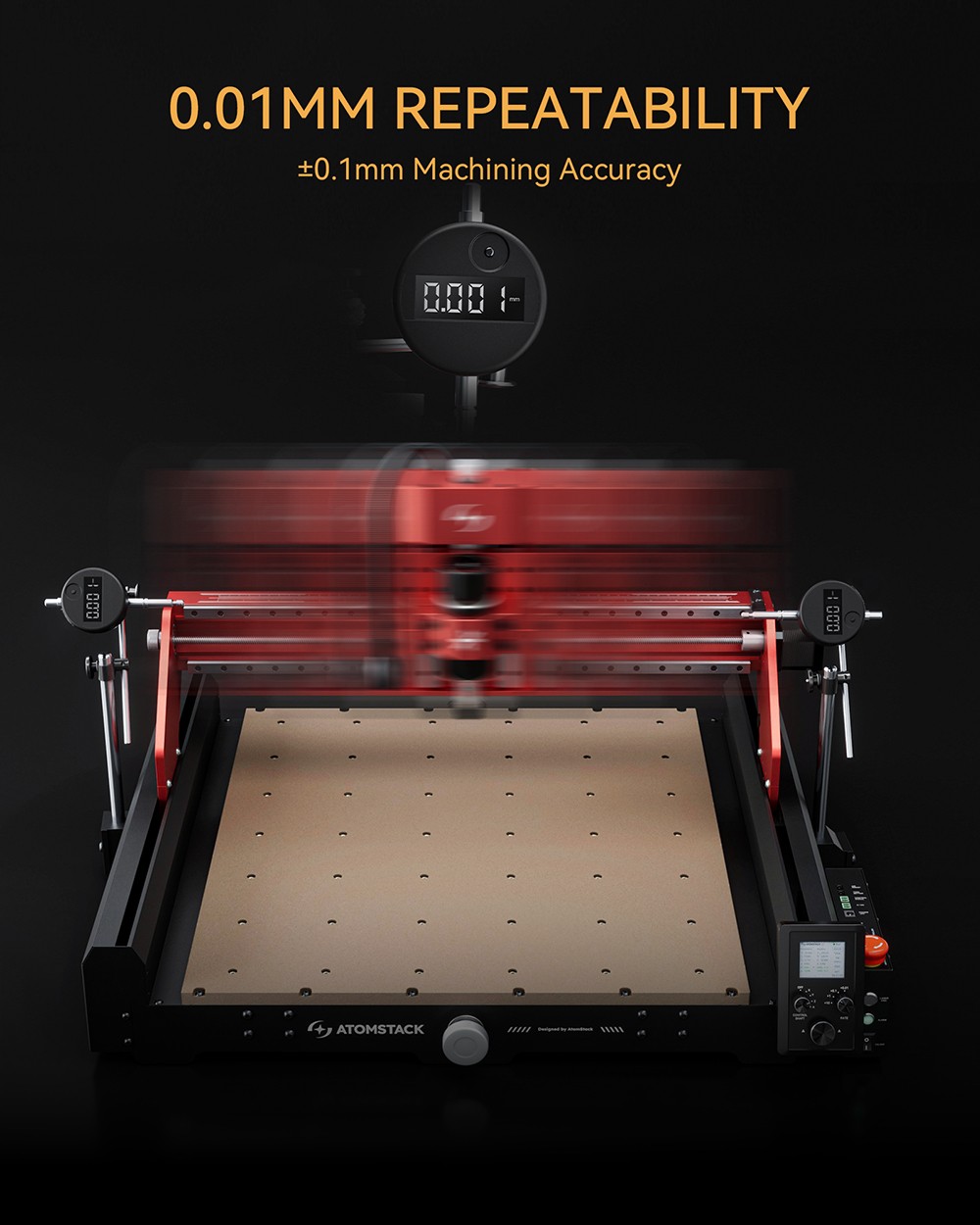

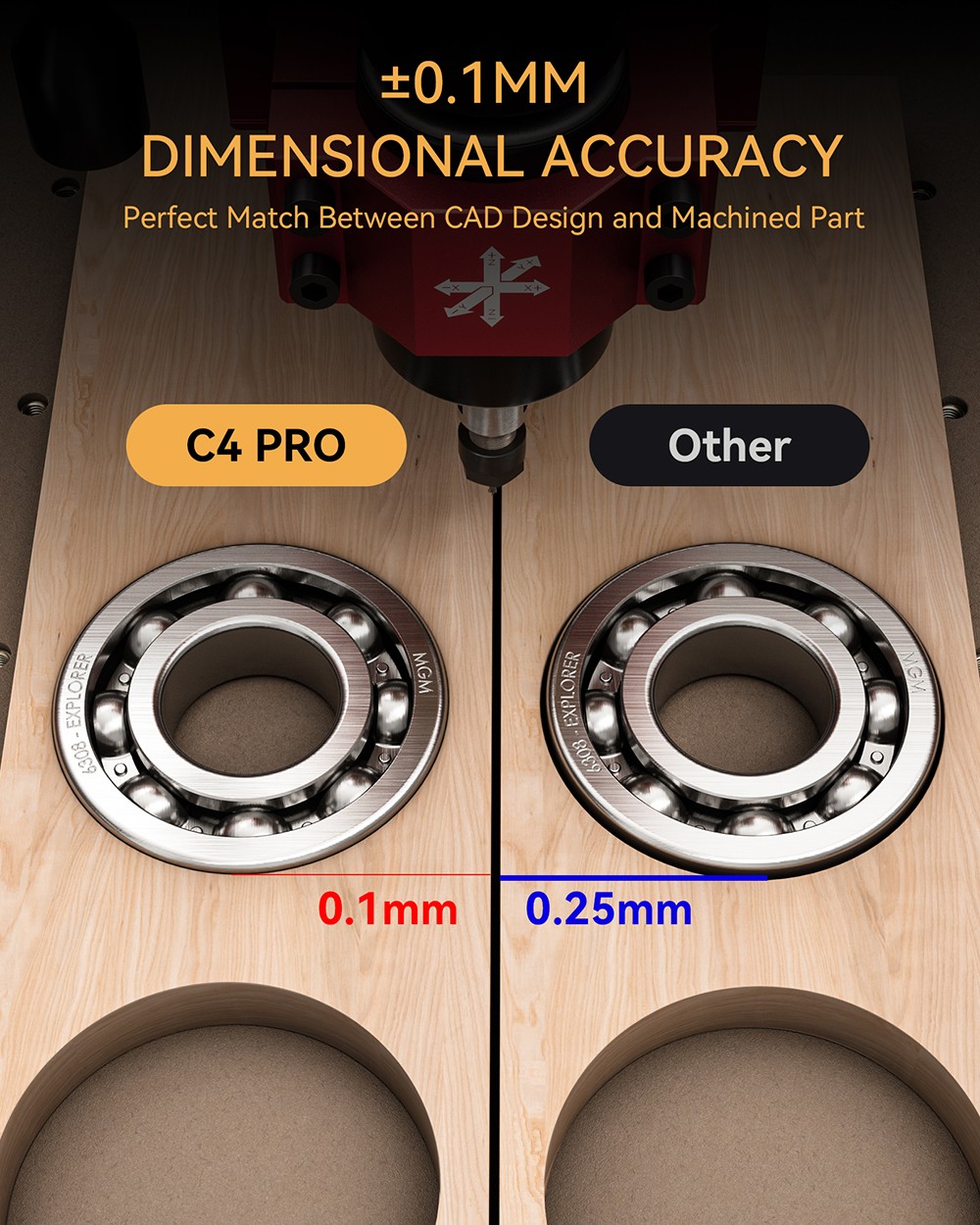

Ultra-High Precision
Achieve outstanding ±0.1mm positioning accuracy and 0.01mm repeatability. The rigid motion system ensures stable, smooth operation without vibration or step loss.
Industrial-Grade Intelligent Control

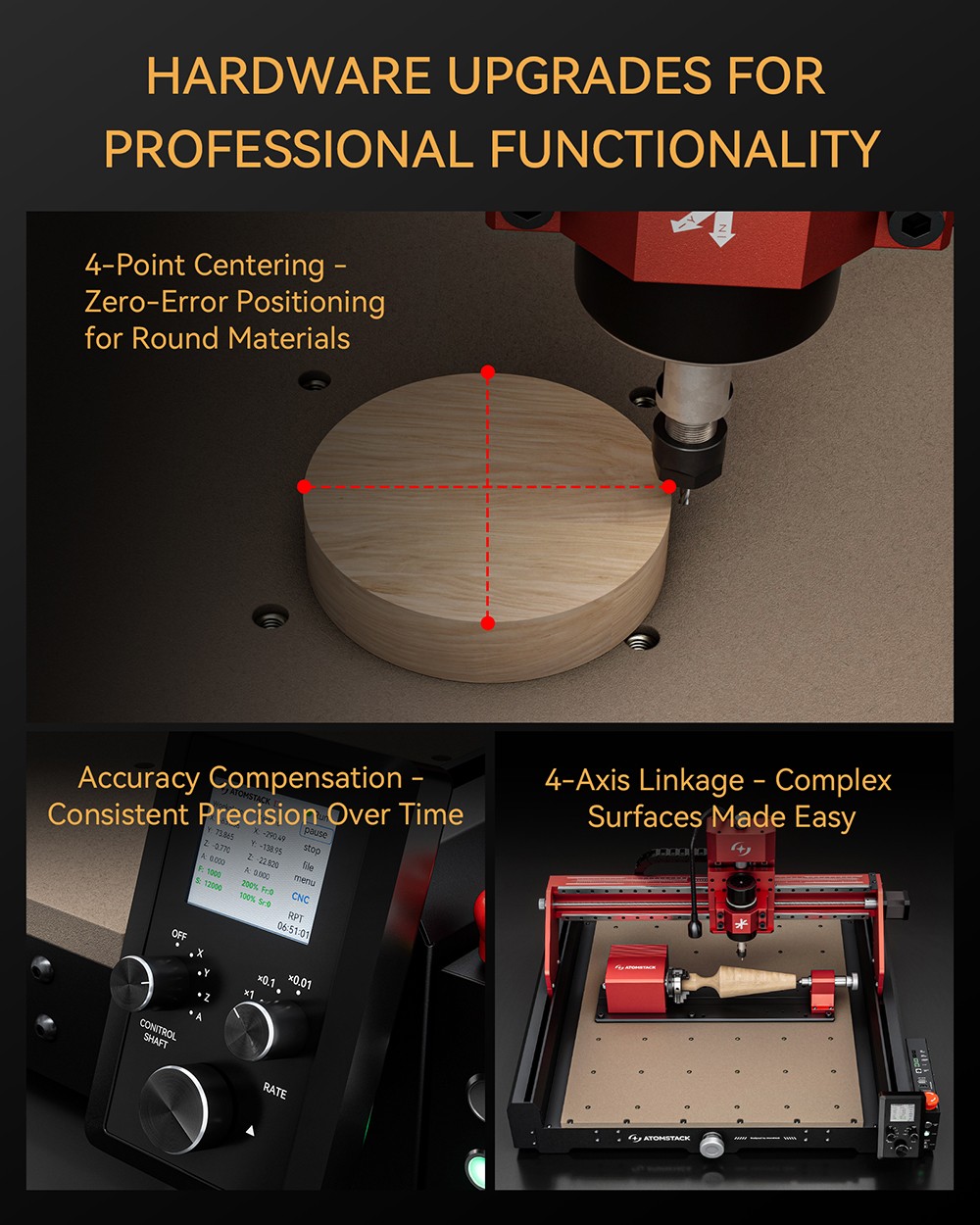

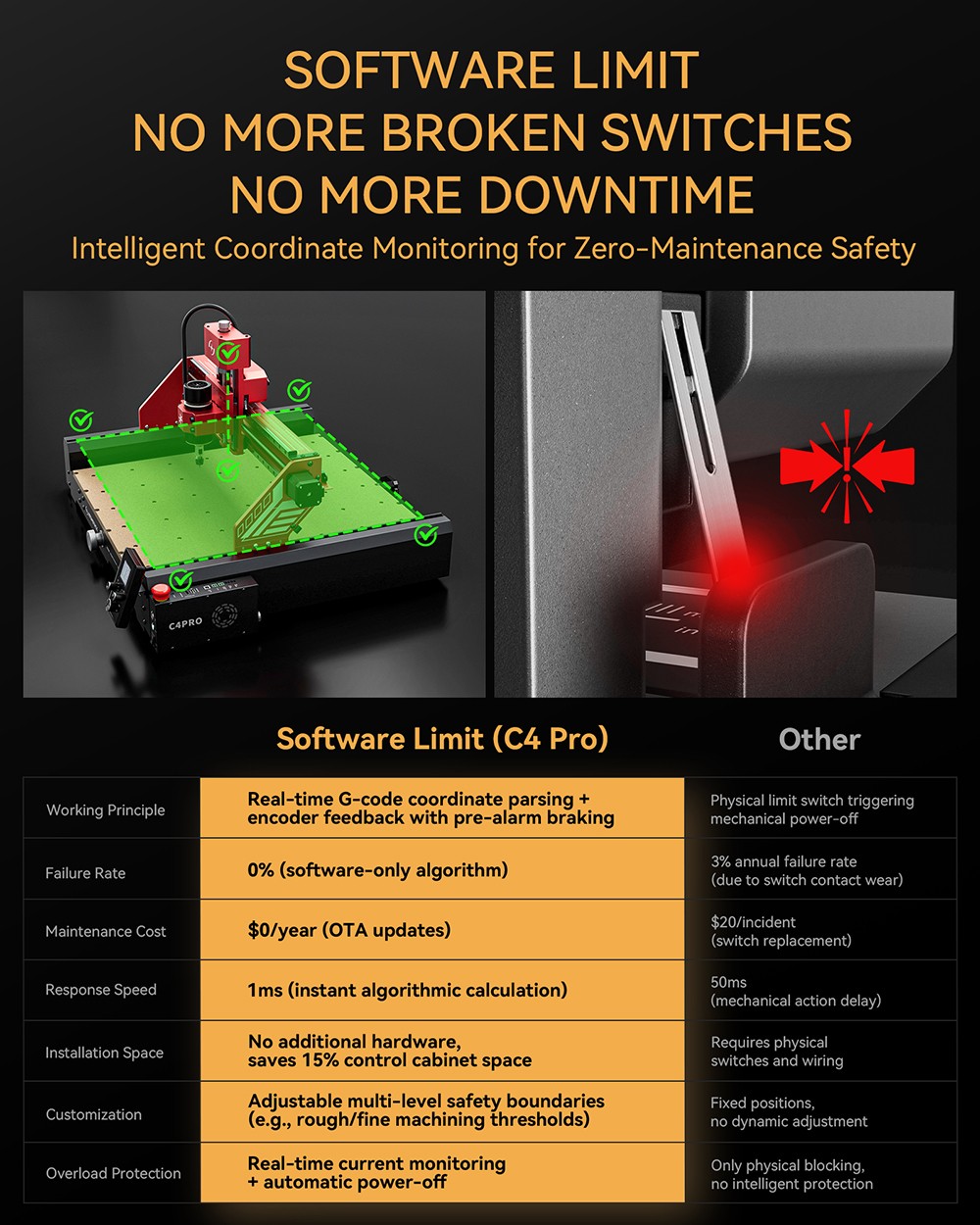

Equipped with the self-developed ATOMSTACK 4AXIS Intelligent Controller V1.0, supporting 24/7 continuous work, 4-axis linkage, 4-point centering, precision calibration, and software limit protection for safer, smarter machining.

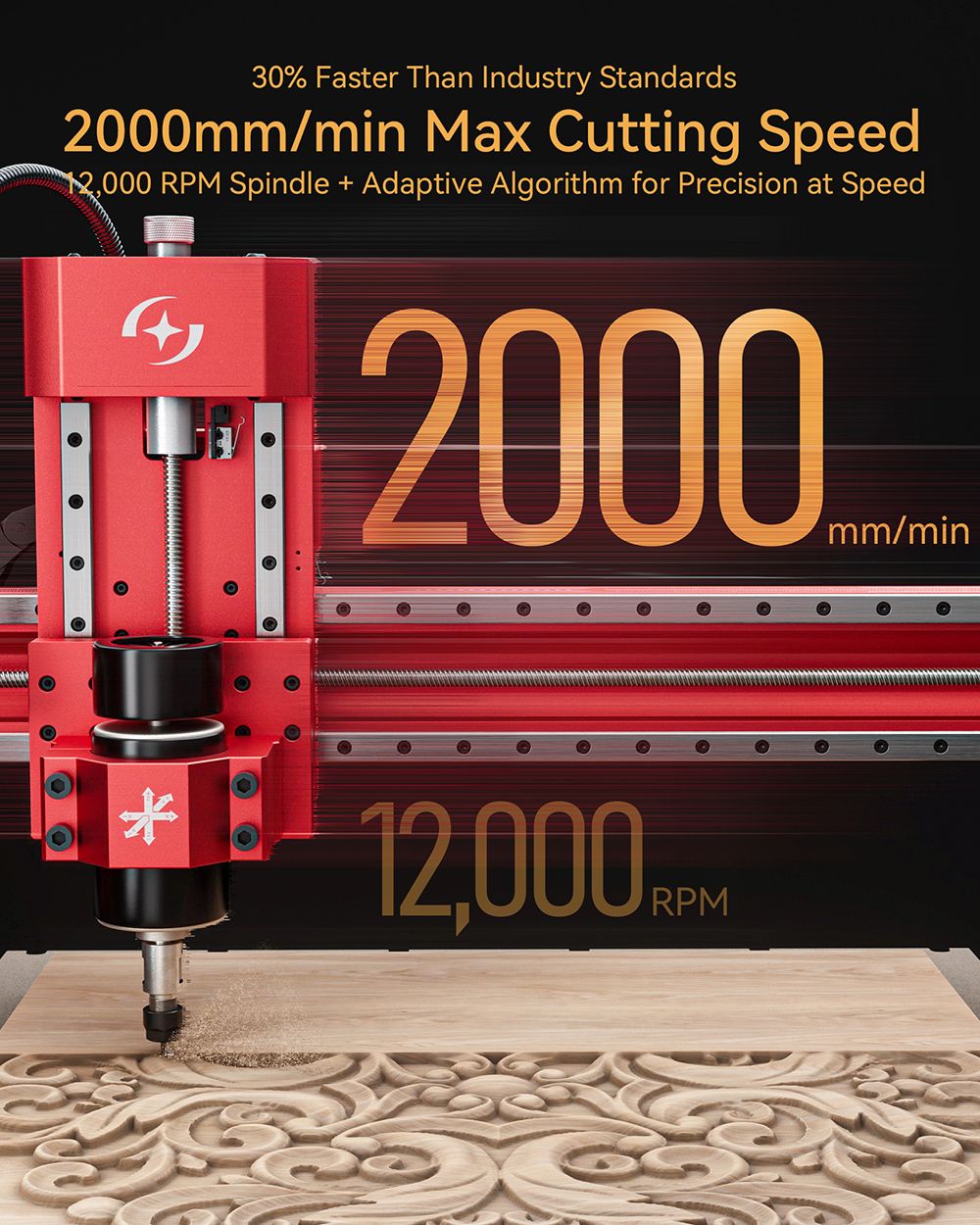

High-Strength & High-Speed Motion System

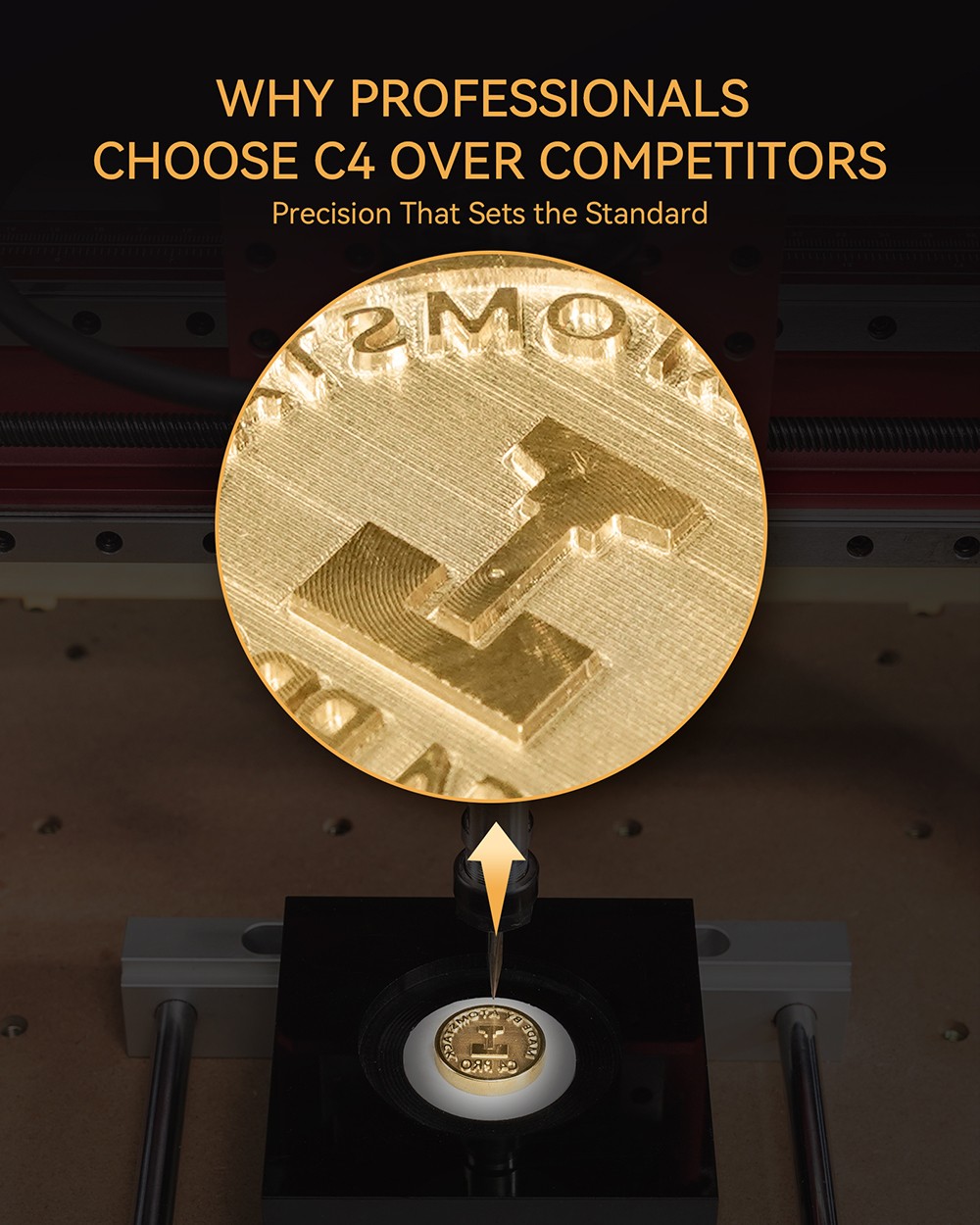

Built with MGH12 linear guides and dual-nut lead screws, the C4 Pro reaches up to 2000mm/min engraving speed — completing a brass seal in just 15 minutes with high accuracy and rigidity.

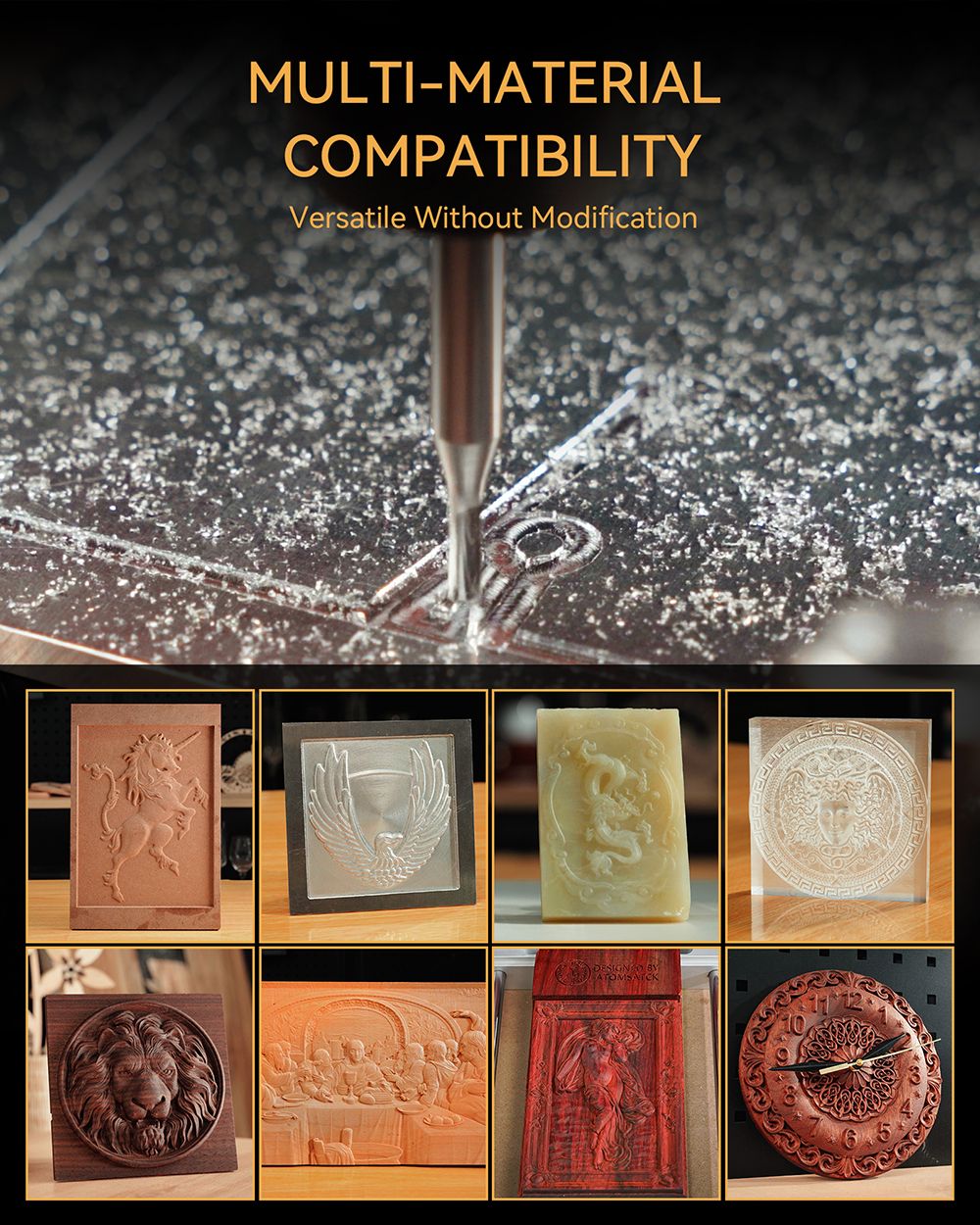

Multi-Material Compatibility

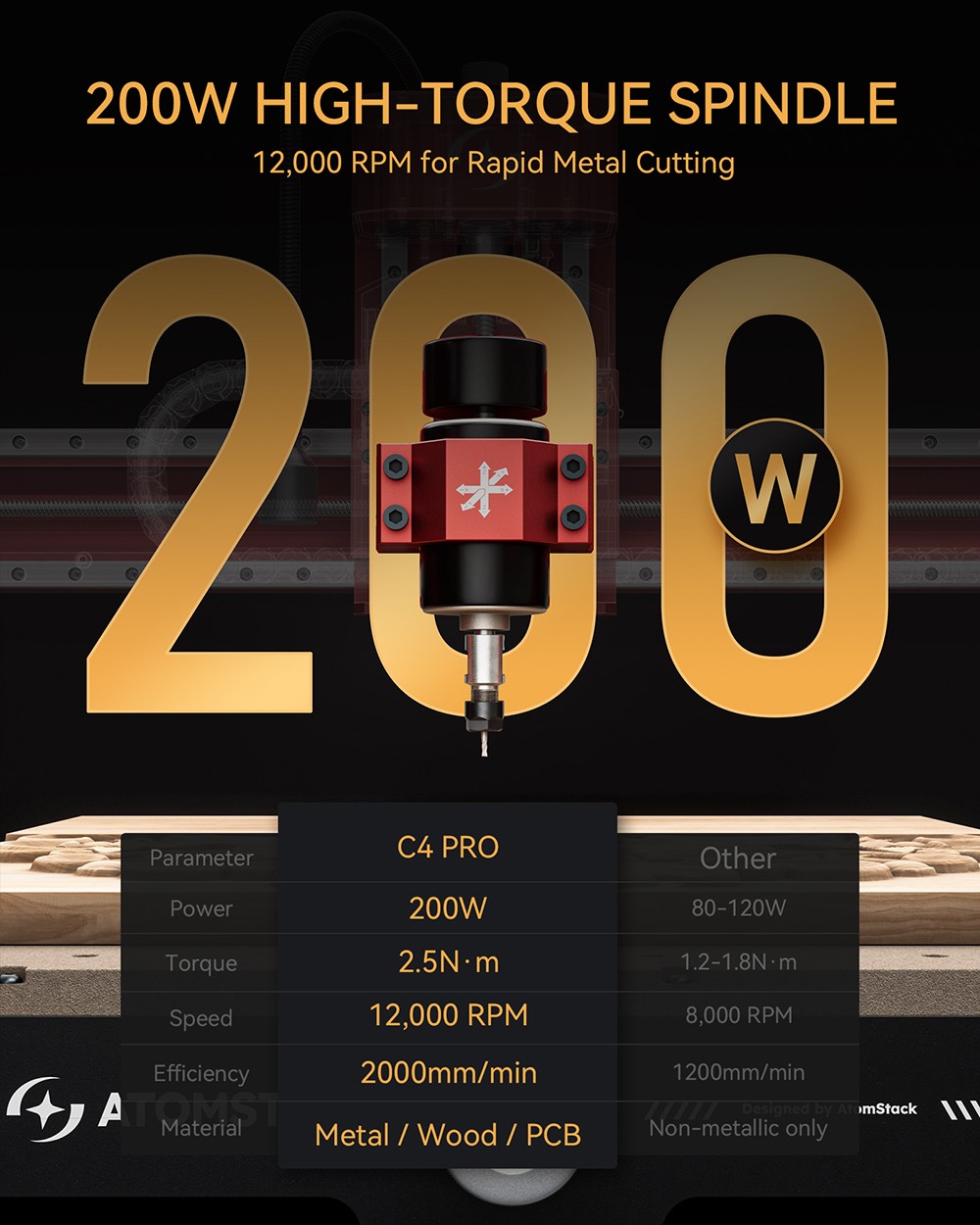

The 12,000 RPM high-power spindle handles wood, aluminum, brass, acrylic, PVC, POM, and PCB with ease — perfect for woodworking, PCB production, and metal engraving.

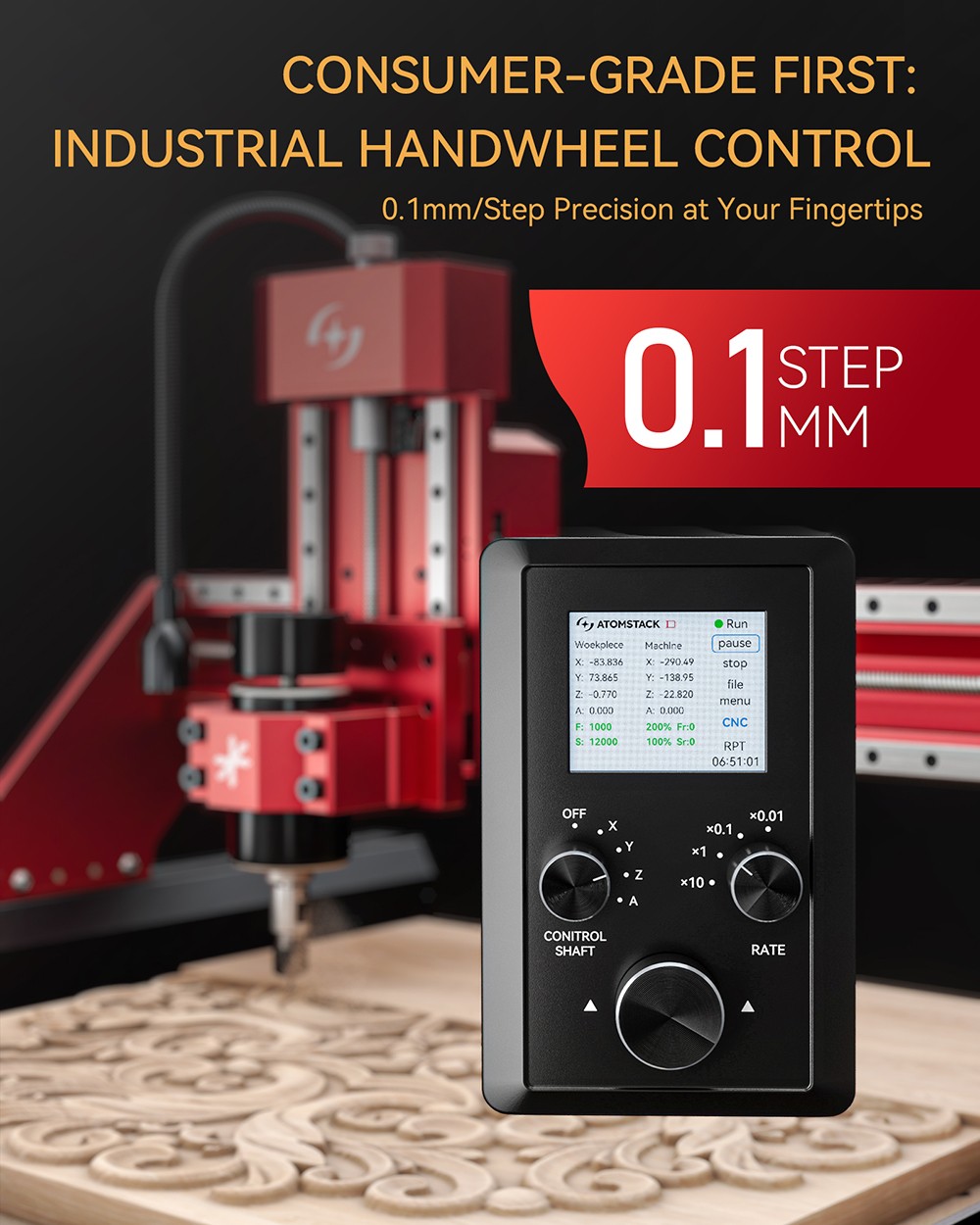

Industrial Offline Control
Comes with a professional handwheel controller, allowing you to monitor and adjust spindle position in real time without a computer for a true industrial experience.
One-Click CNC/Laser Mode Switching
Easily switch between CNC and laser engraving modes. Supports hybrid workflows for laser engraving followed by CNC cutting.
Specification
| General |
Brand: ATOMSTACK |

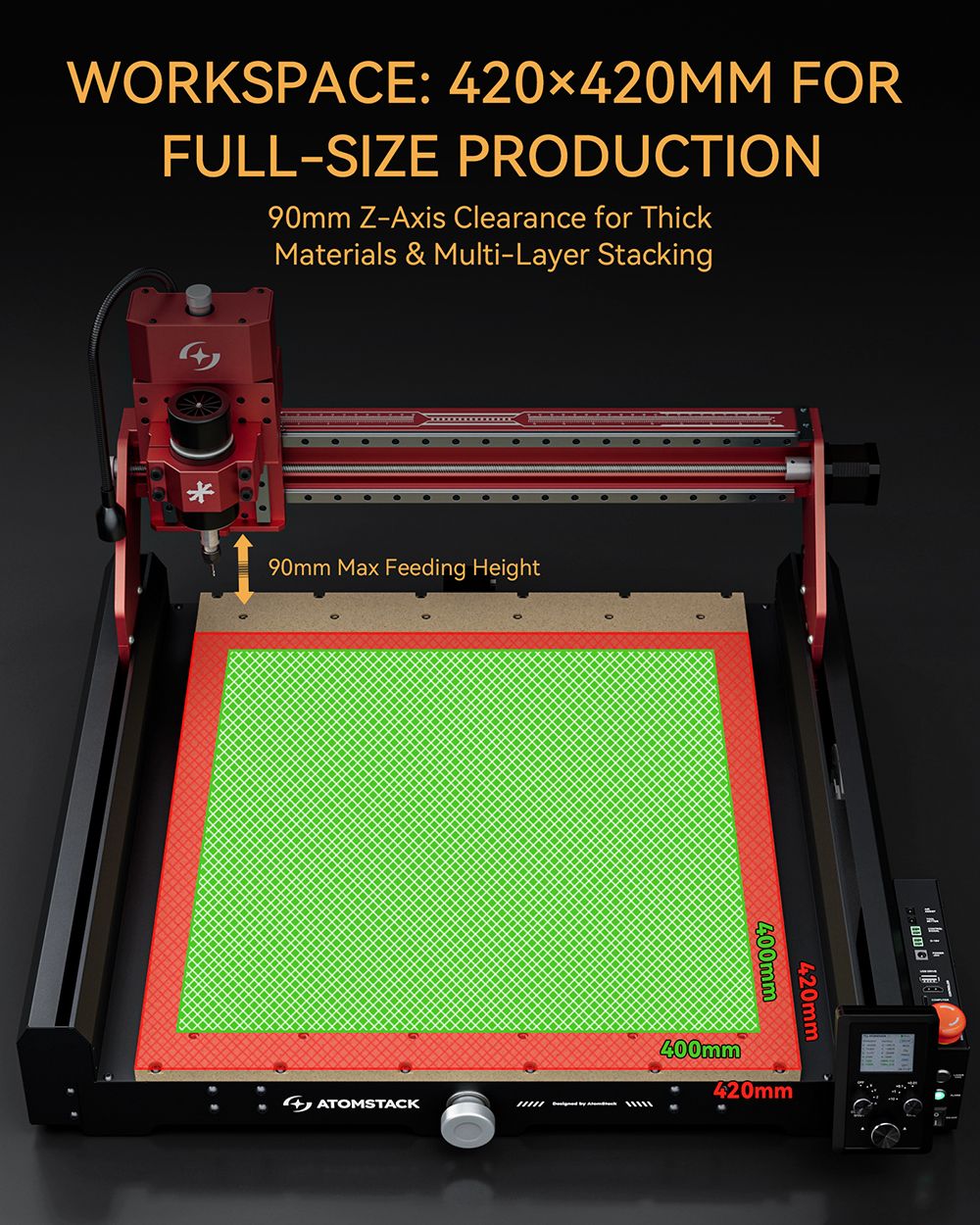

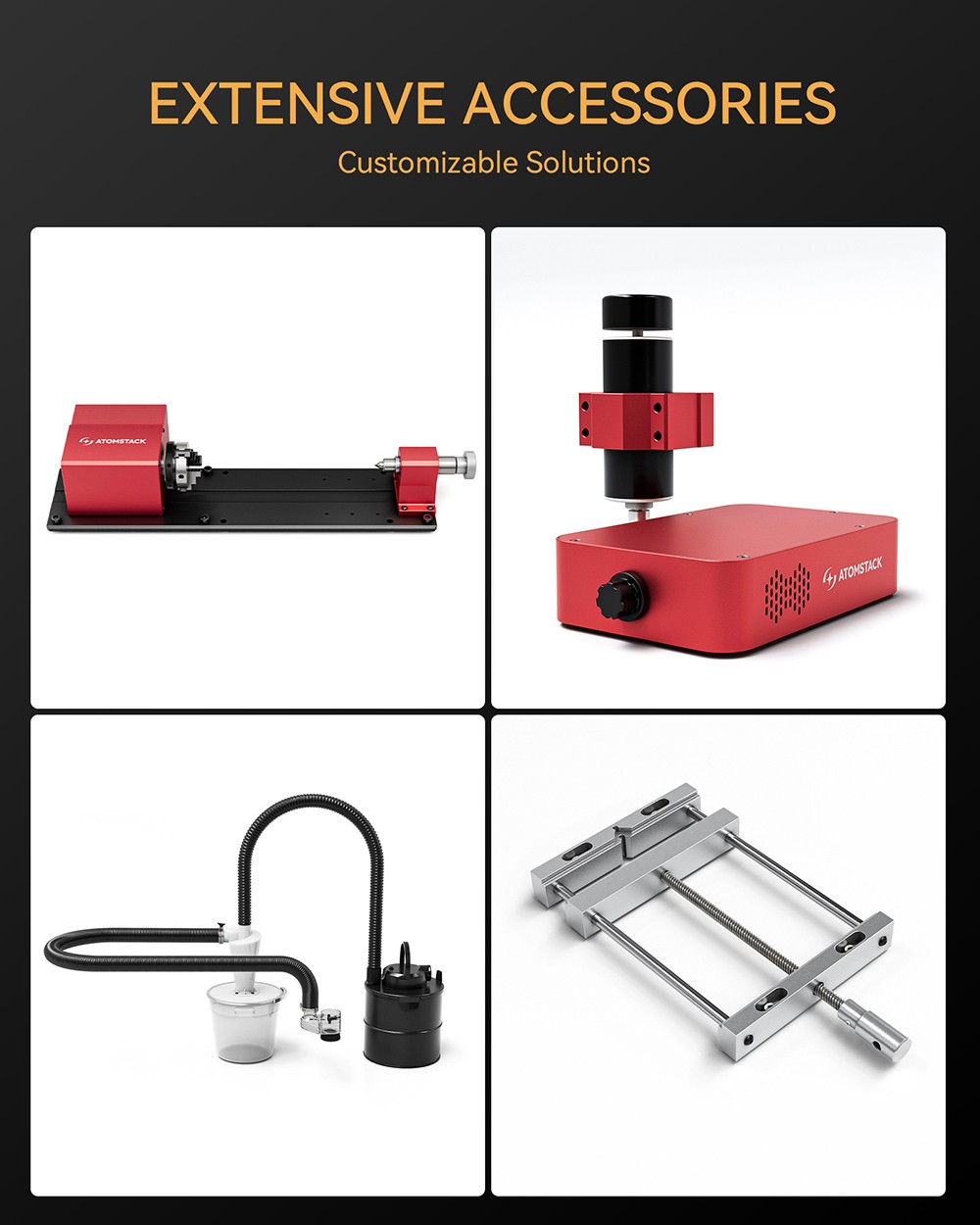

| Specification | Output Mode/Power: 200W Spindle (Upgradable to 500W Spindle or 20W Blue Laser Module) Engraving Speed: 2000 mm/min Laser Engraving Speed: 12,000 mm/min Positioning Accuracy: ±0.1 mm Repeatability: 0.01 mm Motion Structure: Linear Guide + High-Precision Dual-Nut Lead Screw Working Area: 420 × 420 mm (Recommended: 400 × 400 mm) Limit Mode: Software Limit Control (CNC Soft Limit) Control Method: PC Software / Offline Controller Tool Setting Method: Electric or Manual Tool Setting 4-Point Centering: Supported Software Compatibility: Candle, UGS, ioSender, LightBurn (for Laser), etc. Upgradeable Accessories: 4th Rotary Axis, Dust Collector, 500W Spindle Kit, 40W Laser Module Kit, Metal Clamps, etc. Compatible Materials: Wood, MDF, Soft Aluminum, Bamboo, Cardboard, Cork, Slate, Jade, PCB Board, Medium-Density Board, Soft Metals, and more. |
| Weight & Size | Product Weight: 26.75kg Package Weight: 26.8kg Product Size(L x W x H): 63.1x42.3cm Package Size(L x W x H): 80x73x30cm |
| Package Contents |
1 x X-axis Assembly |
