Highlights
- WiFi serial transceiver module based on ESP8266 SoC
- SOC with integrated TCP/IP protocol stack
- TTL serial communication interface
- Parameters can be set by AT command
- Easy to develop projects with AT command
- Widely used in networking,smart home project for remote monitoring of home appliances,bedroom temperature and humidity,and controlling home appliances by mobile phone
- About the Adapter Board: convert the IO ports of ESP-12 to 2.54mm pitch pin headers,so it is easy for beginner to test ESP-12.The user should first follow these steps:Firstly, solder the ESP-12 to the adapter board;secondly,solder the 3.3V regulator to the bottom of the adapter board;thirdly, solder the 1X8P pin header to the adapter board.
Specification
| General | |
|---|---|
| Model | ESP8266 |
| Quantity | 1 Piece |
| Specification | |
| Communication Interface Voltage: | 3.3V |
| IO Port Package | Both SMD and Inline package are available, pin pitch is 2.0mm |
| Antenna Type | Built-in PCB antenna |
| Wireless Network Mode: | Station/softAP/SoftAP+station |
| Wireless Criteria | 802.11 b/g/n |
| WIFI | @ 2.4 GHz,supports WPA/WPA2 security mode |
| Regulator | 3.3V |
| Range Of VCC Pin | 3.3V to 5V |
| Package Contents | |

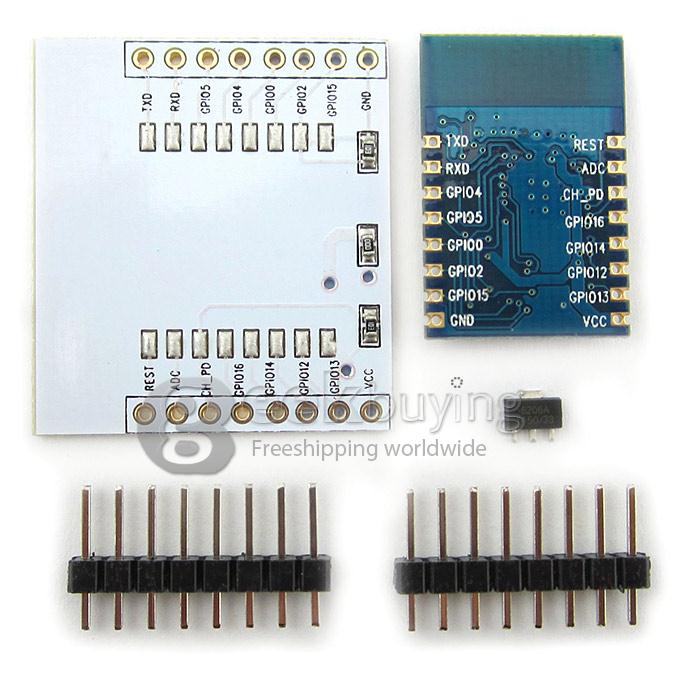

| 1x ESP-12 Wifi Module | |
| 1x Adapter Board | |
| 2X8P Pin Headers | |
| 1x XC6206P332PR sot89 | |
