    Arduino Precision Voltage Shield(PVS) AD7298 12-bit 8-channel ADC for UNO&Mega 2560 - DT studio

    Ship to:
    United States
    Select the desired shipping method
    Shipping Company Estimated Delivery Time Shipping Cost
    *Please note: the shipping costs are only estimates; the actual shipping price will be shown on the order page.
    0 item(s) added
    View CartContinue Shopping
    • Description
    • Reviews
    • Q&A
    • Sold Out

    Highlights

    • Ideally suited to monitoring system variables in a variety of systems including telecommunications, process and industrial control
    • High Throughput rate of 1Msps per channel with Low Power Consumption
    • Eight Single-Ended Inputs with a Channel Sequencer
    • A consecutive sequence of channels can be selected on which the ADC cycles and converts
    • Integrated temperature sensor with 0.25oC resolution

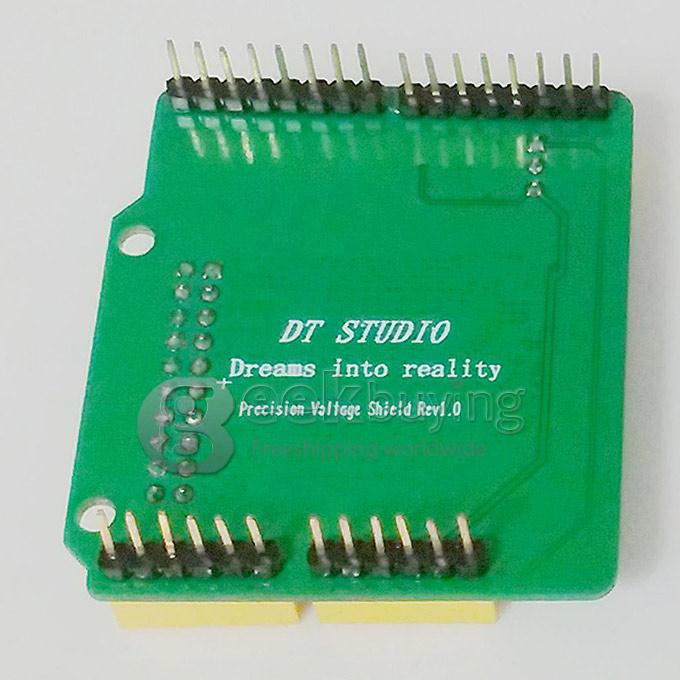

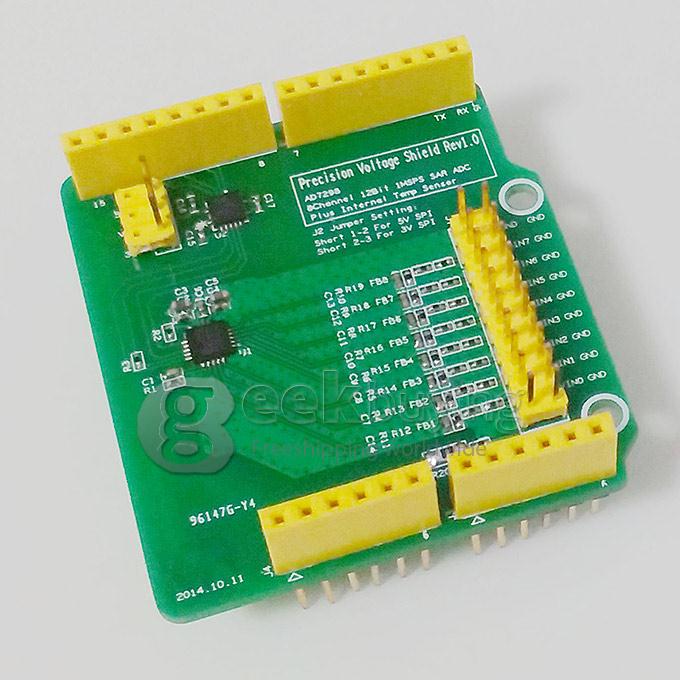

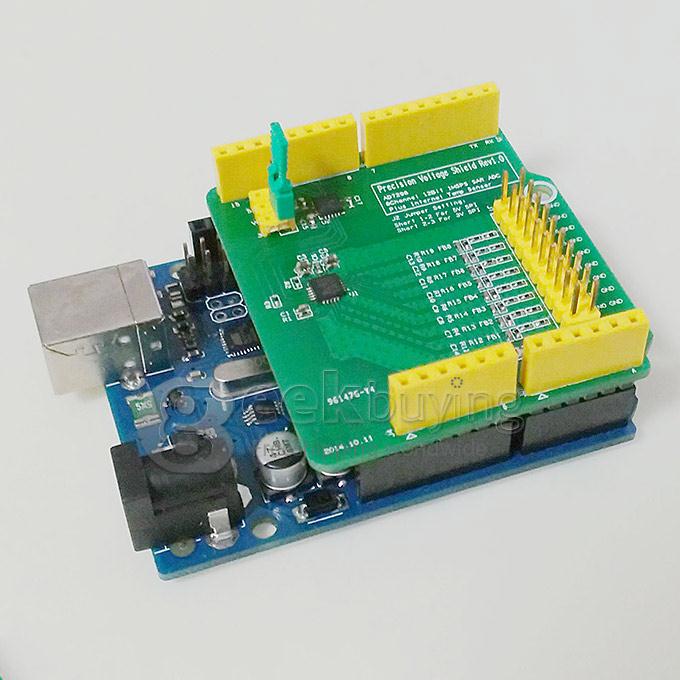

    • The PVS (Precision Voltage Shield) is an 8-channel, 12-bit analog-to-digital converter with an internal temperature sensor that plugs on top of an Arduino microcontroller. It is similar to the analog input pins on the Arduino UNO, but with 4 times better resolution and 8 channels instead of 6.The shield is based around the Analog Devices AD7298 data acquisition chip, which includes a successive approximation A/D converter, as well as input clamp protection and analog input filtering.
    • The AD7298 is a 12-bit, high speed, low power, 8-channel, successive approximation ADC with an internal temperature sensor. The part operates from a single 3.3V power supply and features throughput rates up to 1MSPS. The device contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 70 MHz. The shield brings the AD7298's SPI interface out to pins 10-13 on its Arduino headers. The shield also provides additional chip select lines on pins 8, 9 and A3, and uses pins 2-5 for additional control signals. The shield use a level shift IC to adapt 3.3v and 5v SPI interface. The user can use J2 jumper to choose SPI interface voltage.

    Specification

    General
    Brand DT studio
    Model Arduino
    Quantity 1 Piece
    Specification
    ADC 12-bit 8-channel
    Input 8 single-ended input
    Channel sequencer throughput 1Msps
    Analog Input Range 0 to 2.5V
    12-bit temperature-to-digital converter temperature sensor accuracy ±2ºC typical
    Temperature range −40ºC to +125ºC
    VDD 2.8 V to 3.6V
    Logic Voltage VDRIVE 1.65V to 3.6V
    Power-down current <10 µA
    VREF 2.5V
    Interface SPI™
    Dimensions & Weight (Main Product)
    Dimension 54 x 48mm
    Weight 80g
    Package Contents
    1 x PVS







    Arduino Precision Voltage Shield(PVS) AD7298 12-bit 8-channel ADC for UNO&Mega 2560 - DT studioArduino Precision Voltage Shield(PVS) AD7298 12-bit 8-channel ADC for UNO&Mega 2560 - DT studioArduino Precision Voltage Shield(PVS) AD7298 12-bit 8-channel ADC for UNO&Mega 2560 - DT studioArduino Precision Voltage Shield(PVS) AD7298 12-bit 8-channel ADC for UNO&Mega 2560 - DT studio
