Highlights
- Support Micro SD card, Micro SDHC Card

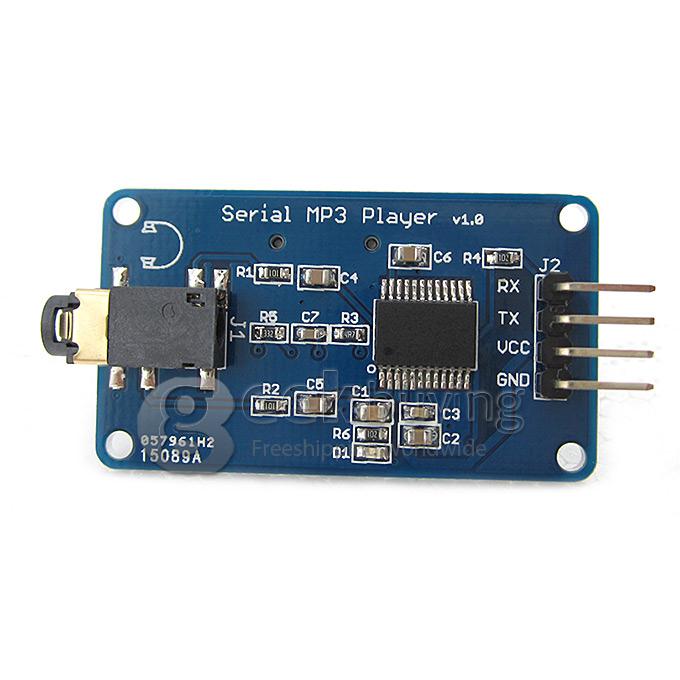

- The module is a simple MP3 player device based on a high-quality MP3 audio chip---YX5300. It supports 8k Hz ~ 48k Hz sampling frequency MP3 and WAV file formats. There is a TF card socket on board, so that you can plug the micro SD card that stores audio files. MCU can control the MP3 playback state by sending commands to the module via UART port, such as switch songs, change the volume and play mode and so on. You can also debug the module via USB to UART module. It is compatible with Arduino/AVR/ARM/PIC.
Specification
| General | |
|---|---|
| Quantity | 1 Piece |
| Specification | |
| Sampling frequency | 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48kHz |
| Supported File Format | MP3 / WAV |
| Adjustable Volume | 30 class |
| Playback Mode | UART TTL serial control |
| Baud Rate | 9600bps |
| Power | 3.2 ~ 5.2VDC |
| Dimensions & Weight (Main Product) | |
| Dimension | 50x24x12mm |
| Weight | 6g |
| Package Contents | |
| 1x Serial MP3 Player module | |
