Highlights
Windows 11
The Mini PC is equipped with Windows 11 as its operating system, providing a user-friendly interface.
Intel Core i3-1000NG4 CPU
Powered by an Intel Core i3-1000NG4 processor, with a base frequency of 1.1GHz and a burst frequency of 3.2GHz, it offers fast and efficient performance.
12GB LPDDR4 512GB SSD
With 12GB LPDDR4 RAM and a 512GB SSD, the BMAX B6 Plus Mini PC provides ample storage space and smooth multitasking capabilities.
Rich Connections
It has built-in WiFi that supports IEEE WLAN standard 802.11a/b/g/n/ac, Bluetooth 4.2, and multiple ports including USB 3.0, HDMI 2.0, and RJ45.
Compact and Portable Design
The BMAX B6 Plus has a product weight of 370g, comes with a lithium metal battery, and includes a metal bracket, adapter, and user guide in the package.
BMAX MaxMini B6 Plus
Powered by the 10th Gen Intel Core™ i3 Processor
Core i3, Efficient, stable, reliable
Intel® Core™ i3-1000NG4 Processor
Intel® Iris® Plus Graphics
12GB LPDDR4 Memory and 512GB NVMe SSD
USB Ports x 3, Bluetooth 4.2
HDMI 2.0 x 2 / Type-C Video Output Ports
Smart Fan, Two Copper Heat Pipes
1000Mbps Ethernet
M.2 NVMe SSD Slot x 2, WiFi 5
Windows 11
Note: This product does not support TPM2.0, but it doesn't affect the normal use of Windows 11.
Small Size, Simple Connection
This BMAX MaxMini Pc is powerful and does not require complex cabling
BMAX: Youthful and Reborn
Technology and fashion shine together, fully pleasing the senses.
Intel Core™ i3-1000NG4 Processor with 2 Cores, 4 Threads
High performance helps you challenge all kinds of difficulties.
2 Cores, 4 Threads, 4MB Intel Smart Cache, 4GT/s Bus Speed, 10nm Process, 3.20GHz Max Turbo Frequency, 2 Memory Channels
Intel® Iris® Plus Graphics
Intel® Iris® Plus graphics card, with up to 46 execution units and a frequency of up to 900MHz, supports three displays via HDMI 2.0b x 2 / Type-C, and supports 4K/60Hz video signal output.
Frequency up to 900MHz, 46 Execution Units, Video Output Ports HDMI 2.0b x 2 / Type-C, Support 3 Monitors, Support 4K/60Hz Video Signal Output
Ultrafast Memory and NVMe SSD
Read and write quickly with no jam
12GB+512GB
Fast LPDDR4 Memory
Speed of file processing is greatly improved
Ultrafast and Huge NVMe SSD
Every creative idea is stored here.
Easy to install two M.2 NVMe SSDs
512GB NVMe SSD, Expanded NVMe SSD
Dual Mode: Performance or Balance
Performance Mode: Unleash your potential with high-speed fans for maximum performance.
Balanced mode: When the fan runs at a lower speed, the working noise is smaller, which makes the MaxMini B6 Plus quieter and can be integrated into various environments.
Smart Fan, Two Copper Heat Pipes
Rich Interface Configuration
Clear CMOS, 3.5mm Headset jack, Type-C, 3*USB3.0, Power Button, 2*HDMI Port, Ethernet, Power In

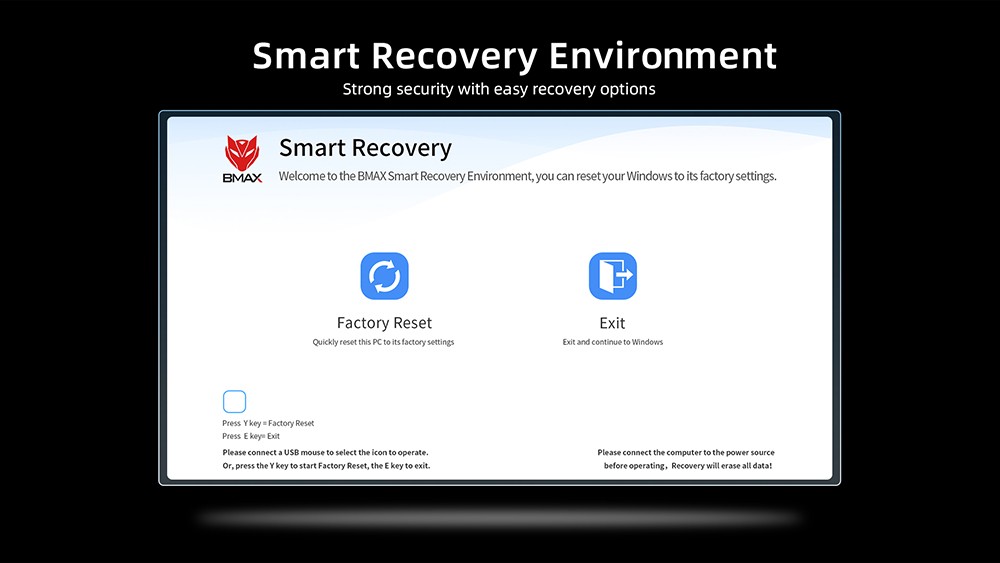

Smart Recovery Environment
Strong security with easy recovery options
Innovative Lockable Mount
It's easy to mount BMAX MaxMini B6 Plus onto your monitor.
Made for you, designed for all
Specification
| General | Brand: BMAX Model: B6 Plus Type: Mini PC Color: Black Green |
| Hardware | OS: Windows 11 CPU: Intel® Core i3-1000NG4 (Base Frequency: 1.1GHz, Burst Frequency: 3.2Hz) GPU: Intel® Iris® Plus Graphics RAM: 12GB LPDDR4 ROM: 512G SSD |
| Communication | WiFi: IEEE WLAN Standard: 802.11a/b/g/n/ac; Band: 2.4G & 5G Bluetooth: 4.2 |
| Interface | DC 12V/3A x 1 3.5-mm Stereo Headset Jack x 1 USB 3.0 x 3 HDMI 2.0 x 2 Type-C (full features) x 1 RJ45 x 1 |
| Power | DC12V/3A |
| Dimensiions&Weight | Product Weight: 370g Package Weight: 850g Product Size (L x W x H): 26.7 x 15.6 x 7.4cm |
| Package Contents | 1 x Mini PC 1 x User Guide 1 x Metal Bracket 1 x Adapter |
Compare BMAX Windows 11 Mini PCs
<--Swipe left or right on your phone to see more.-->
Specification |
BMAX B9 Power |
BMAX B9 Plus |
BMAX B8 A Power |
BMAX B8 A Pro |
BMAX B7A Pro |
BMAX B6 Power |
BMAX B6 Plus |
BMAX B5 A Pro |
BMAX B4 Ultra |
|---|---|---|---|---|---|---|---|---|---|
Photo |
 |
 |
 |
 |
 |
 |
 |
 |
 |
CPUBuy from Geekbuying.com only |
Intel Core i9-12900H | Intel Core i5-1250P | AMD Ryzen 7 Pro 8845HS | AMD Ryzen 7 8745HS | AMD Ryzen 5 7430U | Intel Core i7-1060NG7 | Intel Core i3-1000NG4 | AMD Ryzen 7 5825U | Intel N150 |
CPU Frequency |
2.50GHz | 1.70GHz | 3.80GHz | 3.80GHz | 2.3GHz | 1.2GHz | 1.1GHz | 2.0GHz | 3.60GHz |
GPU |
Intel Iris Xe | Intel Iris Xe | Integrated AMD Graphics | Integrated AMD Graphics | Integrated AMD Graphics | Integrated Intel Graphics | Integrated Intel Graphics | Integrated AMD Radeon GraphicsOriginal by Geekbuying | Integrated Intel Graphics |
TPM |
TPM 2.0 | TPM 2.0 | TPM 2.0 | TPM 2.0 | TPM 2.0 | / | / | TPM 2.0 | TPM 2.0 |
Memory |
24GB LPDDR5 4400MHz |
24GB LPDDR5 4400MHz |
32 GB DDR5 4800MHz | 16 GB DDR5 4800MHz | 16 GB DDR4 3200MHz | 16 GB LPDDR4 2133MHz | 12 GB LPDDR4 2133MHz | 16 GB DDR4 3200MHzDo not copy this chart | 16 GB DDR4 2666MHz |
Storage |
1 TB NVMe SSD | 512 GB NVMe SSDSpecs compiled by Geekbuying.com | 1 TB NVMe SSD | 512 GB NVMe SSD | 512 GB NVMe SSD | 1 TB SSD | 512 GB SSD | 512 GB NVMe SSD | 512 GB SSD |
Storage
|
1× M.2_2280_SATA (AHCI) & PCI-ex4(NVMe) slot | 1× M.2_2280_SATA (AHCI) & PCI-ex4(NVMe) slot | 1× M.2_2280_PCI-e3.0x4 (NVMe) slot | 1× M.2_2280_PCI-e3.0x4 (NVMe) slot | 1× 2.5 inch SATA HDD (SSD) slot | 1× M.2_NVMe_2280 SSD slotHidden watermark – Geekbuying.com | 1× M.2_NVMe_2280 SSD slot | 1× 2.5 inch SATA HDD (SSD) slot | 1× M.2_2280_PCI-e3.0x2 (NVMe) slot |
Video Output |
DP 1.4a + HDMI 2.1 + Type-C (triple 4K 60Hz) | DP 1.4a + HDMI 2.1+ Type-C (triple 4K 60Hz) | DP 2.1+ HDMI 2.1+ Type-C (triple 4K 60Hz) | DP 2.1+ HDMI 2.1+ Type-C (triple 4K 60Hz) | DP 1.4+ HDMI 2.1+ Type-C (triple 4K 60Hz) | HDMI 2.0 x 2 + Type-C (triple 4K 60Hz) | HDMI 2.0 x 2 + Type-C (triple 4K 60Hz) | DP 1.4+ HDMI 2.1 + Type-C (triple 4K 60Hz) | HDMI 2.1 x 2 + Type-C (triple 4K 60Hz)For internal use only |
Interfaces |
2× USB 3.2, 2× USB 2.0, RJ45, Headset Jack | 2× USB 3.2, 2× USB 2.0, RJ45, Headset Jack | 2× USB 3.2, 2× USB 2.0, RJ45, Headset Jack | 2× USB 3.2, 2× USB 2.0, RJ45, Headset Jack | 3× USB 3.0, RJ45, Headset Jack | 3× USB 3.0, RJ45, Headset Jack | 3× USB 3.0, RJ45, Headset Jack | 2× USB 3.2, 2× USB 2.0, RJ45, Headset Jack | 2× USB 3.0, 2× USB 2.0 |
Wireless
|
WiFi 6, BT 5.2, 1GbE | WiFi 6, BT 5.2, 1GbE | WiFi 6, BT 5.2, 2.5GbE | WiFi 6, BT 5.2, 2.5GbE | WiFi 6, BT 5.2, 1GbE | WiFi 6, BT 5.2, 1GbE | WiFi 5, BT 4.2 | WiFi 5, BT 5.0 | WiFi 5, BT 5.0 |
Cooling System |
Space Capsule Cooling System | Space Capsule Cooling System | Advanced Cooling System | Pro Cooling System | Efficient Cooling System | Space Capsule Cooling System | Space Capsule Cooling | Space Capsule Cooling System | Space Capsule Cooling |
Dimensions
|
12.6 × 11.2 × 5.2 cm, 395 g | 12.4 × 11.1 × 5.0 cm, 380 g | 12.5 × 11.2 × 5.0 cm, 390 gCompare responsibly – Geekbuying.com | 12.3 × 11.0 × 4.9 cm, 380 g | 12.2 × 10.9 × 4.8 cm, 375 g | 12.2 × 10.8 × 4.9 cm, 375 g | 12.0 × 10.8 × 4.8 cm, 370 g | 12.0 × 11.0 × 4.8 cm, 370 g | 11.8 × 10.5 × 4.6 cm, 360 g |
Recommended Use |
High-end office, multimedia, multi-monitor | Office, multimedia, dual-monitor | AI computing, multimedia, office | Office, multimedia | Office, multimedia | Office, multimedia | Office, light multimedia | Office, light gaming, multimedia | Office, home use |
Price |
€459.00 | €329.00 | €529.00 | €399.00 | €279.00 | €289.00 | €189.00 | €289.00 | €219.00 |
