Highlights
- BMAX B6 Power Mini PC comes with Windows 11 64 bit operating system.
- The CPU of the mini PC is Intel® Core™ i7-1060NG7 with a base frequency of 1.2GHz and a burst frequency of 3.8GHz.
- It has Intel® Iris® Plus Graphics and a 16GB LPDDR4 RAM with a 1TB SSD ROM.
- The mini PC supports Wifi 6 and Bluetooth 5.2.
- It has USB 3.0 x 3, HDMI 2.0 x 2, Type-C (full features) x 1, RJ45 x 1, DC 12V/3A x 1, 3.5-mm stereo headset Jack x 1.
BMAX MaxMini B6 Power
Powered by the 10th Gen Intel® Core® i7 Processor, 16GB LPDDR4 Memory and 1TB NVMe SSD
Core i7, Powerful performance, ultimate speed
Intel® Core™ i7-1060NG7 Processor
Intel® Iris® Plus Graphics
16GB LPDDR4 Memory and 1TB NVMe SSD
USB Ports x 3, Bluetooth 5.2
HDMI 2.0 x 2 / Type-C Video Output Ports
Smart Fan, Two Copper Heat Pipes
1000Mbps Ethernet
M.2 NVMe SSD Slot x 2, WiFi 6
Windows 11
Small Size, Simple Connection
This BMAX MaxMini B6 Power is powerful and does not require complex cabling.
BMAX: Youthful and Reborn
Advanced technology with compact design
Intel Core™ i7-1060NG7 Processor with 4 Cores, 8 Threads
High performance helps you challenge all kinds of difficulties.
4 Cores, 8 Threads, 8MB Intel Smart Cache, 4GT/S Bus Speed, 10nm Process, 3.80GHz Max Turbo Frequency, 2 Memory Channels
Intel® Iris® Plus Graphics
Intel® Iris® Plus graphics card, with up to 64 execution units and a frequency of up to 1.10GHz, supports three displays via HDMI 2.0b x 2 / Type-C, and supports 4K/60HZ video signal output.
1.10GHz Max Frequency, 64 Execution Units, Video Output Ports HDMI 2.0b x 2 / Type-C, Support 3 Monitors, Support 4K/60HZ Video Signal Output
Wi-Fi 6 New Experience of Speed
3 Times Faster
Stay connected with Wi-Fi 6 and Bluetooth 5.2
Ultrafast Memory and NVMe SSD
Read and write quickly without any delay
Fast LPDDR4 Memory
Speed of file processing is greatly improved
Ultrafast and Huge NVMe SSD
Every creative idea is stored here.
Easy to install two M.2 NVMe SSDs
1TB NVMeSSD, Expanded NVMeSSD
Dual Mode: Performance or Balance
Performance Mode: Unleash your potential with high-speed fans for maximum performance.
Balanced mode: When the fan runs at a lower speed, the working noise is smaller, which makes the MaxMini B6 Power quieter and can be integrated into various environments.
Smart Fan, Two Copper Heat Pipes
Rich Interface Configuration
Case, Heat Sink, Intel® Core® I3-1000NG4, M.2NVMe SSD, Scalable M.2 NVme SSD, Bottom Cover
Clear CMOS, 3.5mm Headset jack, Type-C, 3*USB3.0, Power Button, 2*HDMI Port, Ethernet, Power In
Smart Recovery Environment
Strong security with easy recovery options
Innovative Lockable Mount
It's easy to mount BMAX MaxMini B6 Power onto your monitor.
Made for you, designed for all
Specification
| General | Brand: BMAX Model: B6 Power Type: Mini PC Color: Black Green |
| Hardware | OS: Windows 11 CPU: Intel® Core™ i7-1060NG7 (Base Frequency: 1.2GHz, Burst Frequency: 3.8Hz) GPU: Intel® Iris® Plus Graphics RAM: 16GB LPDDR4 ROM: 1TB SSD |
| Communication | WiFi: 6 Bluetooth: 5.2 |
| Interface | DC12V/3A x 1 3.5-mm Stereo Headset Jack x 1 USB 3.0 x 3 HDMI 2.0 x 2 Type-C (full features) x 1 RJ45 x 1 |
| Power | DC12V/3A |
| Dimensiions&Weight | Product Weight: 370g Package Weight: 840g Product Size (L x W x H): 26.7 x 15.6 x 7.4cm |
| Package Contents | 1 x Mini PC 1 x User Guide 1 x Metal Bracket 1 x Adapter |
Customer Photos
Customer Videos
Customer Reviews
Questions & Answers
FAQ
Compare BMAX Windows 11 Mini PCs
<--Swipe left or right on your phone to see more.-->
Specification |
BMAX B9 Power |
BMAX B9 Plus |
BMAX B8 A Power |
BMAX B8 A Pro |
BMAX B7A Pro |
BMAX B6 Power |
BMAX B6 Plus |

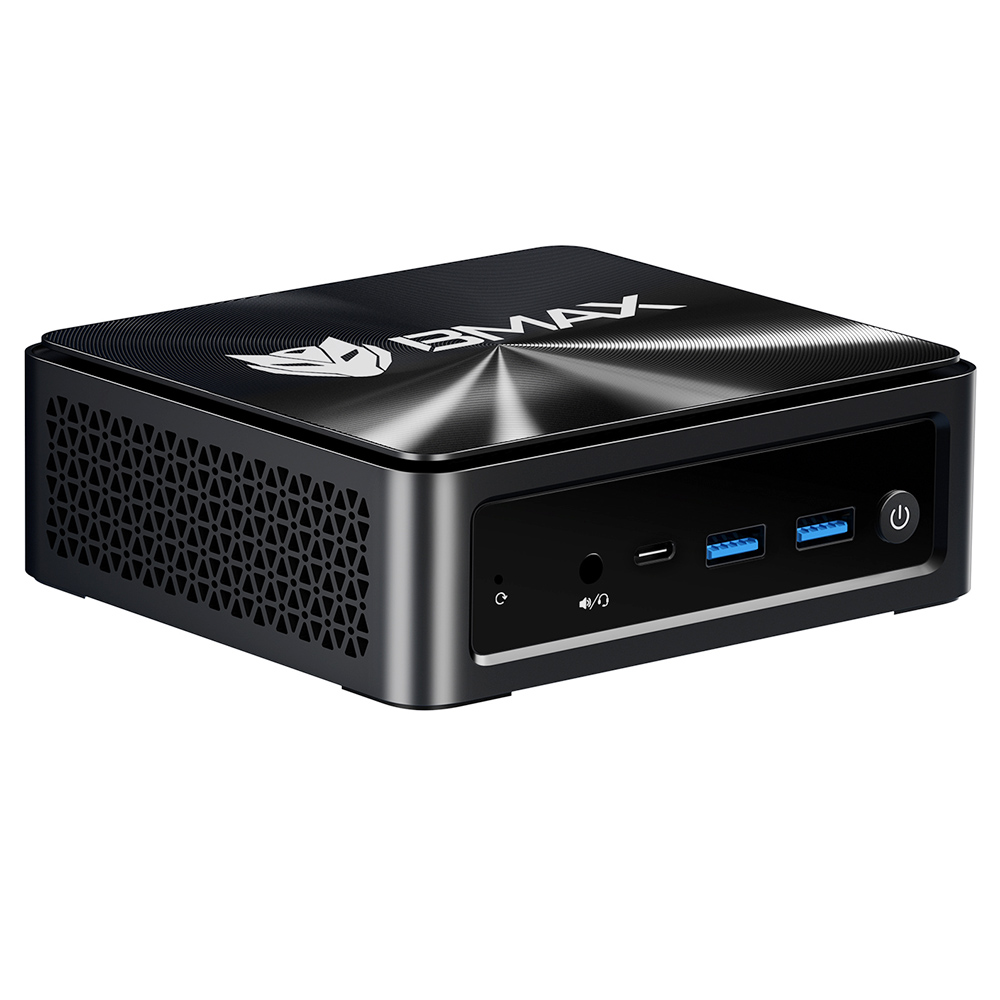

BMAX B5 A Pro |
BMAX B4 Ultra |
|---|---|---|---|---|---|---|---|---|---|
Photo |
 |
 |
 |
 |
 |
 |
 |
 |
 |
CPUBuy from Geekbuying.com only |
Intel Core i9-12900H | Intel Core i5-1250P | AMD Ryzen 7 Pro 8845HS | AMD Ryzen 7 8745HS | AMD Ryzen 5 7430U | Intel Core i7-1060NG7 | Intel Core i3-1000NG4 | AMD Ryzen 7 5825U | Intel N150 |
CPU Frequency |
2.50GHz | 1.70GHz | 3.80GHz | 3.80GHz | 2.3GHz | 1.2GHz | 1.1GHz | 2.0GHz | 3.60GHz |
GPU |
Intel Iris Xe | Intel Iris Xe | Integrated AMD Graphics | Integrated AMD Graphics | Integrated AMD Graphics | Integrated Intel Graphics | Integrated Intel Graphics | Integrated AMD Radeon GraphicsOriginal by Geekbuying | Integrated Intel Graphics |
TPM |
TPM 2.0 | TPM 2.0 | TPM 2.0 | TPM 2.0 | TPM 2.0 | / | / | TPM 2.0 | TPM 2.0 |
Memory |
24GB LPDDR5 4400MHz |
24GB LPDDR5 4400MHz |
32 GB DDR5 4800MHz | 16 GB DDR5 4800MHz | 16 GB DDR4 3200MHz | 16 GB LPDDR4 2133MHz | 12 GB LPDDR4 2133MHz | 16 GB DDR4 3200MHzDo not copy this chart | 16 GB DDR4 2666MHz |
Storage |
1 TB NVMe SSD | 512 GB NVMe SSDSpecs compiled by Geekbuying.com | 1 TB NVMe SSD | 512 GB NVMe SSD | 512 GB NVMe SSD | 1 TB SSD | 512 GB SSD | 512 GB NVMe SSD | 512 GB SSD |
Storage
|
1× M.2_2280_SATA (AHCI) & PCI-ex4(NVMe) slot | 1× M.2_2280_SATA (AHCI) & PCI-ex4(NVMe) slot | 1× M.2_2280_PCI-e3.0x4 (NVMe) slot | 1× M.2_2280_PCI-e3.0x4 (NVMe) slot | 1× 2.5 inch SATA HDD (SSD) slot | 1× M.2_NVMe_2280 SSD slotHidden watermark – Geekbuying.com | 1× M.2_NVMe_2280 SSD slot | 1× 2.5 inch SATA HDD (SSD) slot | 1× M.2_2280_PCI-e3.0x2 (NVMe) slot |
Video Output |
DP 1.4a + HDMI 2.1 + Type-C (triple 4K 60Hz) | DP 1.4a + HDMI 2.1+ Type-C (triple 4K 60Hz) | DP 2.1+ HDMI 2.1+ Type-C (triple 4K 60Hz) | DP 2.1+ HDMI 2.1+ Type-C (triple 4K 60Hz) | DP 1.4+ HDMI 2.1+ Type-C (triple 4K 60Hz) | HDMI 2.0 x 2 + Type-C (triple 4K 60Hz) | HDMI 2.0 x 2 + Type-C (triple 4K 60Hz) | DP 1.4+ HDMI 2.1 + Type-C (triple 4K 60Hz) | HDMI 2.1 x 2 + Type-C (triple 4K 60Hz)For internal use only |
Interfaces |
2× USB 3.2, 2× USB 2.0, RJ45, Headset Jack | 2× USB 3.2, 2× USB 2.0, RJ45, Headset Jack | 2× USB 3.2, 2× USB 2.0, RJ45, Headset Jack | 2× USB 3.2, 2× USB 2.0, RJ45, Headset Jack | 3× USB 3.0, RJ45, Headset Jack | 3× USB 3.0, RJ45, Headset Jack | 3× USB 3.0, RJ45, Headset Jack | 2× USB 3.2, 2× USB 2.0, RJ45, Headset Jack | 2× USB 3.0, 2× USB 2.0 |
Wireless
|
WiFi 6, BT 5.2, 1GbE | WiFi 6, BT 5.2, 1GbE | WiFi 6, BT 5.2, 2.5GbE | WiFi 6, BT 5.2, 2.5GbE | WiFi 6, BT 5.2, 1GbE | WiFi 6, BT 5.2, 1GbE | WiFi 5, BT 4.2 | WiFi 5, BT 5.0 | WiFi 5, BT 5.0 |
Cooling System |
Space Capsule Cooling System | Space Capsule Cooling System | Advanced Cooling System | Pro Cooling System | Efficient Cooling System | Space Capsule Cooling System | Space Capsule Cooling | Space Capsule Cooling System | Space Capsule Cooling |
Dimensions
|
12.6 × 11.2 × 5.2 cm, 395 g | 12.4 × 11.1 × 5.0 cm, 380 g | 12.5 × 11.2 × 5.0 cm, 390 gCompare responsibly – Geekbuying.com | 12.3 × 11.0 × 4.9 cm, 380 g | 12.2 × 10.9 × 4.8 cm, 375 g | 12.2 × 10.8 × 4.9 cm, 375 g | 12.0 × 10.8 × 4.8 cm, 370 g | 12.0 × 11.0 × 4.8 cm, 370 g | 11.8 × 10.5 × 4.6 cm, 360 g |
Recommended Use |
High-end office, multimedia, multi-monitor | Office, multimedia, dual-monitor | AI computing, multimedia, office | Office, multimedia | Office, multimedia | Office, multimedia | Office, light multimedia | Office, light gaming, multimedia | Office, home use |
Price |
€459.00 | €329.00 | €529.00 | €399.00 | €279.00 | €289.00 | €189.00 | €289.00 | €219.00 |
