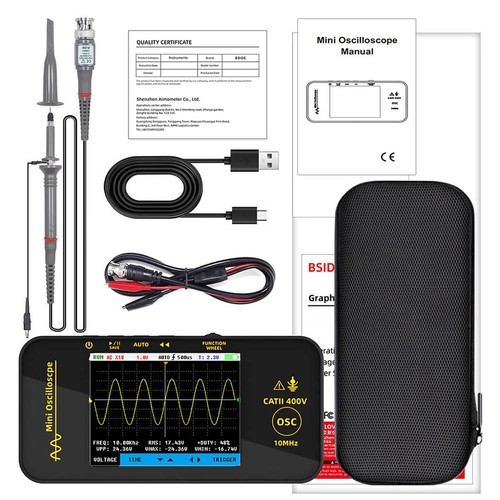

BSIDE OT3 Oscilloscope with Probe, 3.2" TFT Color Screen, 10MHz Bandwidth, Real-Time Sampling 48MSa/s, 1200mAh Battery, for Outdoor Maintenance, Automotive Repair, and Power Detection

Display Technical Indicators:
Display Screen: 3.2" TFT color screen
Resolution: 320 x 240 pixels
Data Retention: Yes
Screen Backlight: Yes
Low Battery Warning: Yes
Automatic Shutdown: Yes
Pause: Yes

Mechanical Technical Index:
Dimension: 129.2 x 63.0 x 22.3 mm
Weight: 166g (battery included)
Battery Type: 1200mAh Lithium battery

Environmental Technical Index:
Working Environment:
  Temperature: 0 ~ 40℃
  Humidity: ≤75%
Storage Environment:
  Temperature: -20 ~ 60℃
  Humidity: <80%

Oscilloscope Technical Indicators:
Bandwidth: 10MHz
Sampling Mode: Real-time sampling
Real-time Sampling Rate: 48MSa/s
Number of Channels: 1 single channel
Input Coupling: DC, AC
Input Impedance: 1MΩ, @16pF
Probe Attenuation: X1, X10
Maximum Input Voltage:
  X1 Range: ±40V
  X10 Range: ±400V (DC + AC peak value)
Sampling Rate Range: 1.5Sa/s - 48MSa/s
Waveform Interpolation: (sinx)/x
Sweep Range: 100ns/Div to 20s/Div
Time Base Accuracy: 20ppm
Storage Depth: Up to 128kB
Sensitivity: 20mV/Div - 10V/Div
Displacement Range: 4 cells (positive and negative)
Analog Bandwidth: 10MHz
Low-frequency Response: Greater than 10Hz
Rise Time: Less than 100ns
DC Gain Accuracy: ±3%
Trigger Mode: Automatic, normal, single
Trigger Edge: Rising edge, falling edge
