Highlights

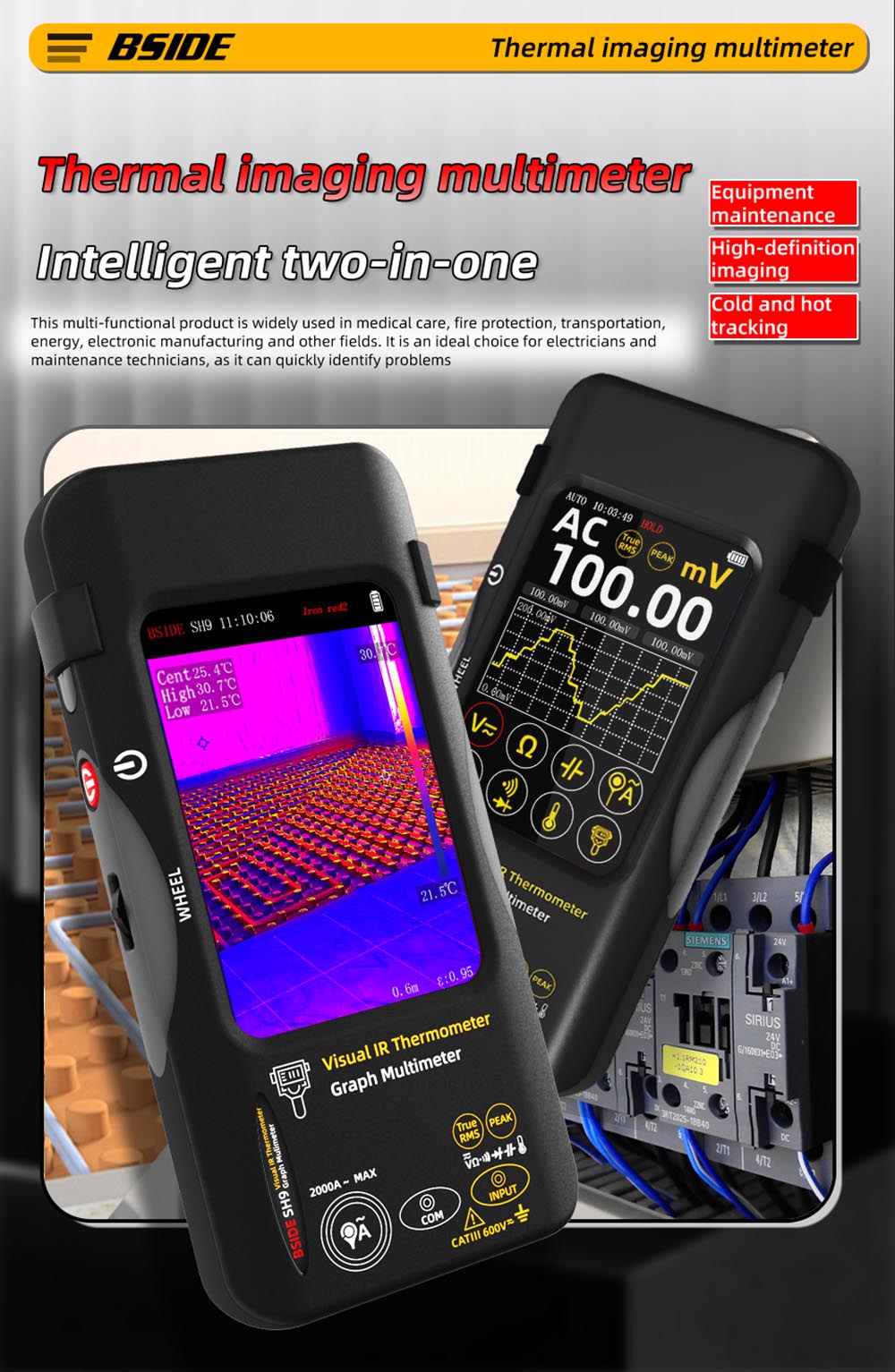

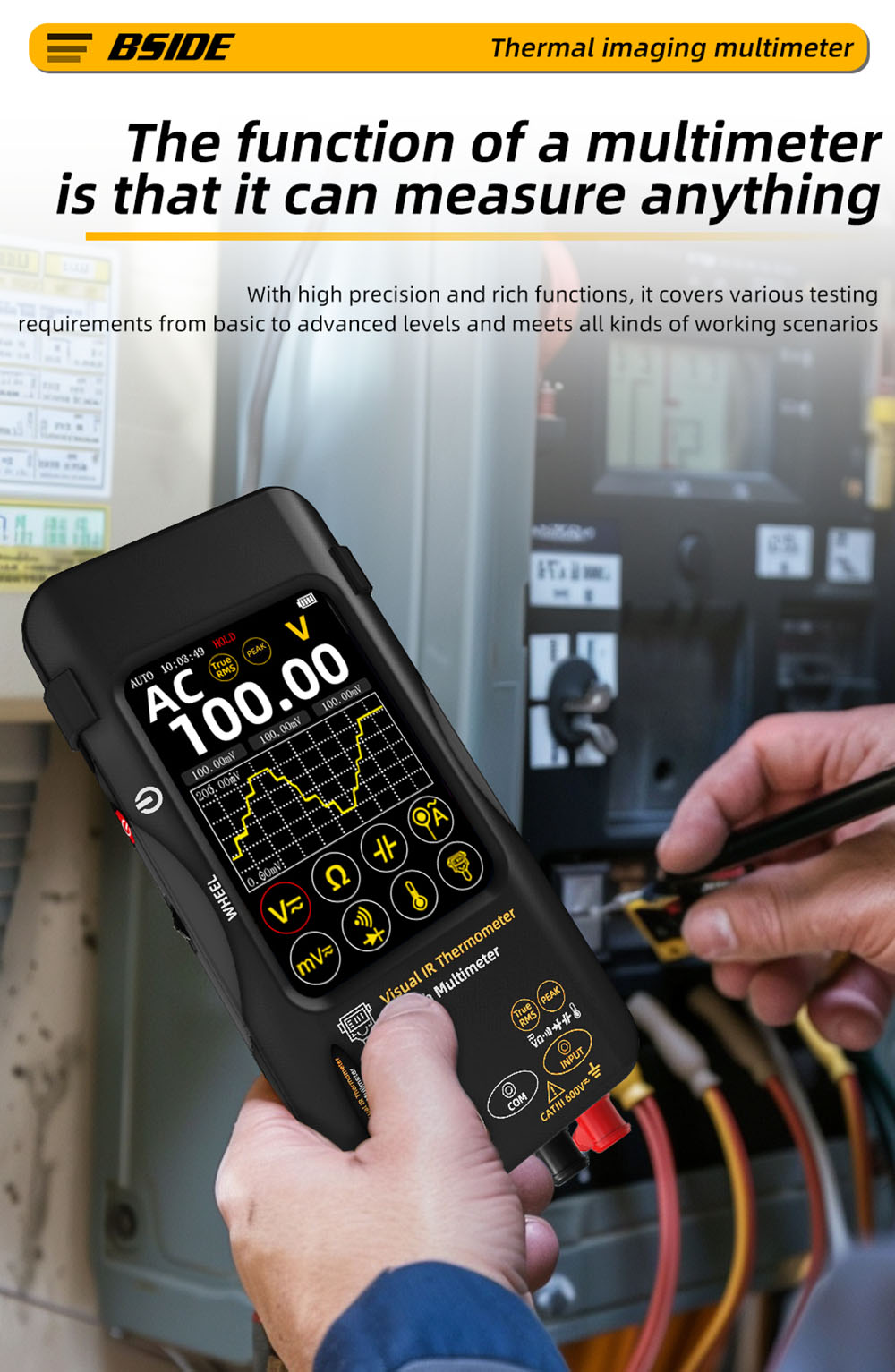

Enhanced Dual-Functionality

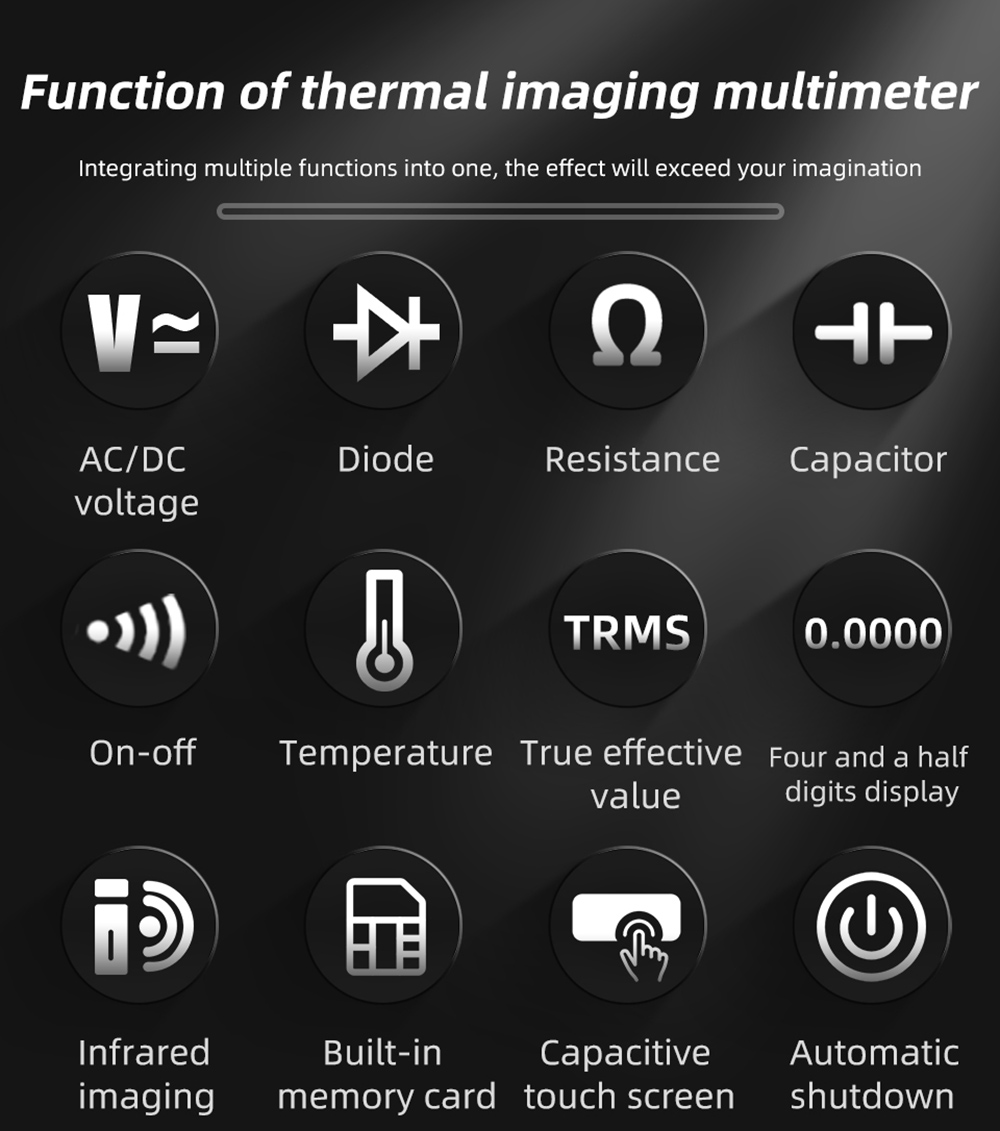

This device brilliantly combines a thermal imaging camera with a graph multimeter, delivering both accurate temperature measurement and comprehensive electrical diagnostics for field work.

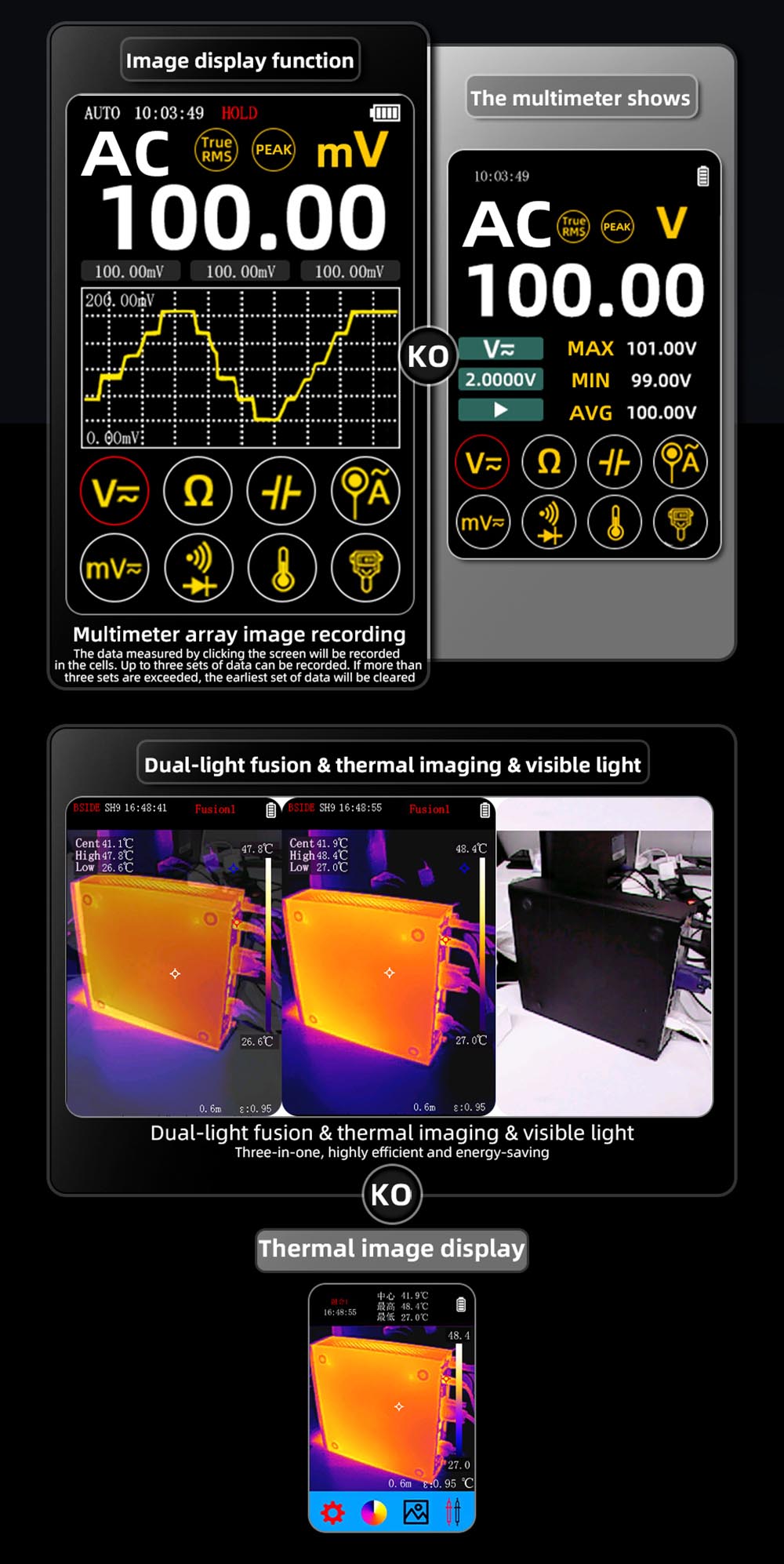

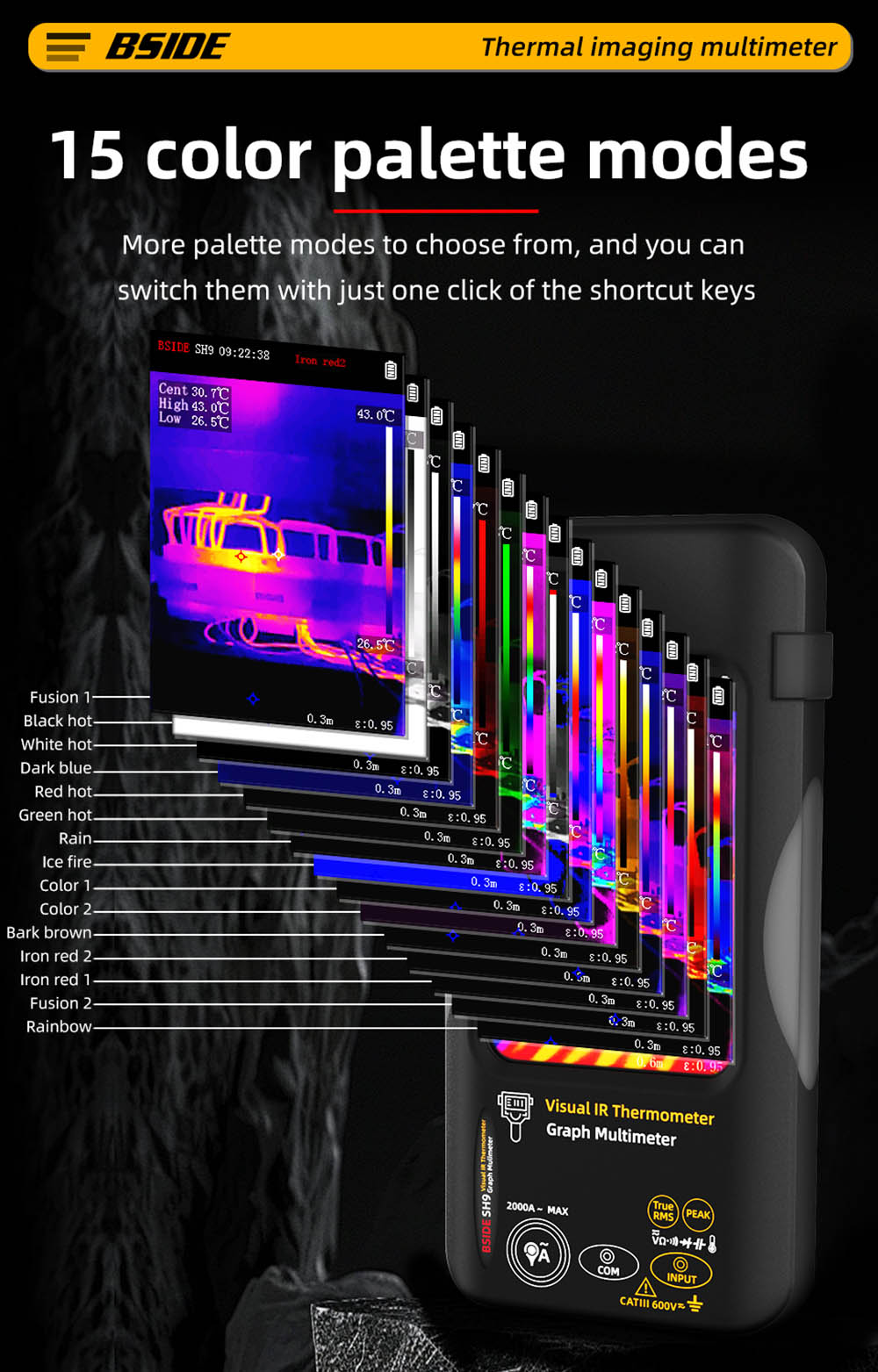

Advanced Display Customization

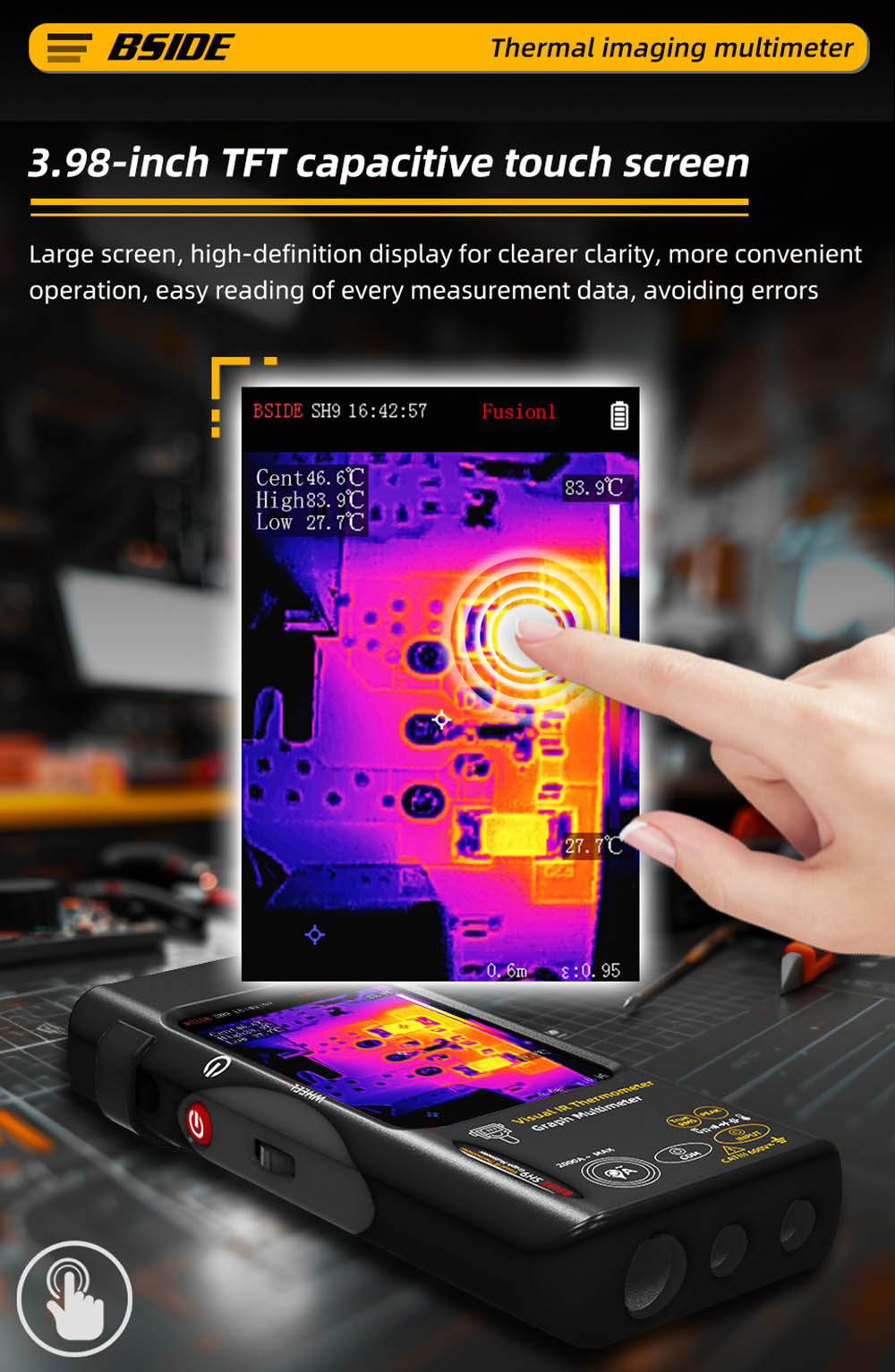

Equipped with 15 adjustable color palettes, the 3.98-inch touchscreen ensures precise visualization of thermal data, as well as real-time selection and optimization for various scenarios.

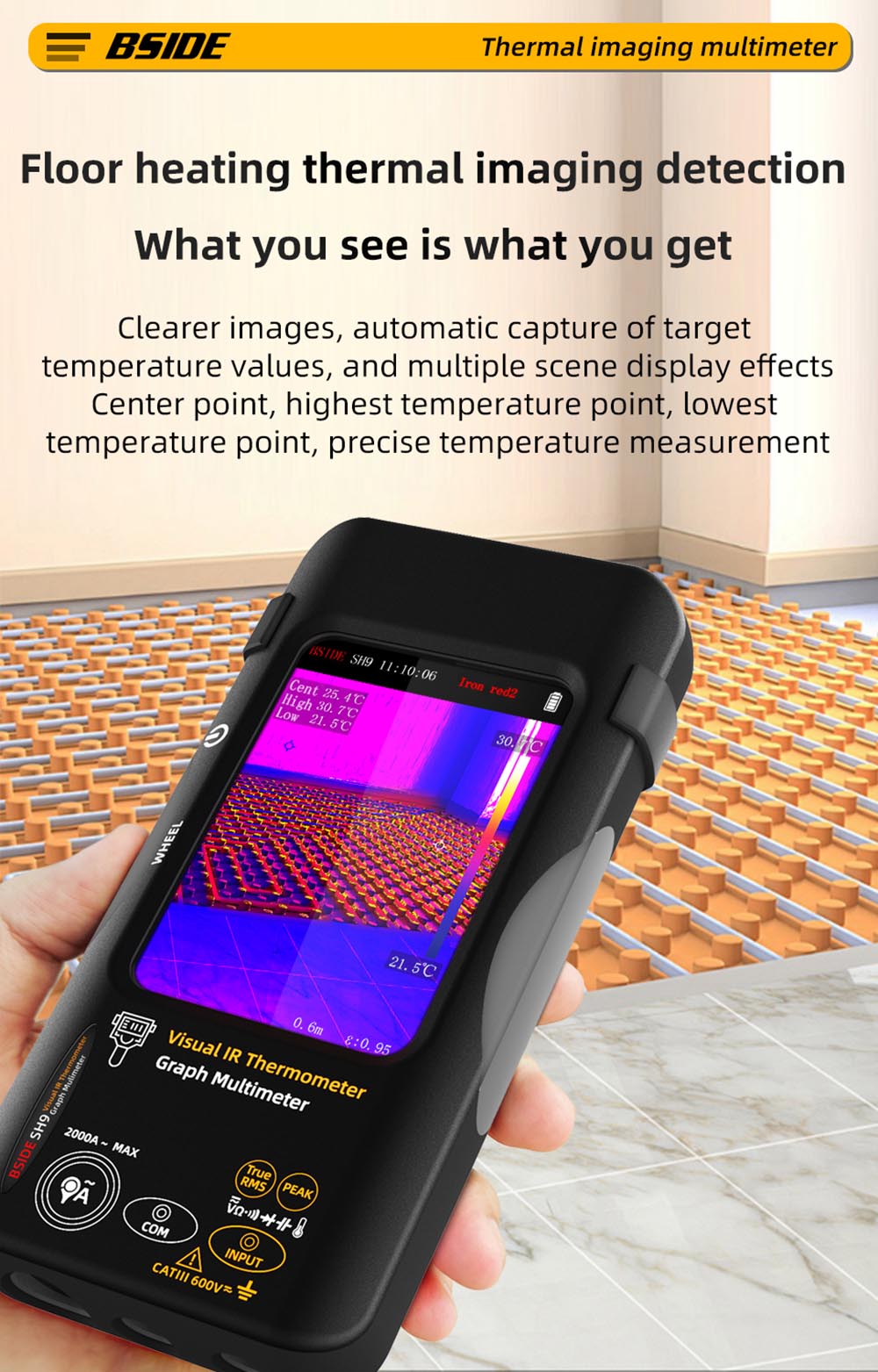

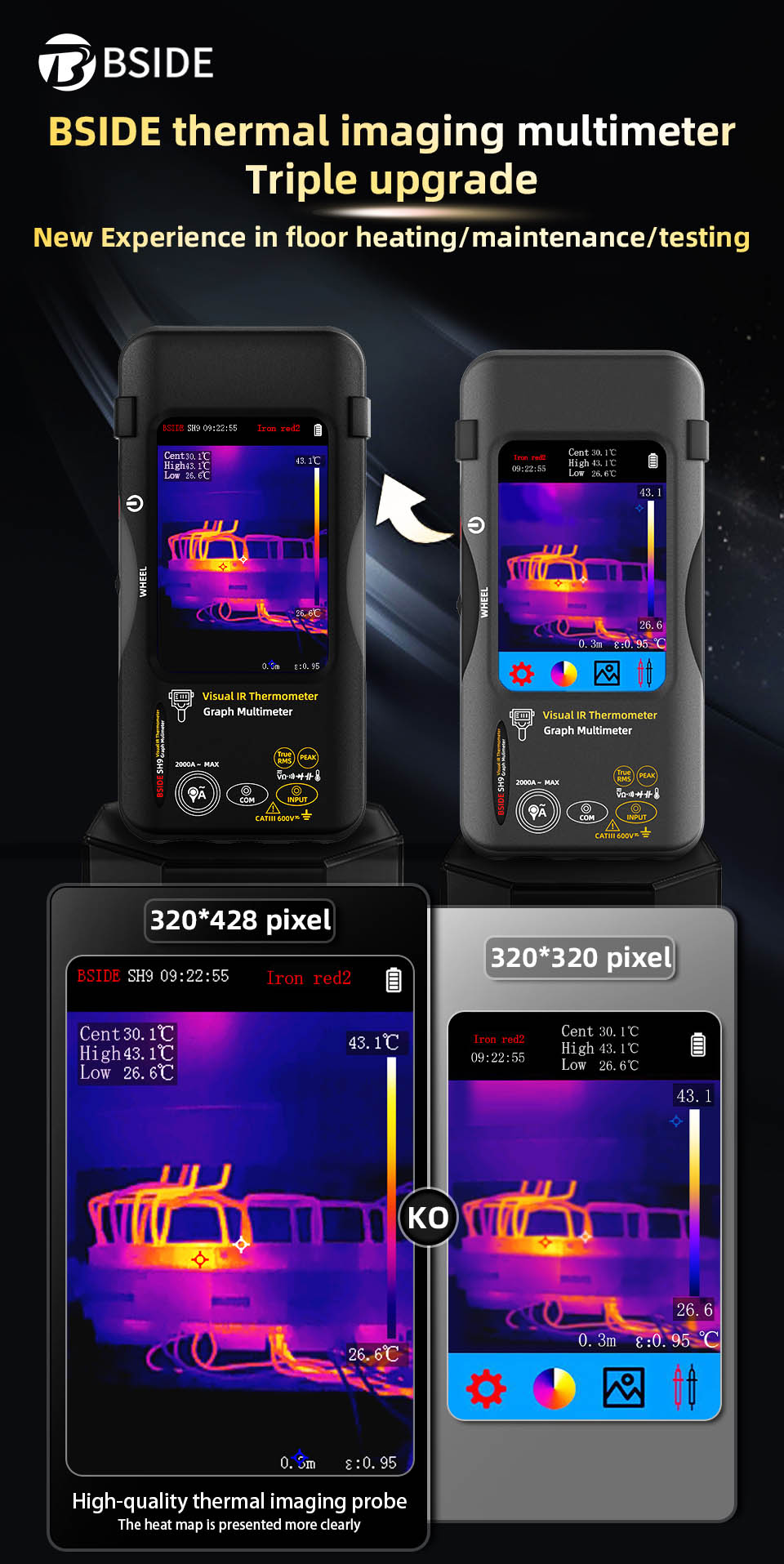

High-Defined Imaging

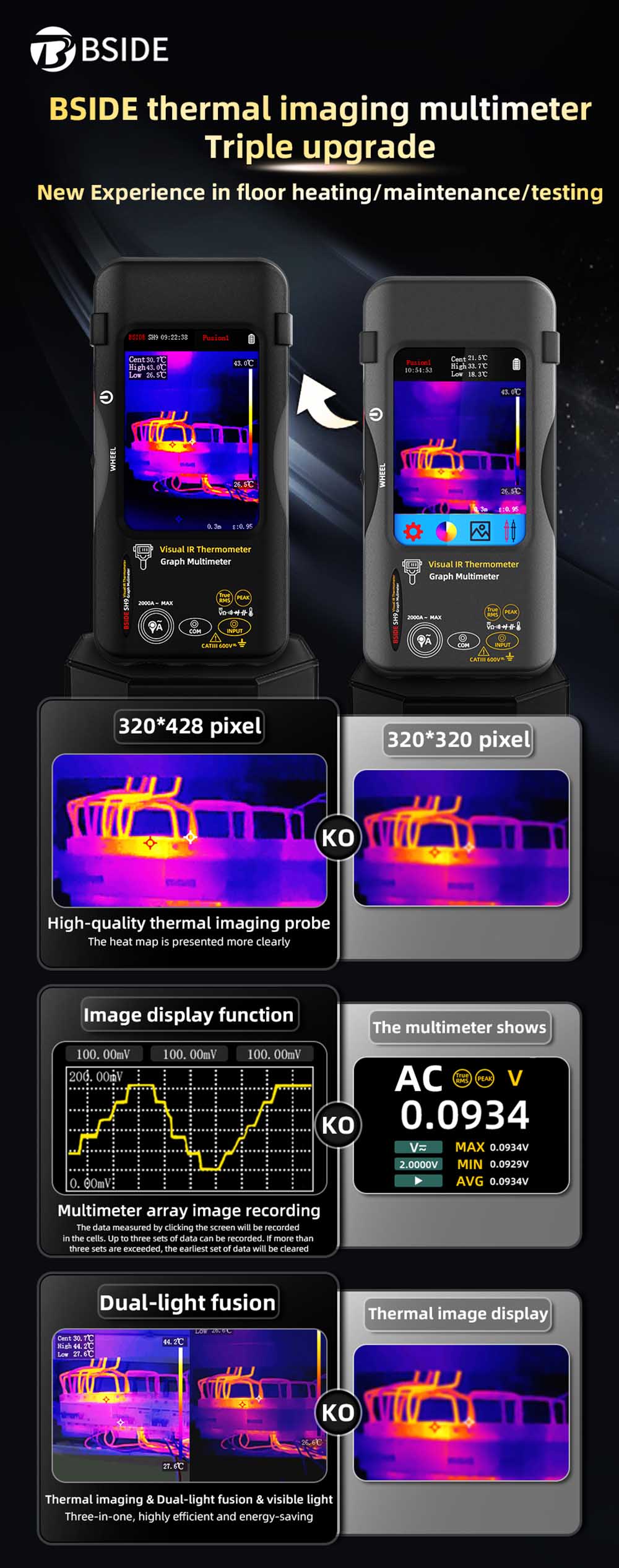

The thermal resolution of 320 × 428 pixels and NETD ≤50 mK provide crystal-clear thermal visuals, enabling detailed observations from a distance of up to 3 meters.
Extended Operating Power
The integrated 2500mAh rechargeable lithium battery delivers up to 5 hours of continuous usage, with fast charging of less than 3 hours—ideal for prolonged field applications.

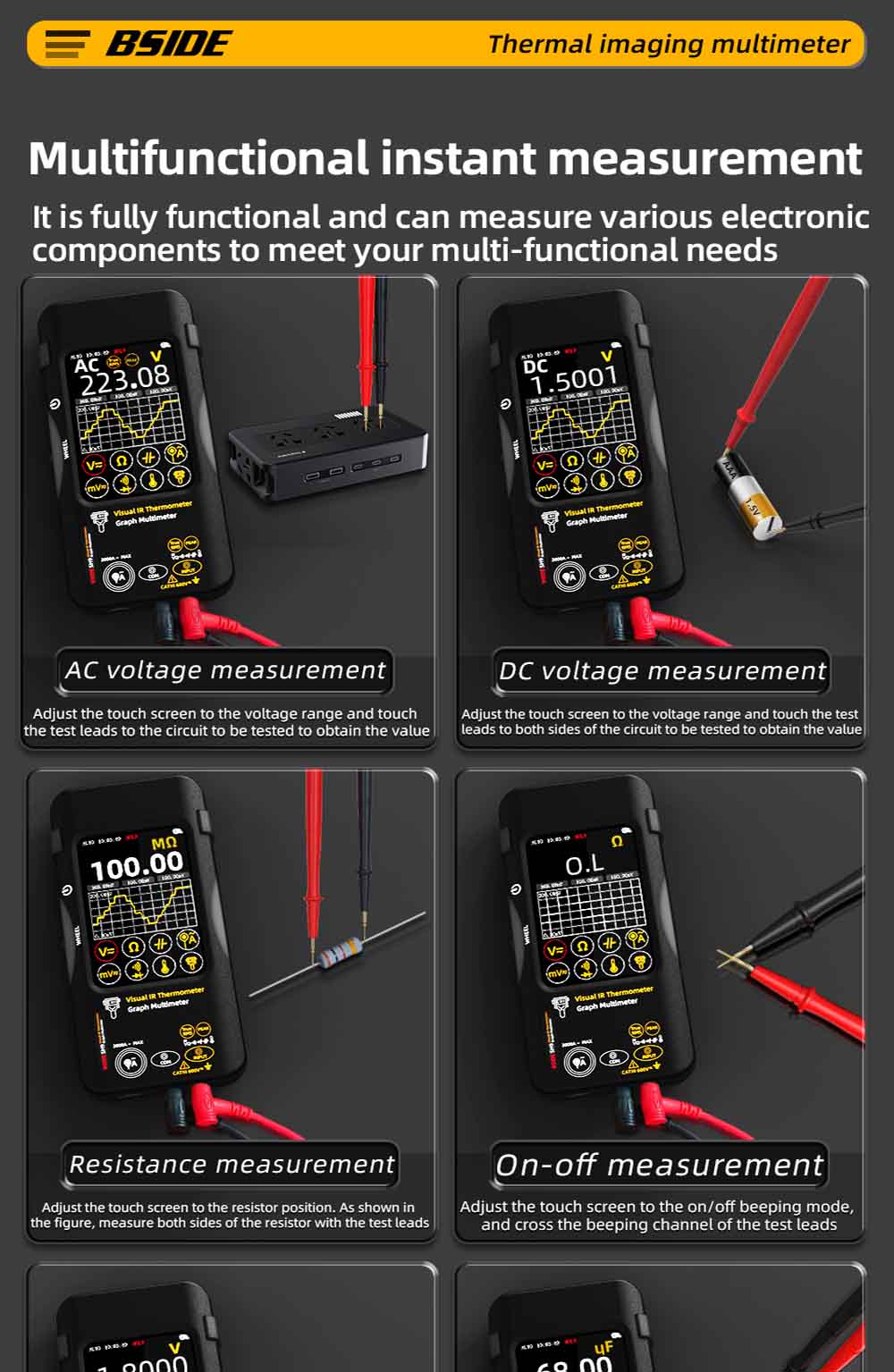

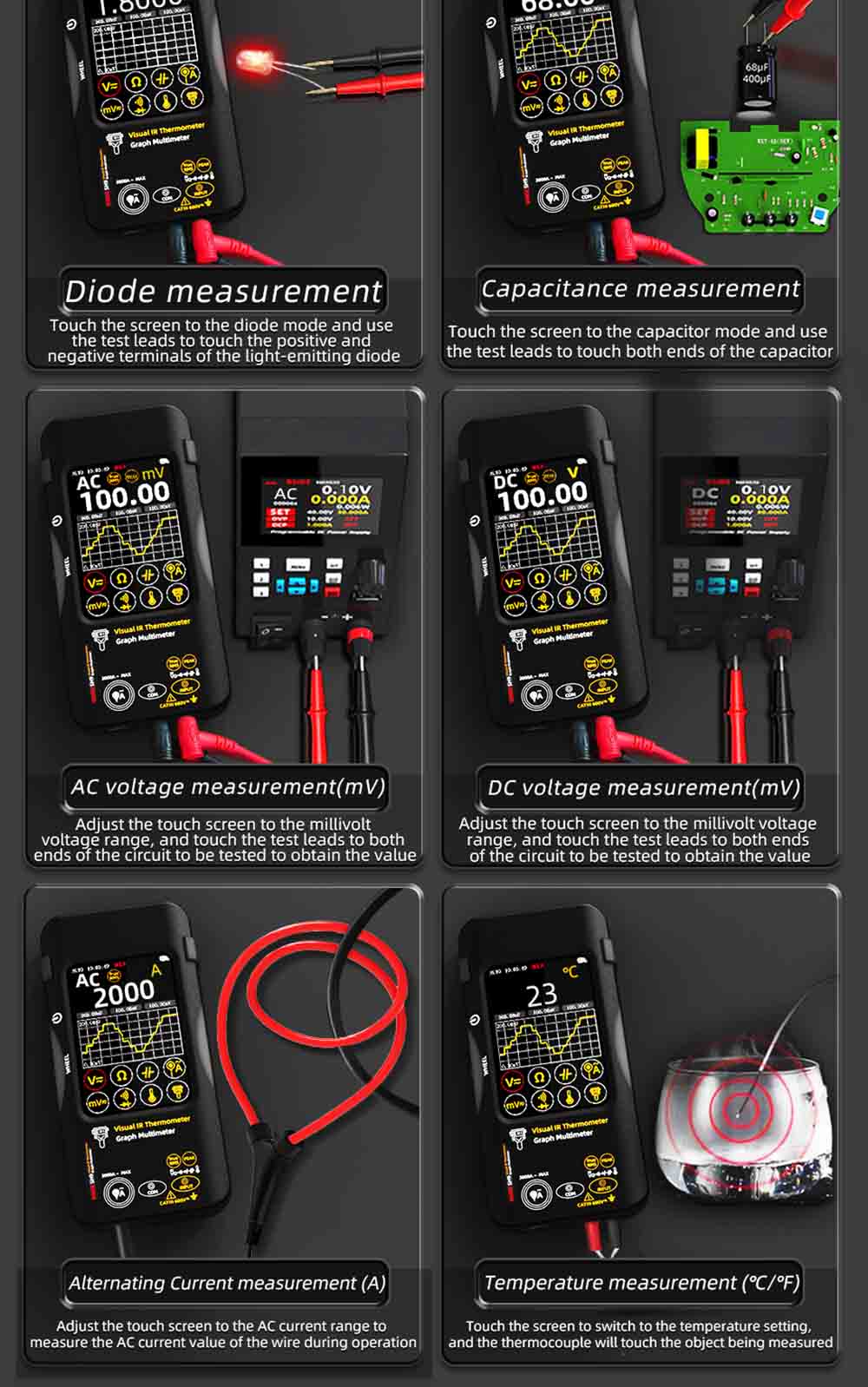

Multi-Measurement Modes

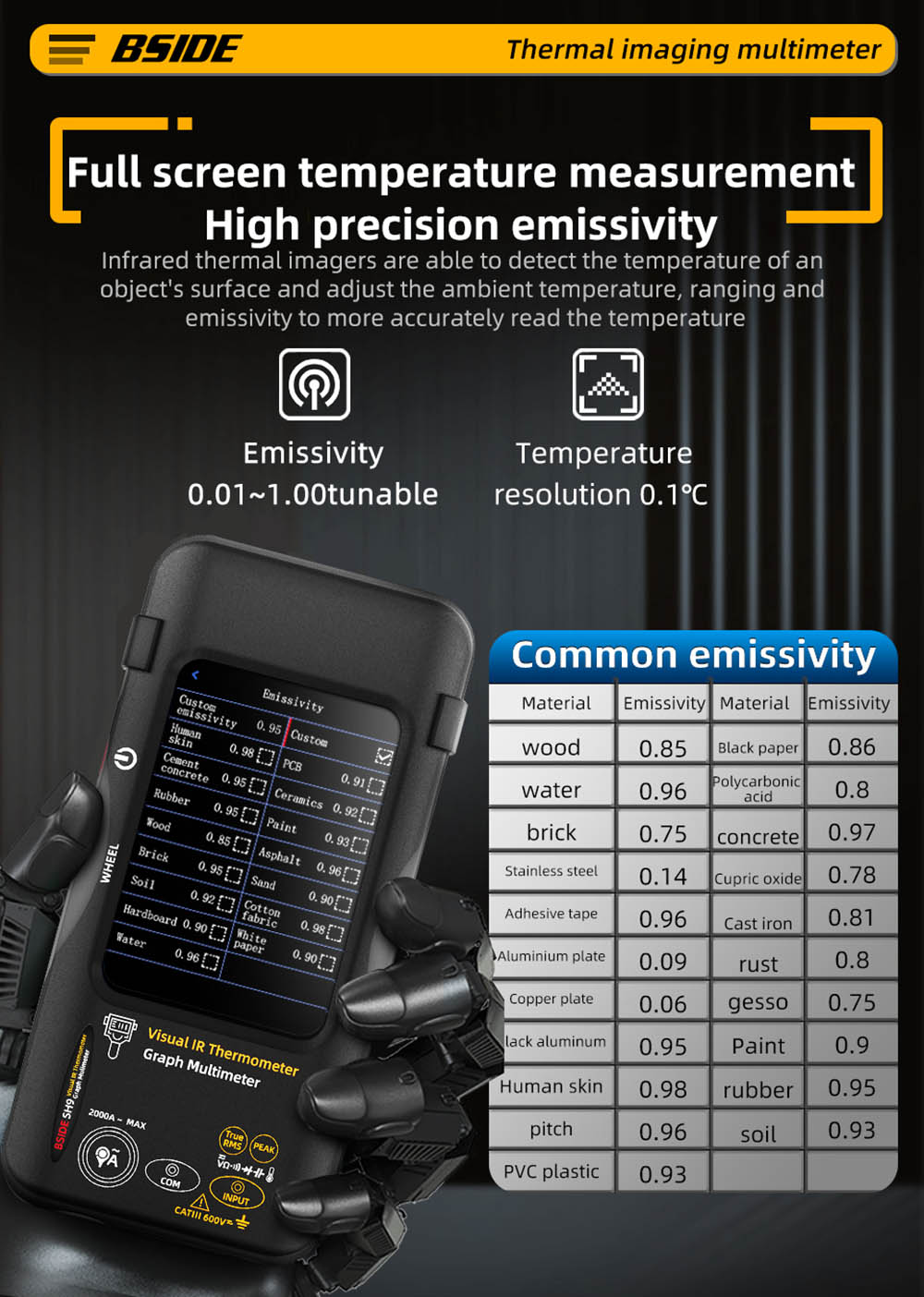

Precise tracking of minimum, maximum, and center temperatures, exacting emissivity adjustments, and alarms for temperature thresholds ensure comprehensive monitoring in dynamic environments.
Specification
| General | Brand: BSIDE Type: Thermal Imager Multimeter Model: SH9 Color: Black |

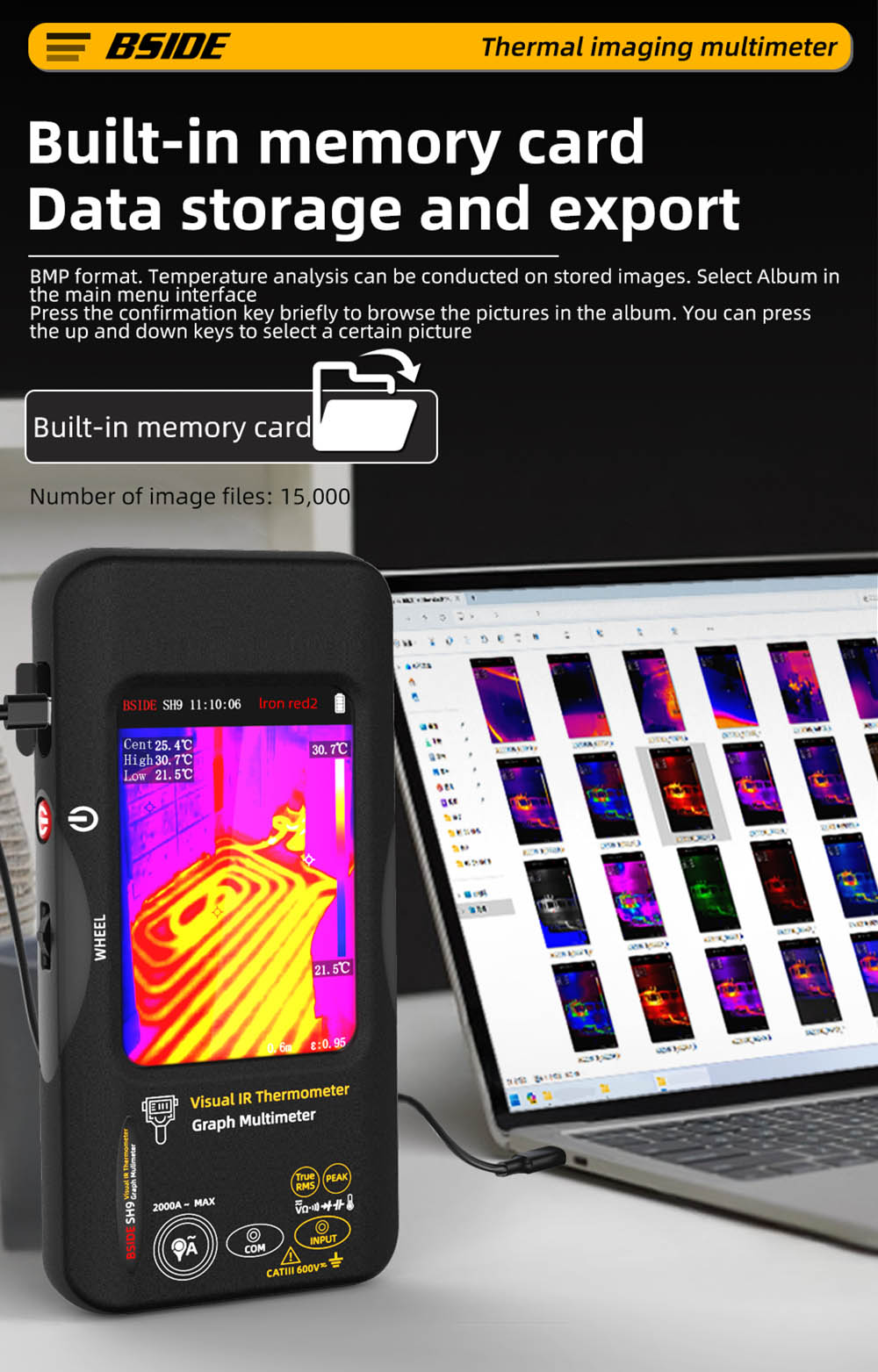

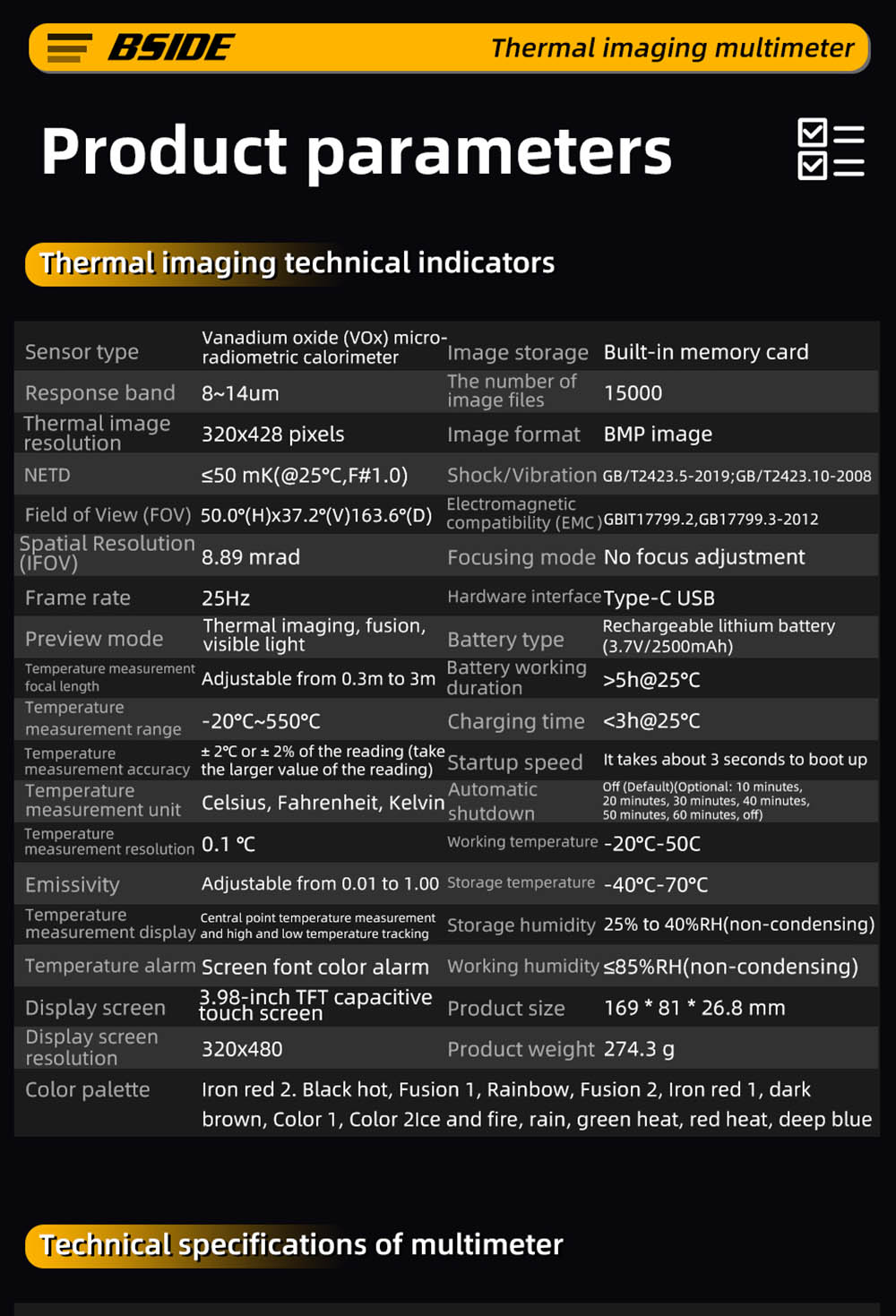

| Specification | Sensor Type: Vanadium oxide (VOx) microcalorimeter Response Band: 8–14 µm Thermal Image Resolution: 320 × 428 Pixels Noise Equivalent Temperature Difference (NETD): ≤50 mK (@25°C, F#1.0) Field of View (FOV): 50.0° (H) × 37.2° (V) / 63.6° (D) Spatial Resolution (IFOV): 8.89 mrad Lens Focal Length: 3.5 mm Temperature Measuring Focal Length: 0.3m–3m Adjustable Temperature Range: -20°C–550°C Temperature Measurement Accuracy: ±2°C or ±2% of the reading Temperature Units: Celsius, Fahrenheit, Kelvin Temperature Resolution: 0.1°C Emissivity: 0.01–1.00 Adjustable Display: 3.98-inch TFT Capacitive Touchscreen Display Resolution: 320 × 480 Temperature Alarm: Screen font color alarm Image Storage: Built-in memory card Image File Capacity: 15,000 files Image Format: BMP Focus Mode: Autofocus Battery Type: Rechargeable lithium battery (3.7V / 2500mAh) Operating Hours: Over 5 hours (@25°C) Charging Time: Less than 3 hours (@25°C) Charging Voltage/Current: 5V / 2A Boot Speed: Approximately 3 seconds Automatic Shutdown: Customizable (default disabled or between 10–60 minutes) Operating Temperature: -20°C–50°C Storage Temperature: -40°C–70°C Storage Humidity: 25–40%RH (Non-condensing) Working Humidity: ≤85%RH (Non-condensing) |

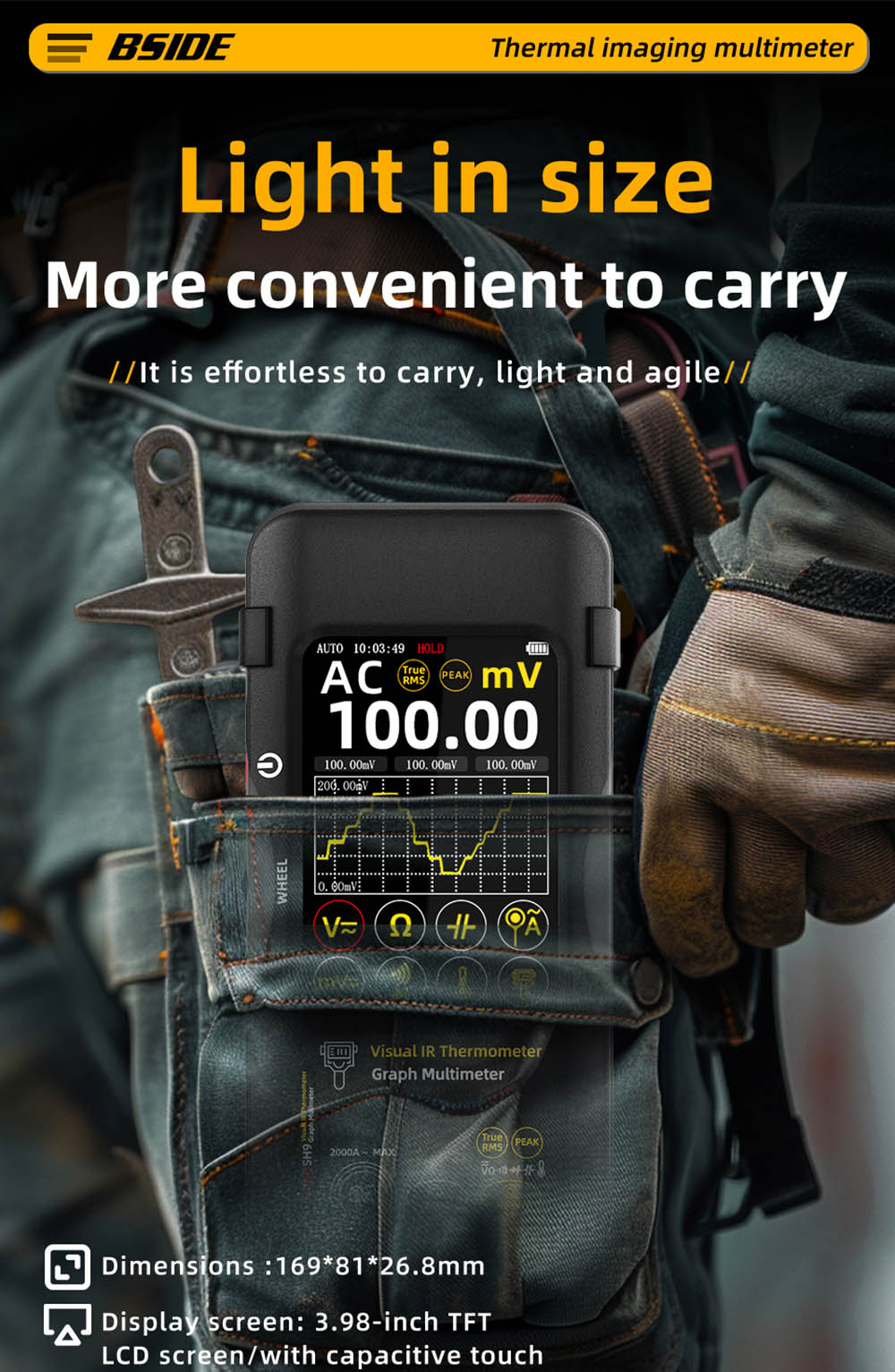

| Weight & Size | Product Weight: 274.3g Package Weight: 495g Product Size(L x W x H): 169*81*26.8mm Package Size(L x W x H): 220*126*48mm |

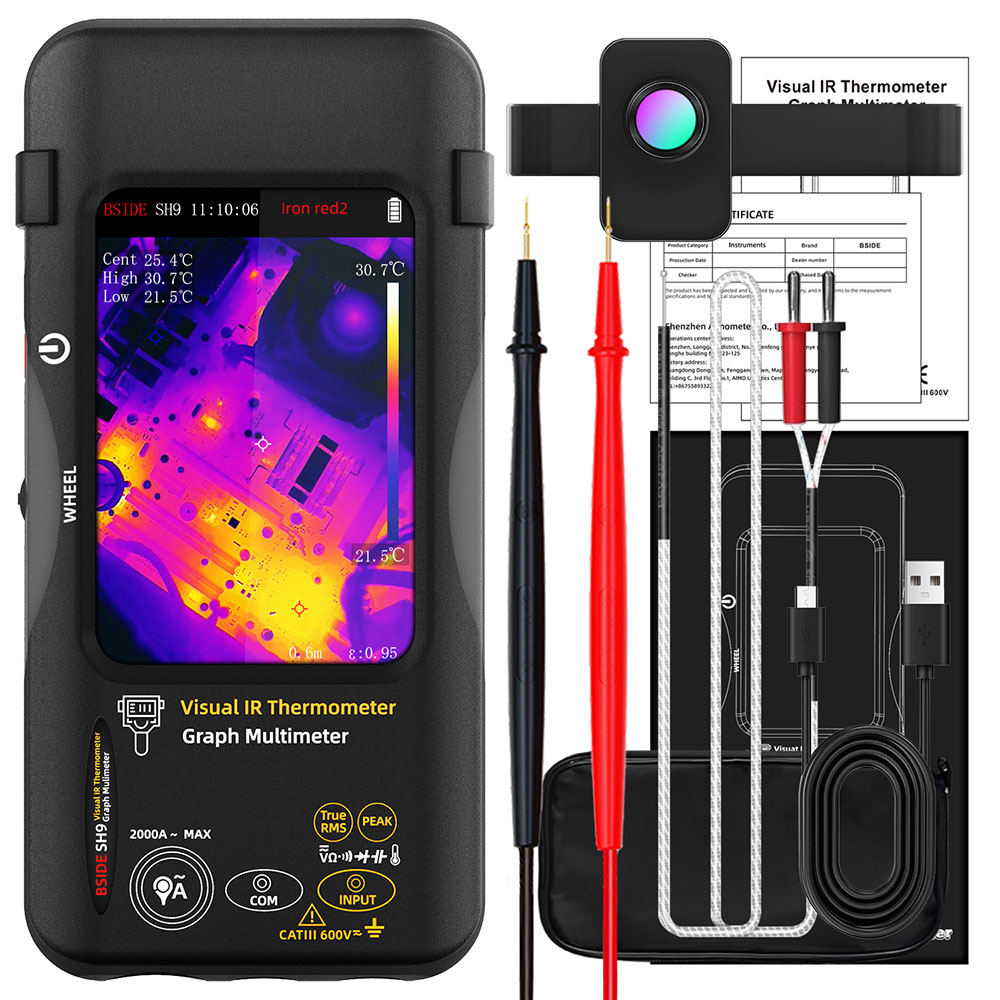

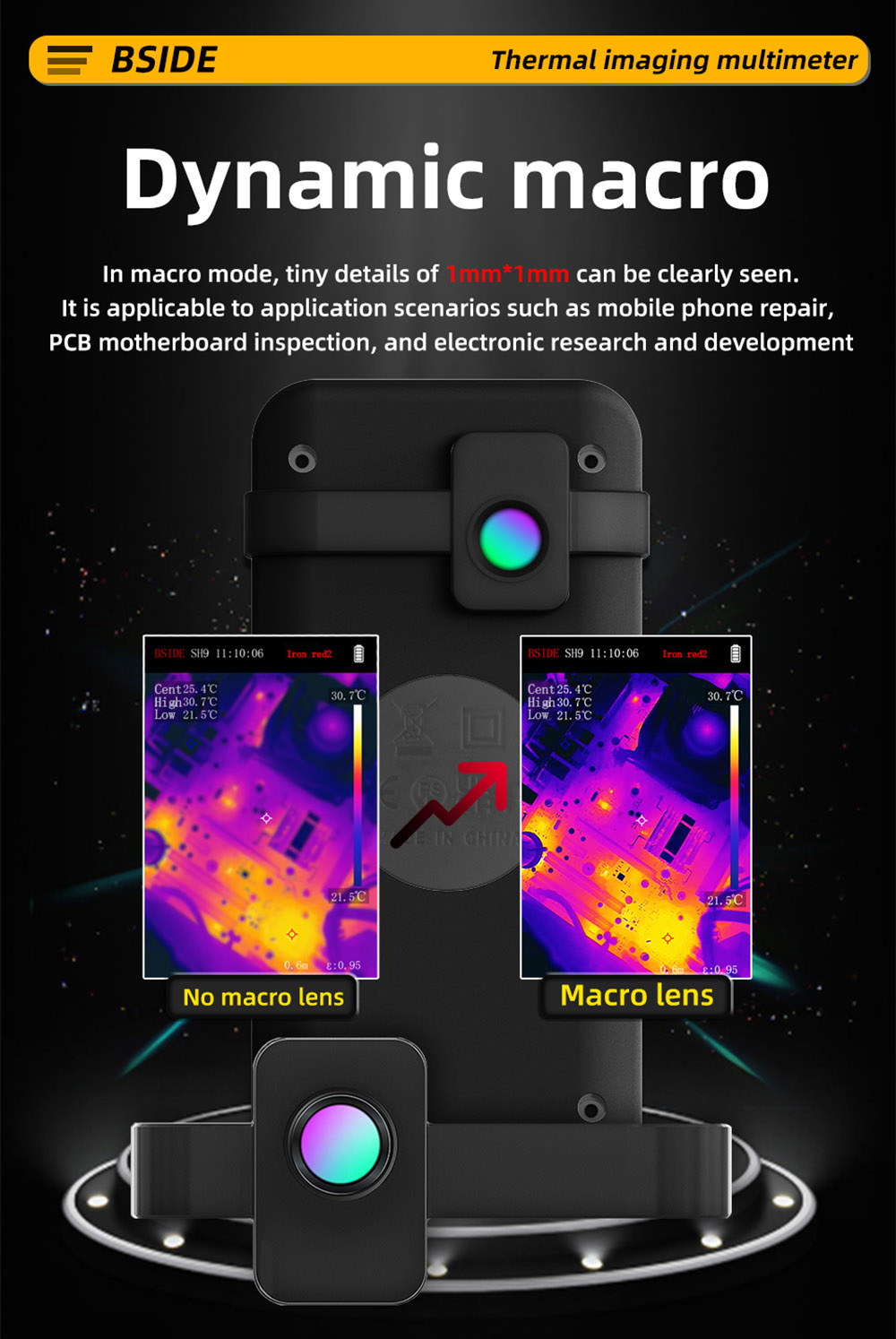

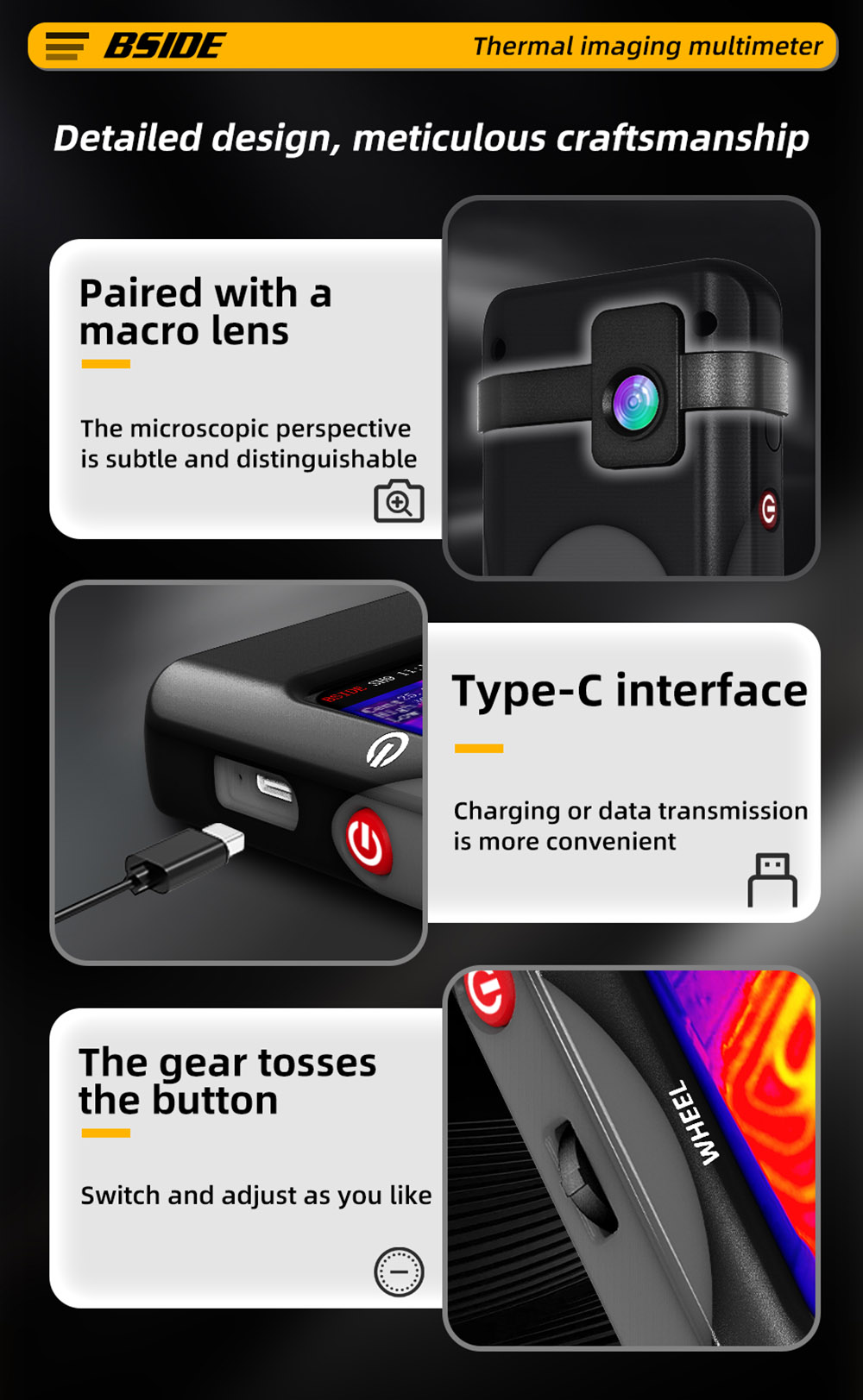

| Package Contents | 1 x Visual IR Thermometer Graph Multimeter 1 x USB Data Cable 1 x User Manual 1 x Temperature Probe 1 x Storage Bag 1 x Test Pen 1 x Macro Lens |
