Highlights
Automatic Mode Selection
The BSIDE-V30 can automatically measure AC/DC voltage, resistance, on/off, and continuity of the optimal solution, all these functional measurements can also be done manually.
Electronic Appliance Maintenance Inspection
Judge a variety of components good or bad, resistance/fuse/ capacitor/diode/detection of working current and so on.
Dual Mode Power System
The multimeter has 2 separate power systems, so you will never worry about a power problem.
LCD Color Screen Display
The HD color large screen display is clearly visible in both sunlight and dark conditions. It can display up to 20,000 counts, with higher counts providing greater accuracy. This ensures your measurements are never limited.
Infrared Temperature Measurement Function
With a laser pointer, real-time temperature and maximum temperature are displayed on the dual screen to maintain the maximum temperature value on the screen at all times during the scanning process.
Low-pass Filtering Mode
This function mainly filters the high-frequency signal above 1KHz, weakens the intermediate frequency signal of 100-1KHz, and only allows the low-frequency signal to pass the principle of testing, and ideally tests the fundamental wave signal.
Specification

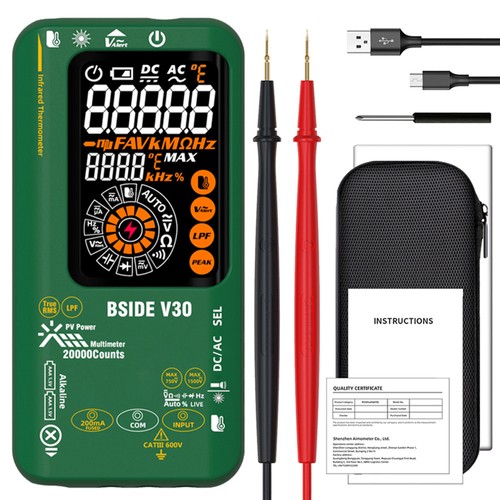

| General | Brand: BSIDE Type: Photovoltaic Multimeter Model: V30 Color: Green |
| Specification | DC voltage: 0.2~1499.9V(DC mode), 0.5~1499.9V(Automatic mode; 0.0001V, ±(0.05%+3) AC voltage: 0.2~749.9V(AC mode), 0.5~749.9V(Automatic mode); 0.0001V, ±(0.05%+3) Resistance: 0.0Ω~19.99MΩ, 0.1Ω, ±(0.5%+3) Capacitance: 00.000nF~9.999nF, 10.00mF~19.99mF; 0.001nF, 0.01mF; ±(5%+20), ±(5%+10) Alternating current: 2.0mA~199.9mA, 0.1mA, ±(0.8%+3) Direct current: 2.0mA~199.9mA, 0.1mA, ±(0.5%+3) Frequency: 1.000Hz~9.999Hz, 100.0KHz~199.9KHz; 0.001Hz, 0.1KHZ; ±(2.0%+10), ±(2.5%+12 ) Infrared temperature measurement: -20℃~0℃(-4℉~32℉), 0.1℃~380℃(32℉~752℉); 0.1℃(°F); ±(3.0%+2℃), ±(2.5%+3℃) Ambient temperature: 0~50°℃; 1℃(°F); ±2°C(°F) Non-contact induced voltage: YES Fireline identification Automatic shutdown: 15minutes Flashlight: YES Battery: The built-in 1200mA 3.7V lithium battery can be installed with 2 additional batteries AAA(No.7) Alkaline battery |
| Weight & Size | Product Weight: 245g Package Weight: 440g Product Size(L x W x H): 161*78*21mm Package Size(L x W x H): 190*100*50mm |
| Package Contents | 1 x Photovoltaic Multimeter 1 x User Manual |
