Highlights

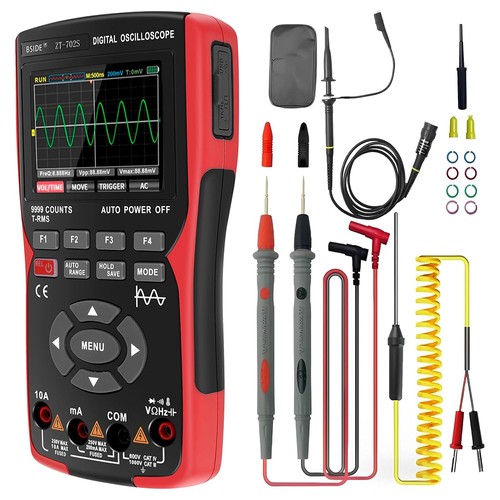

1. ZT702S is a fully functional, practical, and cost-effective portable multimeter oscilloscope.
2. Scope Mode: 2.8" IPS color LCD oscilloscope, 10MHZ bandwidth, 48MSa/s real-time sampling rate, automatic calibration function, memory function, etc.
3. Multimeter mode: 9999 counts, MAX value /Min, capacity, current, temperature, diode, voltage, resistance, frequency, continuity test.
4. Data saved and transferred: The tested data can be saved and transferred.
5. Color LCD screen: Color LCD screen greatly improves the reading experience, making it very easy to read even in direct sunlight or poor light.
6. Rechargeable: Comes with a rechargeable 18650 battery and charging cable, so you will never worry about power issues.
Specification
| General | Brand: BSIDE Type: Digital Multimeter Model: ZT702S Color: Red |
| Specification | Display: 9999 counts Screen size: 2.8 inch Bandwidth: 10MHz Real-time sample rate: 48M/s Input impedance: 1M, @16pf Maximum input voltage: 400V (DC AC peak) Horizontal range SEC: 50ns/div-20s/div Vertical sensitivity: 20mV/div -10V/div DC voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1V±(0.5%+3) AC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1V±(1.0%+3) DC Current: 9999uA/99.99mA 1uA/0.01mA±(0.8%+3); 999.9mA/9.999A 0.1mA/0.001A±(1.0%+3) AC current: 9999uA/99.99mA 1uA/0.01mA±(1.0%+3); 999.9mA/9.999A 0.1mA/0.001A±(1.2%+3) Resistance: 99.99Ω 0.01Ω±(1.0%+3); 999.9Ω/9.999Ω/99.99KΩ/999.9KΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ ±(0.5%+3); 9.999MΩ 0.001MΩ ±(1.5%+3); 99.99MΩ 0.01MΩ ±(3.0%+5) Capacitance: 9.999nF 0.001nF±(5.0%+20); 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF 0.01nF/0.1nF/0.001μF/0.01μF/0.1μF±(2.0%+5); 9.999mF 0.001mf±(5.0%+5) Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz 0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz ±(0.1%+2) Temperature: -20°C-1000°C/-4°F-1832°F ±(2.5%+5) Diode: Yes Continuity: Yes Power: 18650 battery |
| Weight & Size | Product Weight: 345g Package Weight: 697g Package Size(L x W x H): 260*130*65mm |
| Package Contents | 1 x Digital Multimeter 1 x User Manual |
