Highlights

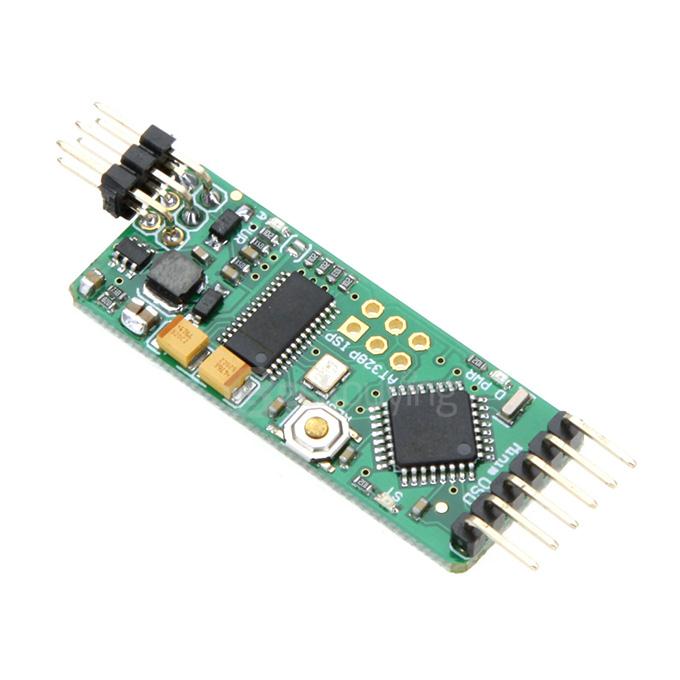

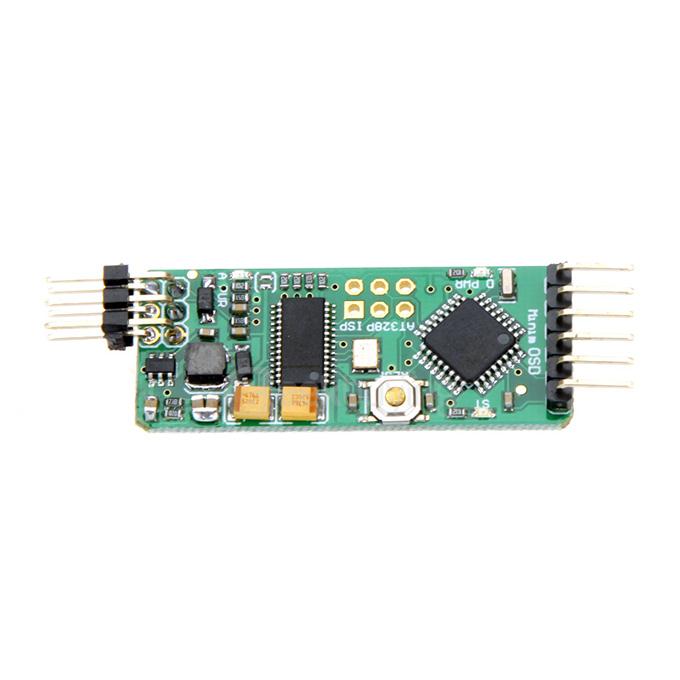

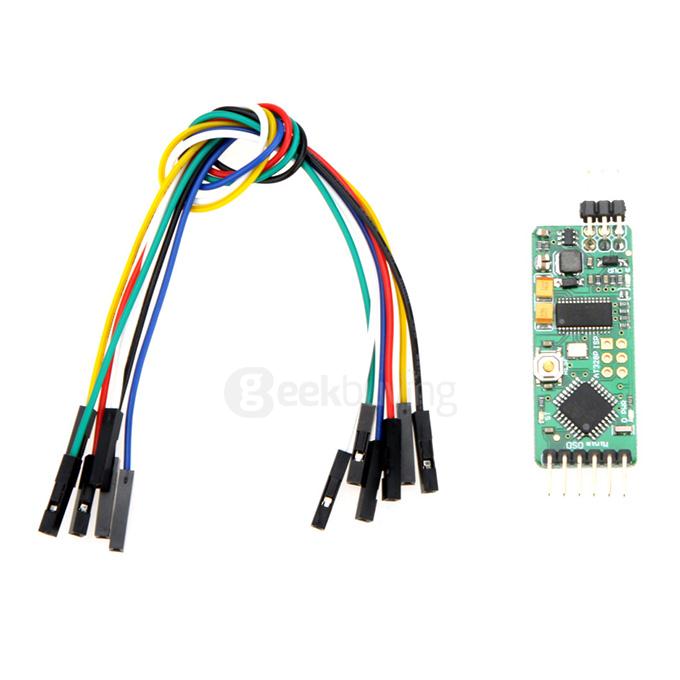

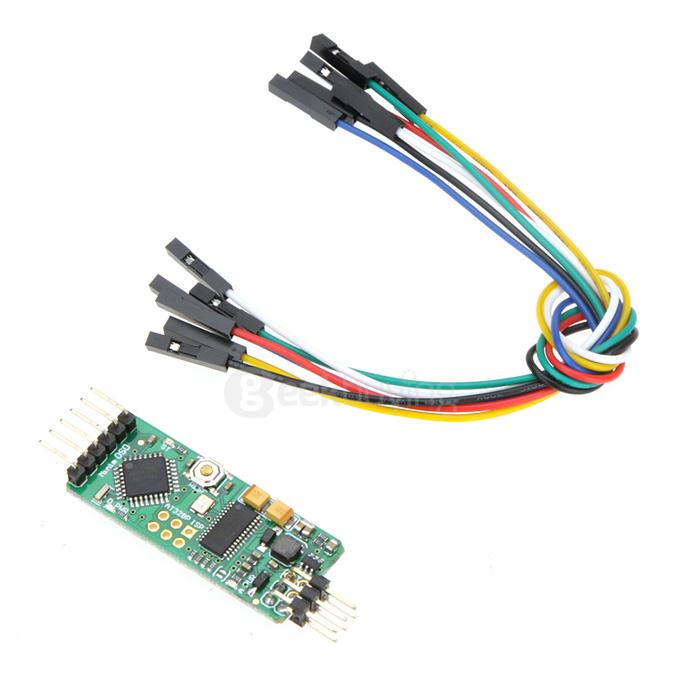

- ATMEGA328P Microcontroller.
- MAX7456-EUI monochrome on-screen display.
- 5V/500mA DC/DC regulator for MAX7456-EUI.
- Operating voltage: 5V(FTDI connector) and 12V(Video I/O connector).
- Supported NTSC & PAL.

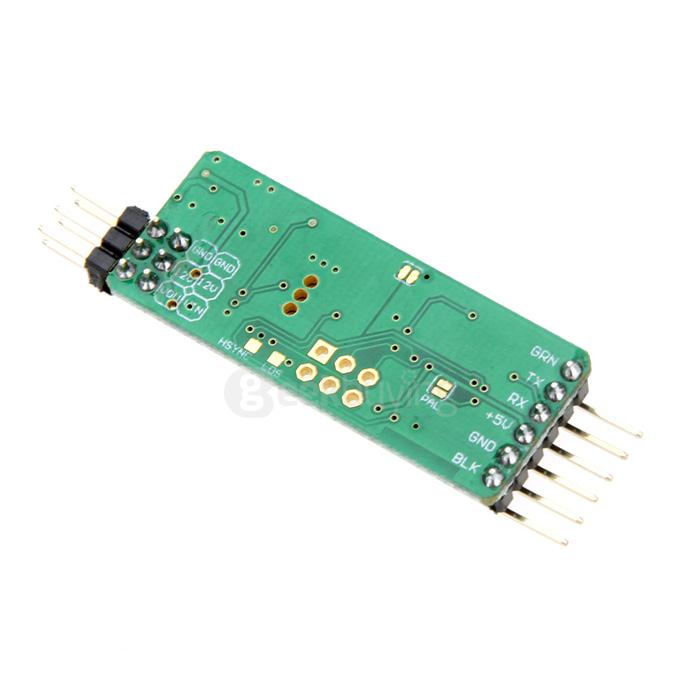

- FTDI connector.
- Full MAVLink protocol support.
- Graphical configurator tool.
- OSD is an Arduino based project and it is fully compatible with original MinimOSD.
- This board can be used for CRIUS AIOP and Arduflyer / ArduPilot-Mega.

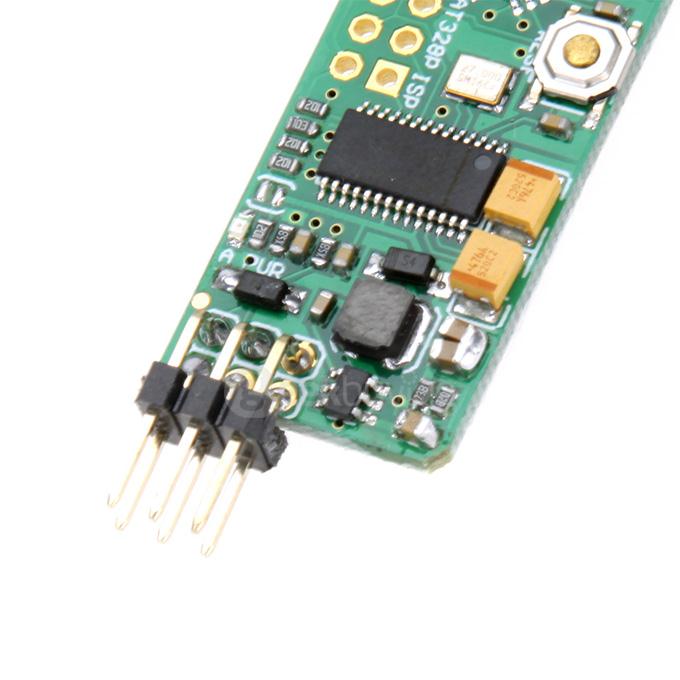

- OSD with switching DC/DC stepdown powersupply to maximize efficiency on power system. No more heating problems when using this OSD board.
Specification
| General | |
|---|---|
| Type | OSD |
| Quantity | 1 Piece |
| Size/Weight | Weight: 9g / 0.3oz (include cable) Cable lengh: 17cm |
| Compatible | Original MinimOSD ATMEGA328P Microcontroller |

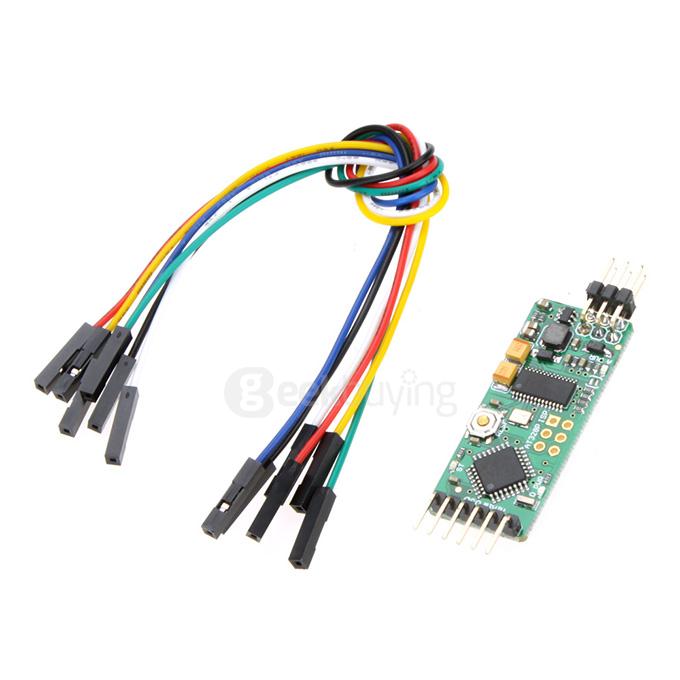

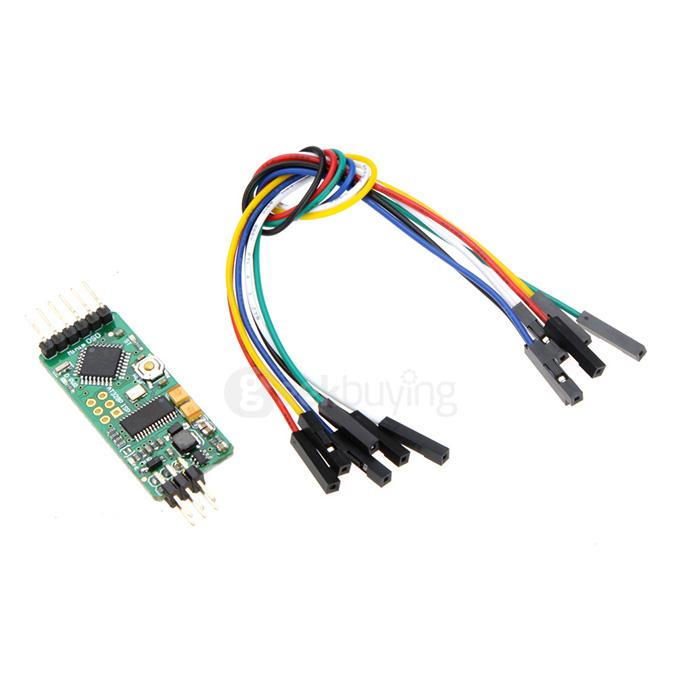

| Package Contents | |
| 1 * OSD | |

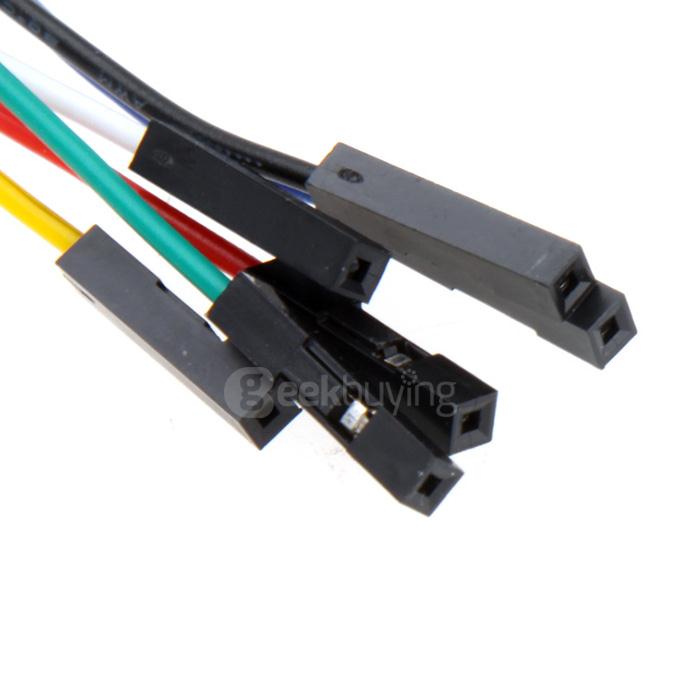

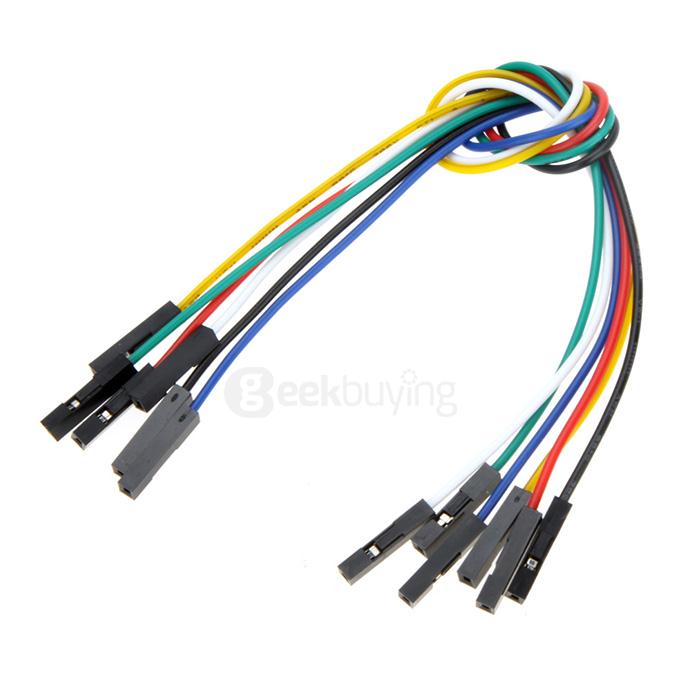

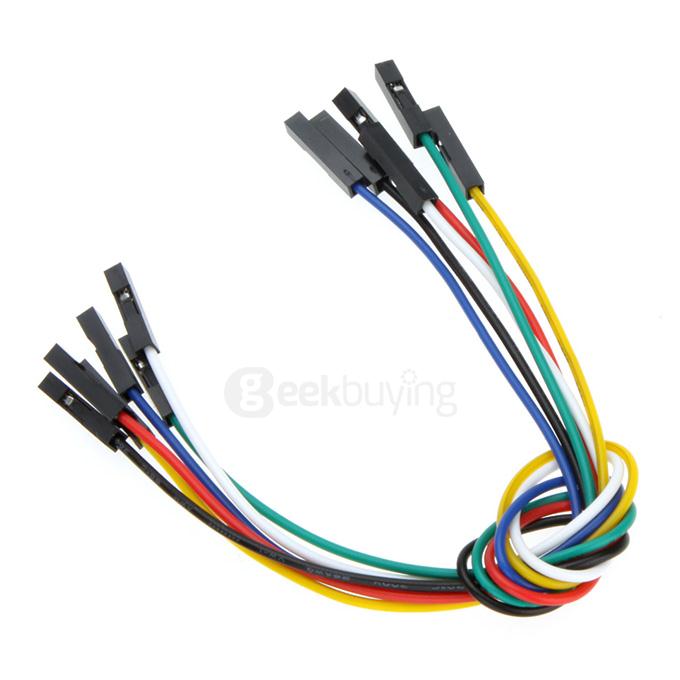

| 1 * 4Pin cable | |
