Highlights

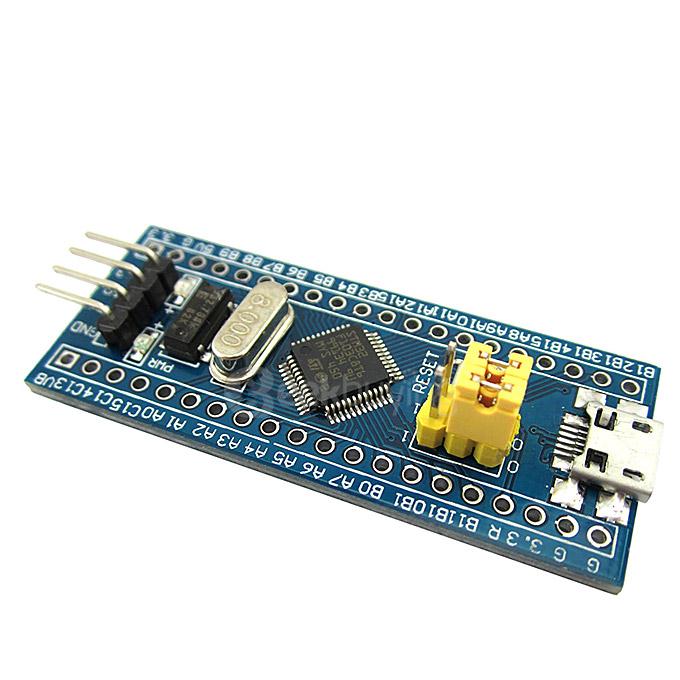

- About STM32 board:
- On-board SWD interface, and it can be programmed with ST-LINK V2
- On-board reset button and power indicator LED
- On-board test indicator LED, and the beginners can program to control it
- On-board 100ma 3.3V Regulator
- All GPIO are led out and the names of the pins are marked
- This board is very suitable for learners that want to learn STM32 microcontroller with ARM Coretex-M3 32-bit core

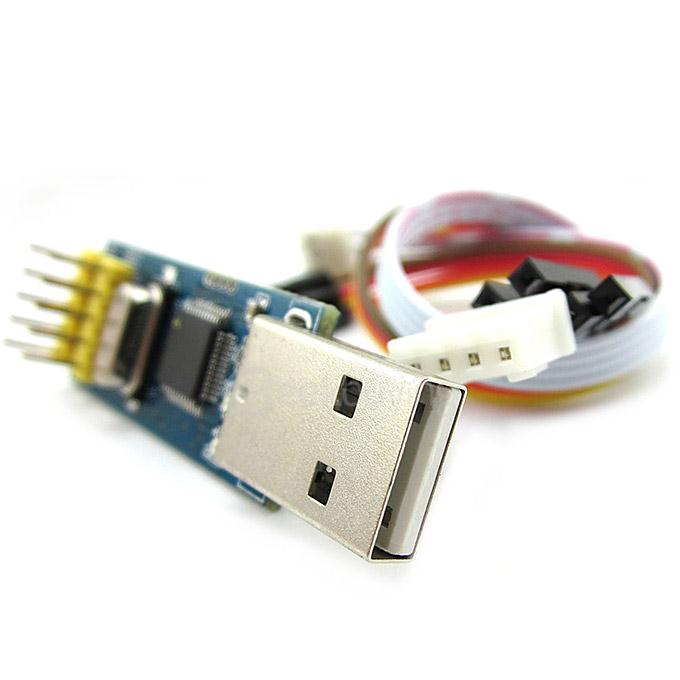

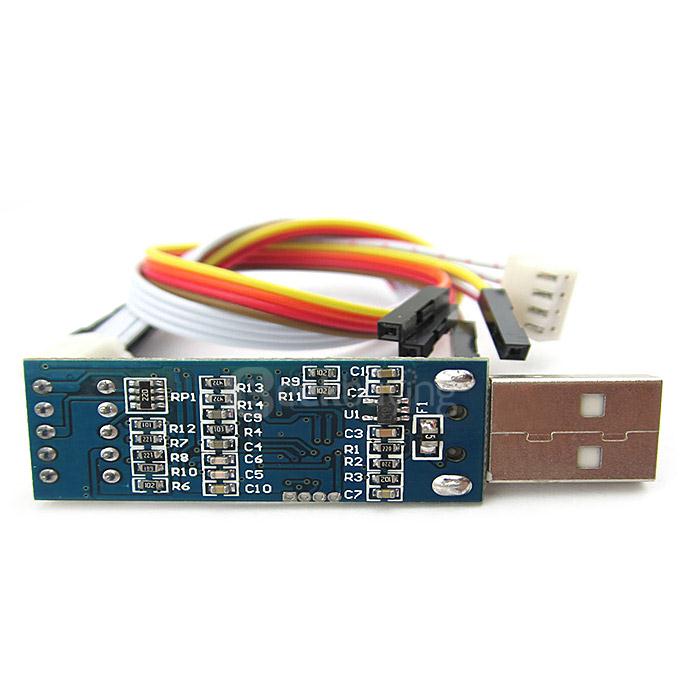

- About the ST-LINK V2:
- Two-channel power output 5V / 3.3V and easier to use
- On-board 500mA resettable fuse, short-circuit protection
- Output diode in series with, reverse connection protection
- Support simulation debugging, running at full speed, single step, breakpoint debugging, view IO status and the variable data
- Support IDE and software tools: STVD V4.2+; STVP V3.2+; IAR-EWSTIM8 V1.3+; KEIL MDK V4.2+; IAR-EWARM V6.2+
- Only U disk size and compatible with official ST-LINK V2.
- Support official firmware upgrade, support all series of STM8 (SWIM interface), STM32(SWD interface)
Specification
| General | |
|---|---|
| Type | Development Board w/ SWD Socket + ST-LINK V2 Programmer Emulator |
|
Microcontroller |
STM32F103C8T6 |
| Operating Voltage | 3.3 V |
| IO Logic Voltage | 3.3 V |
|
Digital I/O Pins |
37 |
| Burning Times | 10k cycles |
| Analog Input Pins | 10 (12bits) |
|
Flash Memory |
64KB |
|
RAM |
20KB |
|
Programmable Clock Speed |
72 MHz (MAX) |
| Rayfile | //pan.baidu.com/s/1c02hc5M |

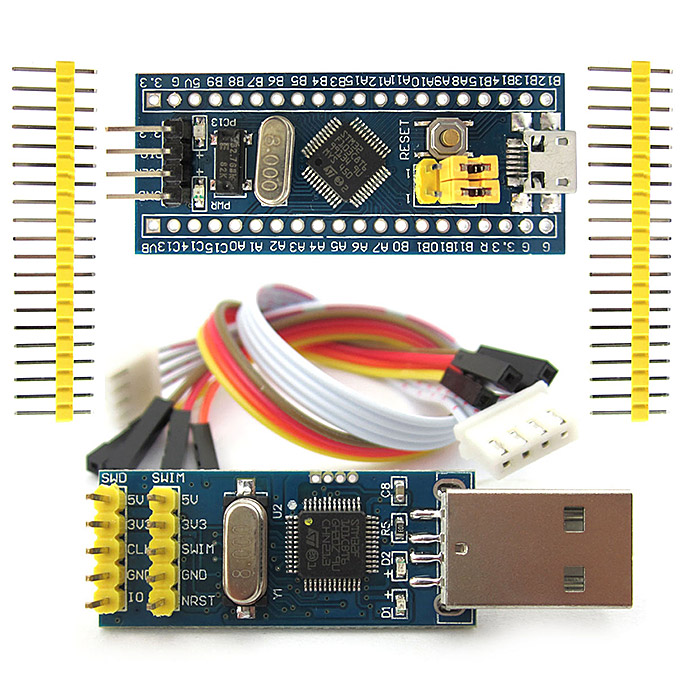

| Package Contents | |
| 1* STM32F103C8T6 development board | |
| 2* 1X20P pin headers(2.54mm pitch) | |
| 1* STLINK Programmer Moudule | |
| 1* 1X4P Dupont line (20cm) | |
| 1* 1X4P Test cable (20cm) | |
