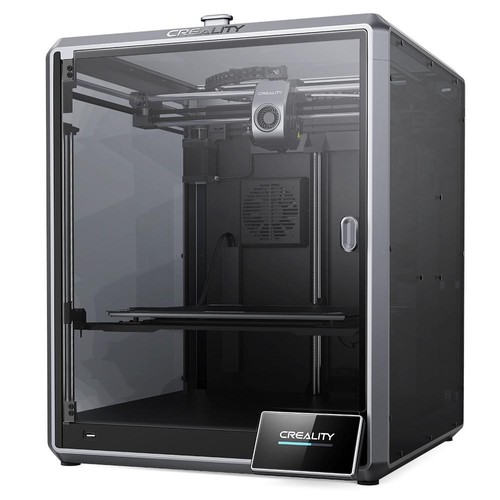

Creality K1 Max 3D Printer

Highlights

Highlights

Creality K1 Max 3D Printer Main Features

Creality K1 Max features a blazing print speed of 600mm/s. With a large-scale build volume of 300 x 300 x 300mm and a dual-gear direct extruder capable of heating up to 300 Degrees Celsius, Creality K1 Max will satisfy most of your printing requirements.

• Printing at up to 600 mm/s
• 300*300 *300mm Build volume
• Fully automatic bed leveling
• AI-supported
• Built-in air purifier
• 4.3-inch touchscreen
• Smart Features: AI Camera, AI LiDAR, Power Loss Recovery, Filament Runout Sensor, Input Shaping, Lightning Kit, Sleep Mode
• Compatible with various slicer software such as Creality Print, Cura, Simplify3D, PrusaSlicer

Super Power of Speed

K1 Max can reach 600mm/s in only 0.03s based on 20000mm/s² acceleration. It can be as productive as several 3D printers together. Also, it combines the nimble Core XY with a 190g lightweight printhead for less motion inertia.

Max 32mm³/s Flow, High-Temperature Working

Adopts new ceramic heater, encircling the entire hot end. It heats to 200 Celsius in 40 seconds and melts the filament instantly. The dual-gear direct extruder can deliver strong extrusion force. Hotend with a titanium alloy heat break and a hardened steel nozzle, working with flying colors in up to 300 Celsius.

300x300x300mm Large Build Volume

K1 Max boasts a 300x300x300mm large build volume, great for rapid prototyping or design verification. It also offers a high build volume to printer size ratio of 25.5%, making it the most size-efficient FDM 3D printer in its class.

Smarter System

K1 Max 3D printer adopts the smart Creality OS. It features a straightforward UI, and syncs data and commands with PC, phone, Cloud, and add-on modules. An AI camera to watch over spaghetti failure, foreign objects, debris, etc. It will alert you when an error occurs. The 1 μm resolution LiDAR will scan the first layer on its own. It will pause printing and tell you immediately if something goes wrong.

Auto Leveling

First, strain sensors generate an accurate leveling mesh for auto compensation. Second, AI LiDAR scans the bed tilt at million points for more precise leveling. Both ways are hands-free and do not require any attention.

Creality Print 4.3 Slicer

The latest self-developed slicer Creality Print 4.3 includes rich presets, and streamlines the slicing process into 3 simple stages. Besides, it bolsters high-speed printing with variable line width, arc path, and so on.

WiFi Connection

Once K1 Max is connected via WiFi or RJ45 Ethernet port to the LAN or Internet, you can monitor and control the printing from a PC or phone with Creality Print software or Creality Cloud. Even better, when many K1 Max printers are online, they can be easily clustered or grouped for volume production.

Better Feeding with Motion Advance

The motion advance function will deliver the optimal feeding flow. It reduces blobs and oozes effectively.

Solve Ringing and Z-banding

The upgraded Z-axis with more accurate positioning reduces Z-banding effectively. The texture has never been so subtle. A G-sensor in the printhead measures the resonance frequencies of high-speed printing, and auto-tune the printer to mitigate it. No more ghosting or ringing on the print.

Dual Cooling Fans

A large fan on the printhead with air ducts cools the model directly. Also, there is an 18W auxiliary fan in the build chamber that enhances the cooling effect.

Effective Air Purifier

The built-in air filters will purify unhealthy compounds generated during printing, making printing much more pleasant.

K1 Max - Speedy  Smart  Super

600mm/s Printing Speed
Versatile AI LiDAR
Observant AI Camera
300*300*300mm Large Build Volume

Super Power of Speed

CoreXY Structure
600mm/s Max Speed
20000mm/s2 Acceleration
32mm3/s Flow

12X Faster, Defy Limitations

Creality K1 Max reaches 600mm/s* in only 0.03s based on 20000mm/s² acceleration. It can be as productive as several 3D printers together.

* The typical speed is 300mm/s. The travel speed is 800mm/s.
* The 600mm/s speed is achieved at Creality Lab in the Surface Mode with 0.1mm layer height.

Nimble Setup for Speed

K1 Max combines the nimble Core XY with a 190g lightweight printhead for less motion inertia.

Max. 32mm³/s Flow

New ceramic heater, encircling the entire hotend. It heats to 200℃ in 40s and melts the filament instantly.
Dual-gear direct extruder, delivering strong extrusion force.
Hotend with a titanium alloy heatbreak and a hardened steel nozzle, working with flying colors in up to 300℃.

Get Cool Models On the Fly

Model Cooling by Dual Fans

A large fan on the printhead with air ducts cools the model directly.
An 18W auxiliary fan in the build chamber enhances the cooling effect, too.

The model hardens before any stringing and warping could happen.
It allows support-free bridges and overhangs.

Creality Print 4.3 with Speed Genes

The latest self-developed slicer Creality Print 4.3 includes rich presets, and streamlines the slicing process into 3 simple stages.
Even better, it bolsters high-speed printing with variable line width, arc path, and so on.

Max Capacity, Efficient Use of Space

K1 Max boasts a 300x300x300mm large build volume, great for rapid prototyping or design verification.
It also offers a high build volume to printer size ratio of 25.5%.
K1 Max is the most size-efficient FDM 3D printer in its class.

AI-assisted Carefree Printing

Al LiDAR
AI Camera
Creality OS
Multi-printers Controls

AI LiDAR Takes Care of the First Layer

Still worry about the first layer? Just leave it all to the AI LiDAR of K1 Max.
The 1 μm resolution LiDAR will scan the first layer on its own. It will pause printing and tell you immediately if something goes wrong.

AI Camera Keeps a Keen Watch

K1 Max uses an AI camera to watch over spaghetti failure, foreign objects, debris, etc.
It will alert you when an error occurs.
It also supports real-time monitoring and creates time-lapses for sharing.

Failure Detection

Foreign Object Detection

Real-time Monitoring

Smart System, Unbridled Performance

K1 Max adopts the smart Creality OS. It features a straightforward UI, and syncs data and commands with PC, phone, Cloud, and add-on modules.
The snappy dual-core 1.2GHz CPU powers high-speed printing with ease.
The 8G ROM stores up to 400 model files and enables quick writing and reading.

Intelligent Aid to Your Print Farm

Once K1 Max is connected via WiFi or RJ45 Ethernet port to the LAN or Internet, you can monitor and control the printing from a PC or phone with Creality Print software or Creality Cloud.
Even better, when many K1 Max printers are online, they can be easily clustered or grouped for volume production.

Trustworthy Print Quality

Rigid Frame, Stable Quality

The frame of K1 Max is built with rigid die-cast aluminum alloy parts.
It enables steady printing at high speed. And the print quality is excellent the whole time.

Delicate Texture without Z-banding

The upgraded Z-axis with more accurate positioning reduces Z-banding effectively.
The texture has never been so subtle.

Smooth Surface by Solving Ringing

A G-sensor in the printhead measures the resonance frequencies of high-speed printing, and auto-tune the printer to mitigate it. No more ghosting or ringing on the print.

Better Feeding with Motion Advance

The motion advance function will deliver the optimal feeding flow. It reduces blobs and oozes effectively.

Intuitive for Everyone

Dual Hands-free Auto Leveling

First, strain sensors in the heatbed generate an accurate leveling mesh for auto compensation.
Second, AI LiDAR scans the bed tilt at million points for more precise leveling.
Both ways are hands-free and do not require any attention.

Print Right out of the Box

K1 Max is assembled and calibrated before shipment and built-in with a boot-up quick guide.
You can start printing the moment your K1 Max arrives.

Flexible Build Plate

Quick-heating Heatbed

Self-test with One Tap

Specification
