Highlights

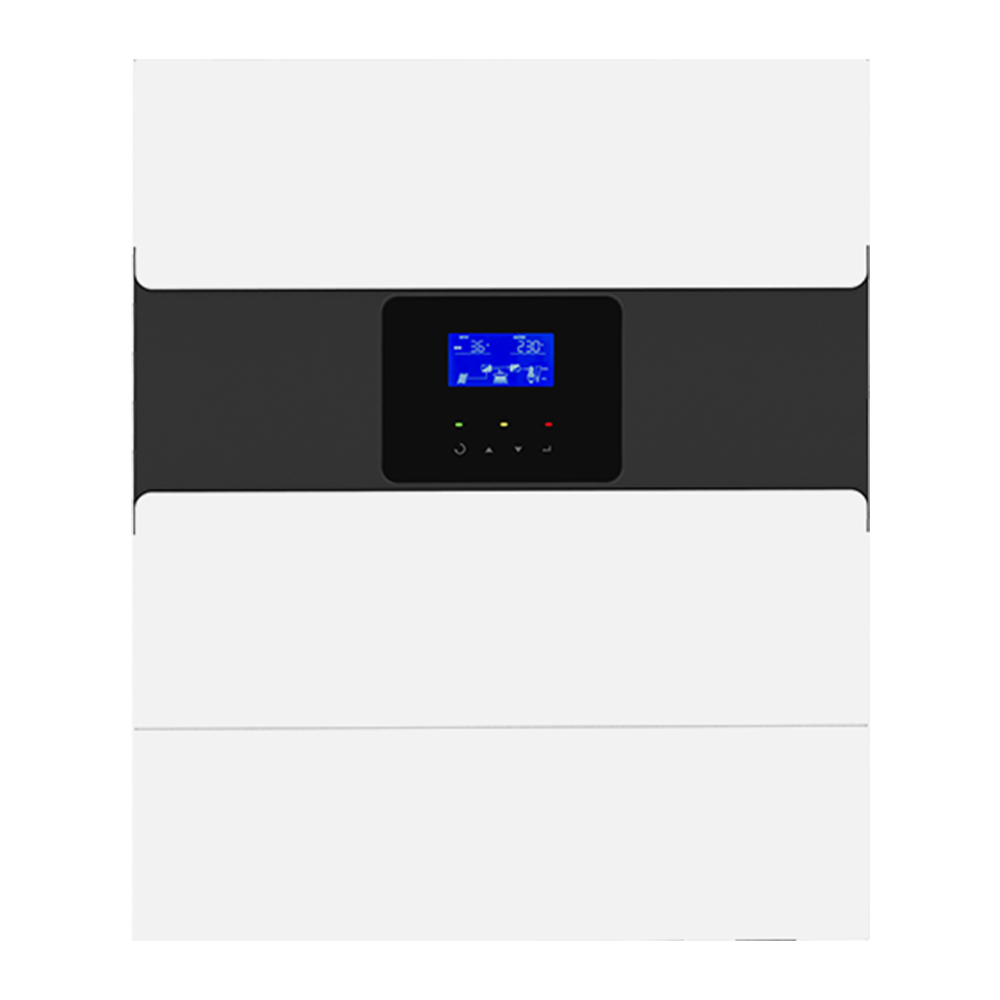

High-power 10.2kW Hybrid Inverter for Grid-tied Storage
Our 10.2kW single-phase hybrid solar inverter is ideal for high-power applications. It seamlessly integrates with grid-connected storage systems, offering steady performance for both home and small business solar power solutions.
Smart Battery Management & Flexible Expandability
It comes with complete lithium battery charge and discharge control to prolong battery service life. It also supports three-phase operation mode and parallel connection function, allowing you to expand your power system freely according to your actual needs.
Multiple Interfaces for Easy Connectivity
Built with USB, RS232, RS485 and CAN communication ports. The versatile interfaces enable convenient connection with different peripheral devices, making system installation and data communication simple and efficient.
Convenient Remote App Monitoring
Add the optional WiFi module to gain full remote control. Monitor real-time working data, running conditions and energy consumption of the inverter on your mobile phone effortlessly from anywhere.
Maximize Solar Harvest with Stable Sine Wave Output
The wide 120-450VDC MPPT working range greatly improves solar energy absorption efficiency. The high-quality pure sine wave emergency output delivers clean, stable power, which is friendly to all your electric devices.
Specification
| Brand | DAXTROMN |
| Type | Hybrid Solar Inverter |
| Model | GGH-10.2KW-PARALLEL |
| Color | White-Black |
| Max PV Array Power | 10200W |
| Rated Output Power | 10200W |
| Max PV Array Open Circuit Voltage | 500VDC |
| MPPT Operating Voltage Range | 120-450VDC |
| Nominal Output Voltage | 220/230/240V AC |
| Output Voltage Range | 184-265V AC |
| Nominal Output Current | 25.5A / 24.3A / 23.3A |
| Efficiency | 93.5% |
| Operation Mode | OFF-GRID / HYBRID OPERATION |
| Grid Input Range | 120-280VAC |
| Acceptable Input Voltage | 90-280VAC |
| Frequency Range | 50Hz / 60Hz |
| Battery Mode Output (AC) | Nominal Output Voltage: 220/230/240V AC Output Waveform: Pure Sine Wave Maximum Output Power: 10000W Surge Power: 16000VA Automatic Transfer Time: < 8ms |
| Nominal DC Voltage | 48VDC |
| Max Solar Charging Current | 120A |
| Max AC Charging Current | 120A |
| Maximum Total Charging Current | 120A |
| Parallel Function | Yes (Supports Three-phase Mode) |
| Communication Ports | USB, RS232, RS485, CAN |
| Operating Temperature | 0°C to 50°C |
| Relative Humidity | 0~90% RH (Non-condensing) |
| Product Weight | 19.5kg |
| Package Weight | 21.5kg |
| Product Size (L x W x H) | 49×58×14cm |
| Package Size (L x W x H) | 53×66×24cm |
| Package Contents | 1 x Solar Inverter 1 x User Manual |
