Highlights

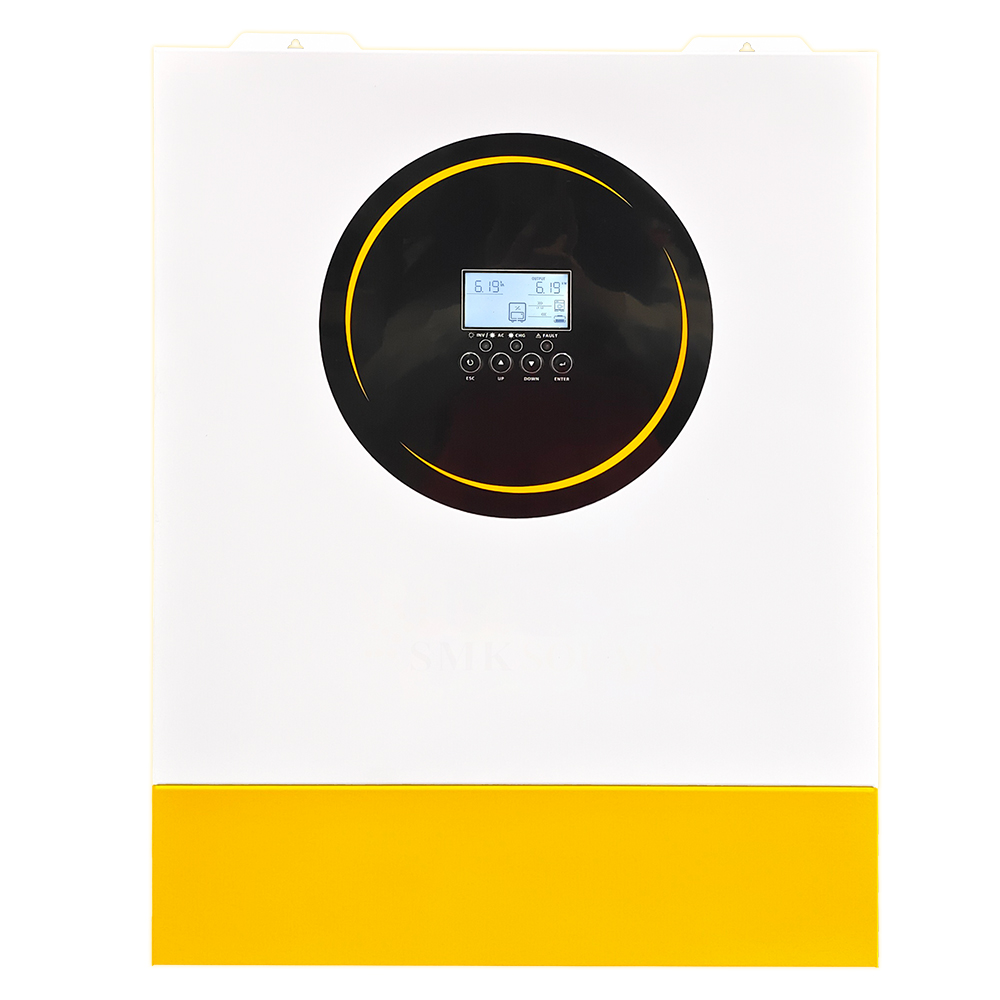

11kW Rated Power & Dual MPPT Design
This 11kW hybrid solar inverter features two built-in MPPT trackers with a total charging current of 160A. Supporting up to 500V DC PV input, it significantly improves solar energy harvesting efficiency and is compatible with various PV system configurations.
Pure Sine Wave Output with 1.0 Power Factor
Delivers stable 11kW rated output with high-quality pure sine wave power and a 1.0 power factor. It ensures smooth, reliable operation and is suitable for a wide range of residential and commercial appliances without performance issues.
LiFePO4 Battery Compatibility & Activation
Fully compatible with LiFePO4 battery systems via RS485 communication. The inverter supports lithium battery activation through either PV solar input or utility power, simplifying installation and system commissioning.
Flexible Operating Modes & Battery Optimization
Supports three intelligent output priority modes: SUB, SBU, and SUF, to meet different energy usage scenarios. It can operate normally without a battery connected, while the built-in EQ function helps optimize battery performance and extend lifespan.
Enhanced Durability & Smart Remote Monitoring
Designed for harsh environments, the detachable dust cover provides improved protection and reliability. Optional WiFi monitoring enables real-time remote system tracking for convenient and intelligent energy management.
Specification
| Brand | DAXTROMN |
| Type | Hybrid Solar Inverter |
| Model | EGH-11KW |
| Color | Yellow |
| Rated Capacity | 11kW |
| Max PV Input Power | 11kW |
| Parallel Capability | No |
| Lithium Battery Activation | Yes (via PV or Utility) |
| Battery Communication | RS485 |
| Nominal Input Voltage | 230VAC |
| Input Voltage Range | PC: 170–280VAC Home Appliances: 90–280VAC |
| Input Frequency | 50/60Hz (Auto sensing) |
| Nominal Output Voltage | 220/230/240VAC |
| Surge Power | 22000VA |
| Waveform | Pure Sine Wave |
| Output Frequency | 50/60Hz |
| Transfer Time | PC: 10ms Home Appliances: 20ms |
| Peak Efficiency | 94% |
| Overload Protection | ≥140% load: 5s 110%–140% load: 10s |
| Power Factor | 0.6–1 (inductive or capacitive) |
| Battery Voltage | 48VDC |
| Max Discharge Current | 220A |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 63VDC |
| Charging Method | CC/CV |
| Charger Type | MPPT |
| Max PV Array Power | 5500W × 2 |
| Max PV Open Circuit Voltage | 500VDC |
| MPPT Voltage Range | 60–500VDC |
| Max Solar Input Current | 18A × 2 |
| Max Solar Charge Current | 160A |
| Max AC Charge Current | 120A |
| Max Total Charge Current | 160A |
| Display | LCD |
| Communication Interface | RS232 / RS485 / Dry Contact |
| Operating Temperature | -10°C ~ 55°C |
| Storage Temperature | -15°C ~ 60°C |
| Humidity | 5% ~ 95% RH (Non-condensing) |
| Product Weight | 14.8kg |
| Package Weight | 16.3kg |
| Product Size (L x W x H) | 54×42×13cm |
| Package Size (L x W x H) | 64×50×22cm |
| Package Contents | 1 x Solar Inverter 1 x User Manual |
