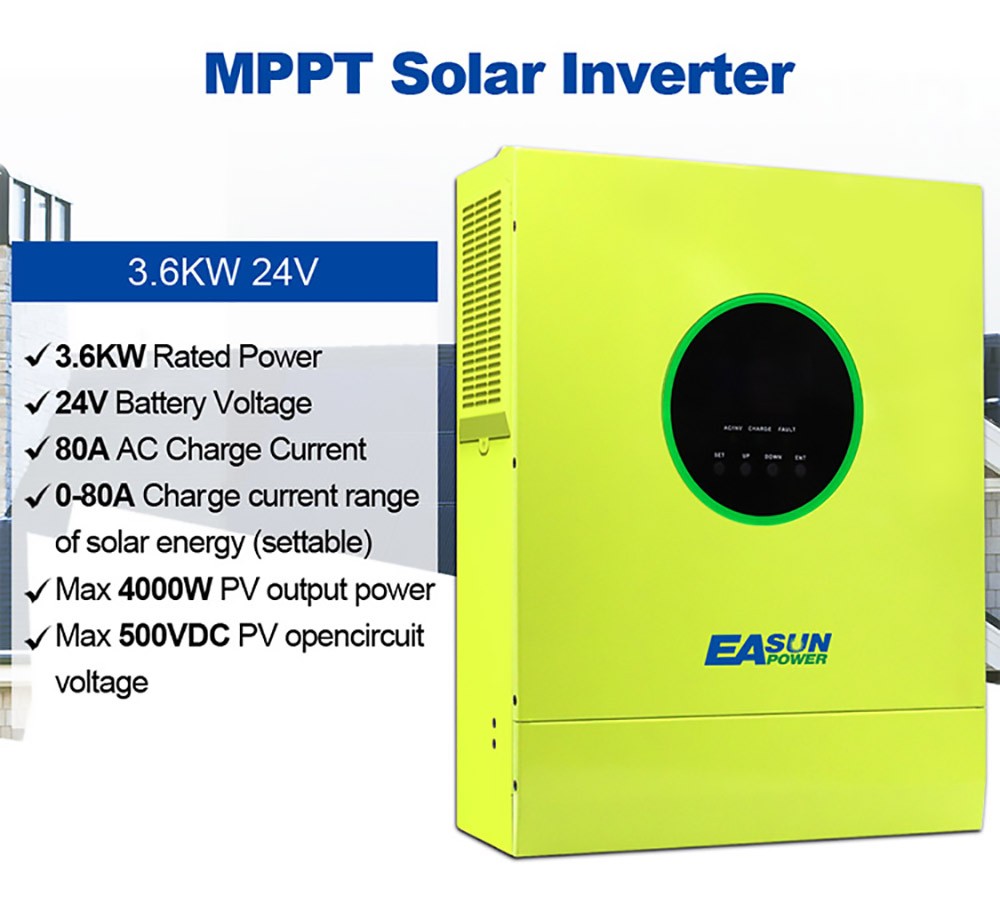

EASUN POWER 3600W Solar Inverter, MPPT 80A Solar Charger, 24V DC, 220/230V AC Off Grid Inverter, Built-in WiFi

General

Specification

Parallel Function: No
Rated Input Voltage: 220/230Vac
Input Voltage Range: (170Vac - 280Vac) ±2%; (90Vac - 280Vac) ±2%
Frequency: 50Hz / 60Hz (Auto detection)
Frequency Range: 47±0.3Hz - 55±0.3Hz (50Hz); 57±0.3Hz - 65±0.3Hz (60Hz);
Overload/Short Circuit Protection: Circuit breaker
Efficiency: >95%
Conversion Time (bypass and inverter): 10ms (typical)
AC Reverse Protection: Available
Maximum Bypass Overload Current: 30A

Inverter Mode
Output Voltage Waveform: Pure sine wave
Rated Output Power (VA): 3600
Rated Output Power (W): 3600
Power Factor: 1
Rated Output Voltage (Vac): 230Vac
Output Voltage Error: ±5%
Output Frequency Range (Hz): 50Hz ± 0.3Hz, 60Hz ± 0.3Hz
Maximum Efficiency: >92%
Peak Power: 6000VA
Loaded Motor Capability: 2HP
Output Short Circuit Protection: Circuit breaker
Bypass Breaker Specifications: 30A

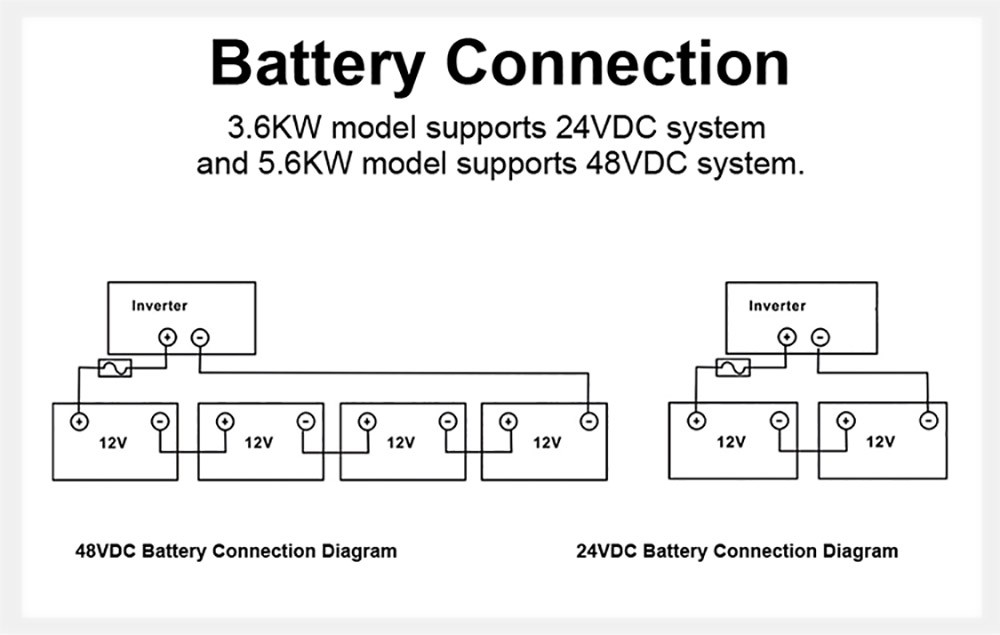

Rated Battery Input Voltage: 24V (minimum start voltage 22V)
Battery Voltage Range: 20.0Vdc - 33Vdc ± 0.6Vdc (Undervoltage alarm/shutdown voltage overvoltage alarm /overvoltage recovery... settable on the LCD screen)
Power Saving Mode: Load ≤50W

AC Charging
Battery Type: Lead-acid or lithium battery
Maximum Charge Current: 80A
Charge Voltage Range: 20 - 33Vdc
Short Circuit Protection: Circuit breaker and blown fuse
Circuit Breaker Specifications: 30A
Overcharge Protection: Alarm and turn off charging after 1 minute

PV Charging
Maximum PV Open Circuit Voltage: 500Vdc
PV Operating Voltage Range: 120-500Vdc
MPPT Voltage Range: 120-450Vdc
Battery Voltage Range: 20-33Vdc
Maximum Input Power: 4000W
PV Charging Current Range (can be set): 0-80A
Charging Short Circuit Protection: Blown fuse
Wiring Protection: Reverse polarity protection

Environment
Operating Temperature Range: -15 - 55 Celsius
Storage Temperature Range: -25 - 60 Celsius
Humidity Range: 5% to 95% (Conformal coating protection)
Noise: ≤60dB
Heat Dissipation: Forced air cooling, variable speed of the fan
Communication Interface: USB/CAN/RS485(WiFi/GPRS)/Dry node control
