Highlights

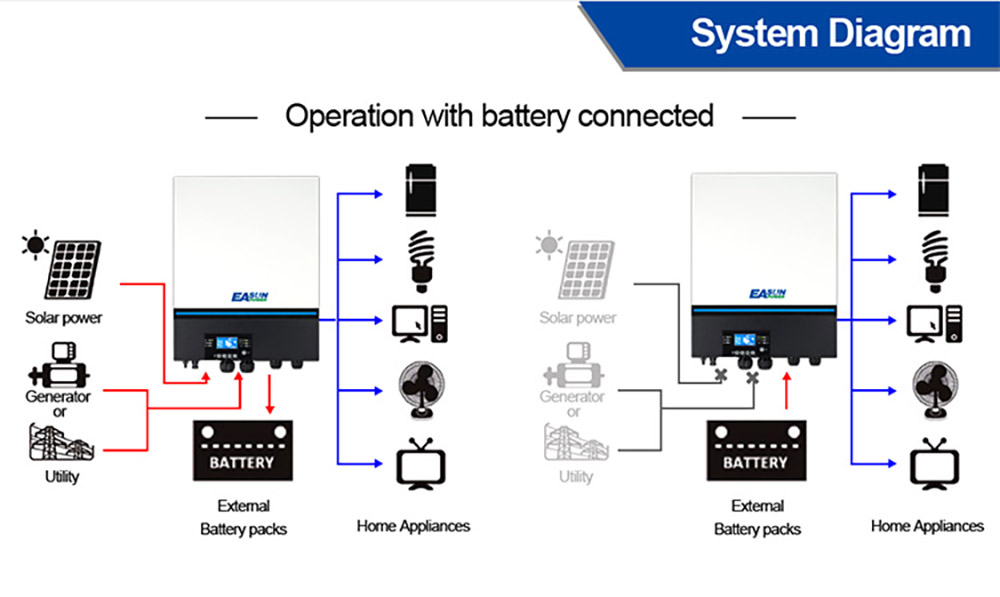

Easun Power 11000W Solar Inverter 500V PV 48V 230VAC PV Array 2 x 80A MPPT is a hybrid inverter that can convert DC current from solar panels into AC current used by home or industrial equipment. This inverter has two MPPT (Maximum Power Point Tracking) controllers that optimize the performance and efficiency of the solar panels. In addition, this inverter can be connected to the electrical network or batteries, thus ensuring power supply in any situation.

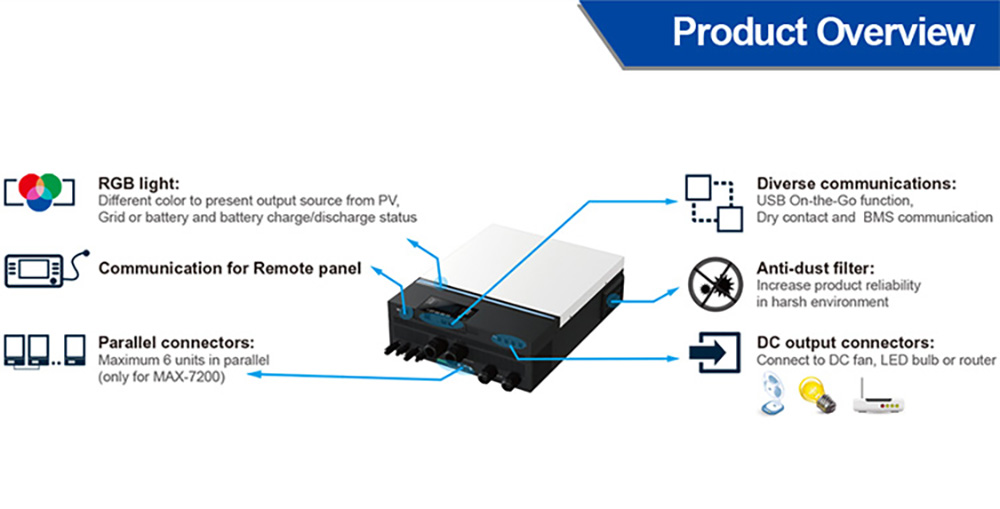

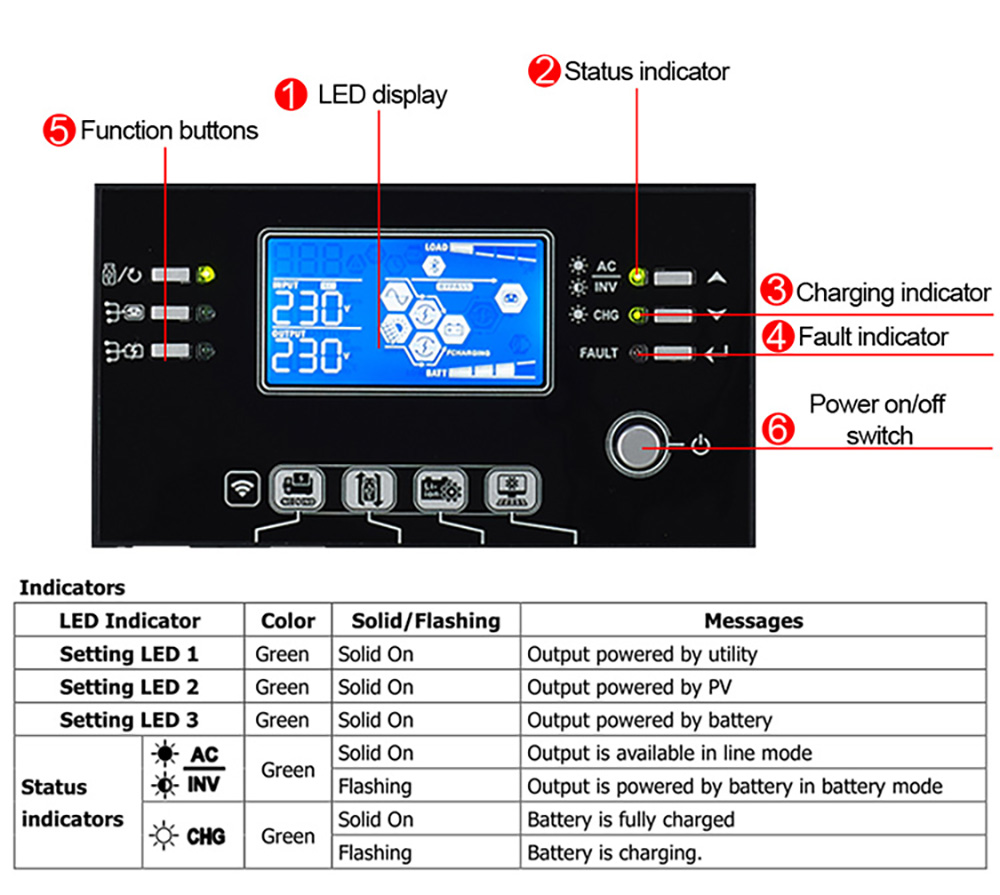

· Status indication with RGB lights
· Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
· Supports USB On-the-Go function

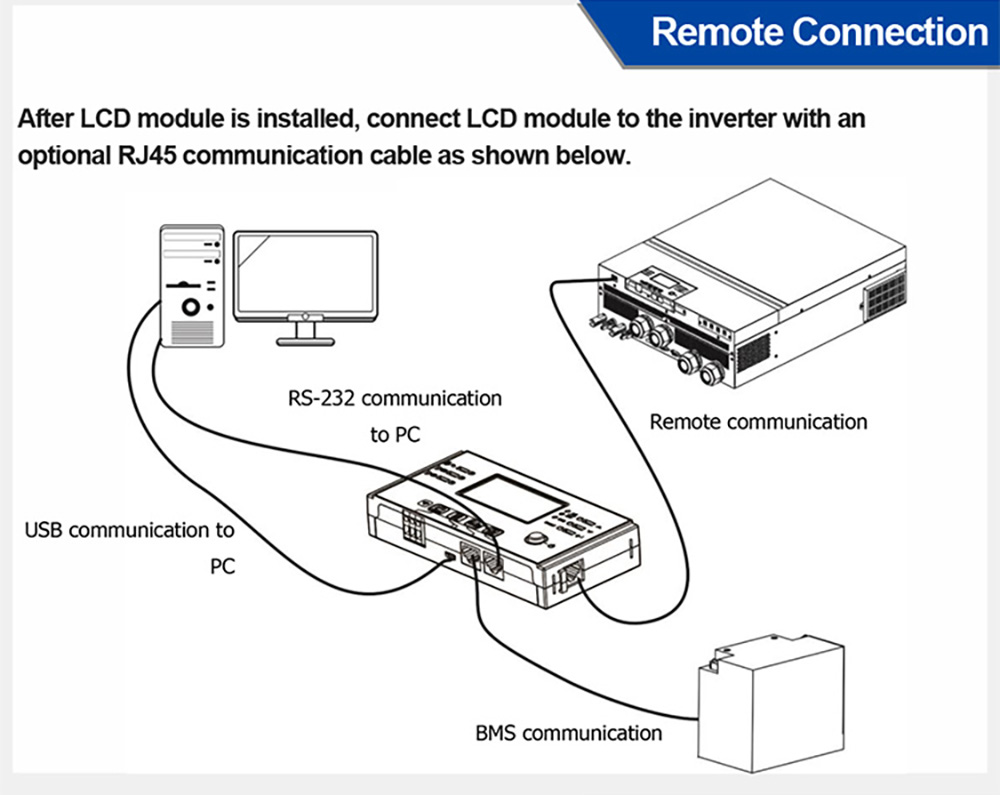

· Reserved communication port for BMS
· Replaceable fan design for ease of maintenance
· Battery-independent design
· Selectable high-power charging current
· Selectable input voltage range for home appliances and personal computers
· Compatible to Utility Mains or generator input
· Built-in anti-dust kit
· Parallel operation with 6 units
· Dual outputs selected as either programmable output or generator input
Specification
| General | Brand: EASUN POWER Type: Off-Grid Inverter Model: ISolar SMW 11K Color: White Black |
| Specification | Rated Power: 11000VA/11000W Parallel Capability: YES, 6 units Input Voltage: 230 VAC Selectable Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances) Frequency Range: 50 Hz/60 Hz (Auto sensing) Output AC Voltage Regulation (Batt. Mode): 230VAC ± 5% Surge Power: 22000VA Efficiency (Peak): 93% Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances) Waveform: Pure sine wave No Load Power Consumption: <70W Dual Outputs: Yes Battery Battery Voltage: 48 VDC Floating Charge Voltage: 54 VDC Overcharge Protection: 63 VDC Solar Charger & AC Charger Solar Charger Type: MPPT Maximum PV Array Power: 11000W MPPT Range @ Operating Voltage: 90 ~ 450 VDC Maximum PV Array Open Circuit Voltage: 500 VDC Maximum Solar Charge Current: 150A Maximum AC Charge Current: 150A Maximum Charge Current: 150A Communication Interface: USB/RS232/RS485/WiFi/Dry-contact OPERATING ENVIRONMENT: Humidity: 5% to 95% Relative Humidity(Non-condensing) Operating Temperature: -10°C to 50°C Storage Temperature: -15°C to 60°C Compliance Safety: CE |
| Weight & Size | Product Weight: 23.5kg Package Weight: 23.5kg Package Size(L x W x H): 70x56x25cm |
| Package Contents | 1 x Solar Inverter 1 x User Manual |
