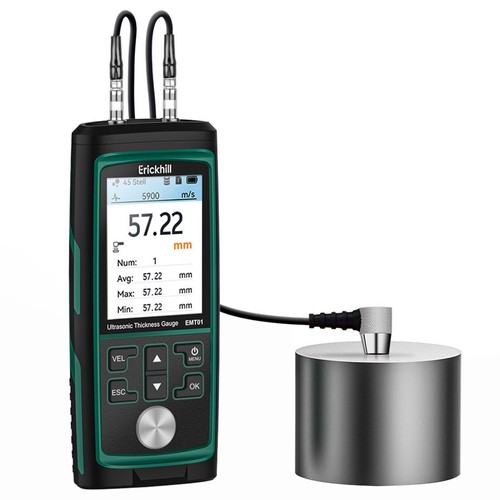

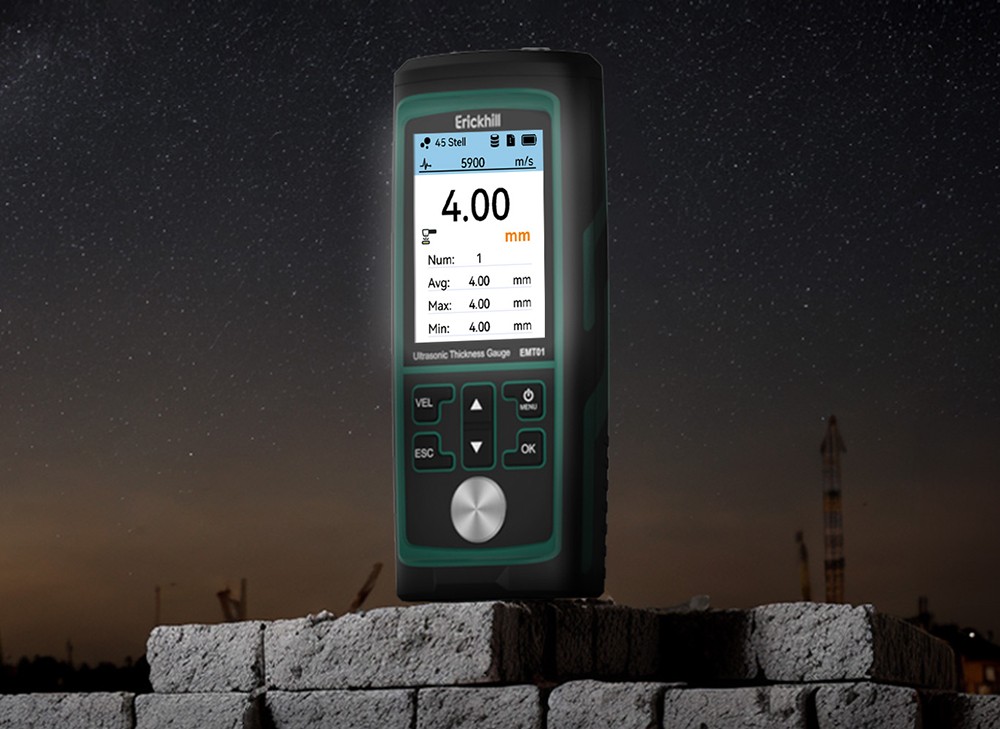

ERICKHILL EMT01 Digital Ultrasonic Thickness Gauge – 0.04–9 Inch (1–300mm) Range, Auto-Calibration, for Metal/Plastic/Pipe Inspection

Highlights

High Precision Industrial Thickness Gauge

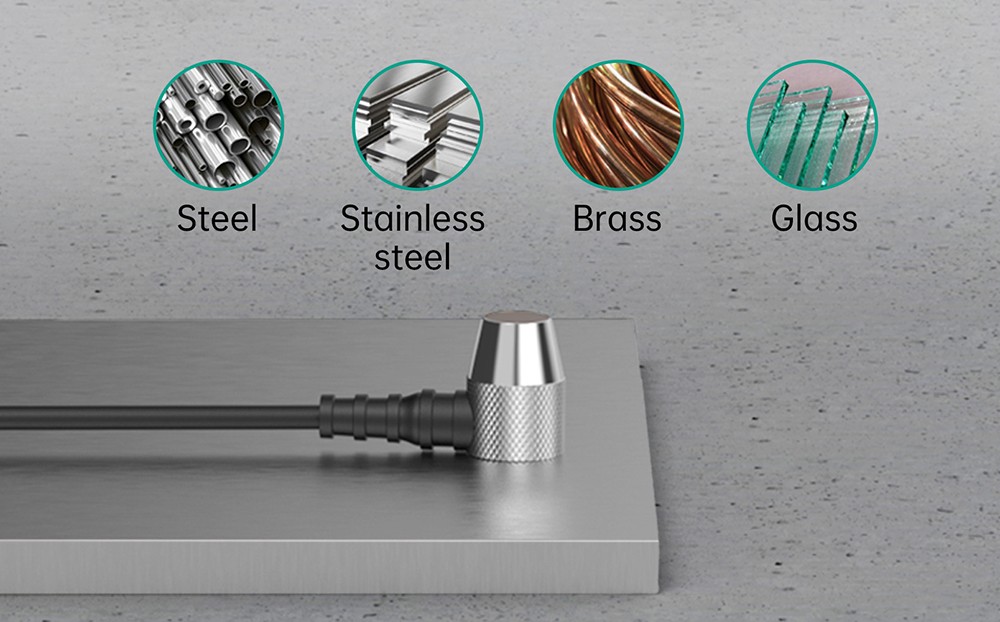

Experience unmatched accuracy with our advanced ultrasonic measurement technology, allowing you to effortlessly measure the thickness of various materials, including metals (such as steel, aluminum, copper), plastics, ceramics, glass, and more, with exceptional precision and ease.

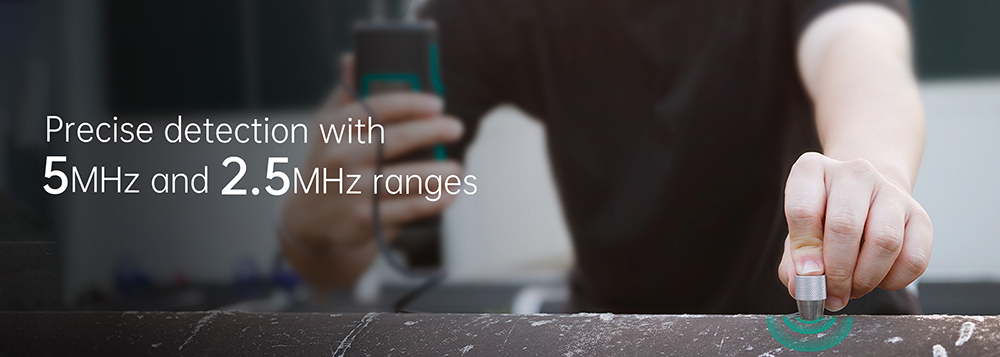

Best Technical Parameters

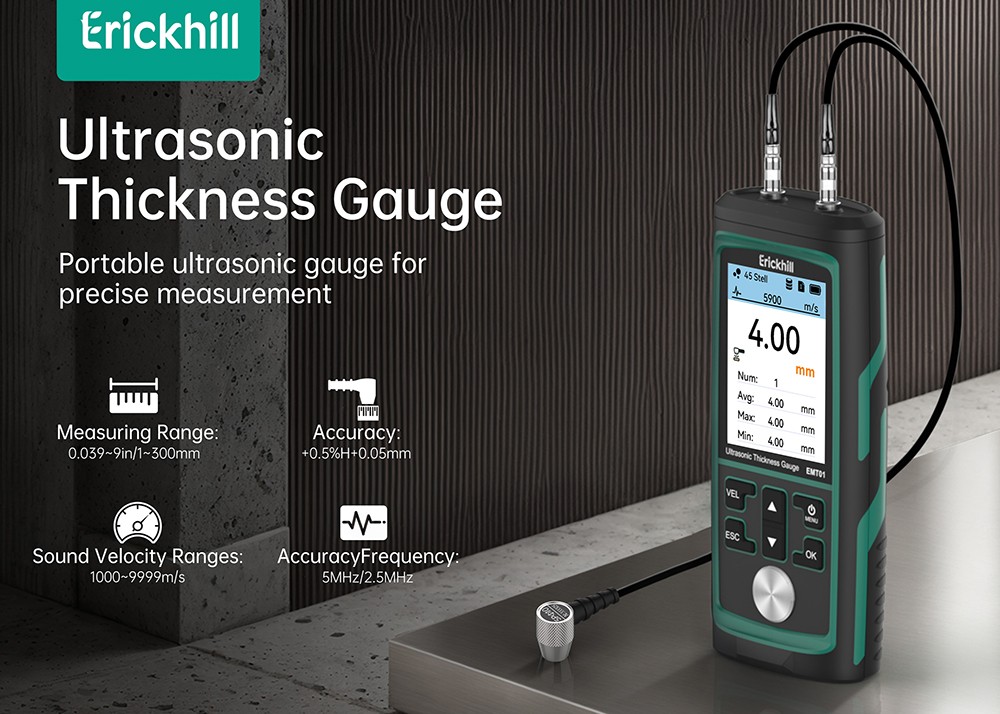

This advanced ultrasonic thickness tester features an impressive measurement range from 0.039 to 9 inches (1mm to 300mm), with an accuracy of ±0.5%H + 0.05mm, a sound speed range of 1000-9999 m/s, and frequencies of 5MHz/2.5MHz, making it perfect for industrial applications and ensuring reliable measurements every time.

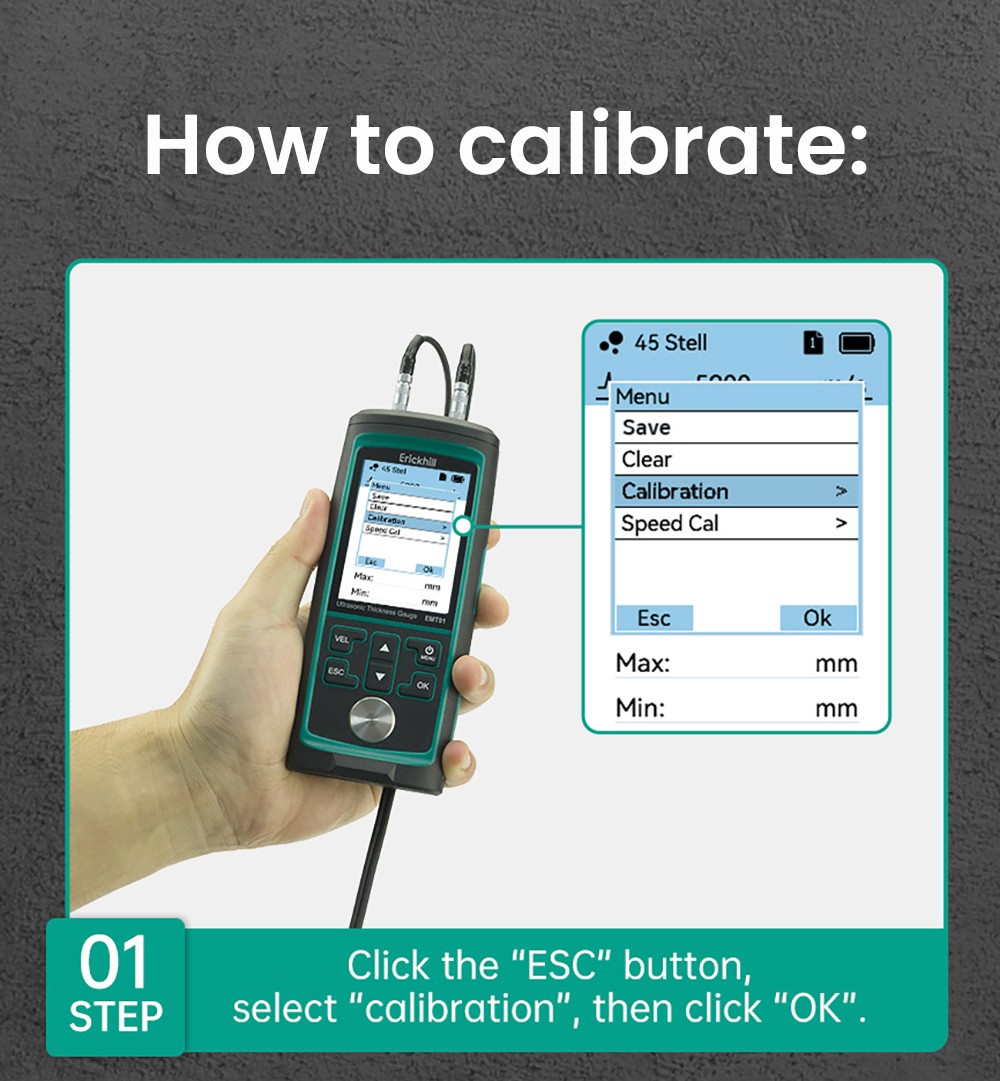

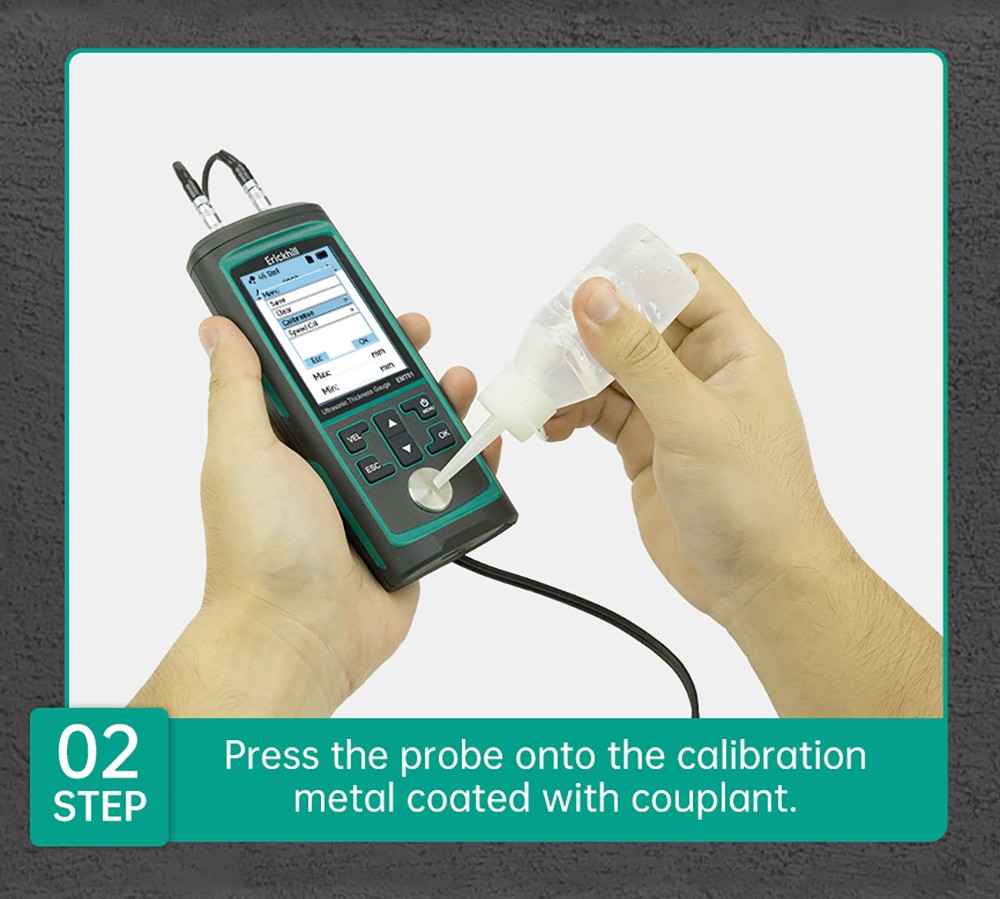

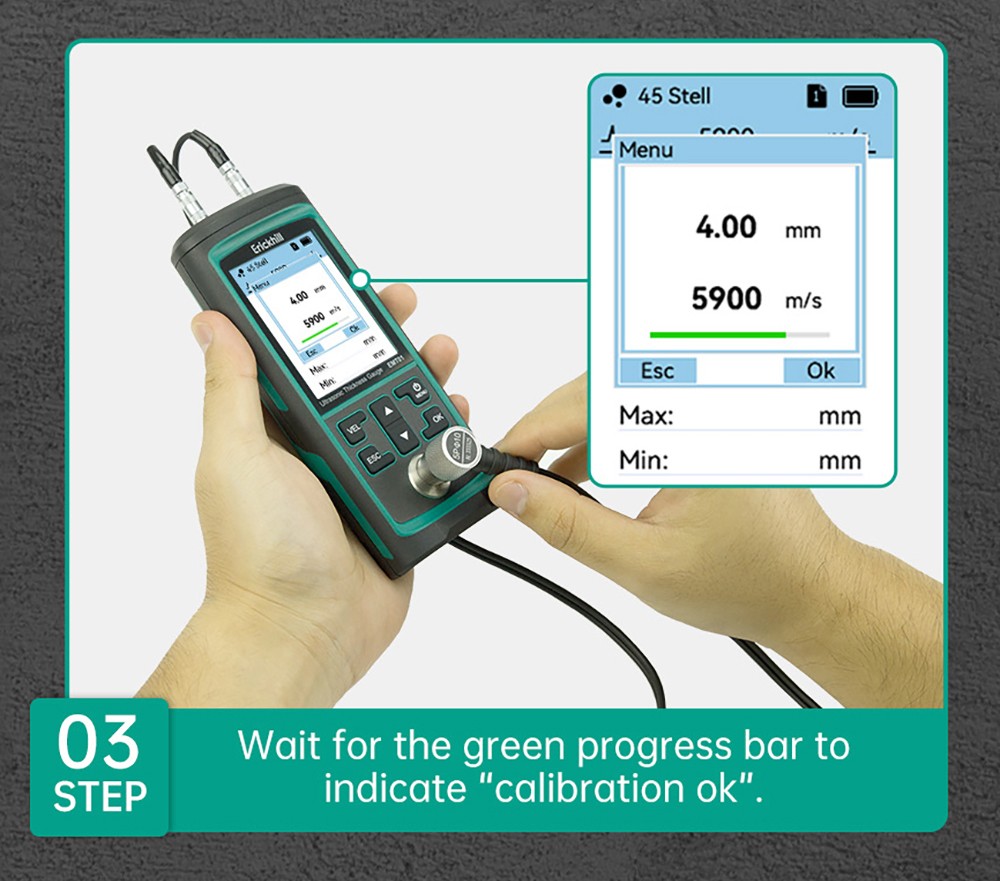

Easy Setup and Measurement Statistics

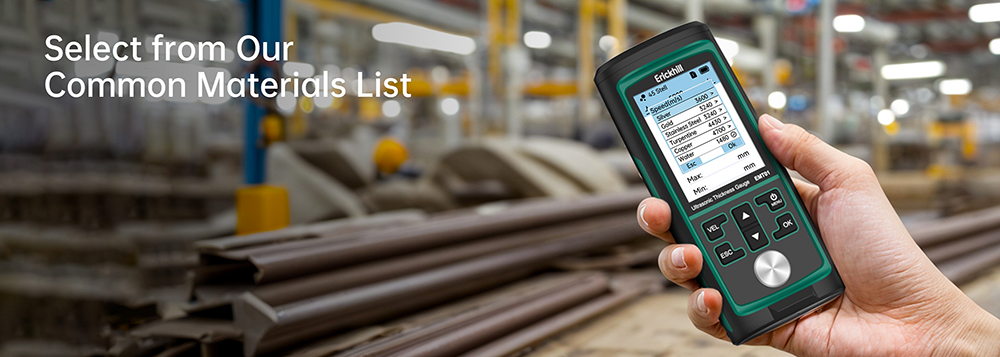

Whether you use the reference plate that comes with your ultrasonic thickness gauge or manually set the speed of sound, calibration is simple and customized accuracy can be achieved.

HD Display and Data Connectivity

Equipped with an HD color screen featuring adjustable backlight brightness (always on/high), supporting USB-C charging and PC data transfer, and a built-in 1000mAh 3.7V lithium battery, ensuring you can easily access and analyze data in any work environment.

Data Storage Flexibility

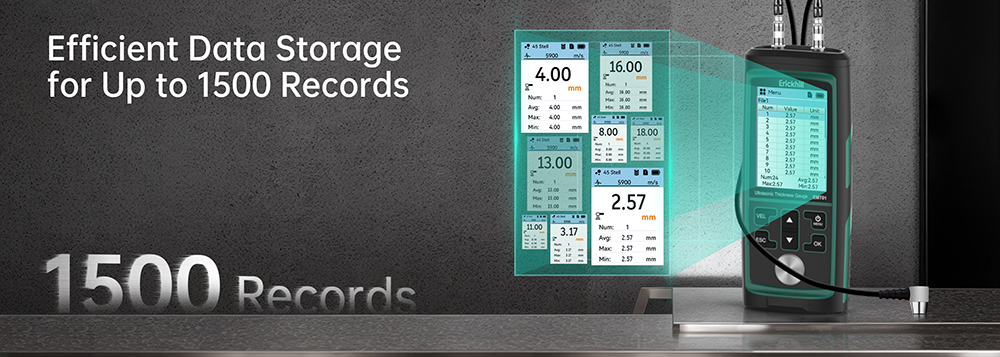

This advanced thickness gauge features both manual and automatic data storage capabilities, allowing you to effortlessly save measurements. With a capacity to store up to 15 groups of data, totaling 1500 entries, you can easily track and analyze results, enhancing your workflow efficiency and accuracy in any industrial setting.

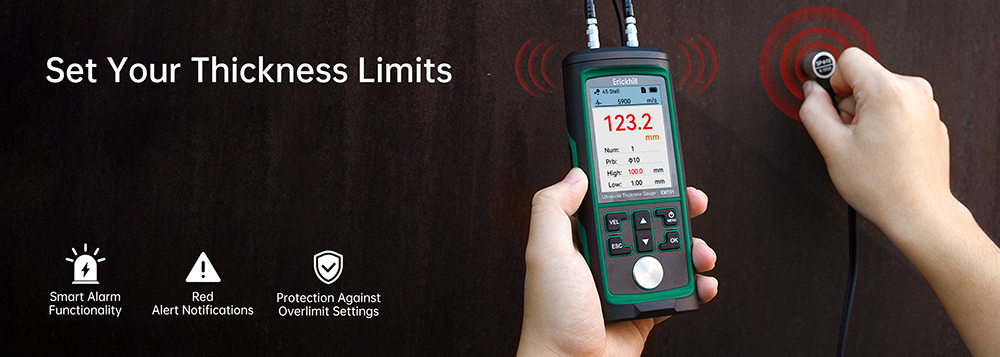

Alarm Function and Red Warning Display

This Ultrasonic measurement is equipped with a highly effective alarm function, ensuring you never miss critical measurements. When values exceed predefined thresholds, the device activates an alert with a striking red display, immediately drawing your attention to potential issues, enhancing safety and preventing costly errors in your operations.

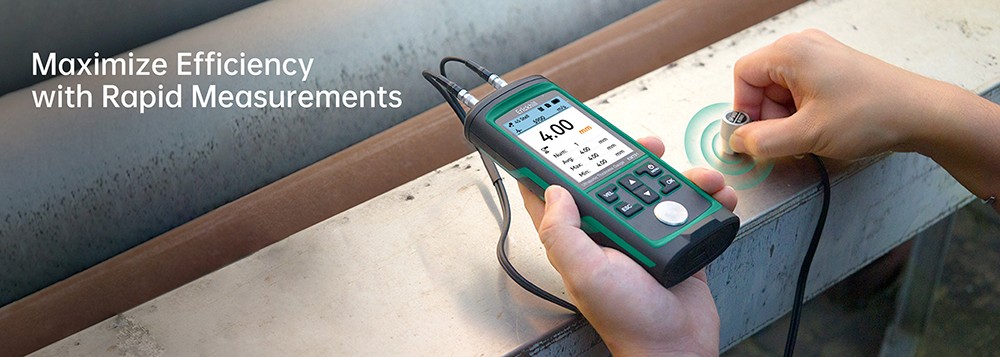

Portable Applications

This ultrasonic thickness gauge is compact and lightweight, making it ideal for various industries. It accurately measures wall thickness in pressure vessels, boilers, and pipelines, ensuring equipment safety. For metal materials, it effectively gauges the thickness of plates, pipes, and bars, supporting efficient monitoring in manufacturing. Additionally, it’s suitable for assessing the wall thickness of storage tanks in the oil and petrochemical sectors, making it the perfect choice for professionals.

Specification
